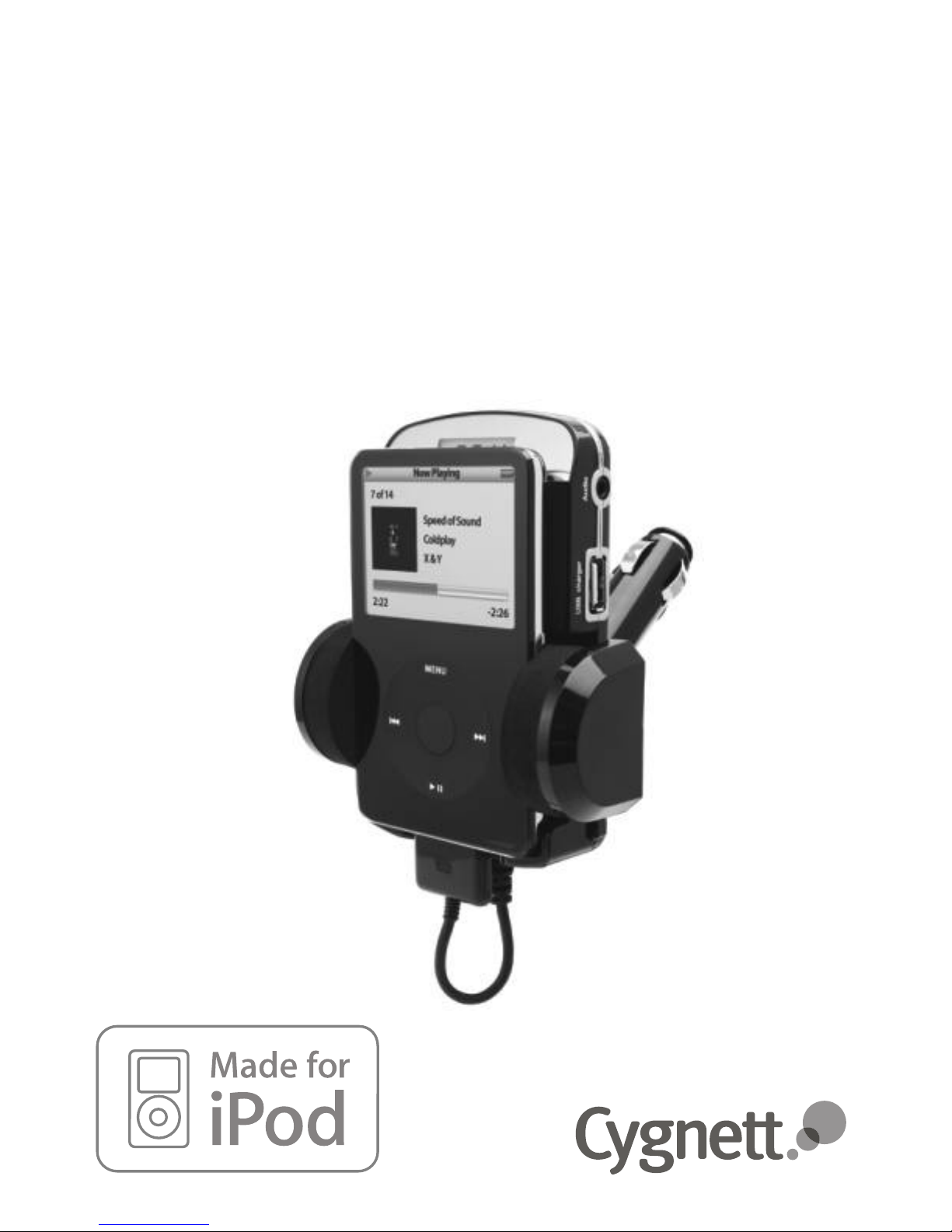

Cygnett CY-A-TRB2 Manuale utente

GrooveTransporter II

Complete Car Kit

Quick Start Guide:

Thank you for purchasing Cygnett's

GrooveTransporter FM Transmitter & Dock

with remote. Now you can broadcast your

iPod tunes to your car stereo.

Warranty

Cygnett 1 Year Manufacturers Warranty

activate your warranty.

Contents

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connecting to iPods. . . . . . . . . . . . . . . . . . . . . .

Connecting to PDAs/Mobiles. . . . . . . . . . . . . . . . . . . .

Connecting to MP3/MP4 players . . . . . . . . . . . . . . . .

Adjusting the position. . . . . . . . . . . . . . . . . . . . . .

Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hot Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Using the remote . . . . . . . . . . . . . . . . . . . . . . . . . . .

Step 1

Getting Started

A) Slide and Click in the

removable car cigarette

adaptor into the back of

the unit.

B) Push the button at the

bottom right hand side

of the unit to extend the

dock arms.

For iPods

Connecting to iPods

Attach the connector at the base of your

GrooveTransporter to your ipod. Place your ipod

between the arms and simultaneously squeeze the

arms until they hold your iPod in a snug position.

For PDAs/Mobiles*

Connecting to PDAs/Mobiles

*Mobiles with 2.5mm or

3.5mm audio outputs compatible.

A) Attach the supplied 3.5mm to 2.5mm audio cable

from the audio out plug on the PDAs/Mobile into

the Audio in plug on the top right hand side of the

GrooveTransporter.

B) To charge your

PDA/mobile via the

GrooveTransporter,

connect the USB cable

received with your

PDA/mobile into the

USB port on the top

right of the unit (below

the audio plug).

USB

port

Audio plug

For other MP3/MP4 players

Connecting to MP3/MP4 players

A) Attach the supplied 3.5mm audio cable from the

audio out plug on the mp3 Player into the Audio in

port on the top right hand side of the

GrooveTransporter.

B) To charge your

MP3/MP4 Player via

the GrooveTransporter

connect the USB cable

received with your

player into the USB

port on the top right

of the unit(below the

audio plug).

USB

port

Audio plug

Step 2

Adjusting Screw

Adjusting the position

Loosen the adjusting screw and insert the arm into

your car cigarette lighter. Push gently until it is fully

inserted. Adjust the dock to achieve the best angle

and tighten the screw to secure this position. Your

iPod will indicate that it is charging when the car

ignition is on.

Step 3

88.1

FM 1

EQ3

1 2 3 4 5 6 7 8

Tuning

Turn the GrooveTransporter on via the on/off switch

on the left hand side of the unit (or the POWER

button on the remote).

Select a clear (unused) frequency on your car fm

radio. The ideal frequency will have only have static

with static also on neighbouring channels.

Set the GrooveTransporter

to the same station using

the up/down buttons on

the left hand side unit (or

the up/down buttons on

the remote).

Step 3 cont.

Hot Tips

Tuning cont.

You can view the frequency selection via the

backlit LCD screen, or your iPod screen if using

an iPod.

Ensure your car radio volume is turned up to the

desired level and control your iPod as usual.

The GrooveTransporter will automatically

memorise the last FM frequency used and will set

to that frequency when the GrooveTransporter is

turned on again.

!Adjusting the volume on your iPod

may help reduce static or distortion

on some frequencies.

!Reception varies in different areas, try

alternative frequencies to determine

the best quality transmission

!Adjust the backlight on your iPod to

'Always On' to receive the strongest

FM signal. Please refer to your iPod

manual on how to do this.
