CYP PU-O4H4C Manuale utente

OPERATION MANUAL

PU-O4H4C

v1.3 HDMI 4x4 Matrix with built

in HDMI over CAT6 outputs

Table of Contents

1. Introduction 1

2. Features 1

3. Package Contents 1

4. Operation Controls and Functions 2

4.1 Front Panel Diagram 2

4.2 Rear Panel Diagram 3

4.3 Remote Control 4-5

5. Pin Denitions 5-6

5.1 Commands 6

6. 3.5mm Connector Pin Denitions 5

6.1 IR IN Pin Denitions 7

6.2 IR OUT Pin Denitions 7

6.3 RJ-45 Pin Denitions 7

7. Connection Diagram 8

8. Specications 8-9

Page 1

1. Introduction

2. Features

•v1.3 HDMI, HDCP 1.1, DVI 1.0 compliant.

•HDMI 4x4 Matrix with built in HDMI over CAT6 transmitter outputs.

•Resolutions supported: PC - VGA to UXGA ; HDTV - 480i to 1080p + 1080p24fps

•

Master Audio + LPCM

•The HDMI input is compensated, clock / phase adjusted, and jitter eliminated

so the output is a brand new standard HDMI signal.

•Supports Deep Colour (10/12 bit).

•

•LED indicators

•Supports 3D signals

3. Package Contents

•4 by 4 HDMI V1.3 Matrix Infrared Repeater Box (CIR-12)

•Remote Control (with Battery)

•1 x IR Receiver.

All the PUMA, HDMI over CAT5e/6 transmitters and receivers are the perfect

solution to extend HDMI signals via CAT cabling up to 40m. The PU-O products

within the PUMA range combine HDMI over CAT5e/6 (PUMA) & HDMI Matrix

switcher (ORBIT) to provide versitility to HDMI installations. The PU-O4H4C HDMI

matrix has 4 HDMI input and 4 CAT transmitter outputs, designed to be used with

PU-1106RX receiver units. Each of the four HDMI sources can be directed to any

one of the four CAT outputs, so each display can show the same or a different

source.

Page 2

4. Operation Controls and Functions

4.1 Front Panel

1. Remote control sensor.

2. Power switch & LED Indicator: This LED will illuminate when the power is turned

on.

3. Input Select/Indicators (A/B/C/D): Press each “HDMI out” button repeatedly to

switch to your desired source. The LED that illuminates to indicate the input

source being selected and routed to HDMI A display.

4. HDCP indicators: This LED will illuminate once the input source being played

comes with a HDCP protection.

5. HDMI/DVI indicators: When the input is HDMI content, this LED will illuminate.

When playing DVI from the input source, this LED will not illuminate.

• 5 x IR Blaster

• 5V DC Power Supply Adaptor

• Power Cord

• Operation Manual

PU-O4H4C

HDMI V1.3 to CAT6 4X4 Matrix

POWER

1 2 3 4

HDCP HDMI/DVI

1 2 3 4

HDCP HDMI/DVI

1 2 3 4

HDCP HDMI/DVI

1 2 3 4

HDCP HDMI/DVI

A BHDMI OUT C D

IN IN IN

1 2 3 4 5

Page 3

4.2 Rear Panel

1. EDID Control Switcher: Default factory setting is on TV, leave as it is when the

display is displaying properly. Switch to STD to use built-in EDID.

Note:

1. When EDID is switched to TV, the unit will detect the rst HDMI output source’s

EDID and record it in the unit. If the rst detected output source is DVI, it will

skip onto the next source until the rst HDMI source is detected. The detection

priority is HDMI v1.3 > HDMI v1.2 > DVI.

2. When EDID is switched to STD, the unit will use its built-in EDID that supports:

Video 1080p 12-bit (max) supports xvYCC Audio PCM 2CH

3. The EDID selection will only be activated after the unit is re-plugged and

powered on.

2. RS-232: This slot is where you connect a D-Sub 9-pin cable to the PC COM port

when controlling the device over RS-232. Detailed specications are listed in

section 9.

3. Video/DDC CAT 6 outputs: These slots are where you connect two CAT6 cables

to a receiver box that has HDMI output and through the HDMI output it can be

connect to TV. The receiver box can also be a splitter that provides additional

CAT6 outputs when cascading from a HDMI receiver to the display via HDMI

cable.

12 3 4 5 6 7 8

CAT6 OUTPUT

HDMI INPUT

IR OUT

STD TV DDC VIDEO

EDID

4 3 2 1

4 3 21

DC 5V

DDDC VIDEO

CDDC VIDEO

BDDC VIDEO

IN OUT

IR MAIN

RS-232

Page 4

4.3 Remote Control

1. Power: Press this button to turn on/off the unit.

4. IR OUT: These slots are where you connect with IR blaster cables included in

the package. Place it near each designate source equipment for infrared signal

sending.

5. HDMI inputs: These slots are where you connect input ports to the HDMI or DVI

output of your source equipments such as DVD player or set-topbox with HDMI

cables.

6. Power: Plug the 5VDC power supply into the unit and connect the adaptor to an

AC wall outlet.

7. IR MAIN IN: This slot is where you connect the IR receiver cable included in the

package. Connecting the IR receiver cable allows you to source equipments

through the existing remote controls.

8. IR MAIN OUT: This slot is where you connect the IR blaster cable included in the

package. Place it near both the device and/or source equipments for infrared

signal sending.

Page 5

2. Input Select for HDMI OUT A: Press 1, 2, 3 or 4 to select the desired input source

for HDMI OUT A.

3. Input Select for HDMI OUT B: Press 1, 2, 3 or 4 to select the desired input source

for HDMI OUT B.

4. Input Select for HDMI OUT C: Press 1, 2, 3 or 4 to select the desired input source

for HDMI OUT C.

5. Input Select for HDMI OUT D: Press 1, 2, 3 or 4 to select the desired input source

for HDMI OUT D.

PU-04H4C Remote Control Console

PIN Denitions PIN Denitions

1 NC 1NC

2 TxD 2 RxD

3 RxD 3TxD

4 NC 4 NC

5 GND 5 GND

6NC 6NC

5. Pin Denitions

* RS-232 transmission format:

Baud Rate: 9600bps

Data Bit: 8 bits

Page 6

COMMAND ACTION

POWER 00 Power Off (standby)

POWER 01 Power On

PORT 11 Output A select Input1

PORT 12 Output A select Input2

PORT 13 Output A select Input3

PORT 14 Output A select Input4

PORT 21 Output B select Input1

PORT 22 Output B select Input2

PORT 23 Output B select Input3

PORT 24 Output B select Input4

PORT 31 Output C select Input1

PORT 32 Output C select Input2

PORT 33 Output C select Input3

PORT 34 Output C select Input4

PORT 41 Output D select Input1

PORT 42 Output D select Input2

PORT 43 Output D select Input3

PORT 44 Output D select Input4

5.1 Commands

Parity: None

Stop Bit: 1 bit

Flow Control: None

Page 7

Pin Assignment

1 Power 5V

2 IR Signal

3 GND

Pin Assignment

1 IR Blaster Signal

2 Power 5V

3 IR Blaster Signal

Pin Video

DDC

1 TX2+ DDC Bus Clock

2 TX2- NC

3 TX1+ DDC Bus Data

4 TX0+ Power 5V

5 TX0- GND

6 TX1- IR IN

7 TXC+ HPD

8 TXC- NC

6. 3.5mm Connectors Pin Denitions

6.1 IR IN Pin Denitions

6.2 IR OUT Pin Denitions

6.3 RJ-45 Pin Denitions

Page 8

8. Specications

Frequency Bandwidth 2.25Gbps (single link)

EDID Standard, TV/Moving Port 1

ESD Protection Human body model: ± 10kV (air-gap di

charge) ± 6kV (contact discharge)

HDMI Audio Output PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1,

DD+, D-TrueHD, and DTS-HD

HDMI Cable In 1080p 8-bit (15M), 1080p 12-bit (15M)

HDMI Cable Out 1080p 8-bit (15M), 1080p 12-bit (15M)

CAT 6 Cable Out 1080p 8-bit (45M), 1080p 12-bit (15M)

Color Space RGB_24/36, YCbCr 4:4:4_24/36, YCbCr 4:2:2,

xvYCC

IR IN/OUT Yes/Yes

Deep Color 1080p 12-bit

HDMI Resolution 480i~1080p 50/60, 1080p 24, VGA~UXGA

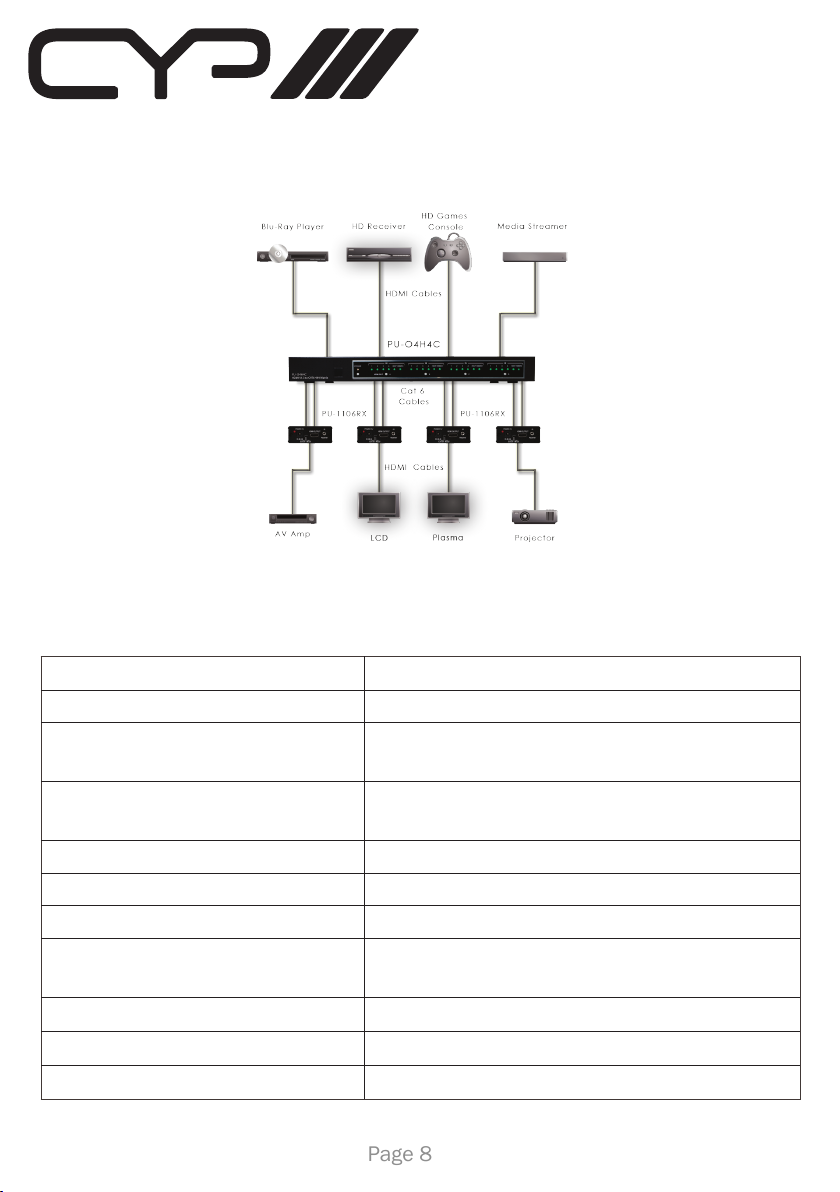

7. Connection Diagram
