CYP CDM-150 Manuale utente

Video System

Converter

Operation Manual

2007.9.26 MPM-CDM150

TABLE OF CONTENTS

1. Introduction.................................................................................1

2. Main Features............................................................................. 1

3. Hardware Description................................................................2

3.1 Front Panel.............................................................................2

3.2 Rear Panel.............................................................................2

4. Connections and Installation....................................................3

5. Specifications..............................................................................3

INPUT OUTPUT

DC5V NTSC

PAL

H. POS.

CENTER

DVD Player

NTSC or PAL Video Recorder

PAL

NTSC

SECAM

Satellite Receiver

NTSC

PAL TV

Camcorder

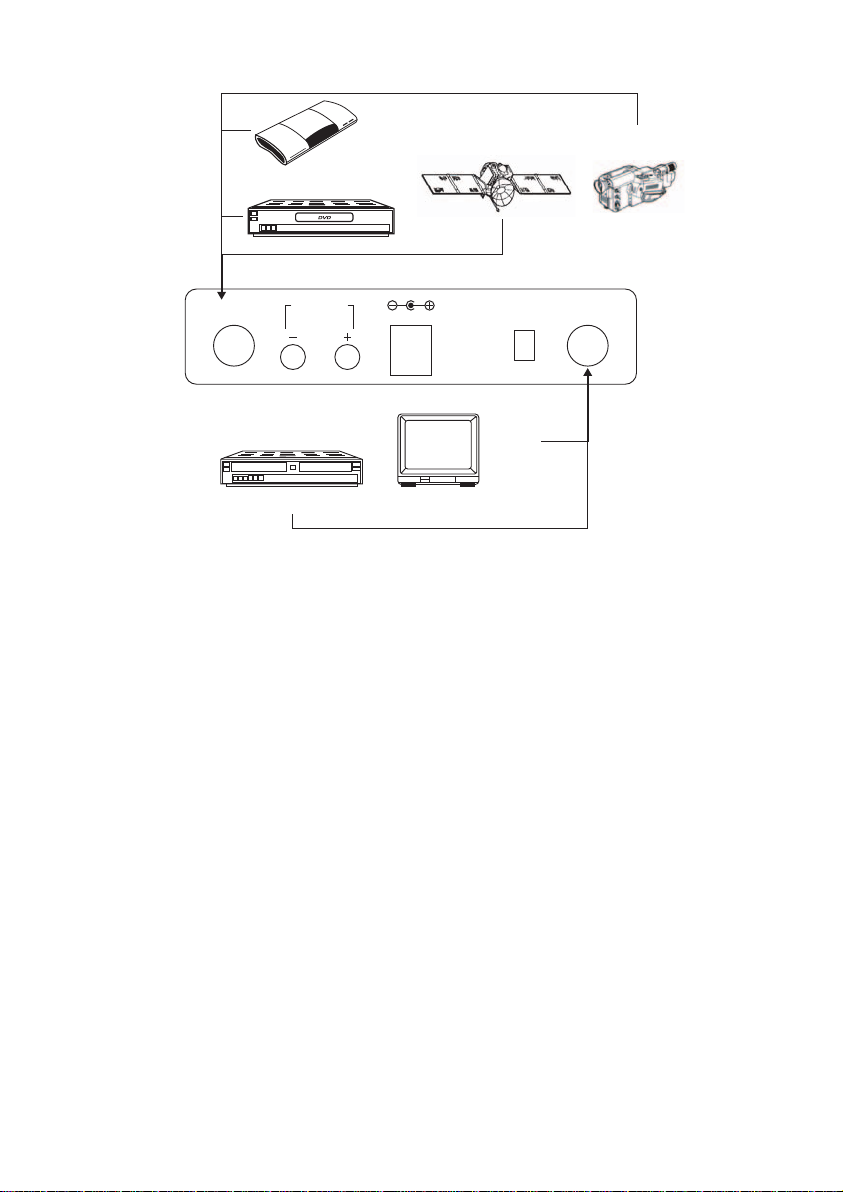

4. Connections and Installation

5. Specifications

Input System NTSC, N4, PAL, PAL M, PAL N, and SECAM

Output System NTSC 3.58, PAL

Input Port Video

Output Port Video

Sampling Frequency Y: 13.5MHz

R-Y: 6.75MHz

B-Y: 6.75MHz

Digital Code bit R: 8 bits

G: 8 bits

B: 8 bits

Line 525/625

Field 60/50

Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)

Dimensions (mm) 146(W) x 95(D) x 33(H)

Weight(g) 144

Chassis Material Plastic

Silk Skin Color Milk White

Operating Temperature Operating from 0oC ~ 48oC

Set-Top-Box

CDM-150

2007.9.26 MPM-CDM150

TABLE OF CONTENTS

1. Introduction.................................................................................1

2. Main Features............................................................................. 1

3. Hardware Description................................................................2

3.1 Front Panel.............................................................................2

3.2 Rear Panel.............................................................................2

4. Connections and Installation....................................................3

5. Specifications..............................................................................3

2007.9.26 MPM-CDM1501

1. Introduction

The Video System Converter is designed to convert video signal from source of

NTSC, N4, PAL, PAL M, PAL N, and SECAM systems (automatically detected), to

NTSC or PAL signal selectable,for the connected display to work properly. It is a

convenient device for user to connect source and display of different TV

systems, and, with the on-panel adjusters it’s easy to fine-tune minor screen

offset caused by display of different type. The installation is simple, just plug in

video cables of input / output and power adapter, and switch between NTSC

and PAL to get the preferable result.

2. Main Features

● Supports digital conversion from NTSC, N4, PAL, PAL M, PAL N, and SECAM

to NTSC/PAL.

● Converts 525 lines to/from 625 lines.

● Converts refresh frequency between 60Hz and 50Hz.

● Provides built-in color bar pattern.

● System is capable with 8 Mb field memory.

2007.9.26 MPM-CDM1502

3. Hardware Description

The following sections describe the hardware components of this converter

box.

3.1. Front Panel

1. The LED indicator will illuminate when the unit is powered on.

3.2. Rear Panel

1. Video input: Connect to video source using video composite cable.

2. H. POS. Center: To adjust the display to right/left.

3. DC 5V/1A: Plug the 5VDC power supply into the unit and connect the

adaptor to AC wall outlet.

4. NTSC/PAL: Select the output signal. NTSC supports 3.58 format only.

5. Video output: Connect to display using video composite cable.

INPUT OUTPUT

DC5V NTSC

PAL

H. POS.

CENTER

32 4 5

POWER

CDM-150

Video system converter

2007.9.26 MPM-CDM1503

INPUT OUTPUT

DC5V NTSC

PAL

H. POS.

CENTER

DVD Player

NTSC or PAL Video Recorder

PAL

NTSC

SECAM

Satellite Receiver

NTSC

PAL TV

Camcorder

4. Connections and Installation

5. Specifications

Input System NTSC, N4, PAL, PAL M, PAL N, and SECAM

Output System NTSC 3.58, PAL

Input Port Video

Output Port Video

Sampling Frequency Y: 13.5MHz

R-Y: 6.75MHz

B-Y: 6.75MHz

Digital Code bit R: 8 bits

G: 8 bits

B: 8 bits

Line 525/625

Field 60/50

Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)

Dimensions (mm) 146(W) x 95(D) x 33(H)

Weight(g) 144

Chassis Material Plastic

Silk Skin Color Milk White

Operating Temperature Operating from 0oC ~ 48oC

Set-Top-Box
