CYP CH-2D3D Manuale utente
Operation Manual
Operation Manual
CH-2D3D
2D to 3D Converter
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VS1 25/11/11 First release
CONTENTS
1. Introduction..............................................1
2. Applications.............................................1
3. Package Contents ..................................1
4. System Requirements..............................1
5. Features....................................................1
6. Operation Controls and Functions.........2
6.1 Front Panel ..........................................2
6.2 Rear Panel...........................................3
7. Connection Diagram ..............................4
8. Specications..........................................5
9. Acronyms .................................................5
1
1. INTRODUCTION
The 2D to 3D Converter offers real-time conversion of 2D content into
3D. Using this device you can easily create a 3D video using 3D TV/
display. Instead of purchasing expensive 3D DVDs, this device allows
you to convert 2D formats into 3D formats, for instance 2D content to
SBS (Side-by-side Half).
2. APPLICATIONS
• Home entertainment
• Showroom environments
3. PACKAGE CONTENTS
•2D to 3D Converter
•5 V/2.6 A DC power adaptor
•User Manual
4. SYSTEM REQUIREMENTS
2D Blu-ray or DVD Player with HDMI/DVI output and 3D HDTV with
HDMI display.
5. FEATURES
•Supports 2D to 3D Side-by-Side (Half)- (SBSH)
• Up to 1080p@60Hz/24Hz and 720p@60Hz 8-bits
•Supports interlace input bypass but does not support 2D to 3D
•Supports automatic 3D bypass
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
L M
3D Strength MODE
Bypass
3D (SBSH)
H
HDMI OUT
21 3
13D Strength
Press to select 3D image strength (Low/Middle/High).
HDMI OUT
HDMI output to connect to the 3D ready HDMI display.
Mode Select
• Press the mode button to select SBS 3D (SBSH) or bypass mode.
• If no picture is displayed, please check the TV's 3D setting is on SBSH
or select bypass mode.
• Bypass Mode: Supports 3D Resolution
FRAME PACKING SIDE BY SIDE HALF(SBSH) TOP & BOTTOM
1080p@30 1080p@60 1080p@60
1080p@24 1080p@50 1080p@50
720p@60 1080i@60 1080p@24
720p@50 1080i@50 720p@60
720p@60 720p@50
720p@50 720p@30
2
3
3
6.2 Rear Panel
DC 5V HDMI IN
21
1DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to an AC wall outlet.
2HDMI IN
Connect the HDMI output of the 2D source the HDMI IN connector.
4

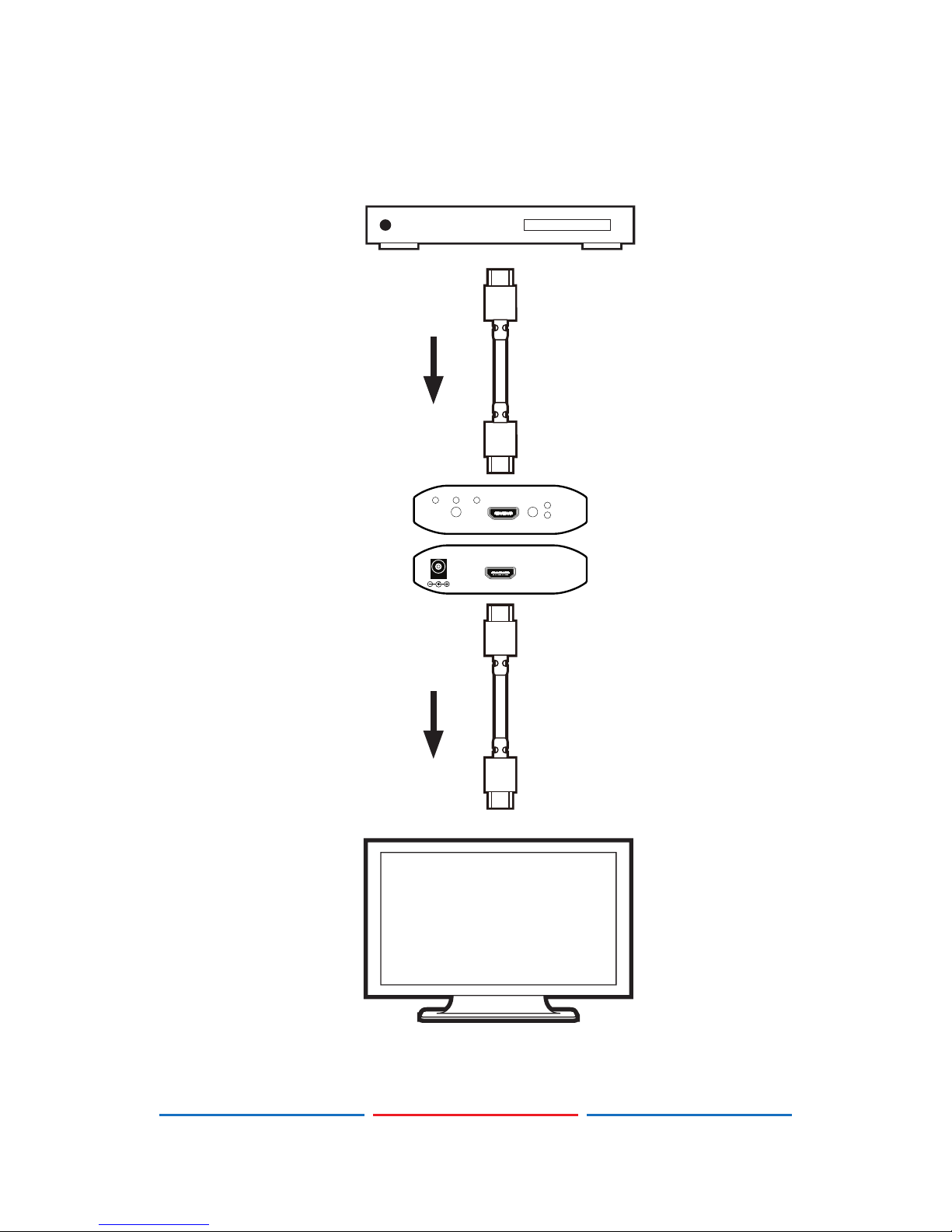

7. CONNECTION DIAGRAM
L M
3D Strength MODE
Bypass
3D (SBSH)
H
HDMI OUT
DC 5V HDMI IN
HDMI Cable
3D TV
2D Video
Front Panel
DVD or Blu-ray Player
Rear Panel
HDMI Cable
3D Video
Side by
Side Half
5
8. SPECIFICATIONS
TMDS Clock Frequency 148.5 MHz
Color Depth 8-bit
Color Space 4:2:2 YUV, RGB
Input Port 1 × HDMI
Output Port 1 × HDMI
Bypass Resolution 480i, 480p@60, 576i, 576p@50,
720p@60, 720p@50, 1080i@50,
1080i@60, 1080p@24, 1080p@50,
1080p@60
2D to 3D Support Resolution 720p@60, 1080p@24, 1080p@60
Power Supply 5 V/2.6 A DC (US/EU standards, CE/
FCC/UL certied)
Dimensions 90 mm (W) × 120 mm (D) × 25 mm(H)
Chassis Material Plastic
SilkScreen Color Black
Weight 100g
Operating Temperature 0 °C~40 °C/ 32 °F~104 °F
Storage Temperature −20 °C~60 °C/−4 °F~140°F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 3.8 W
9. ACRONYMS
ACRONYM COMPLETE TERM
3D 3 Dimensional
HDMI High-Denition Multimedia Interface
SBSH Side-By-Side Half
