DRAFT

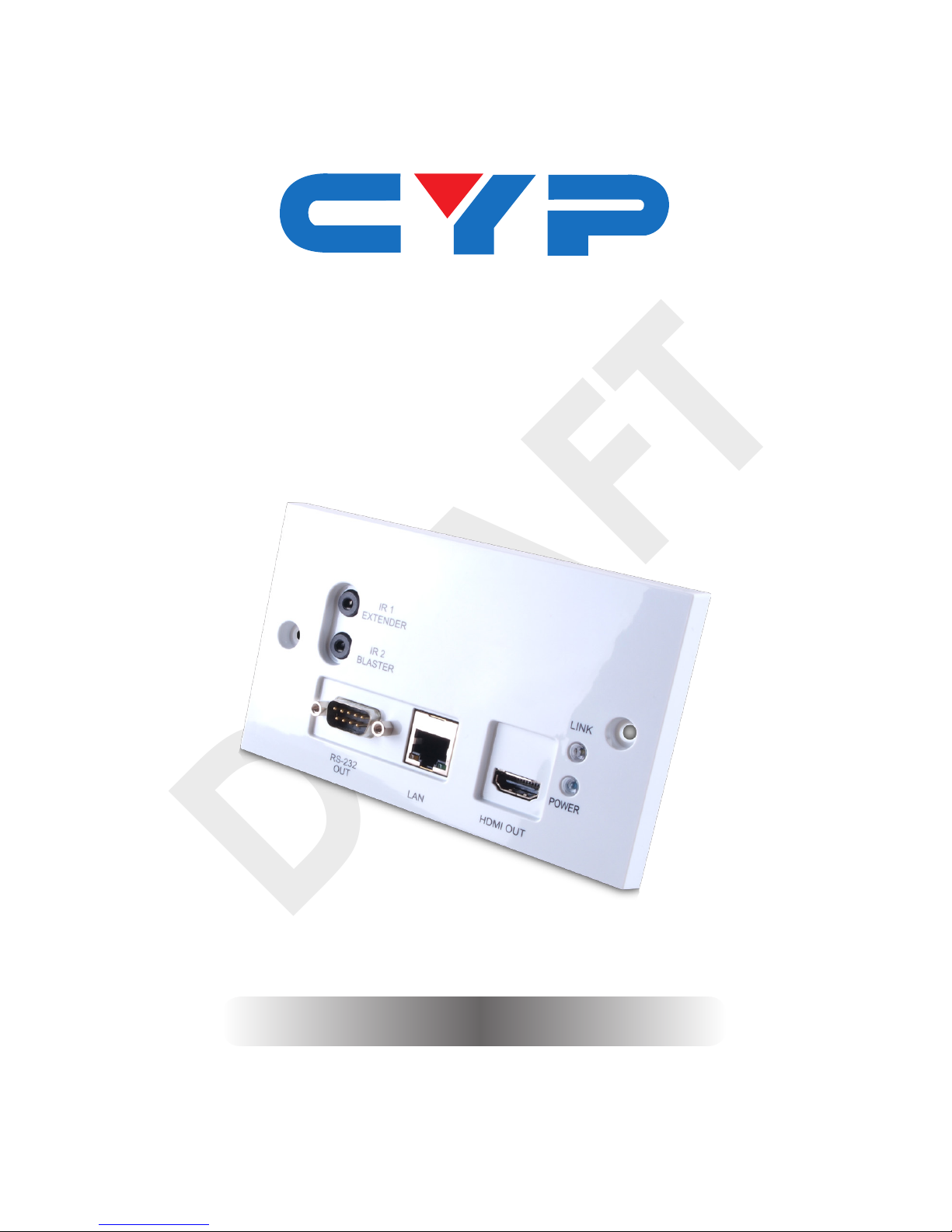

CH-507RXWP
HDMI over Single CAT5e/CAT6
Operation Manual
Operation Manual
DRAFT
DRAFT
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
Version 1.1 June 2012
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
DRAFT
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 14/02/12 Preliminary Release
DRAFT
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
7. D-Sub 9 Pin Denitions........................... 4
8. Connection Diagram ............................ 5
9. Specications ........................................ 6
10. Acronyms ............................................. 7
DRAFT
1
1. INTRODUCTION
The device that can make your home or ofce more efcient, this unit
of HDMI over Single CAT5e/6 can receive uncompressed audio/video,
RS-232 and IR control ports, Power on Ethernet(PoE) and Ethernet over
100M with wall plate design. A trueHDBaseT 5Play solution. Hence, if
you want to make your home or ofce more efcient, get the HDMI
over single CAT5e/CAT6 receiver and prepare to be amazed.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI over Single CAT5e/CAT6 Receiver x 1
• IR Blaster x 1
• IR Receiver x 1
• Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI overCAT5e/6 transmitter with signal and output display
with HDMI input jack.
DRAFT
2
5. FEATURES
• HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant
• Supports HDCP repeater and CEC bypass
• Simultaneously uncompressed data sending over a single
100M/328ft with CAT6 or CAT5e cable
• Uncompressed video 1080p, 60Hz, 36bits
• Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
• 5Play™ convergence: HDMI, POE, Control (IR & RS232) & LAN
• Wall plate design and Installation Friendly
Note: This system was tested with CAT6/23AWG and CAT5e/24AWG
cable, so if using cables of another type, results may vary.
DRAFT
3

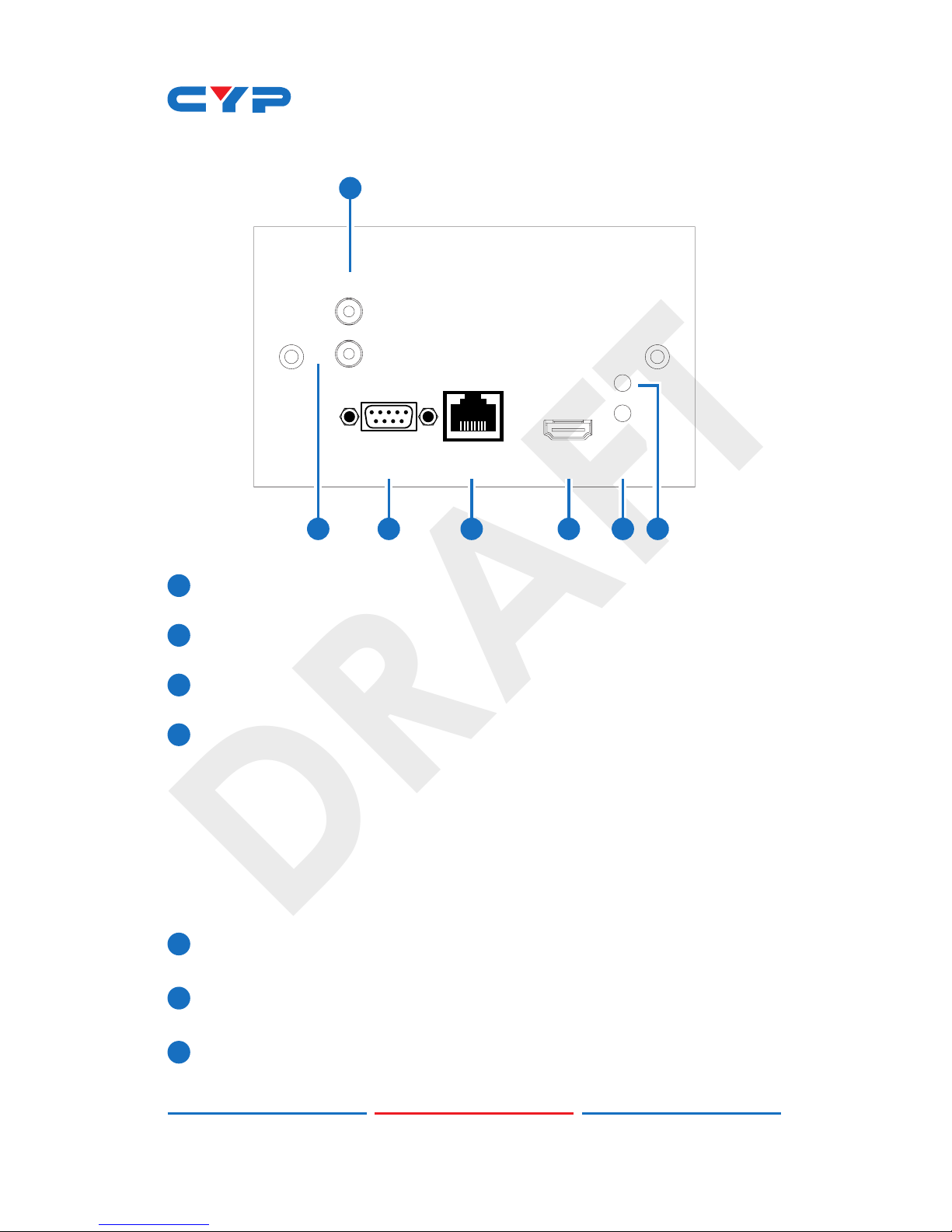

6. OPERATION CONTROLS AND FUNCTIONS
RS-232
OUTLAN HDMI OUT
POWER
LINK
IR 1 Digital Eye
IR 2 Emitter
1
2 3 4 5 6 7
1IR 1 Digital Eye: This slot is to connect with the IR receiver cable
included in the package for IR signal receiving.
2IR 2 Emitter: This slot is to connect with the IR blaster cableincluded
in the package for IR signal transmitting.
3RS-232 OUT: This slot is to connect with D-Sub 9-pin cable from
device equipment for receiving RS-232 commands.
4LAN: Connect to an active network for LAN serving and Tlenet/
Web GUI control.
When the transmitter or any compatible LAN equipped receivers
are connected to a network, this allows the network access
(including internet access if available) to be shared between the
transmitter and all connected receivers. Connect any Ethernet
equipped device e.g. a Smart TV or games console to the LAN
port of a receiver for that device to share the network/internet
access.
5HDMI OUT: This slot is to connect with HDMI TV/monitor for display
HDMI input source signal.
6Power LED: This green LED will illuminate when the device is
connected to a power supply.
7LINK LED: This yellow LED will illuminate when the both CAT5e/6
input and output signal is connected.
DRAFT
4
7. D-SUB 9 PIN DEFINITIONS
Pin Dene TX/RX
1 N/C
2TxD/RxD
3RxD/TxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
DRAFT
5

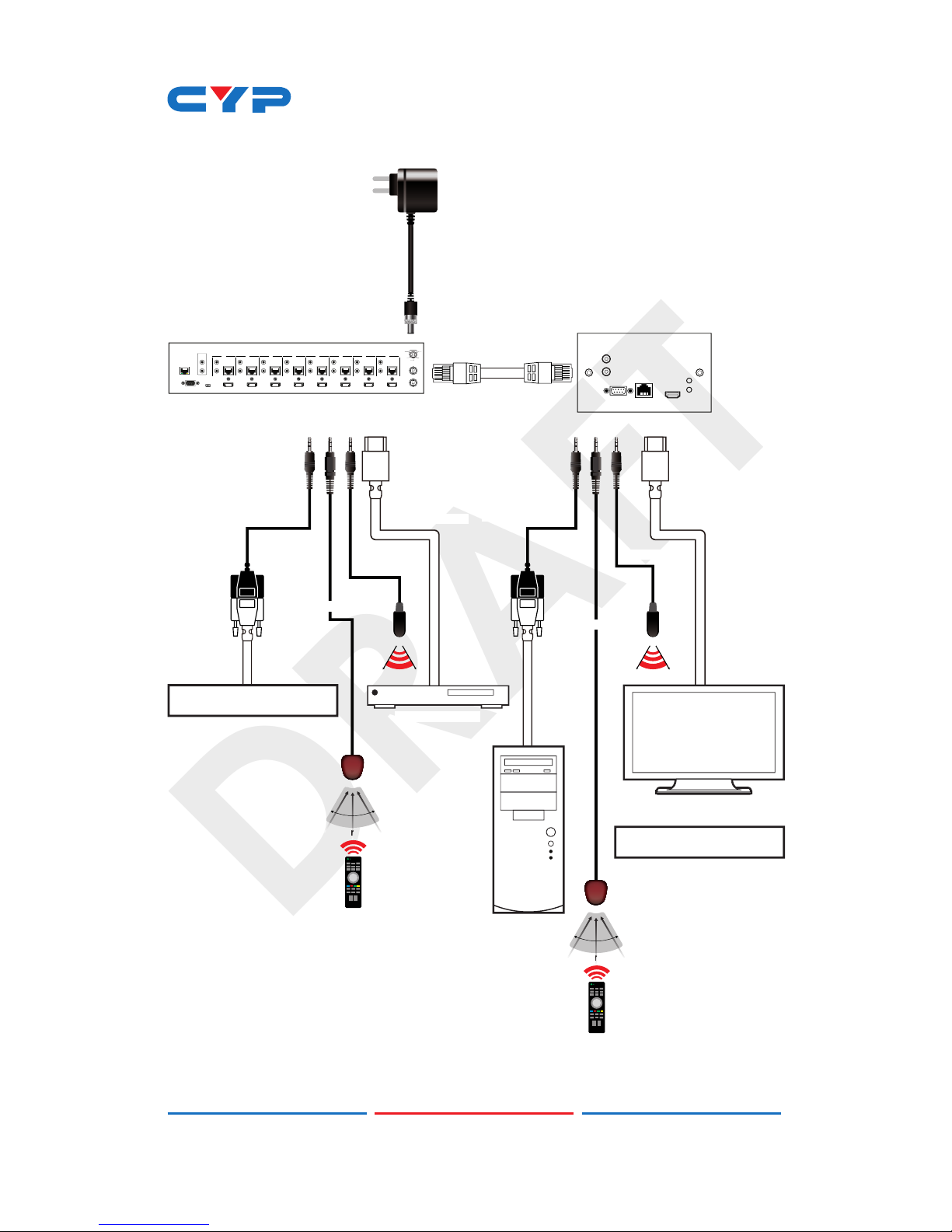

8. CONNECTION DIAGRAM
7m
3m 3m
60°
m
7m
3m 3m
60°
m
1.5m
60°
1.5m
60°
CONTROL
RS232
SERVICE
IR OUT
IR IN
IR OUT
IR IN
IR OUT
IR IN
ALL A B C D E F G H
CAT5e/6OUT
IR OUT
IR IN
CAT5e/6OUT
IR OUT
IR IN
CAT5e/6OUT
IR OUT
IR IN
CAT5e/6OUT
IR OUT
IR IN
CAT5e/6OUT
IR OUT
IR IN
CAT5e/6OUTCAT5e/6OUT
IR OUT
IR IN
CAT5e/6OUT
MAIN 24V
POE 24V
1
HDMI IN
2
HDMI IN
3
HDMI IN
4
HDMI IN
5
HDMI IN
6
HDMI IN
7
HDMI IN
8
HDMI IN
1
2
3
4
V+
GND
GND GND
V+
RS-232
OUT LAN HDMI OUT
POWER
LINK
IR 1 Digital Eye
IR 2 Emitter
IR2 Receiver
IR1 Blaster IR2 Blaster
IR1 Receiver
HD Monitor or TV
Projector
HDMI Cable HDMI Cable
DC
Blu-ray
PC
CAT5e(100M)/
CAT6(100M)
TV/HD Monitor's
Remote
Blu-ray's
Remote
RS-232 Cable RS-232 Cable
