CYP CP-1261D Manuale utente

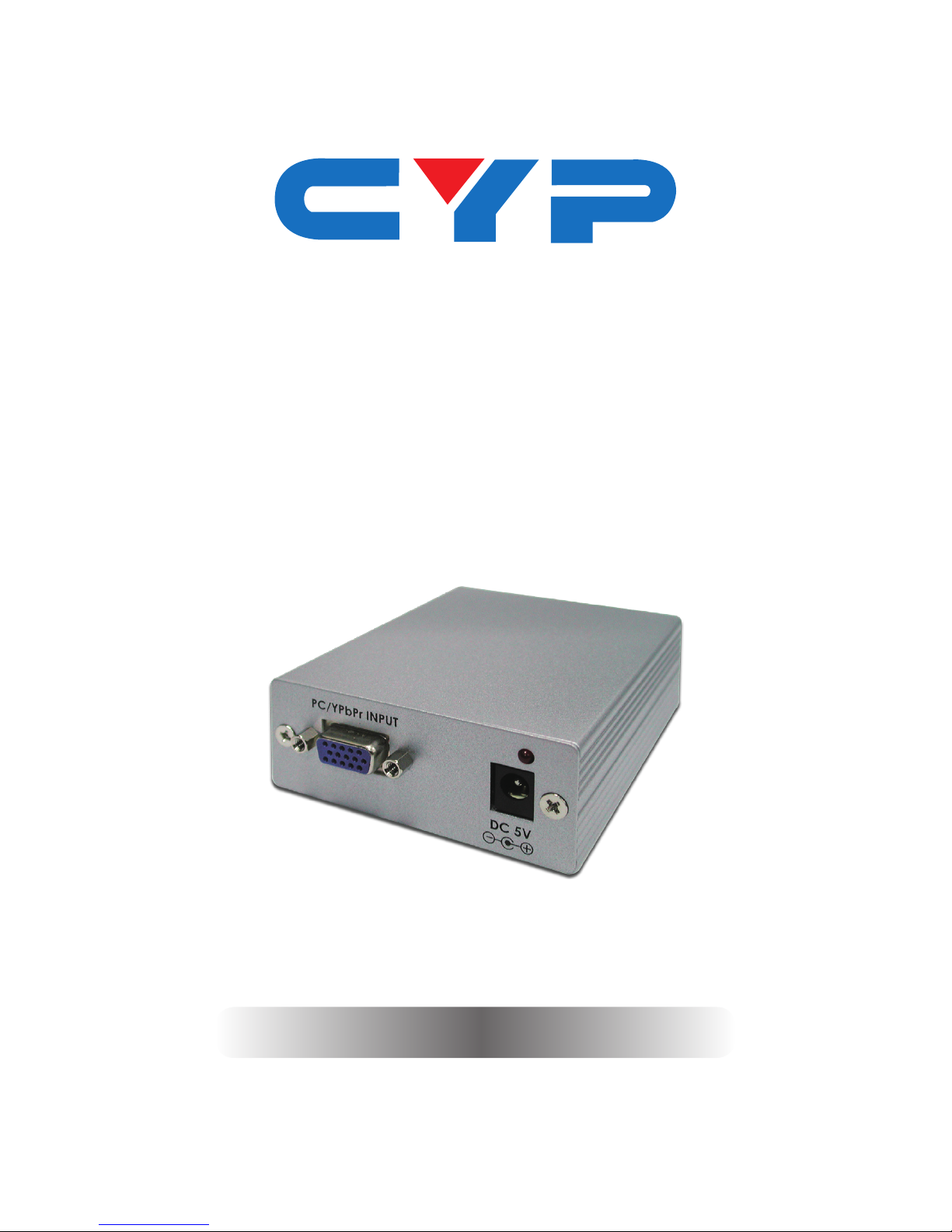

CP-1261D

PC/HD to DVI Format Converter

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VR0 27/10/08 Preliminary Release

VS1 24/06/13 Updated format/diagrams

CONTENTS

1. Introduction................................................1

2. Applications...............................................1

3. Package Contents ....................................1

4. System Requirements................................1

5. Features......................................................1

6. Operation Controls and Functions........... 2

6.1 Front Panel.............................................2

6.2 Rear Panel .............................................3

6.3 DVI-I Pin Conguration .........................4

6.4 Resolution Supports...............................5

7. Connection Diagram ................................ 6

8. Specications ............................................7

9. Acronyms ...................................................8

1. INTRODUCTION

This PC/HD to DVI Format converter can convert and upgrade your

input signal from analog to digital and VGA to a DVI signal, whether

your source is a RGB signal from a PC or a Component signal (through

the supplied HD-15 VGA to 3 RCA cable).

2. APPLICATIONS

• Analog PC/HD signal to digital LCD monitor

• Analog source integration for digital systems

3. PACKAGE CONTENTS

• PC/HD to DVI Format Converter

• 5 V/1 A DC Power Supply Adaptor

• D-sub 15-pin to 3 RCA Cable

• Operation Manual

4. SYSTEM REQUIREMENTS

PC/DVD player or other source input and HDTV, projector, monitor or

digital video system.

5. FEATURES

• Connect computers with analog PC output or DVD Players with HD

component output to digital DVI monitors or projectors

• Manual selection of analog RGB or Component (YPbPr) sources

• Manual selection of output between Bypass or digital RGB

• Supports input resolutions up to 1920×1200@60 (RB) for PC and

1920×1080p@60 Hz for HD component

• Built-in EDID management

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

PC/YPbPr INPUT

DC 5V

1 32

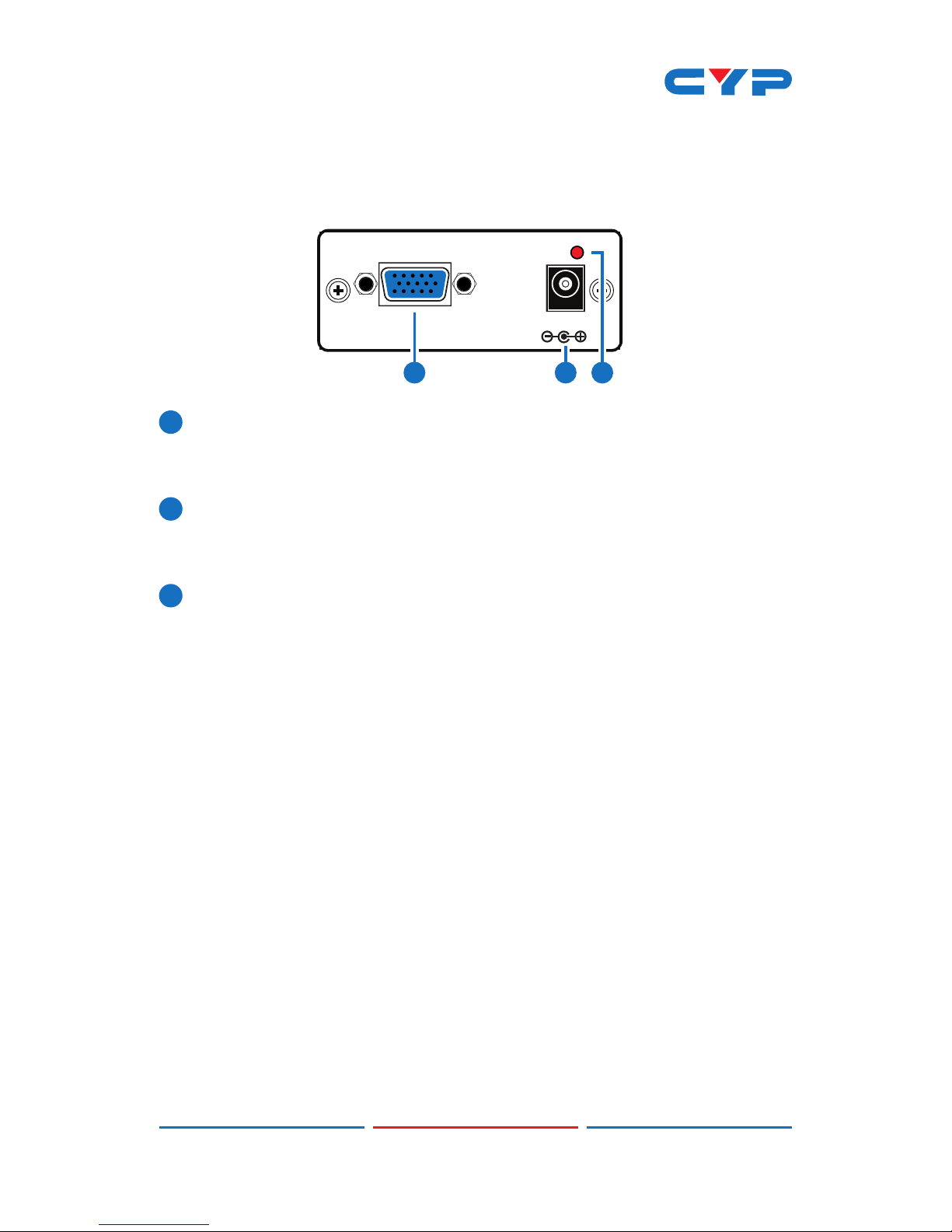

1PC/YPbPr INPUT

Connect to the PC or YPbPr source, using a VGA cable or the

supplied D-Sub 15-pin to 3 RCA adaptor cable.

2DC 5V

Connect the 5 V DC power supply to the unit and plug the adaptor

into AC wall outlet.

3POWER LED

The red LED will illuminate when connected to a power supply.

6.2 Rear Panel

DVI-I OUTPUT OUTPUT

RGB

Bypass

INPUT

RGB

YPbPr

1 2 3

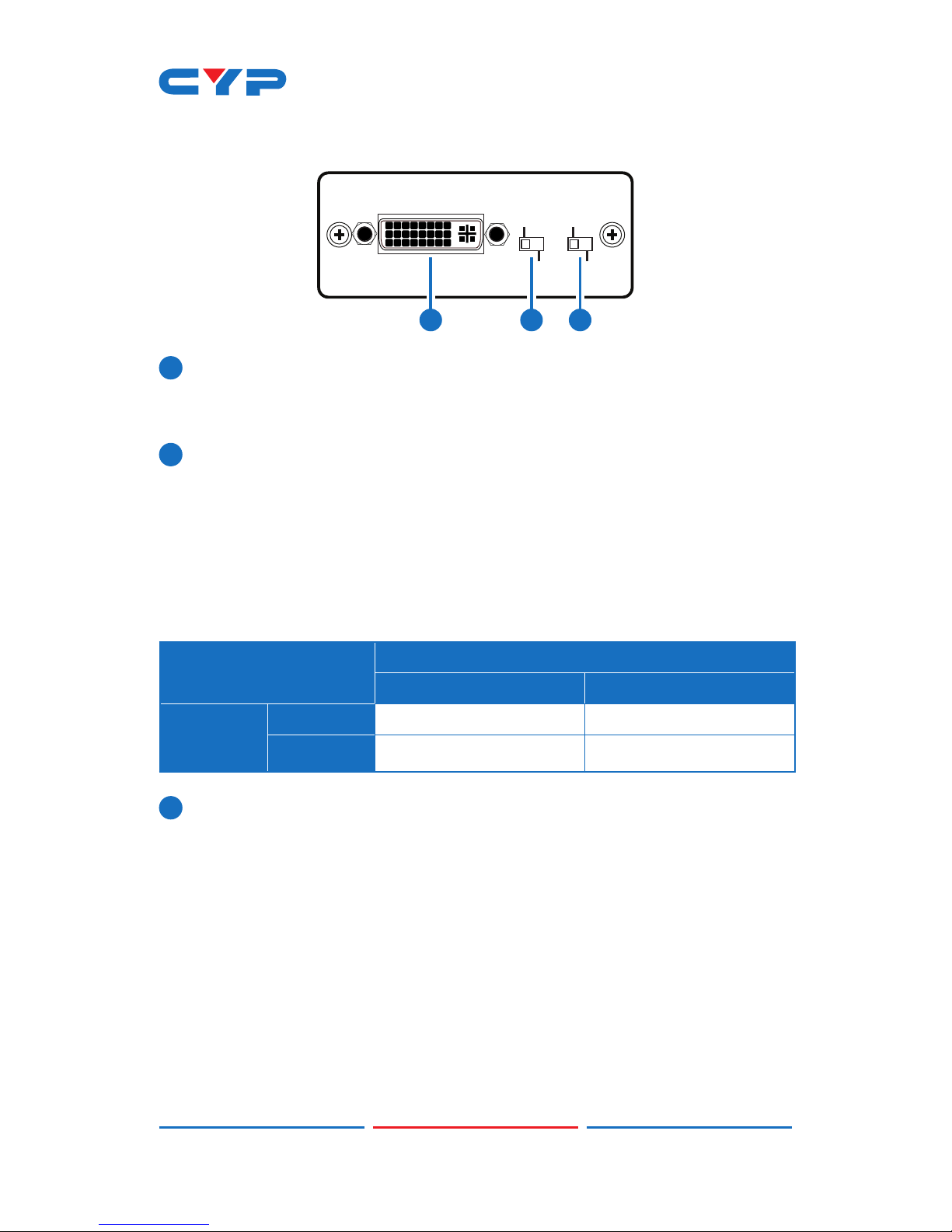

1DVI-I (DVI-D signal) OUTPUT

Connect to the DVI input of your display or digital video system

with a DVI cable.

2INPUT FORMAT SWITCH

YPbPr: Set the switch to YPbPr when the input format of your source

device is Component YPbPr. Use the supplied VGA to 3 RCA

adaptor cable to connect the unit to your source device.

RGB: Set the switch to RGB when the input format of your source

device is RGBHV. Use an HD-15 D-Sub VGA cable to connect the

unit to your source device.

Output Input Switch

YPbPr RGB

Output

Switch

Bypass YPbPr RGB

RGB RGB RGB

3OUTPUT FORMAT SWITCH

Bypass: When the input format is Component YPbPr set the switch

to bypass for digital YPbPr output, set the switch to RGB for digital

RGB output.

RGB: When the input format is RGB, set the switch to either position

for the digital RGB out. There is no Component YPbPr output for

RGB input.

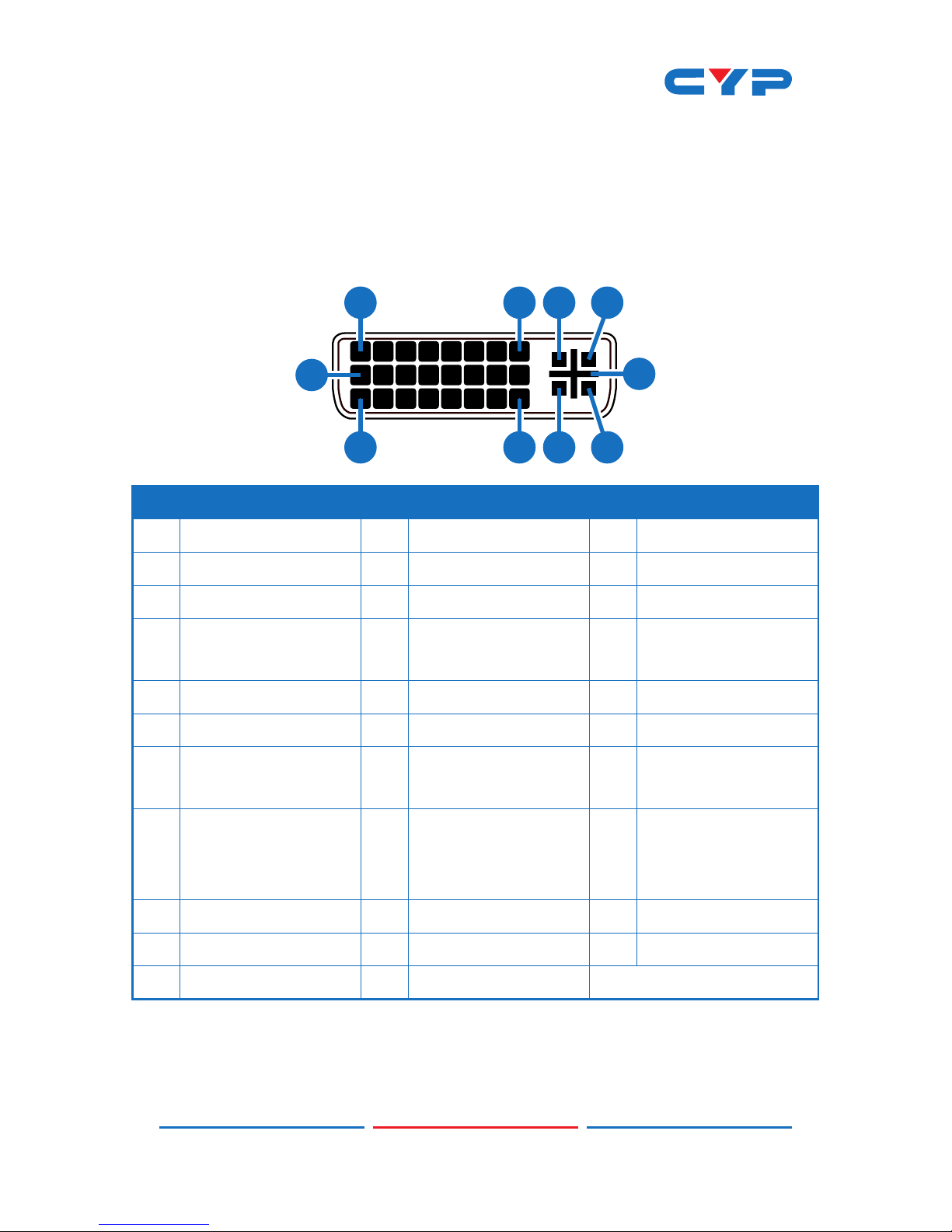

6.3 DVI-I Pin Conguration

DVI-Integrated(DVI-I)- Supports both analog and digital connections

to the display. This 29-pin connector can carry single or dual-link all-

digital video/data signals on 24 pins and uses 5 pins to carry analog

video/data signals and ground.

17 24 C3

8 C1 C2

9C5

COMBINED ANALOG AND DIGITAL CONNECTOR PIN ASSIGNMENTS

Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment

1 9 T.M.D.S Data1- 17 T.M.D.S Data0-

2 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+

3 T.M.D.S. Data2/4

Shield

11 T.M.D.S. Data1/3

Shield

19 T.M.D.S. Data0/5

Shield

4 12 20

5 13 21

6 DDC Clock 14 +5V Power 22 T.M.D.S. Clock

Shield

7 DDC Data 15 Ground (Return

for +5V, Hsync,

and Vsync)

23 T.M.D.S. Clock+

8 16 Hot Plug Detect 24 T.M.D.S. Clock-

C1 C2 C3

C4 C5 Ground

6.4 Resolution Supports

PC 640×480 VGA@60/72/75/85

800×600 SVGA@56, SVGA@60/72/75/85

1024×768 XGA@60/70/75/85

1152×864 MAC@70/75/85

1280×768 WXGA@60 (RB)/60

1280×800 WXGA@60 (RB)/60/75

1288×1024 SXGA@60/75/85

1440×900 WXGA+@60 (RB)/60/75

1600×1200 UXGA@60

1680×1050 WSXGA+@60 (RB)/60

1920×1200 WUXGA@60 (RB) (Pixel-rate154 MHz)

HD/RGB 480i@60, 576i@50

480p@60, 576p@50

720p@60/50

1080p@60/50

1080p@60/50/30

Note:

1. Some PC monitors do not support HD mode.

2. Digital output resolution is the same as the source input.
