CP-293N
PC/HD to HDMI Scaler
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
VR0 11/08/14 Preliminary Release
VR1 25/12/14 Add Audio Cable
VR2 13/01/15 D-sub Cable Type
VS3 14/01/16 Updated Text/Diagrams
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
6.3 OSD Menu.........................................5
7. Connection Diagram ............................ 7
8. Specications ........................................ 8
8.1 Technical Specications .................8
8.2 Input and Output Resolutions.........9
8.3 Audio Specications......................10
9. Acronyms ............................................. 10
1
1. INTRODUCTION
The PC to HDMI Scaler is designed to upscale an analog video
signal from a PC (VGA) or HD (Component Video) source device to
digital HDMI output in a wide range of HDTV and PC resolutions up to
1080p/WUXGA (RB). Additionally this unit can also convert a digital/
analog audio signal and then simultaneously output to an HDMI,
Optical and 3.5mm Mini-jack (L/R audio) connections. This unit has
a comprehensive OSD menu that allows the user to select a variety
of output resolutions and make picture adjustments to optimize the
image quality.
2. APPLICATIONS
• Display an analog PC/HD video signal on an HDMI display
• Scale an analog PC/HD video signal to HD resolutions
• Integrate an analog PC/HD video device, such as a Laptop or non-
HDMI DVD player to an HDMI equipped display or AV receiver
3. PACKAGE CONTENTS
• 1×PC to HD Scaler
• 1×VGA Cable (15-pin D-sub to 15-pin D-sub)
• 1×Stereo Audio Cable (3.5mm to 2×RCA )
• 1×5 V/2.6 A DC Power Adaptor
• 1×Operation Manual
4. SYSTEM REQUIREMENTS
Analog video source equipment such as a non-HDMI equipped DVD
player or PC/Laptop and HDMI equipped display or switching device
such as a matrix or AV receiver.
2
5. FEATURES
• HDMI, HDCP and DVI compliant
• Supports a wide range of PC resolutions from VGA to WUXGA (RB)
and HD resolutions from 480i to 1080p
• Automatically detects the display settings of the connected display
and outputs the correct resolution and refresh rate when the NATIVE
output option is selected
• Supports adjustment of contrast, brightness, hue, saturation,
sharpness, RGB (color tone) level and aspect ratio size of the video
output
• Supports OSD selectable stereo analog and digital audio inputs
and simultaneous stereo analog and digital audio outputs to HDMI,
Optical digital audio and analog mini-jack connections
3
6. OPERATION CONTROLS AND FUNCTIONS

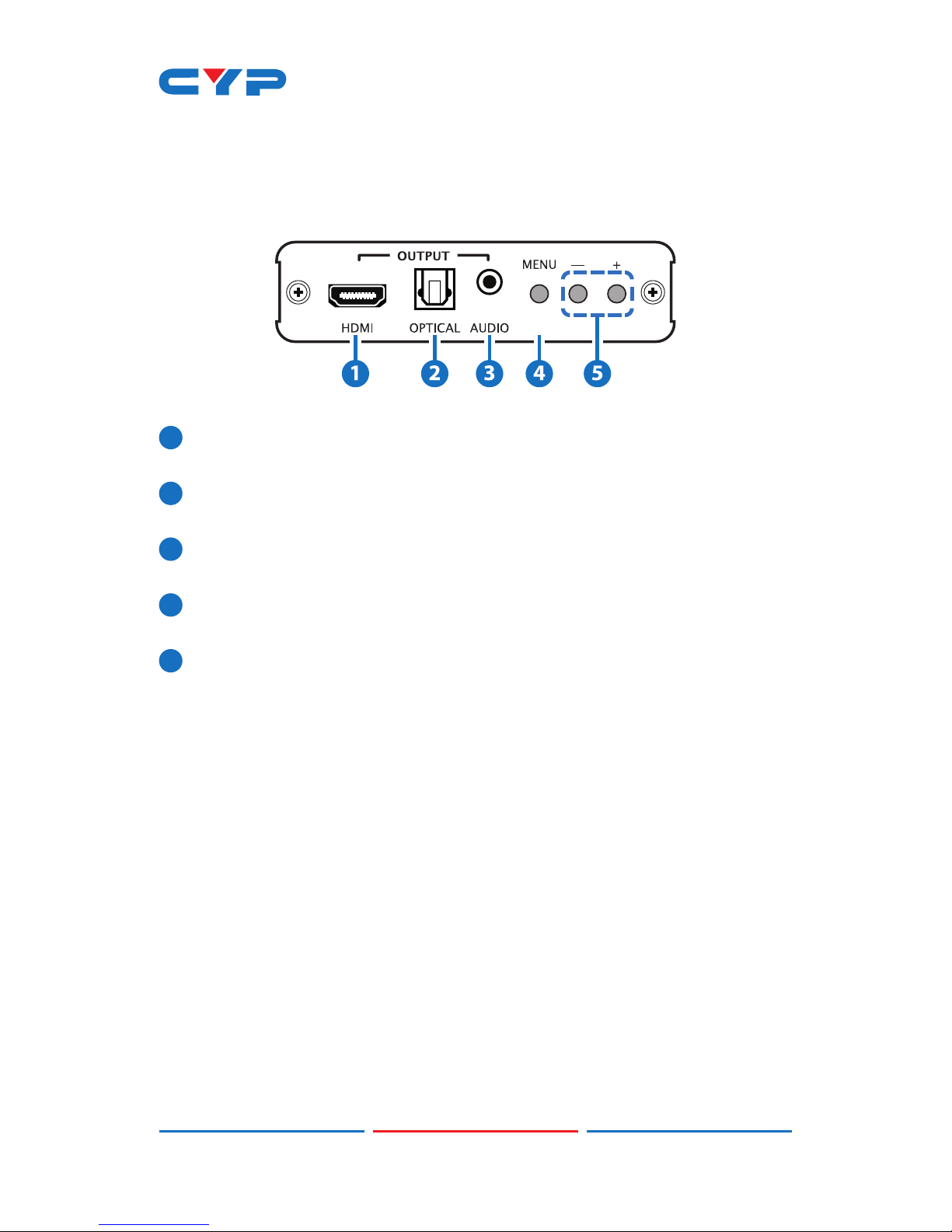

6.1 Front Panel
1HDMI OUTPUT: Connect to a HDMI equipped display or AV receiver
for video and audio output.
2OPTICAL OUTPUT: Connect to an amplier or active speakers with
an optical cable for LPCM 2 channels digital audio output.
3AUDIO OUTPUT: Connect to an amplier or active speakers with a
3.5mm mini-jack cable for analog audio output.
4MENU: Press this button to enter the OSD (On-screen Display) menu
and press it again to make a selection.
5Plus (+)/Minus (−): Press these buttons to:
When in the OSD menu
• Navigate up/down the OSD menu.
• To adjust the value of a menu selection.
Under normal operation (outside of OSD menu)
• Press the '-' button to perform automatic calibration of the
output signal when the input signal is from PC (VGA) only.
• Press the '+' button together with the 'MENU' button to switch the
output resolution to XGA@60 (1024×768).
• Press the '-' button together with 'MENU' button to switch the
output resolution to 720p@60.
• Press both the '+' and '-' buttons at the same time to reset the
device to the default settings.
4

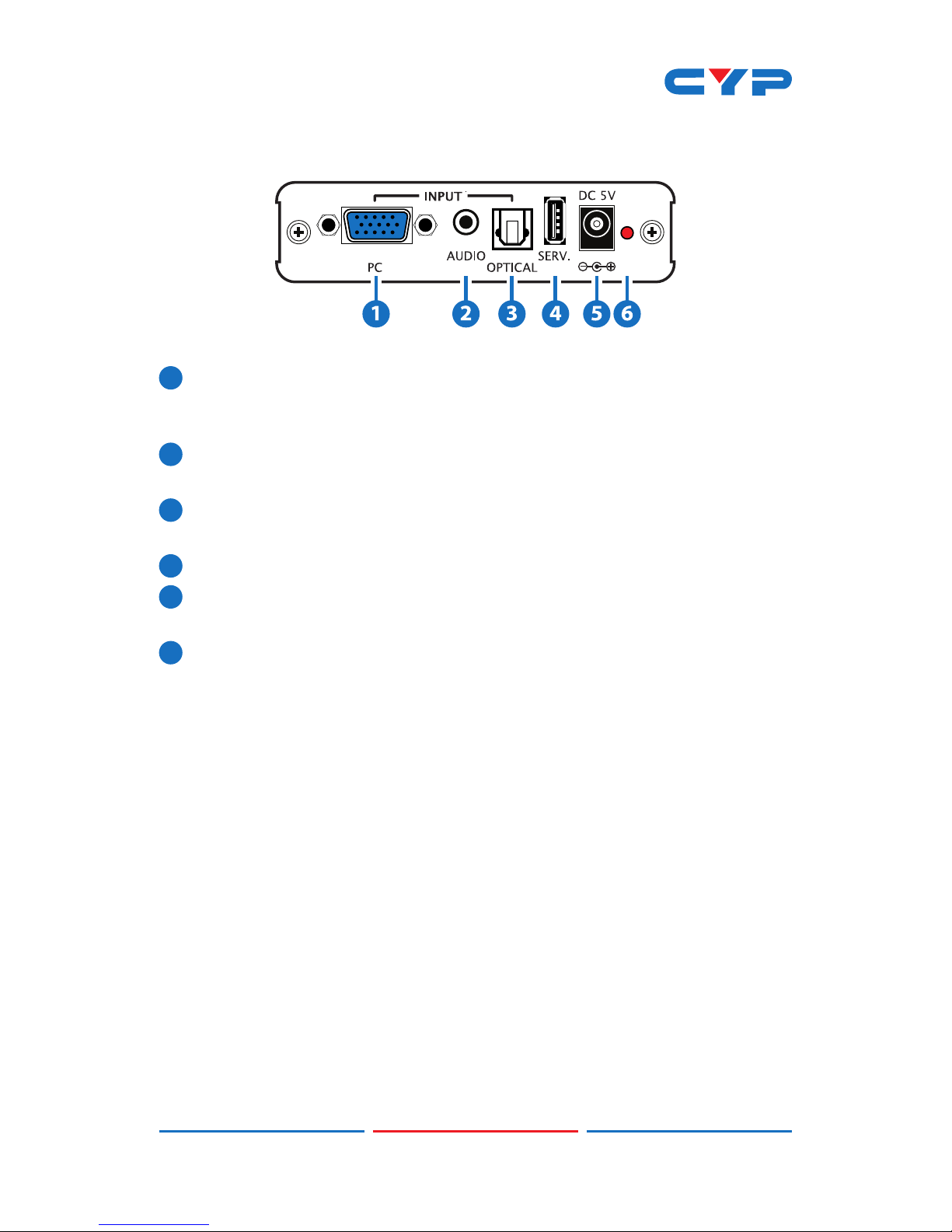

6.2 Rear Panel
1PC INPUT: Connect to the D-sub/VGA output of a source device
such as a PC/Laptop with 15-pin D-sub cable or a DVD player with
the supplied 15-pin D-sub to 15-pin D-sub adaptor cable.
2AUDIO INPUT: Connect to the analog audio output of the source
device such as a PC/Laptop with a 3.5mm mini-jack cable.
3OPTICAL INPUT: Connect to the optical digital audio output of the
source device with an optical cable.
4SERV.: Reserved for rmware update only.
5DC 5V: Connect the 5V DC power supply to the unit and plug the
adaptor into an AC outlet.
6Power LED: This LED will illuminate once the unit is connected to an
active power supply.
5
6.3 OSD Menu
MAIN MENU 1ST LAYER 2ND LAYER
SETTING
CONTRAST 0~100 (50)
BRIGHTNESS 0~100 (50)
EXIT
FINETUNE
(PC input
only)
PHASE 0~100 (100)
CLOCK 0~100 (50)
H-POSITION 0~100 (50)
V-POSITION 0~100 (50)
EXIT
FINETUNE
(HD input
only)
HUE 0~100 (50)
SATURATION 0~100 (50)
SHARPNESS 0~100 (50)
NR OFF, LOW, MIDDLE, HIGH (OFF)
EXIT
COLOR
SETTING
RED 0~100 (50)
GREEN 0~100 (50)
BLUE 0~100 (50)
EXIT
