PC/Component

Distributor

with Audio

CPCD-3A

Operation Manual

Introduction

Cypress CPCD-3A is a high performance PC/Component distributor

with stereo audio. It is designed to connect one PC or HDTV signal source

with audio to 3 PC or HDTV displays.

Features

* Supports either PC (RGB) or HDTV (YPbPr) input signal.

* Accepts one PC or HD component input and split it into 3 buffered and

identical outputs.

* Supports stereo audio input and split it to 3 identical

outputs via 3.5mm mini-stereo connector.

* High video signal bandwidth (480MHz/-3dB) supports PC/HDTV

resolution up to UXGA/1080p.

* Ideal for presentation and home theater application.

* Plug and play, easy to install.

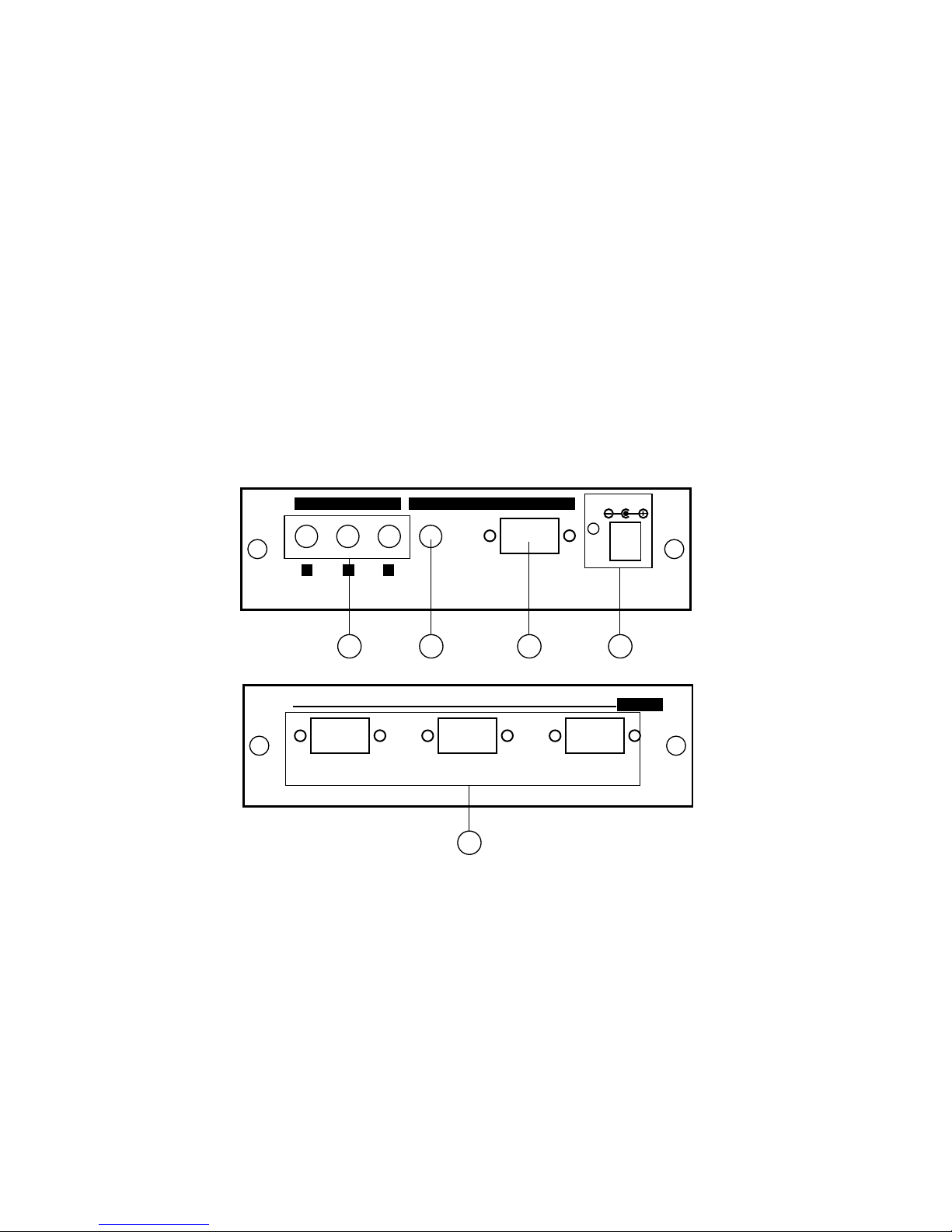

Operation Controls and Functions

OUTPUT

AUDIO OUTPUT INPUT

DC 5V 1A

AUDIO

123

PC

CPCD-3A PC distributor up to 1080P/UXGA

PC 3/ YPbPr 3PC 2/ YPbPr 2PC 1/ YPbPr 1

5

4 3 2 1

1. Power Input: Plug the supplied 5VDC power supply into the unit

and the LED will illuminate when it is connected.

2. Video input: Connect to the video output of your source devices such as

PC or DVD player by using the HD-15 to HD-15 cable or

HD-15 to 3 RCA cable.

3. Audio input: Connect to the audio output of your source devices such as

PC or DVD player by using the 3.5mm phone jack audio cable

or 3.5mm phone jack to 2 RCA audio cable.

4. Audio outputs: Connect the audio cables from these ports to the audio input

of the speaker systems.

5. Video outputs: Connect each of the PC/HD output to the input

of the PC or HD display.

* PC Input * 1：RGB 0.7Vp-p 75 ohm HV 5Vp-p 10K ohm

* PC Output * 3：RGB 0.7Vp-p HV 5Vp-p 10K ohm; or Y : 1Vp-p, PbPr: 0.7Vp-p 75 ohm

* Audio Input * 1：2Vrms max 47K ohm

* Audio Output * 3：2Vrms max 47K ohm

* Video Bandwidth：480MHz (-3db)

* Compatibility: VGA upto UXGA/1080p in RGBHV, RGBs, RGsB, YPbPr formats.

* Differential gain：0.05%

* Differential phase：0.05 degree

* Power：5V 2A

* Accessories: 5V power supply, HD-15 to HD-15 video cable,

Stereo audio cable.

* Dimension (WxHxD)：141 x 38 x 105mm

Specification

Connection and Installation

PC Connection

OUTPUT

AUDIO OUTPUT INPUT

DC 5V 1A

AUDIO

123

PC

CPCD-3A PC distributor up to 1080P/UXGA

PC 3/ YPbPr 3PC 2/ YPbPr 2PC 1/ YPbPr 1

PC Monitor

HDTV Connection

OUTPUT

AUDIO OUTPUT INPUT

DC 5V 1A

AUDIO

123

PC

CPCD-3A PC distributor up to 1080P/UXGA

PC 3/ YPbPr 3PC 2/ YPbPr 2PC 1/ YPbPr 1

LCD TV, Projector, or Plasma

DVD

Speaker

Speaker 3 Speaker 2 Speaker 1

Audio/Video in

D-sub to 3 RCA

adaptor cable
