CYP CSC-107 Manuale utente

CSC-107

2×1 HDMI/VGA to HDMI Scaler

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE

RDV1 2019/04/30 Preliminary release

CONTENTS

1. Introduction......................................................1

2. Applications.....................................................1

3. Package Contents ..........................................1

4. System Requirements......................................2

6. Operation Controls and Functions.................3

6.1 Front Panel ................................................. 3

6.2 Rear Panel.................................................. 4

6.3 RS-232 Pinout and Defaults ...................... 5

6.4 RS-232 Commands.................................... 5

7. Connection Diagram ....................................20

8. Specications ................................................21

8.1 Technical Specications ........................ 21

8.2 Video Specications............................... 22

8.3 Audio Specications ...................................24

8.3.1 Digital Audio................................... 24

8.3.2 Analog Audio ................................. 24

8.4 Cable Specications .............................. 25

9. Acronyms .......................................................26

1. INTRODUCTION

This compact, yet versatile, 4K UHD HDMI/VGA to HDMI Switching Scaler

accepts a wide range of resolutions from 480i up to 1080p/

WUXGA

over the VGA input and up to 4K@60Hz (4:4:4) on the HDMI input. With

the use of the 3.5mm audio input, stereo audio may be embedded

with either source as well. Scaled HDMI output resolutions are available

up to 4K@60Hz (4:4:4). Integrated EDID management options allow for

control over the way connected sources detect the unit. The included

automatic source detection and switching feature allows the unit to

switch automatically to the most recently connected source, or to

switch to the alternate input if the current one becomes disconnected.

The Auto Adjustment function, activated by a button on the unit, can

automatically adjust the image position of the VGA source if necessary.

This unit is an ideal device for integrating previously incompatible

sources and displays, or for providing a exible auto-detection input

point for a small boardroom or huddle space. This unit is controllable via

front panel buttons and RS-232.

2. APPLICATIONS

• Huddle Rooms & Small Boardrooms

• Entertainment Rooms & Home Theaters

• Lecture Hall Presentations

• Public Commercial Displays

• A/V Equipment and Control Rooms

3. PACKAGE CONTENTS

• 1× 2×1 HDMI/VGA to HDMI Scaler

• 1× 5V/2.6A DC Power Adapter

• 1× 3-pin terminal block

• 1× Shockproof Feet (Set of 4)

• 1× Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI source equipment such as a media player, video game

console or set-top box.

• VGA source equipment such as a PC, laptop or set-top box.

• HDMI receiving equipment such as an HDTV, monitor or audio

amplier.

• The use of Premium High Speed HDMI cables is highly ecommended.

5. FEATURES

• HDMI 2.0 and DVI 1.0 compliant

• HDCP 1.x and 2.2 compliant

• Switchable HDMI input and VGA input with a 3.5mm mini-jack audio

input

• 1 HDMI output

• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input

and output over HDMI

• Supports up to 1080p or WUXGA (1920x120060Hz RB) video input

over VGA

• Supports Deep Color input up to 12-bit (HDMI only)

• Supports 2 channel LPCM digital audio input and output

• Analog stereo audio may be embedded with either input

• Automatic input detection with output at the (EDID indicated)

preferred resolution of the connected HDMI display (NATIVE output

mode) by default

• Comprehensive output picture adjustments via RS-232 (contrast,

brightness, hue, saturation, sharpness, RGB (color tone) level and

aspect ratio)

• Controllable via front panel buttons and RS-232

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

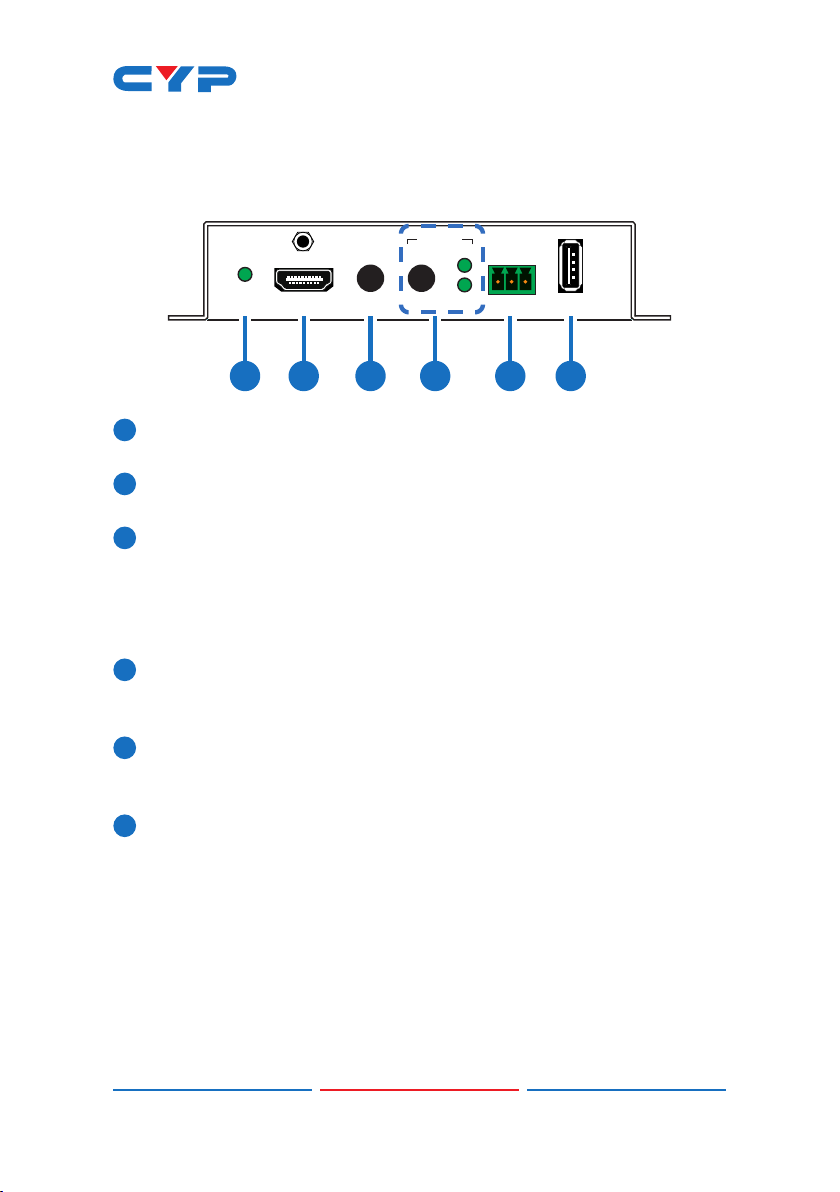

POWER

HDMI OUT

AUTO ADJ. IN SEL.

SERVICE

VGA

HDMI TR

RS-232

1 2 3 4 5 6

1POWER LED: This LED will illuminate to indicate the unit is on and

receiving power.

2HDMI OUT Port: Connect to an HDMI TV, monitor, or amplier for

digital video and audio output.

3AUTO ADJ. Button: Press this button to activate the Auto Adjust

function for VGA sources.

Note: The Auto Adjust function requires a VGA source with a bright,

edge-to-edge, image to accurately judge the dimensions of the

signal.

4IN SEL. Button & LEDs: Press this button to toggle between the

available inputs. The LED will illuminate to indicate which source is

currently selected.

5RS-232 Terminal Block: Connect directly to a PC, laptop, or other

serial control device with a 3-pin adapter cable to send RS-232

commands to control the unit.

6SERVICE Port: This port is reserved for rmware update use only.

6.2 Rear Panel

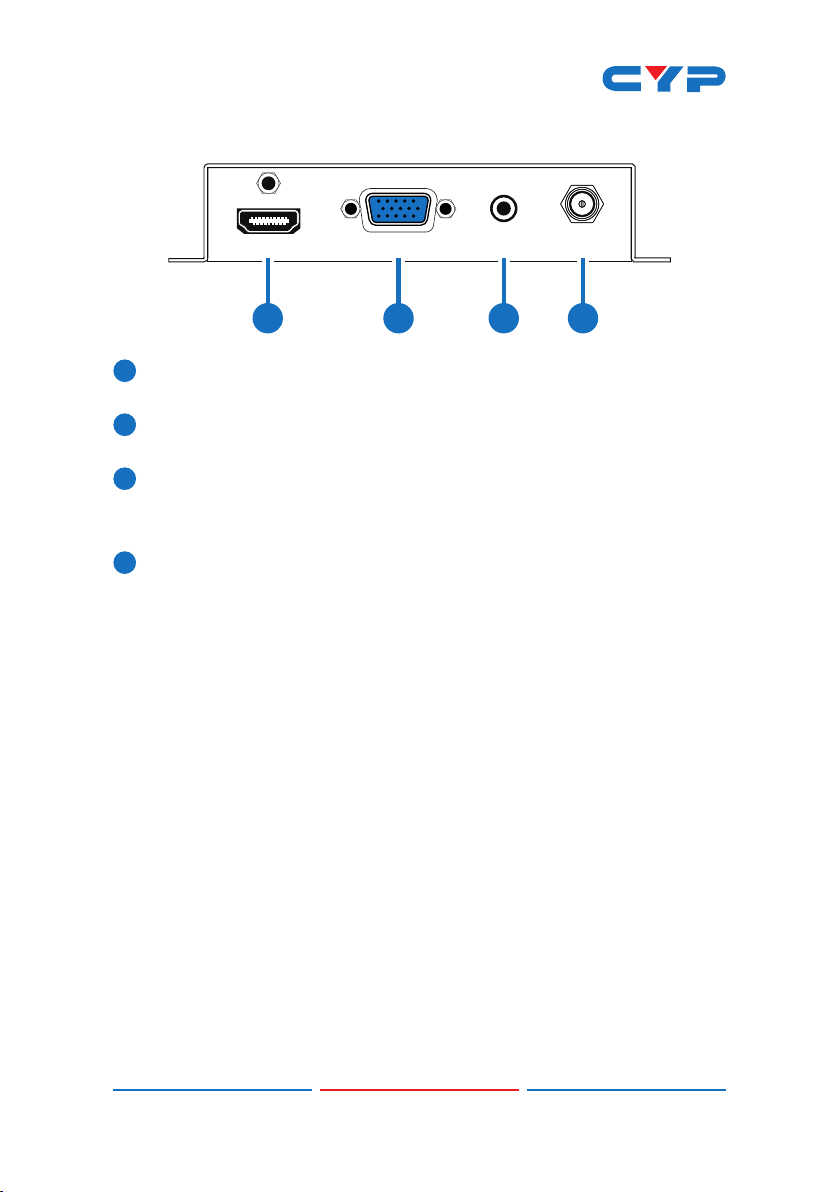

HDMI IN VGA IN AUDIO IN DC 5V

12 3 4

1HDMI IN Port: Connect to HDMI source equipment such as a media

player, game console or set-top box.

2VGA IN Port: Connect to VGA source equipment such as a PC or

laptop.

3AUDIO IN Port: Connect to the stereo analog output of a device

such as an audio player or PC.

Note: By default, analog audio is embedded with the VGA input.

4DC 5V Port: Plug the 5V DC power adapter into this port and

connect it to an AC wall outlet for power.

6.3 RS-232 Pinout and Defaults

SERIAL PORT DEFAULT SETTINGS

RxD

TxD

3-pin Terminal Block

Baud Rate 19200

Data Bits 8

Parity Bits None

Stop Bits 1

Flow Control None

6.4 RS-232 Commands

COMMAND

Description and Parameters

help

Show the full command list.

?

Show the full command list.

help N1

Show help details about command N1.

N1 = {Command name}

get fw ver

Show the unit’s current rmware version.

get model type

Show the unit's product type.

set factory default

Reset the unit to the factory defaults.
