CPLUS-V2PE

4K UHD+ HDMI to Dual HDMI Scaler

with Audio De-Embedding & Test Patterns

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE

VR0 07/04/16 Preliminary release

VR1 02/06/16 Remove HDR from OSD

VS2 20/06/17 Updated text/diagrams

CONTENTS

1. Introduction......................................................1

2. Applications.....................................................1

3. Package Contents ..........................................1

4. System Requirements......................................1

5. Features............................................................2

6. Operation Controls and Functions.................3

6.1 Front Panel ................................................. 3

6.2 Rear Panel.................................................. 4

6.3 OSD Menu.................................................. 5

6.3.1 Unit's OSD Menu............................... 5

6.3.2 Conversion Rules............................ 11

7. Connection Diagram ....................................13

8. Specications ................................................14

8.1 Technical Specications ........................ 14

8.2 Video Specications............................... 15

8.3 Audio Specications............................... 16

9. Acronyms .......................................................16

1. INTRODUCTION

This HDMI to Dual HDMI Scaler with Audio De-Embedding & Test

Patterns is designed to upscale 1080p signals into 4K UHD (18Gbps)

or downscale 4K UHD (18Gbps) signals into 1080p with synchronized

digital and analog audio output. A friendly and simple interface

design allows the user to control the unit while viewing the OSD

directly on the HDMI output. The input signal can be output to both

HDMI outputs simultaneously with a different resolution on each or the

unit can generate a test pattern at a preferred video resolution for

easy on-site display testing and validation. This UHD Scaler is the best

tool to use with your HD and UHD signals.

2. APPLICATIONS

• HDMI signal splitting

• On-site equipment testing

• Production testing

• R&D design and testing

3. PACKAGE CONTENTS

• 1×HDMI to Dual HDMI Scaler

• 1×5V/2.6A DC Power Adaptor

• 1×Operation Manual

4. SYSTEM REQUIREMENTS

• HDMI input source equipment such as media players, video game

consoles or set-top boxes

• HDMI receiving equipment such as HDTVs, monitors or audio

ampliers.

• The use of “Premium High Speed HDMI” cables is highly

recommended.

Notes:

• When displaying 4K HDR or equivalent signals, appropriate output

displays and HDMI cables are required in order to obtain the best

image quality. The use of “Premium High Speed HDMI” cables is

highly recommended for 18Gbps HDMI signals.

• HDMI cable distance can be impacted by the materials and design

of the cable used. The use of “Premium High Speed HDMI” cables is

highly recommended for resolutions of 1080p or above.

5. FEATURES

• 1 HDMI input and 2 HDMI outputs with 4K UHD (18Gbps) support and

HDCP 2.2 compliance

• Supports HDCP 2.2 to HDCP1.4 conversion

• Compatible with DVI 1.0

• HDMI signal bypass on both outputs or upscales 1080p signals to 4K

on output B and downscales 4K signals to 1080p on output A

• 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion

• HDMI signal bypass, upscale and downscale

• Integrated EDID management

• Test pattern generation at selected resolutions for on-site display

testing

• Supports High-Dynamic-Range (HDR) sources

• Supports HDR conversion from 4K@24/25/30Hz (4:4:4/4:2:2) 10 or 12-

bit to 4K@24/25/30Hz (8-bit)

• Supports UHD resolutions up to 3840×2160@50/60Hz (4:4:4) &

4096×2160@50/60Hz (4:4:4)

• Supports data rates up to 18Gbps (600MHz) and Deep Color up to

1080p/16-bit

• Supports pass-through of HD audio formats including LPCM

2.0/5.1/7.1, Bitstream, and HD Bitstream

• OSD with instant I/O resolution display

• Digital to Analog (DAC) audio conversion

• Supports the Apple source compatibility mode option

6. OPERATION CONTROLS AND FUNCTIONS

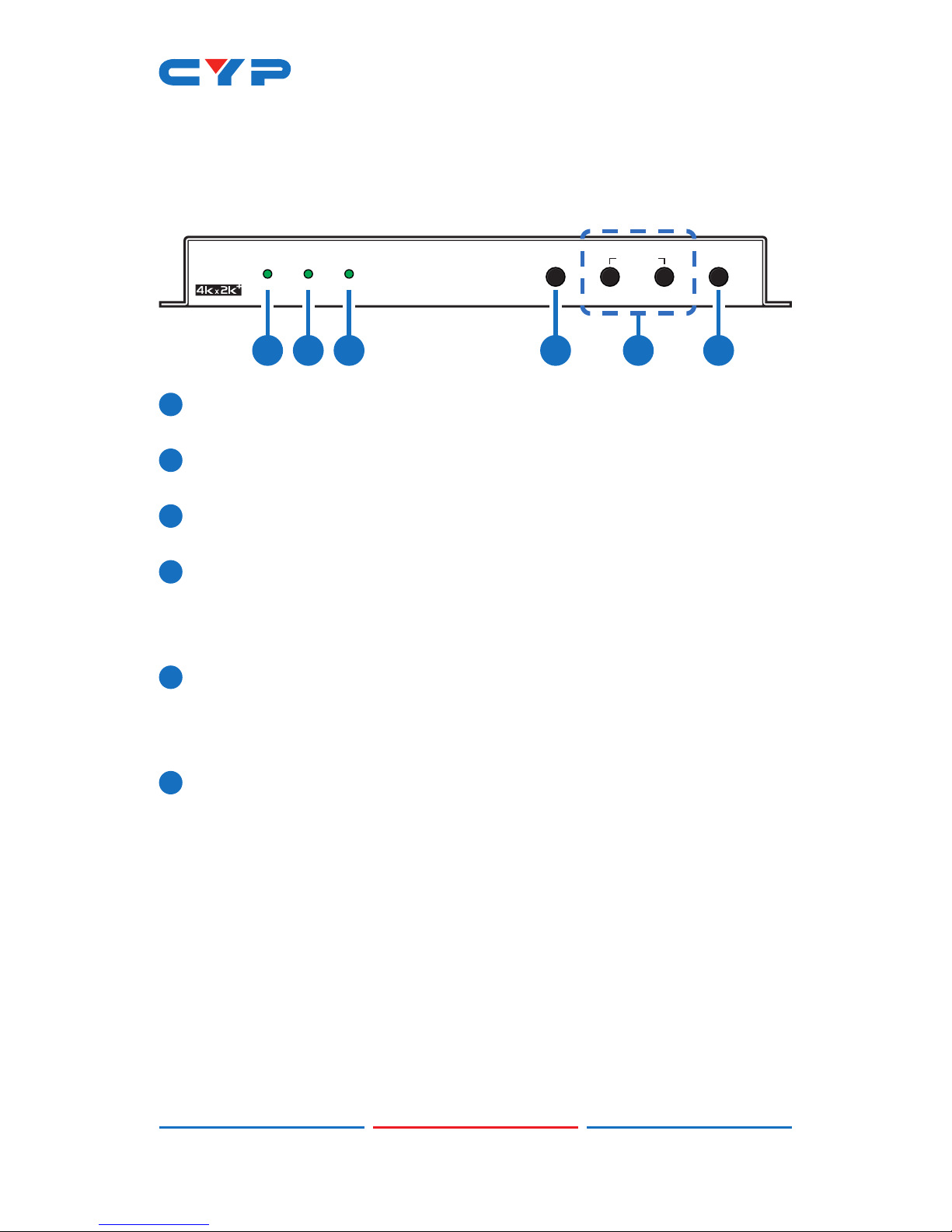

6.1 Front Panel

POWER 4K2K SYNCMENU

–+

ENTER

TEST

PATTERN

–+

1 2 3 4 5 6

1POWER: This LED will illuminate when the unit is connected with a

power supply.

24K2K: This LED will illuminate when the input source contains a 4K

UHD signal.

3SYNC: This LED will illuminate when the input source is sending

signal.

4MENU: Press this button to enter into OSD menu. Once within the

OSD press this button a second time to exit. Press and hold this

button together with the “-” button for 3 seconds to reset the unit

back to factory defaults.

5DOWN & UP/TEST PATTERN: When the OSD menu is in use, press

these buttons to move within the menu. Outside of the OSD,

press these buttons together to instantly set the output timing to

1280×720@60Hz and display test patterns on both outputs.

6ENTER: Press to conrm a selection or to go deeper into a menu

item.

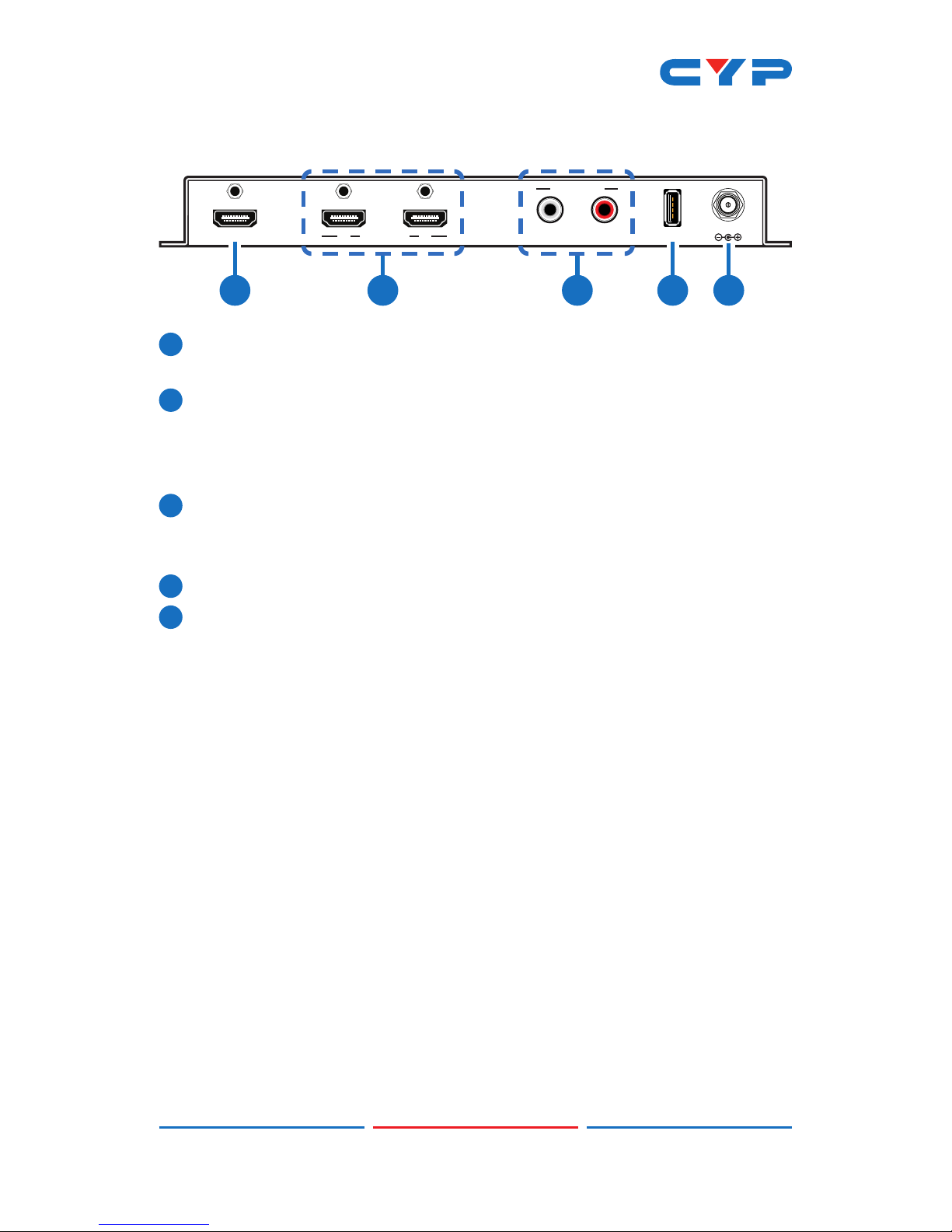

6.2 Rear Panel

AB LRSERVICE

DC 5V

AUDIO OUT

HDMI IN HDMI OUT

1 2 3 4 5

1HDMI IN: Connect to HDMI source equipment such as a media

player, game console or set-top box.

2HDMI OUT A~B: Connect to HDMI TVs, monitors or ampliers

for digital video and audio output. Each output can display a

different resolution with a choice between the HDMI source or a

test pattern.

3AUDIO OUT: Connect to powered speakers or an amplier for

stereo analog audio output extracted from an HDMI source with

LPCM 2.0 audio.

4SERVICE: This slot is reserved for rmware update use only.

5DC 5V: Plug the 5V DC power adapter into the unit and connect it

to an AC wall outlet for power.

6.3 OSD Menu

6.3.1 Unit's OSD Menu

LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4

OUTPUT OUTPUT A INPUT 4K2K PASS THROUGH

DOWN 1080P

FIX 4K2K (420)

FIX 8 BITS

OUTPUT B INPUT 1080P PASS THROUGH

UP 4K2K

UP 4K2K (420)

INPUT 4K2K PASS THROUGH

FIX 4K2K (420)

FIX 8 BITS

EDID INT 4K (6G-2CH)

INT 4K (3G-2CH)

INT 4K (420-2CH)

INT 1080P (2CH)

EXT OUT A

EXT OUT B

EXT OUT A (2CH)

EXT OUT B (2CH)

HDCP HDCP SUPPORT

OFF

REFER TO SOURCE

REFER TO DISPLAY

OSD DISPLAY INFO. ON

OFF

OSD TIME OUT OFF

5 SEC.

10 SEC.

15 SEC.
