CY7C1019D

1-Mbit (128K x 8) Static RAM

Cypress Semiconductor Corporation • 198 Champion Court • San Jose,CA 95134-1709 • 408-943-2600

Document #: 38-05464 Rev. *E Revised February 22, 2007

Features

• Pin- and function-compatible with CY7C1019B

• High speed

—t

AA = 10 ns

• Low active power

—I

CC = 80 mA @ 10 ns

• Low CMOS standby power

—I

SB2 = 3 mA

• 2.0V Data retention

• Automatic power-down when deselected

• CMOS for optimum speed/power

• Center power/ground pinout

• Easy memory expansion with CE and OE options

• Functionally equivalent to CY7C1019B

• Available in Pb-free 32-pin 400-Mil wide Molded SOJ and

32-pin TSOP II packages

Functional Description [1]

The CY7C1019D is a high-performance CMOS static RAM

organized as 131,072 words by 8 bits. Easy memory

expansion is provided by an active LOW Chip Enable (CE), an

active LOW Output Enable (OE), and tri-state drivers. This

device has an automatic power-down feature that significantly

reduces power consumption when deselected. The eight input

and output pins (IO0through IO7) are placed in a

high-impedance state when:

• Deselected (CE HIGH)

• Outputs are disabled (OE HIGH)

• Whenthewriteoperationisactive(CELOW,andWELOW).

Write to the device by taking Chip Enable (CE) and Write

Enable (WE) inputs LOW. Data on the eight IO pins (IO0

through IO7) is then written into the location specified on the

address pins (A0through A16).

Read from the device by taking Chip Enable (CE) and Output

Enable (OE) LOW while forcing Write Enable (WE) HIGH.

Under these conditions, the contents of the memory location

specified by the address pins appears on the IO pins.

Logic Block Diagram

IO0

IO7

IO1

IO2

IO3

IO4

IO5

IO6

SENSE AMPS

POWER

DOWN

A10

A11

A12

A13

A14

ROW DECODER

COLUMN DECODER

128K x 8

ARRAY

INPUT BUFFER

A15

A16

Note

1. For guidelines on SRAM system design, please refer to the ‘System Design Guidelines’ Cypress application note, available on the internet at www.cypress.com.

[+] Feedback

CY7C1019D

Document #: 38-05464 Rev. *E Page 2 of 11

Pin Configuration

Selection Guide

–10 (Industrial) Unit

Maximum Access Time 10 ns

Maximum Operating Current 80 mA

Maximum Standby Current 3 mA

Top View

SOJ/TSOPII

14 19

15 17

[+] Feedback

CY7C1019D

Document #: 38-05464 Rev. *E Page 3 of 11

Maximum Ratings

Exceeding the maximum ratings may impair the useful life of

the device. These user guidelines are not tested.

Storage Temperature .................................–65°C to +150°C

Ambient Temperature with

Power Applied.............................................–55°C to +125°C

Supply Voltage on VCC to Relative GND [2] ... –0.5V to +6.0V

DC Voltage Applied to Outputs

in High-Z State [2]...................................–0.5V to VCC + 0.5V

DC Input Voltage [2]................................–0.5V to VCC + 0.5V

Current into Outputs (LOW) ........................................ 20 mA

Static Discharge Voltage...........................................> 2001V

(per MIL-STD-883, Method 3015)

Latch-up Current ....................................................> 200 mA

Operating Range

Range Ambient

Temperature VCC Speed

Industrial –40°C to +85°C 5V ±0.5V 10 ns

Electrical Characteristics (Over the Operating Range)

Parameter Description Test Conditions –10 (Industrial) Unit

Min Max

VOH Output HIGH Voltage IOH = –4.0 mA 2.4 V

VOL Output LOW Voltage IOL = 8.0 mA 0.4 V

VIH Input HIGH Voltage 2.2 VCC + 0.5 V

VIL Input LOW Voltage [2] –0.5 0.8 V

IIX Input Leakage Current GND < VI< VCC –1 +1 µA

IOZ Output Leakage Current GND < VI <VCC, Output Disabled –1 +1 µA

ICC VCC Operating Supply Current VCC = Max,

IOUT = 0 mA,

f = fmax = 1/tRC

100 MHz 80 mA

83 MHz 72 mA

66 MHz 58 mA

40 MHz 37 mA

ISB1 Automatic CE Power-Down

Current—TTL Inputs Max VCC, CE > VIH

VIN > VIH or VIN < VIL, f = fmax 10 mA

ISB2 Automatic CE Power-Down

Current—CMOS Inputs Max VCC, CE > VCC – 0.3V,

VIN > VCC – 0.3V, or VIN < 0.3V, f = 0 3mA

Note

2. VIL (min) = –2.0Vand VIH(max) = VCC + 1V for pulse durations of less than 5 ns.

[+] Feedback

CY7C1019D

Document #: 38-05464 Rev. *E Page 4 of 11

Capacitance [3]

Parameter Description Test Conditions Max Unit

CIN Input Capacitance TA= 25°C, f = 1 MHz, VCC = 5.0V 6 pF

COUT Output Capacitance 8 pF

Thermal Resistance [3]

Parameter Description Test Conditions 400-Mil

Wide SOJ TSOP II Unit

ΘJA Thermal Resistance

(Junction to Ambient) Still Air, soldered on a 3 × 4.5 inch,

four-layer printed circuit board 56.29 62.22 °C/W

ΘJC Thermal Resistance

(Junction to Case) 38.14 21.43 °C/W

AC Test Loads and Waveforms [4]

90%

10%

3.0V

GND

90%

10%

ALL INPUT PULSES

* CAPACITIVE LOAD CONSISTS

OF ALL COMPONENTS OF THE

TEST ENVIRONMENT Rise Time: ≤ 3 ns Fall Time: ≤ 3 ns

30 pF*

OUTPUT

Z = 50

Ω

50Ω

1.5V (b)

(a)

OUTPUT

5 pF

(c)

R1 480Ω

255Ω

High-Z characteristics:

INCLUDING

JIG AND

SCOPE

Notes

3. Tested initially and after any design or process changes that may affect these parameters.

4. AC characteristics (except High-Z) are tested using the load conditions shown in Figure (a). High-Z characteristics are tested for all speeds using the test load

shown in Figure (c).

[+] Feedback

CY7C1019D

Document #: 38-05464 Rev. *E Page 5 of 11

Switching Characteristics (Over the Operating Range) [5]

Parameter Description –10 (Industrial) Unit

Min Max

Read Cycle

tpower [6] VCC(typical) to the first access 100 µs

tRC Read Cycle Time 10 ns

tAA Address to Data Valid 10 ns

tOHA Data Hold from Address Change 3 ns

tACE CE LOW to Data Valid 10 ns

tDOE OE LOW to Data Valid 5 ns

tLZOE OE LOW to Low Z 0 ns

tHZOE OE HIGH to High Z [7, 8] 5ns

tLZCE CE LOW to Low Z [8] 3ns

tHZCE CE HIGH to High Z [7, 8] 5ns

tPU [9] CE LOW to Power-Up 0 ns

tPD [9] CE HIGH to Power-Down 10 ns

Write Cycle [10, 11]

tWC Write Cycle Time 10 ns

tSCE CE LOW to Write End 7 ns

tAW Address Set-Up to Write End 7 ns

tHA Address Hold from Write End 0 ns

tSA Address Set-Up to Write Start 0 ns

tPWE WE Pulse Width 7 ns

tSD Data Set-Up to Write End 6 ns

tHD Data Hold from Write End 0 ns

tLZWE WE HIGH to Low Z [8] 3ns

tHZWE WE LOW to High Z [7, 8] 5ns

Notes

5. Test conditions assume signal transition time of 3 ns or less, timing reference levels of 1.5V, input pulse levels of 0 to 3.0V, and output loading of the specified

IOL/IOH and 30-pF load capacitance.

6. tPOWER gives the minimum amount of time that the power supply should be at typical VCC values until the first memory access can be performed.

7. tHZOE, tHZCE, and tHZWE are specified with a load capacitance of 5 pF as in (c) of “AC Test Loads and Waveforms [4]” on page 4. Transition is measured when the outputs enter a

high impedance state.

8. At any given temperature and voltage condition, tHZCE is less than tLZCE, tHZOE is less than tLZOE, and tHZWE is less than tLZWE for any given device.

9. This parameter is guaranteed by design and is not tested.

10.The internal write time of the memory is defined by the overlap of CELOW and WE LOW. CE and WE must be LOW to initiate a write, and the transition of any of

these signals can terminate the write. The input data set-up and hold timing should be referenced to the leading edge of the signal that terminates the write.

11. The minimum write cycle time for Write Cycle no. 3 (WE controlled, OE LOW) is the sum of tHZWE and tSD.

[+] Feedback

CY7C1019D

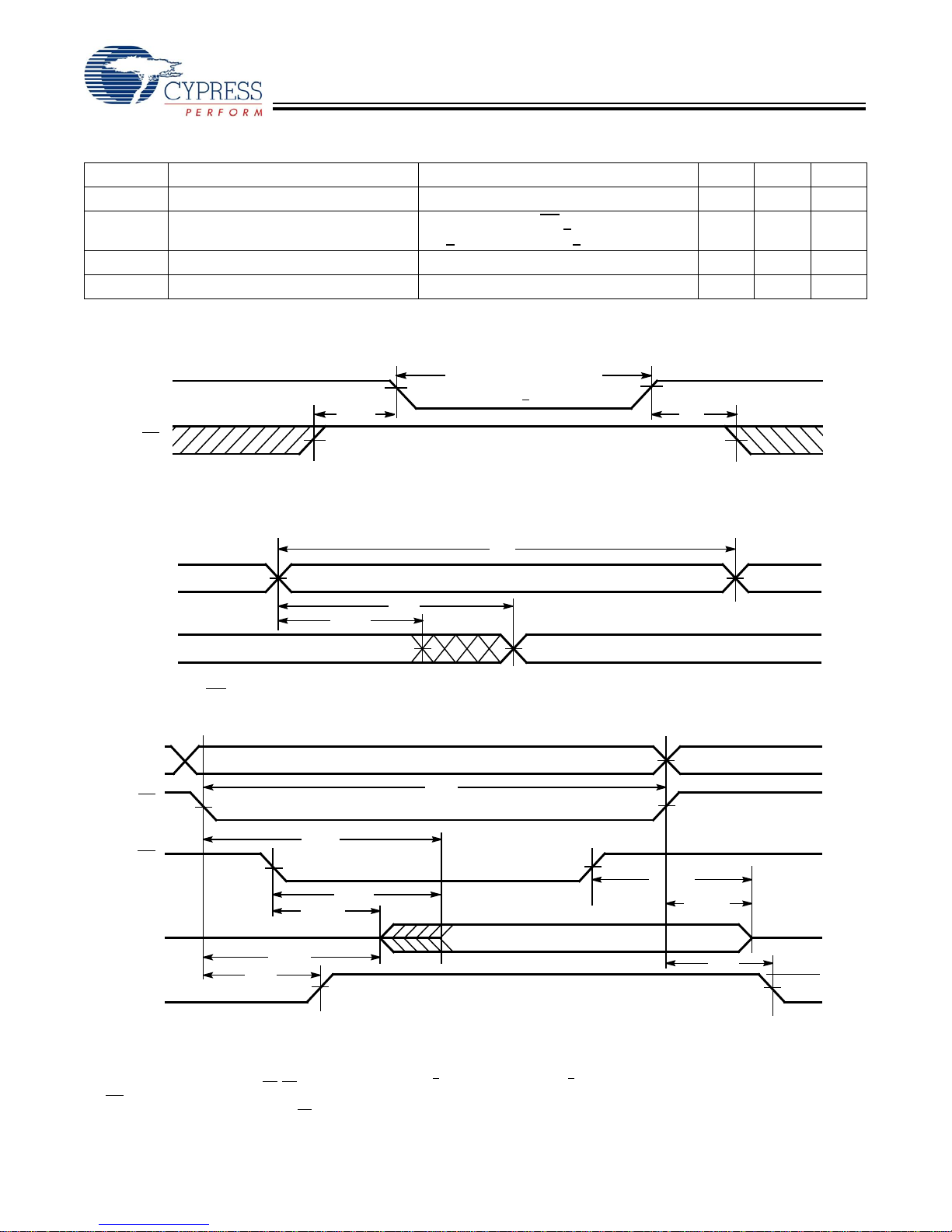

Document #: 38-05464 Rev. *E Page 6 of 11

Data Retention Characteristics (Over the Operating Range)

Parameter Description Conditions Min Max Unit

VDR VCC for Data Retention 2.0 V

ICCDR Data Retention Current VCC = VDR = 2.0V, CE > VCC – 0.3V,

VIN > VCC – 0.3V or VIN < 0.3V 3mA

tCDR [3] Chip Deselect to Data Retention Time 0 ns

tR [12] Operation Recovery Time tRC ns

Data Retention Waveform

Switching Waveforms

Read Cycle No. 1 (Address Transition Controlled) [13, 14]

Read Cycle No. 2 (OE Controlled) [14, 15]

4.5V4.5V

tCDR

VDR> 2V

DATA RETENTION MODE

VCC

PREVIOUS DATA VALID DATA VALID

tAA

tOHA

tRC

ADDRESS

DATA OUT

50%

DATA VALID

tRC

tACE

tDOE

tLZOE

tLZCE

tPU

HIGH IMPEDANCE

tHZOE tHZCE

tPD

HIGH

ICC

ISB

IMPEDANCE

ADDRESS

DATA OUT

VCC

SUPPLY

CURRENT

Notes

12.Full device operation requires linear VCC ramp from VDR to VCC(min) >50 µs or stable at VCC(min) > 50 µs.

13.Device is continuously selected. OE, CE = VIL.

14.WE is HIGH for Read cycle.

15.Address valid prior to or coincident with CEtransition LOW.

[+] Feedback

CY7C1019D

Document #: 38-05464 Rev. *E Page 7 of 11

Write Cycle No. 1 (CE Controlled) [16, 17]

Write Cycle No. 2 (WE Controlled, OE HIGH During Write) [16, 17]

Switching Waveforms (continued)

tWC

DATA VALID

tAW

tSA

tPWE

tHA

tHD

tSD

tSCE

DATA IO

ADDRESS

tHD

tSD

tPWE

tSA

tHA

tAW

tSCE

tWC

tHZOE

DATAIN VALID

NOTE 18

ADDRESS

DATA IO

Notes

16.Data IO is high impedance if OE= VIH.

17.If CEgoes HIGH simultaneously with WE going HIGH, the output remains in a high-impedance state.

18.During this period the IOs are in the output state and input signals should not be applied.

[+] Feedback

CY7C1019D

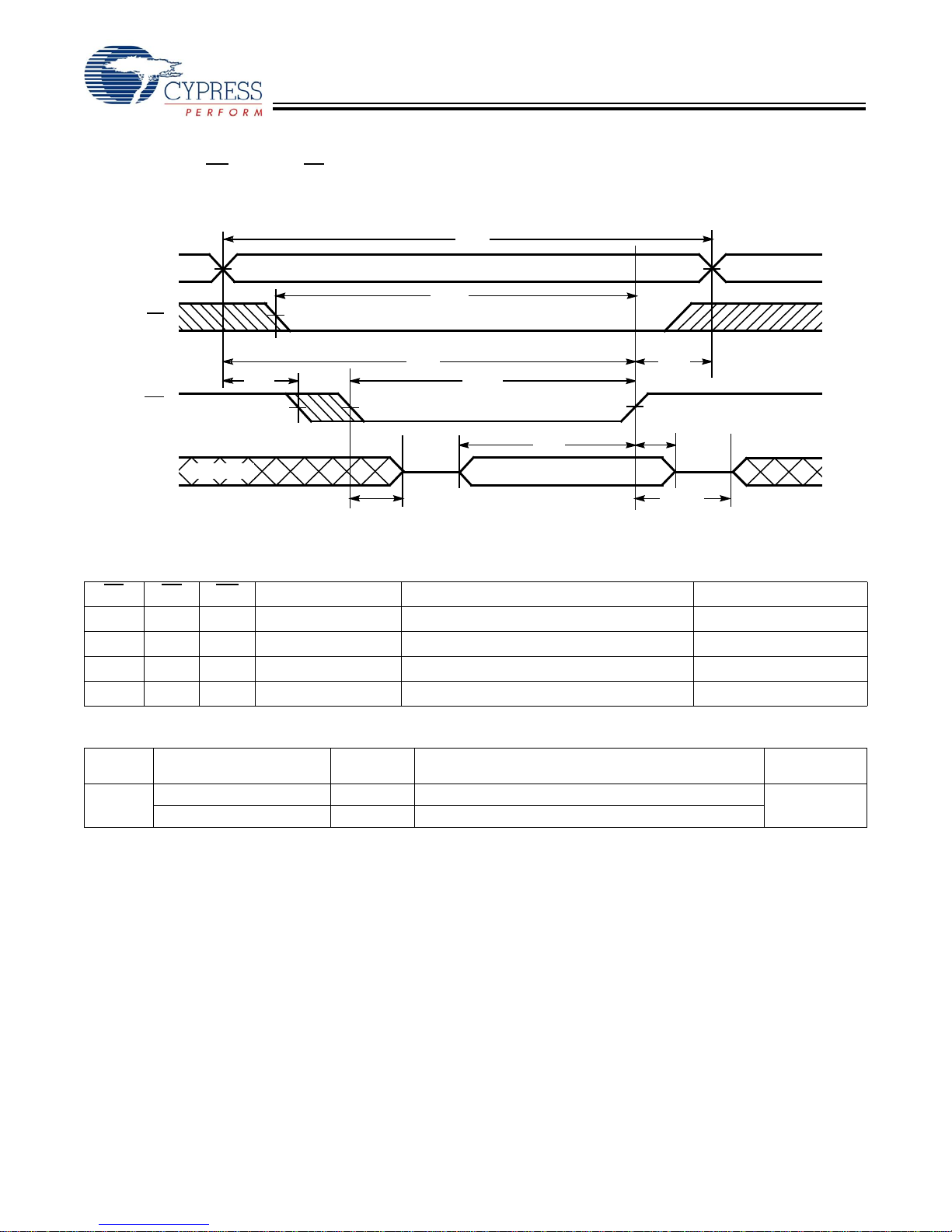

Document #: 38-05464 Rev. *E Page 8 of 11

Write Cycle No. 3 (WE Controlled, OE LOW) [11, 17]

Truth Table

CE OE WE IO0–IO7Mode Power

H X X High Z Power-Down Standby (ISB)

L L H Data Out Read Active (ICC)

L X L Data In Write Active (ICC)

L H H High Z Selected, Outputs Disabled Active (ICC)

Ordering Information

Speed

(ns) Ordering Code Package

Diagram Package Type Operating

Range

10 CY7C1019D-10VXI 51-85033 32-pin (400-Mil) Molded SOJ (Pb-free) Industrial

CY7C1019D-10ZSXI 51-85095 32-pin TSOP Type II (Pb-free)

Please contact your local Cypress sales representative for availability of these parts.

Switching Waveforms (continued)

DATA VALID

tHD

tSD

tLZWE

tPWE

tSA

tHA

tAW

tSCE

tWC

tHZWE

NOTE 18

ADDRESS

DATA IO

[+] Feedback

CY7C1019D

Document #: 38-05464 Rev. *E Page 9 of 11

Package Diagrams

Figure 1. 32-pin (400-Mil) Molded SOJ (51-85033)

51-85033-*B

[+] Feedback

CY7C1019D

Document #: 38-05464 Rev. *E Page 10 of 11

the use of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended

to be used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize

its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress

products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Figure 2. 32-pin Thin Small Outline Package Type II (51-85095)

All product or company names mentioned in this document may be the trademarks of their respective holders.

Package Diagrams (continued)

51-85095-**

[+] Feedback

Indice

Altri manuali Cypress Semiconductor Hardware per computer

Cypress Semiconductor

Cypress Semiconductor CY7C1345G Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY7C1012DV33 Manuale utente

Cypress Semiconductor

Cypress Semiconductor NoBL CY7C1470V33 Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY7C1163V18 Manuale utente

Cypress Semiconductor

Cypress Semiconductor MoBL-USB CY7C68003 Manuale utente

Cypress Semiconductor

Cypress Semiconductor STK15C88 Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY62157ESL Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY62146EV30 Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY7C1381DV25 Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY7C1471BV25 Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY7C68013A Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY3215-DK Manuale utente

Cypress Semiconductor

Cypress Semiconductor FLEx36 CYD01S36V Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY7C1298H Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY7C185 Manuale utente

Cypress Semiconductor

Cypress Semiconductor NoBL CY7C1355C Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY7C1353G Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY8CTMA120 Manuale

Cypress Semiconductor

Cypress Semiconductor CY7C1316CV18 Manuale utente

Cypress Semiconductor

Cypress Semiconductor CY7C63413C Manuale utente

Cypress Semiconductor

Cypress Semiconductor STK14C88-3 Manuale utente

Cypress Semiconductor

Cypress Semiconductor Perform CY62167E MoBL Manuale utente

Cypress Semiconductor

Cypress Semiconductor Perform CY7C132 Manuale utente

Cypress Semiconductor

Cypress Semiconductor MoBL-USB CY7C68000A Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
