Undershoot Effect in RTC Circuit
of 0.25μnvSRAM
Application Note Abstract
This application note describes the undershoot effect in the RTC circuit of the 256K and 1M nvSRAM in 0.25μtechnology. The
part numbers affected are CY14B256K/STK17T88 and CY14B101K/STK17TA8.
Introduction
Under certain noise conditions, the Real Time Clock (RTC)
circuit of CY14BXXXK/STK17TX8 can be disturbed to the
point that the oscillator circuit stops.
Undershoot in Application
The RTC devices in 0.25μspecify in the data sheet that
inputs may not undershoot by more than –0.5V. This is diffi-
cult to achieve in systems where signal fall times are fast (1
to 3 ns). As a result of these fast fall times, signal undershoot
greater than –0.5V is quite common.
Signal undershoot greater than –0.5V causes the ESD
diodes on the device inputs to conduct current. This current
travels through the substrate until it reaches collection points
(guard bands with substrate contacts). However, as this cur-
rent flows within the substrate, it adds noise to the overall
noise floor on the device.

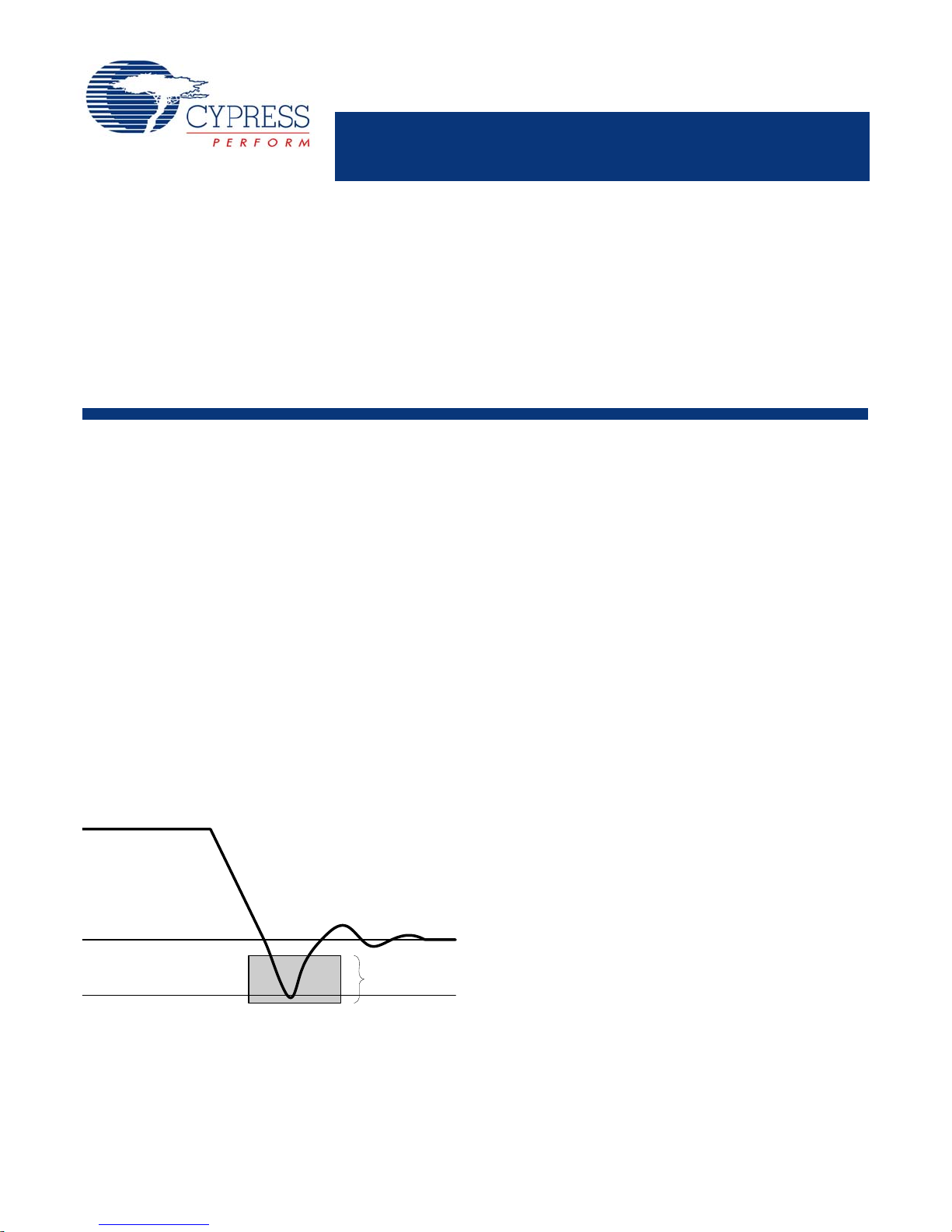

Figure 1. Signal Undershoot
Effect on RTC Oscillator
The RTC oscillator circuit, which is embedded on the 256K
and 1M nvSRAM family is designed to be a very low power
circuit. To achieve this low power operation, the automatic
gain circuit of the oscillator is designed to operate on very
small currents (nano-Amperes). This makes the gain circuit
sensitive to on-chip noise, which in turn makes the RTC oscil-
lator circuit very sensitive to substrate currents caused by sig-
nal undershoot.
There have been reports of the oscillator stopping in some
customer systems. Investigation showed that these systems
all had a significant amount of undershoot. Correcting the
undershoot on the input pins corrected the problem. The
address pins A
0
-A
3
and data pin DQ
0
are located in the area
of the RTC oscillator circuit. Undershoot on these address
pins has the greatest effect on the RTC circuit operation. It is
recommended that customers experiencing similar problems
investigate and correct undershoot issues.
Recommendation
Undershoot can be reduced by adding a Schottky diode (V
F
<
0.4V with I
F
at 100 mA) connected with the anode at ground
and cathode on the signal line as close to the device pin as
possible. Layout must route the signals to connect to the
diode first then the pin if possible. The anode to ground
should go directly to the ground plane. The only signals that
require this treatment are A
0
, A
1
, A
2
, A
3
, and DQ
0
. A scope
must be used to confirm controlled undershoot as some fast
edge rates may need more effective termination. It is critical
that the voltage does not go below 0.6V as substrate currents
begin to flow.
AN49947
Associated Part Family: CY14BXXXK/STK17TX8
GET FREE SAMPLES HERE
EDS DIODE
CONDUCTION
0V
-2V
3.3V
Conduction
ESD Diode
[+] Feedback
AN49947
Cypress Semiconductor
198 Champion Court
San Jose, CA 95134-1709
Phone: 408-943-2600
Fax: 408-943-4730
http://www.cypress.com
© Cypress Semiconductor Corporation, 2008. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation
assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under
patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life saving, critical control or safety applications,
unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as critical components in
life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products
in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.
This Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide
patentprotection(UnitedStatesandforeign), UnitedStatescopyright laws and internationaltreatyprovisions.Cypresshereby grantstolicenseeapersonal,
non-exclusive, non-transferable license to copy, use, modify, create derivative works of, and compile the Cypress Source Code and derivative works for
the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction with a Cypress integrated circuit
asspecifiedintheapplicableagreement.Any reproduction, modification, translation,compilation,or representation of this SourceCodeexcept asspecified
above is prohibited without the express written permission of Cypress.
Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to
make changes without further notice to the materials described herein. Cypress does not assume any liability arising out of the application or use of any
product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or
failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress' product in a life-support systems application implies
that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.
Use may be limited by and subject to the applicable Cypress software license agreement.
November 06, 2008 Document # 001-49947 Revision ** 2
Document History
All trademarks or registered trademarks referenced herein are the property of their respective owners.
Document Title: Undershoot Effect in RTC Circuit of 0.25μ nvSRAM
Document Number: 001-49947
Revision ECN No. Orig. of
Change Submission
Date Description of Change
** 2606848 NXR 11/13/08 New application note
