DCT-9DN

Universal Digital/Analog Audio Converter

with Dolby®Digital Decoder

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

Manufactured under license from Dolby Laboratories. “Dolby” and

the double-D symbol are trademarks of Dolby Laboratories.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

VR0 26/08/13 Preliminary Release

VS1 11/11/13 Updated Text

CONTENTS

1. Introduction...........................................1

2. Applications..........................................1

3. Package Contents ...............................1

4. System Requirements...........................1

5. Features.................................................2

6. Operation Controls and Functions......3

6.1 Top Panel.........................................3

6.2 Right Panel.......................................3

6.3 Left Panel.........................................4

6.4 Rear Panel........................................4

7. Connection Diagram ...........................5

8. Specications .......................................6

8.1 Technical Specications ................6

8.2 Audio Specications.......................7

8.3 Audio Format Supports...................7

9. Acronyms..............................................8

1. INTRODUCTION

The Universal Digital/Analog Audio Converter with Dolby Digital

decoder is designed to convert audio between Optical, Coaxial

and analog audio formats. With the ability to convert digital signals

into analog and analog signals into digital, this device supports the

simultaneous conversion of audio formats allowing you to choose

between optical, coaxial or analog or all three at the same time. The

Universal Digital/Analog Audio Converter with Dolby Digital decoder

is the perfect choice when you need to deal with multiple audio

formats.

2. APPLICATIONS

• Analog audio to digital audio signal conversion (ADC)

• Digital audio to analog audio signal conversion (DAC)

• Simultaneous digital and analog audio output

• Downmixing of Dolby Digital signals

3. PACKAGE CONTENTS

• 1×Universal Digital/Analog Audio Converter with Dolby Digital

decoder

• 1×5V/1A Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

Audio source equipment such as a CD/DVD Player with suitable

connection cable(s) and an AV receiver or similar device for audio

output.

5. FEATURES

• Dolby Digital decoder technology embedded

• Integrated digital interpolator lter and Digital-to-Analog Converter

(DAC)

• Integrated Analog–to-Digital Converter (ADC)

• Supports LPCM input sampling rates from 32 to 96 kHz

• Output sampling rates is adjusted to 48 kHz

• Supports Dolby Digital audio downmixing to 2CH audio

• Supports Dolby Digital sampling rate 48kHz

• Provides electromagnetic-noise-free transmission

• Easy to install and operate

• Compact and elegant design

6. OPERATION CONTROLS AND FUNCTIONS

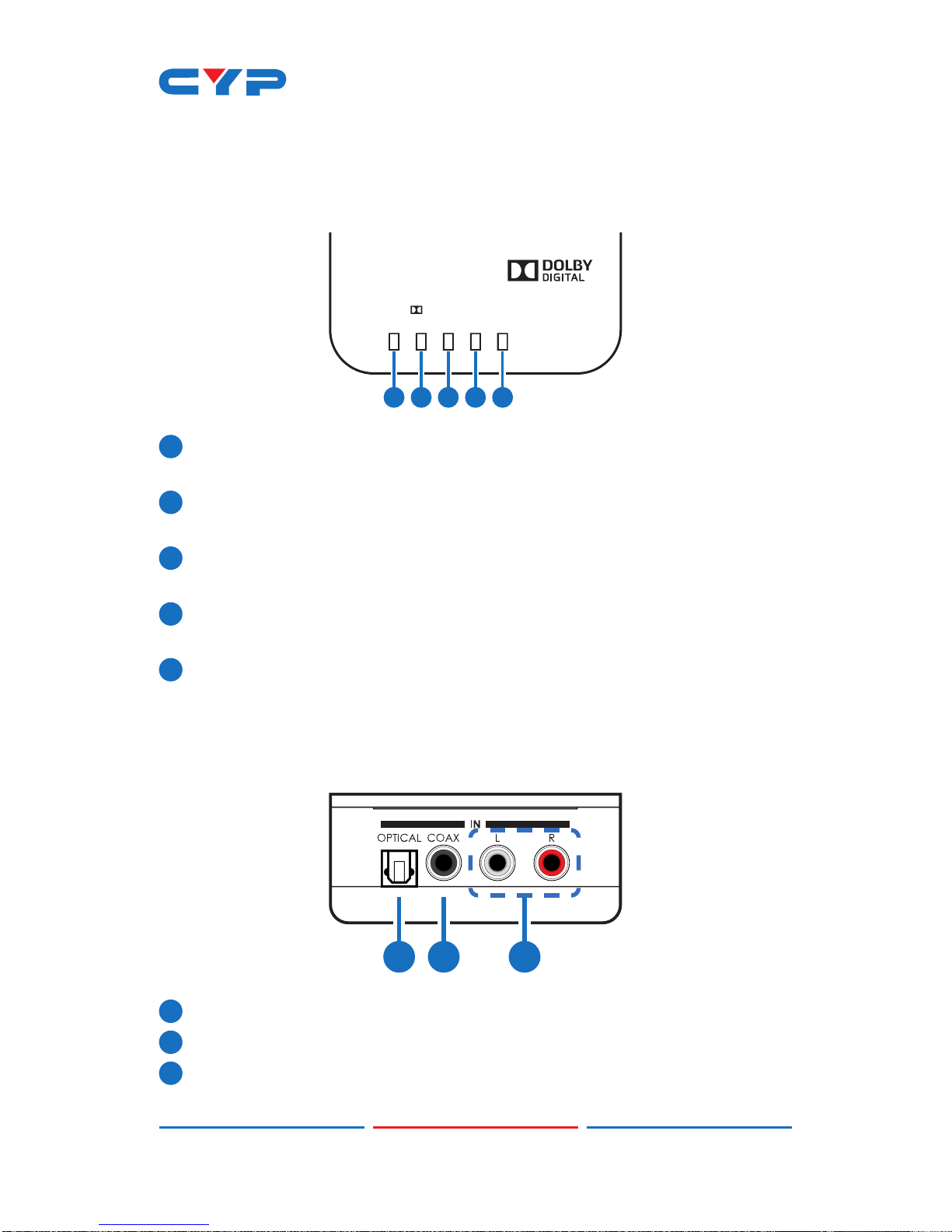

6.1 Top Panel

POWER L/R COAX OPTICAL

UNIVERSAL

Dolby DIGITAL / ANALOG

AUDIO CONVERTER

1 32 4 5

1POWER LED: The LED will illuminate blue when connected to power

and in red when switched off.

2Dolby Digital LED: The LED will illuminate when the the audio source

is Dolby Digital encoded.

3L/R IN LED: The LED will illuminate blue to indicate that the L/R input

is selected.

4COAX IN LED: The LED will illuminate blue to indicate that the

COAX input is selected.

5OPTICAL IN LED: The LED will illuminate blue to indicate that the

OPTICAL input is selected.

6.2 Right Panel

1 2 3

1OPTICAL IN: Connect to the OPTICAL output of the audio source.

2COAX IN: Connect to the COAX output of the audio source.

3L/R IN: Connect to the analog (L/R) output of the audio source

with a stereo RCA cable.

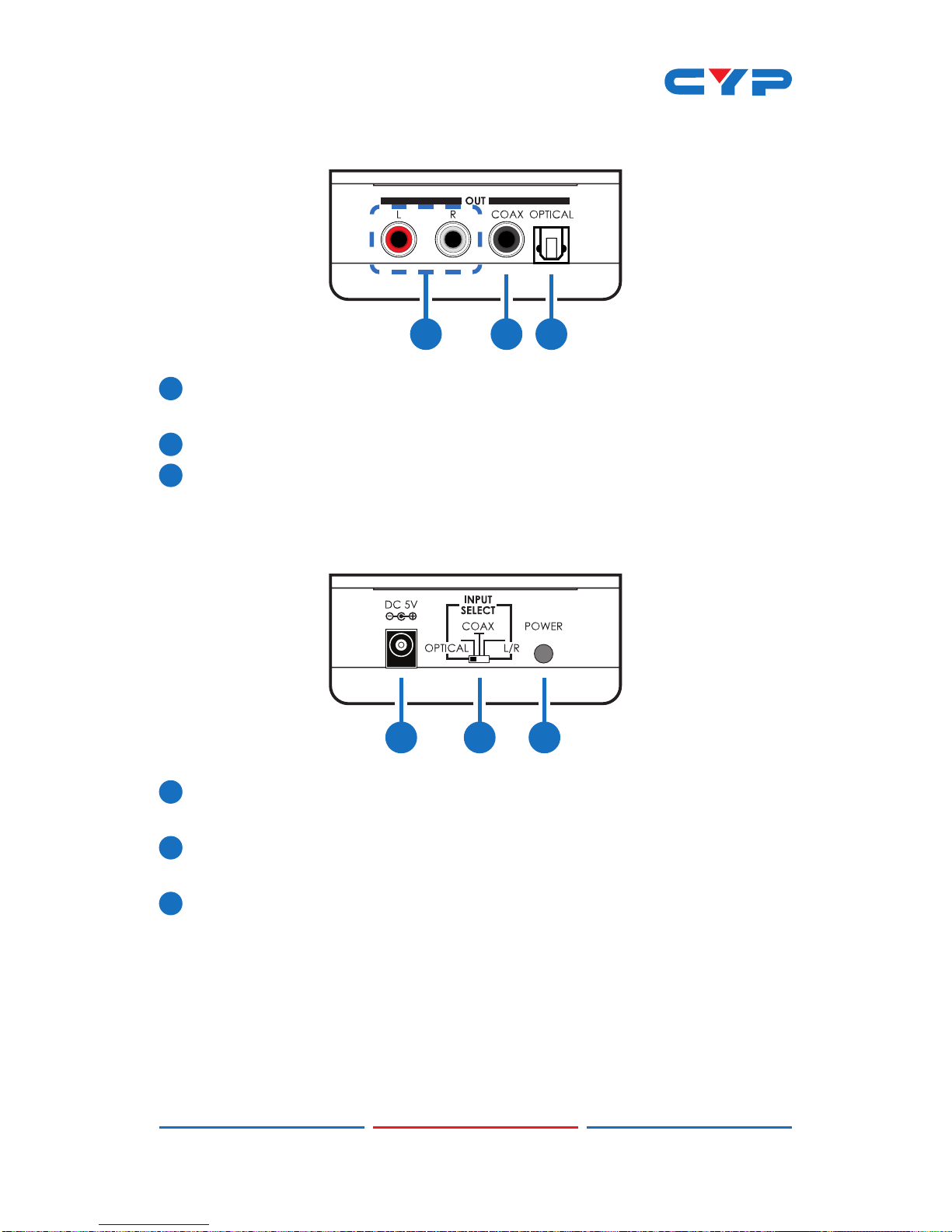

6.3 Left Panel

1 2 3

1L/R OUT: Connect to the analog (L/R) audio input of the audio

system such as a TV or amplier with a stereo RCA cable.

2COAX OUT: Connect to the audio system's coaxial input.

3OPTICAL OUT: Connect to the audio system's optical input.

6.4 Rear Panel

1 2 3

1DC 5V: Connect the 5V/1A DC power supply to the unit and plug

the adaptor to an AC wall outlet.

2INPUT SELECT: Selects the required audio source, either optical,

coaxial or L/R (Analog).

3POWER: Push the button to turn the unit on or off.

7. CONNECTION DIAGRAM

POWER L/R COAX OPTICAL

UNIVERSAL

Dolby DIGITAL / ANALOG

AUDIO CONVERTER

Power

Supply

DVD Player

Analog

Stereo

Output

Analog

Stereo

Input

Digital

Coaxial

Input

Digital

Coaxial

Output

Digital

Optical

Input

Digital

Optical

Output

Set-top Box

AV ReceiverTV AV Receiver

Blu-ray Player

8. SPECIFICATIONS

8.1 Technical Specications

Input Ports 1×Optical, 1×Coaxial, 1×Analog Stereo

(L/R)

Output Ports 1×Coaxial, 1×Optical, 1×Analog Stereo

(L/R)

Optical/Coaxial Input

Audio Formats LPCM 2CH & Dolby Digital

Audio Sampling Rates 32~96 kHz

L/R Input Impedance 47 KΩ

L/R Output Impedance 600 Ω

ESD Protection Human body model:

±10 kV (air-gap discharge)

±6 kV (contact discharge)

Power Supply 5V/1A DC (US/EU standard, CE/FCC/UL

certied)

Dimensions 97mm (W)×85mm (D)×35mm (H)

Weight 110g

Chassis Material Plastic

Color White

Operating Temperature 0 ºC~40 ºC / 32 ºF~104 ºF

Storage Temperature −20 ºC~60 ºC / −4 ºF~140 ºF

Relative Humidity 20~90% RH (non-condensing)

Power Consumption 2.1W
