Cypress DCT-2 Manuale utente

DCT-2 Coaxial/

Toslink Audio

Converter

Operation Manual

DCT-2

Introduction

Cypress DCT-2 is a Coaxial / Toslink audio converter, compact and convenient.

It accepts S/PDIF audio signal input through either Coaxial cable or Toslink cable,

and passes the signal (as is) to both its coaxial and Toslink output ports. With its

built-in amplification feature, DCT-2 can also serve as a repeater of audio signal

and extend (double) the transferring distance.

Features

1. Supports two-way conversion: Coaxial to Toslink or Toslink to Coaxial.

2. Supports input audio signal from 2 channels up to 5.1 channels, output signal

follows input.

3. Supports amplification of S/PDIF audio and extends the transferring distance,

through coaxial and/or Toslink cables.

4. Select one input from Coaxial or Toslink input ports, and send S/PDIF audio

signal to both Coaxial and Toslink output ports simultaneously.

5. Compact size and easy to install.

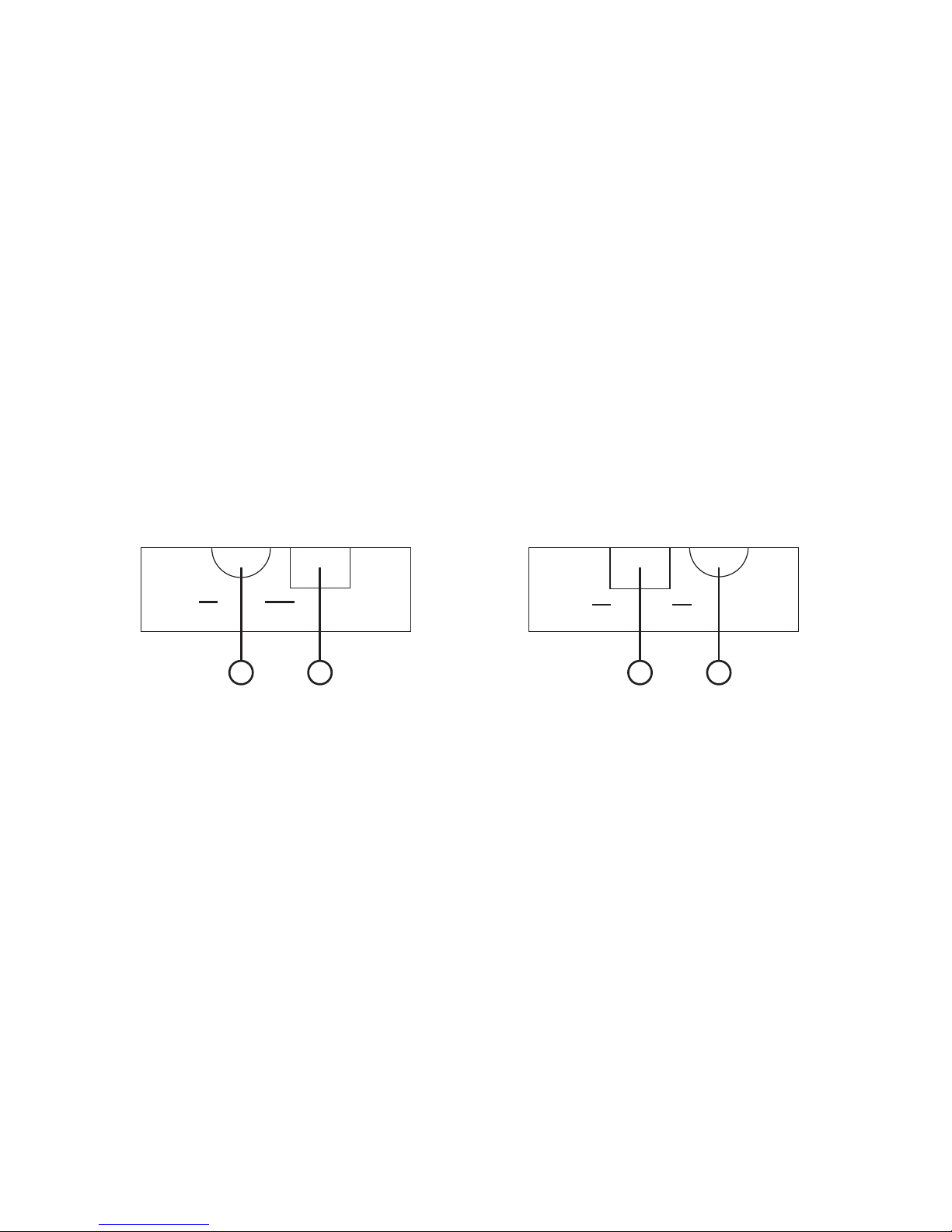

Operation Controls and Functions

Input Panel Output Panel

Input Panel:

1. Coaxial Input:

Connect to the output port of your S/PDIF audio source such as DVD player

or amplifier, using Coaxial cable.

2. Toslink Input:

Connect to the output port of your S/PDIF audio source such as DVD player or

amplifier, using Toslink (optical fiber) cable.

Output Panel:

1. Toslink Output:

Connect to the input port of your S/PDIF audio equipment such as amplifier,

using Toslink (optical fiber) cable.

2. Coaxial Output:

Connect to the output port of your S/PDIF audio equipment such as amplifier,

using Coaxial cable.

1 2

Toslink

Coax

1 2

Coax

Toslink

Out

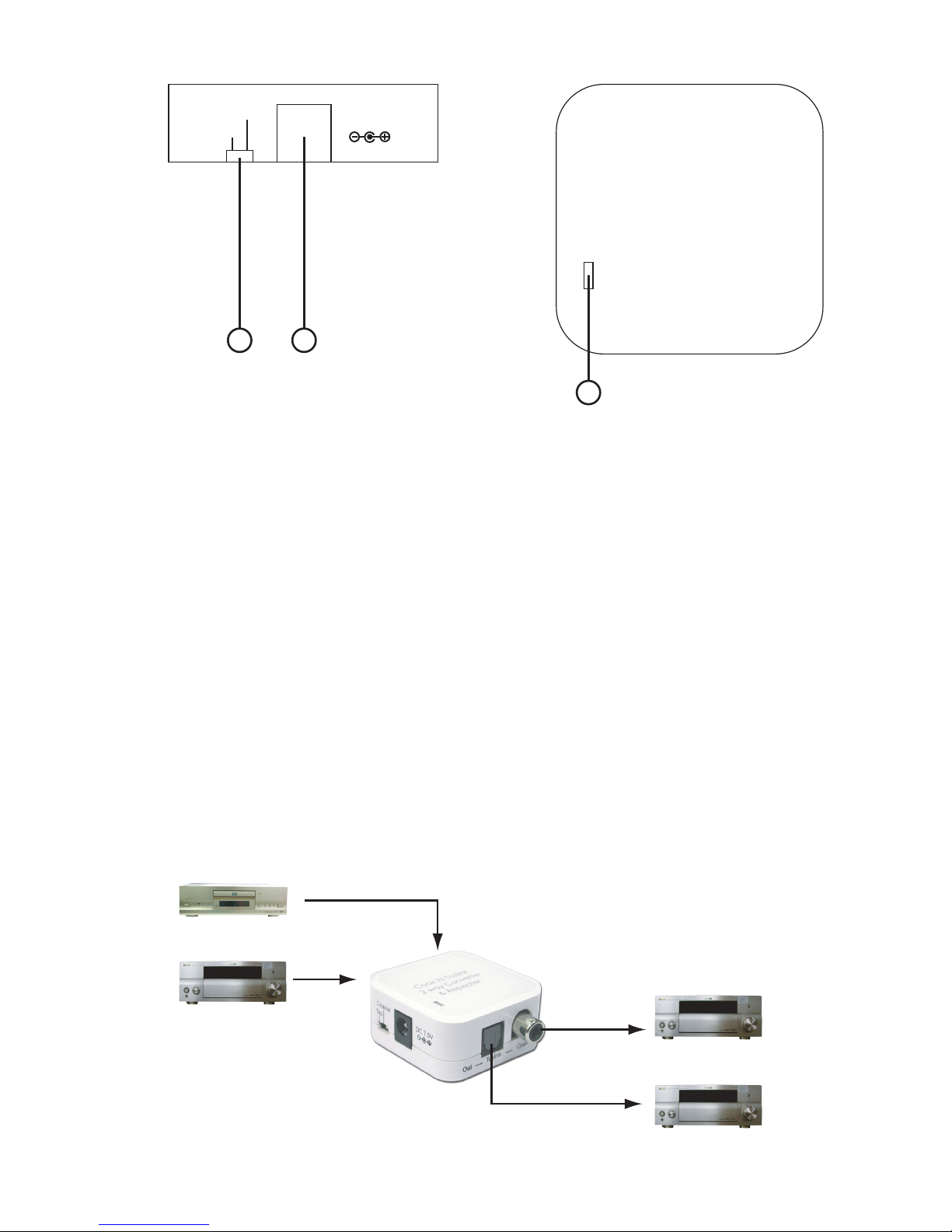

Switcher Panel Upper Cover

Switcher Panel:

1. Input Selection:

Use this mini switcher to select input from Coaxial or Toslink input ports.

2. Power:

Plug the power supply into DCT-2 unit and connect the adaptor to AC wall

outlet.

Upper Cover:

1. Power LED:

The LED will illuminate when the power supply is connected.

Specifications

* Input: 1 x Coaxial RCA Jack and 1 x Toslink (optical fiber) port

* Output: 1 x Coaxial RCA Jack and 1 x Toslink (optical fiber) port

* Power: DC 7.5V / 500 mA, center positive

* Dimension: 42(W) x 40.5(D) x 22(H) mm

* Weight: 25g (adaptor not included)

Connection and Installation

DVD Player

Amplifier

DC 7.5V

To s

Coaxial

1 2

Coax to Toslink

2 way Converter

& Repeater

DCT-2
