4-in 1-out

DVI Switcher

Operation Manual

CDVI-41

Introduction

Cypress CDVI-41 is a high performance DVI switcher

with remote control. It allows your various DVI sources to

share one DVI display.

Simply pressing one button to select your desired DVI source

for display on the HDTV.

Features

* HDMI 1.1, HDCP 1.1 and DVI 1.0 compliant.

* Signal enhancement feature allows you to improve signal quality

after long distance transmission.

* LED indicators.

* Ideal for home theater integration.

* Supports high resolution input:

PC: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200)&

HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, and 1080p

* Remote control.

* Easy to install and simple to operate.

Operation Controls and Functions

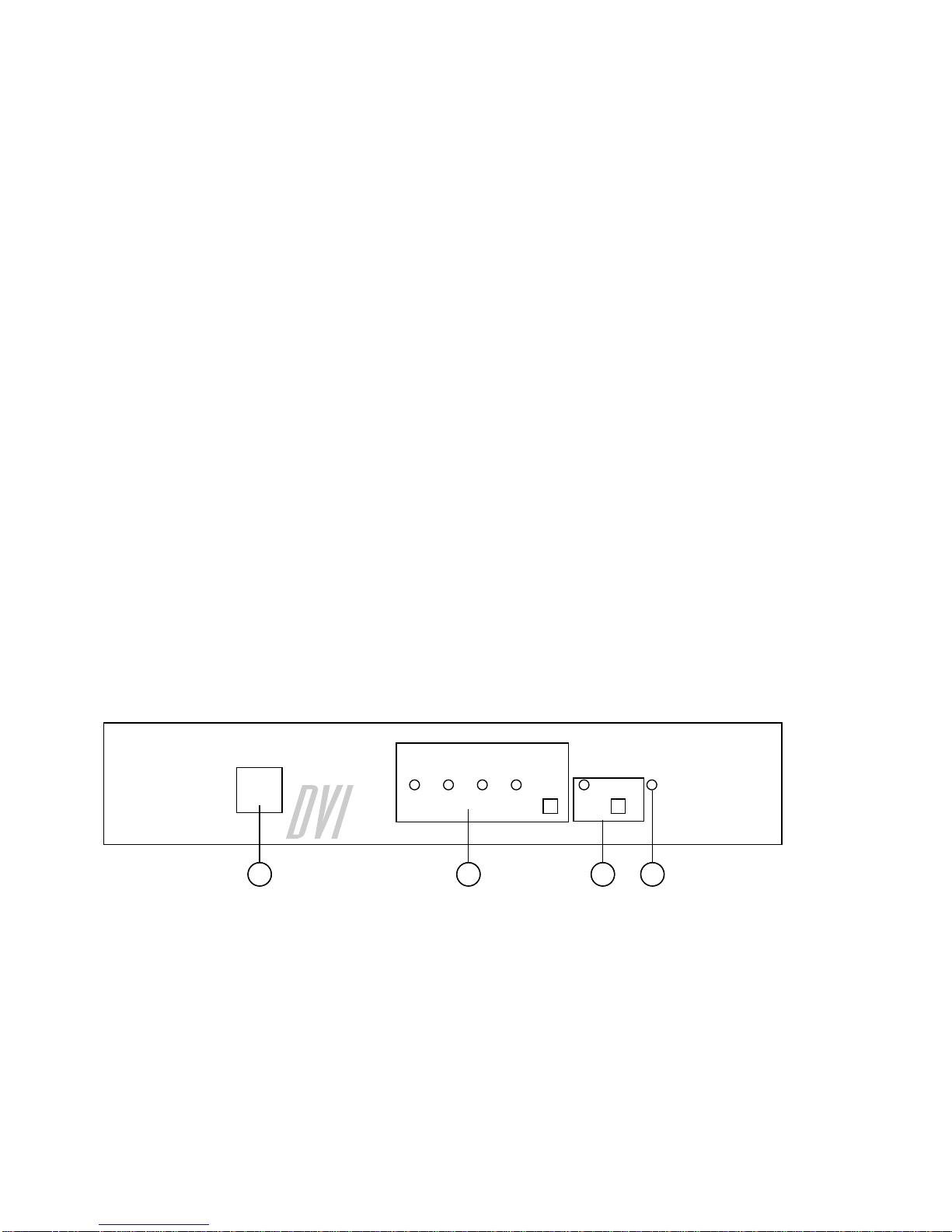

Front Panel

123 4

1. Remote control sensor.

2. Input select/Indicators: Press the " INPUT" button repeatedly to switch to your

desired input source and the LED will illuminate to indicate which

input source is being selected.

3. Signal Enhancement/Indicator: Press the " Signal Enhance" button to turn

on this feature to improve signal quality after long distance transmission.

Press again to turn off. The LED will illuminate when the signal is enhanced.

4. Power LED Indicator: The LED will illuminate when the power is connected.

INPUT

1 2 3 4 POWER

SIGNAL ENHANCE

CDVI-41 4x1 DVI Switcher

Operation Controls and Functions

Rear Panel

1 4 2 3

1. DVI output: Connect the DVI output to the DVI input of

your display using DVI cable.

2.DVI inputs: Connect your various DVI sources to each of the

DVI input of the unit using DVI cables.

3. Power: Plug the supplied 5VDC power supply into the unit.

4. RS232: 9-pin D-sub female connector for connecting to your other control

console for remote control.

Remote Control

CR-22

1. Power:

Press the button to turn on/off the unit.

2. Direct input selector:

Press numerical number button to select your desired

input source.

3. Void buttons (No function). If the button number is

greater than the total input number of the unit then

the button is of no function.

Specifications

* Frequency bandwidth: 1.65Gbps(single link)

* Inputs: 4 x DVI female ports (Type A connector)

* Output: 1 x DVI female port (single link)

* 5VDC universal power supply

* Weight: 1kgs

* Dimension: 240(W) x104(D) x 44(H)mm

RS-232

DVI IN 4 DVI IN 3 DVI IN 2 DVI IN 1 DC 5V

DVI OUT

LCD TV DVD 2

DVD 1 DVD 3 STB

Connection and Installation
