D-Link DUB-E100 Manuale utente

D-Link USB 2.0 Fast

Ethernet Adapter

DUB-E100DUB-E100

DUB-E100

This product can be used with:This product can be used with:

This product can be used with:

Windows XP, Me, 2000,Windows XP, Me, 2000,

Windows XP, Me, 2000,

98 Second Edition98 Second Edition

98 Second Edition

CheckYourPackageContents

These are the items included with your purchase:

If any of the below items are missing, please contact your reseller.

BeforeYouBegin

You must have at least the following:

•Windows XP/Me/2000/98 Second Edition

•One Available USB Port

•CD-ROM Drive

• DUB-E100 USB 2.0 Fast Ethernet Adapter

• Drivers on CD-ROM

Installing The DUB-E100

System Requirements

•Pentium Class PC 200Mhz or above

•16MB RAM

•One Available USB Port

•Microsoft Windows XP, 2000, Me, 98 Second Edition

Plug the “A” Connector of the

DUB-E100’s USB cable into an

available USB slot on your com-

puter.

Your computer should automatically detect the DUB-E100 and prompt you

to install the driver. Please proceed to the next section to complete the

driver installation.

Attach the other end of the

CAT5 Ethernet cable to a

switch, hub, or router/gate-

way.

Attach a CAT5 Ethernet

cable with an RJ-45 con-

nector to the RJ-45 jack of

the DUB-E100

Note: Windows Me Screens

will vary slightly from the

Windows XP screens shown.

Windows XP & Me Users

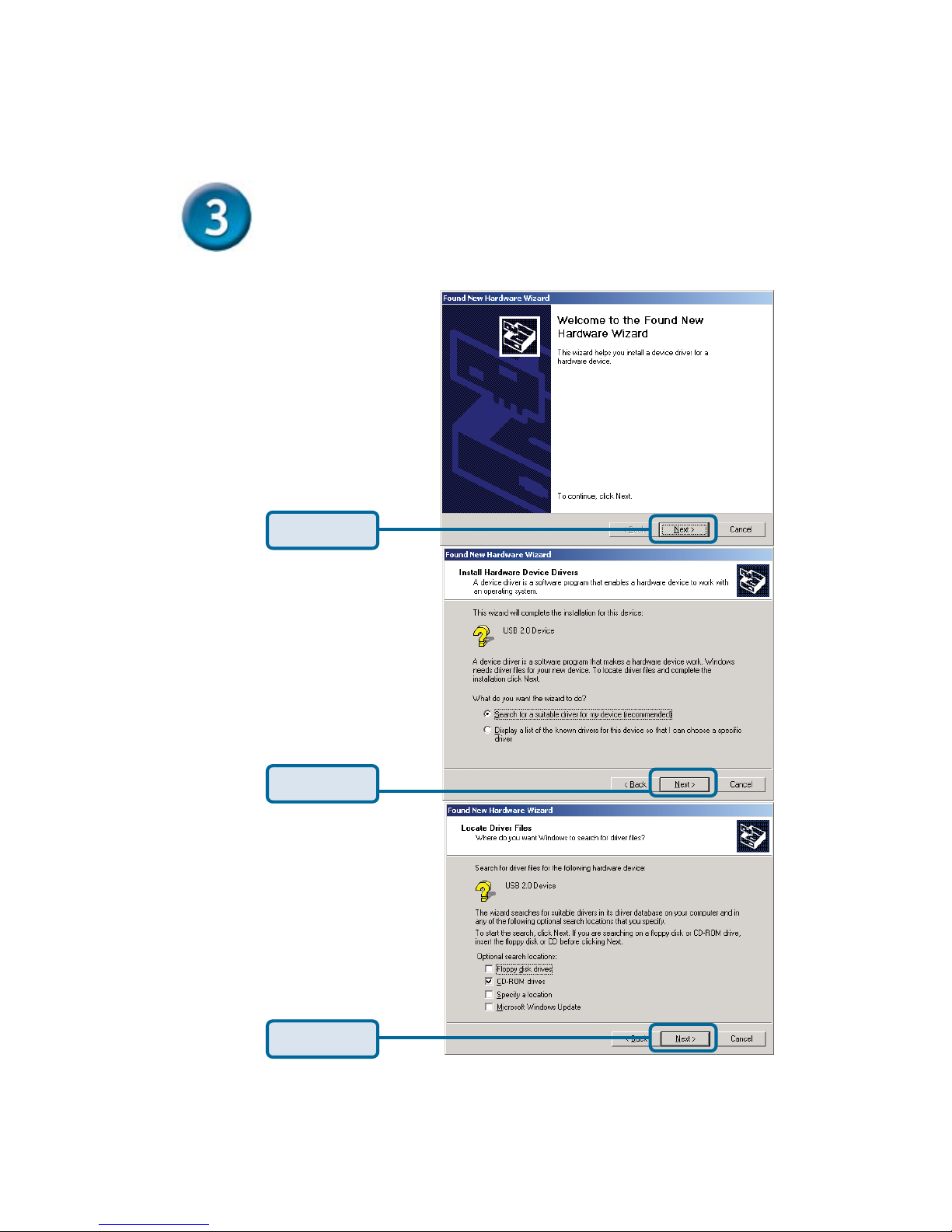

CompletingTheDriverInstallation

Click Next

Click Finish

Click Continue Anyway

Windows Me users may be asked to restart the computer. Select

“Yes” to restart your computer and complete the installation.

Windows 2000 Users

Click Next

Make sure to

check ONLY the

CD-ROM drives

box and uncheck

all other boxes.

Completing The Driver Installation

Click Next

Click Finish

Click Yes

Windows 2000 Users

You may be asked to restart your computer. Select Yes to restart your

computer and complete the installation.

Completing The Driver Installation

Windows 98SE Users

Click Next

Completing The Driver Installation

Windows 98SE Users

Click Next

Click Finish

Click Yes

Type in g:\win98 (use the

appropriate letter corre-

sponding to your CD-ROM

drive) then Click OK.

Click Next

Note: You may see these next 2

screens.

Completing The Driver Installation

The Installation is Complete!

You have now completed installation of the DUB-E100. Please check the

LED indicators on the DUB-E100 which will indicate proper installation.

The DUB-E100 features two LED indicators. The Link LED located on

the left of the Ethernet port indicates that there is an active connection

between the DUB-E100 and the network, and the Tx/Rx LED located on

the right of the Ethernet port indicates that data is being transferred.

•The Link LED is green when the DUB-E100 is operating at

100Mbps.

•The Link LED is amber when the DUB-E100 is operating at

10Mbps.

•The Tx/Rx (transmitting and receiving) LED flashes green when the

DUB-E100 is transmitting or receiving information.

If both LED’s are off, there is no connection. Check the network cables

and make sure that there is a physical connection between the DUB-

E100, your computer, and your network.

Tips

You can verify that the DUB-E100 is installed properly by using the follow-

ing steps.

•Right click on My Computer and select Properties.

•Click on the Hardware tab, and click on Device Manager.

•Click on the plus sign located to the left of Network Adapters to

expand the selection. D-Link USB DUB-E100 should appear,

indicating proper installation.

•If you have followed the instructions provided in this installation guide

and are still having trouble installing the DUB-E100, please refer to

the technical support information provided on the next page.

their respective holders. Software and specifications subject to change without notice. DUB-E100.030603

Technical Support

You can find software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States and

within Canada for the duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link technical support through our

website, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877) 453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800) 361-5265

Monday to Friday 8:30am to 9:00pm EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]
