D-Link DVG-2001S Manuale utente
2005 D-LinkSystems, Inc. All rights reserved. Trademarks or registered trademarks are the propertyof
their respective holders.Software and specifications subject to change without notice.DVG-2001S VoIP
Terminal Adapter
Using a power adapter with
a different voltage rating
will
damageand void the
warranty for this product.
Before YouBegin
1. If you purchasedthis VoIP Terminal Adapterto share your high-speed Internet
connection with other computers, you must have an established Internet account from
an Internet ServiceProvider (ISP).
2. It’s best tousethe samecomputerthat is connected toyour router for configuringthe
DVG-2001S VoIP Terminal Adapter. The DVG-2001S acts as a DHCP server and will
assignallthe necessary IP address informationon your network. See the Quick
Installation Guide or the Manual on the CD-ROMfor setting each network adapter to
automatically obtain an IP address.
Check Your Package Contents
DVG-2001S
VoIP Terminal Adapter
This product can
be set up
using anycurrent web
browser, i.e., Internet
Explorer 6 or Netscape
Navigator 6.2.3.
DVG-2001S
Ethernet Cable
12V,1.2APower
Adapter
CD-ROM
ADSL Cable
If any of the above items is missing,
please contact your reseller
.
2
Connecting the VoIP TerminalAdapter to
your Computer
A. First, connect the power adapter to the power input at the back
panel ofthe DVG-2001Sand then plug the other end ofthe
power adapter toa wall outlet or power strip. On the front ofthe
device, the Power LED will turn ON toindicate proper operation.
B. Insert one end ofthe Ethernet cable into theEthernet (LAN) port
on the backpanel ofthe DVG-2001S andtheother end ofthe
cable to an Ethernet Adapter or availableEthernet port on your
computer.
C. Insert a telephone cable into thePhoneport,then connect the
cable to your telephoneline.
D. Checkthe LED displayon the front ofthe Router to confirmthat
the connections have been made.
Power I
nput
Connect to AC
Adapter
LAN Ports
Connect to the
LAN and other
computers
Phone Connections
Connect to your phone
using standard phone
cabling
FactoryReset button
3
Configure IP Settings
For Microsoft Windows XP
To connect to the network, make sure the network adapter in your
computer is configured properly. Here s howto assign a static IP
address to your PC.

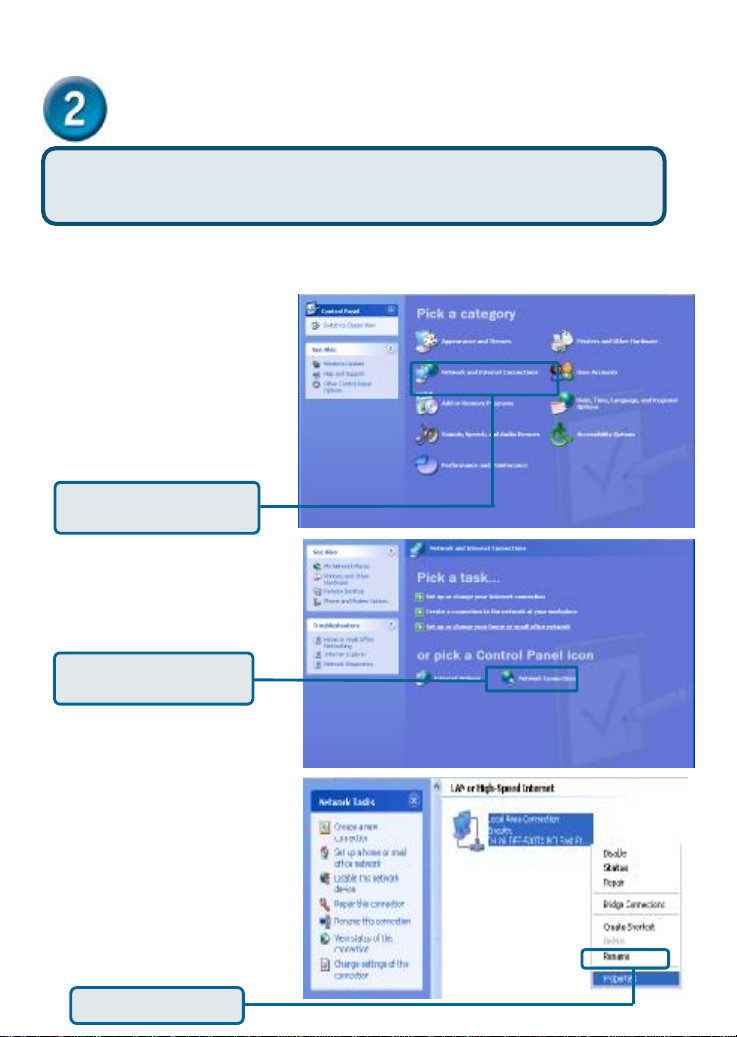

Go to
Start
>
click
Control Panel >
click on the
Network
and Internet
Connections icon
Click
on
Networkand
Internet Connections
R
ight
-
click
the
Local Area
Connection icon,
and thenselect
Properties.
Select Properties
Click
on the
Network
Connections icon
Click
on
Network
Connections
4
The dialog box displays alist
ofcurrentlyinstalled network
items.
Click
Internet Protocol
(TCP/IP)
Make the choice to get theIP
settings assigned manually.
Select
Use thefollowing
IP address
Click OK
5
Using additional Ethernet (CAT5UTP) cables,connect your Ethernet-
equipped computers to the LAN port on the backpanel ofthe
DVG-2001S.
When you have completedthe steps in this Quick Installation Guide,
your connected networkshould looksimilar to this:
Connecting Additional Computers
to theDVG-2001S VoIPTerminal
Adapter
7
The Home window appears:
Clicking a hyperlinkon themenu on the upper left sideofthe window
brings up a detailedconfiguration window.
Click Run Wizard.
8
Configuring the WAN (Internet)
Connection
Click Run Wizard on the menu above to viewthe following Wizard
window:
Click the Next button.
9
Enter a newpassword for the DVG-2001S in the Password
field.
Confirm the newpassword byentering it again into the
VerifyPassword field.
Click the Next button to continue.
Click the Next button.
10

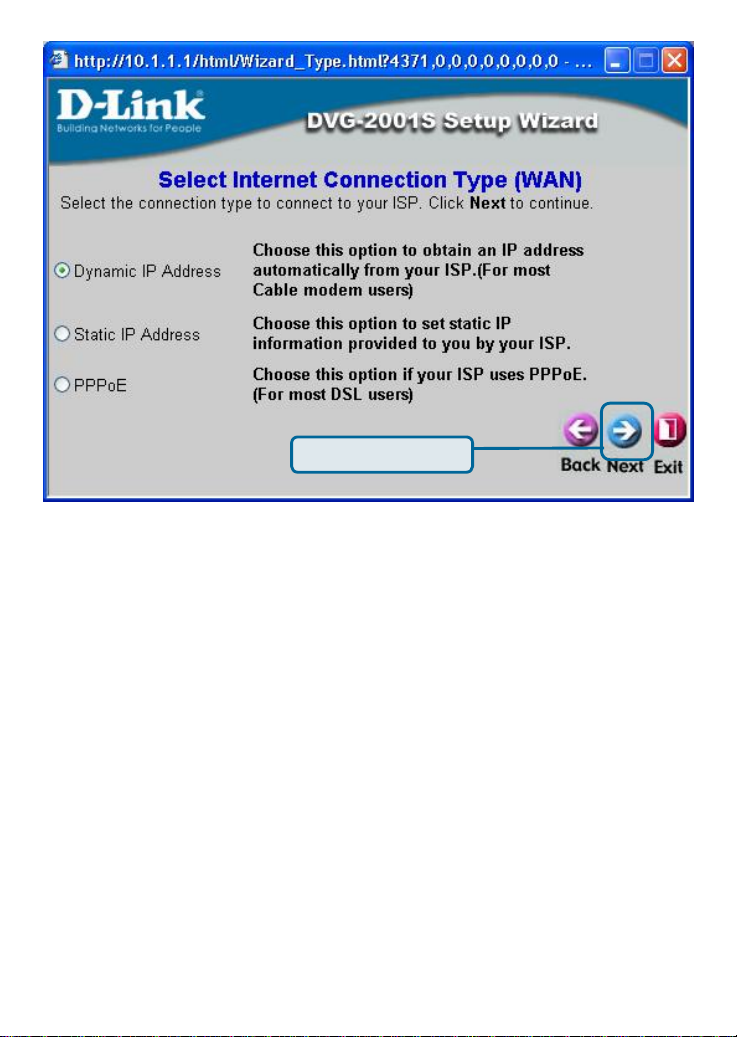

The windowabove allowsyou to select between the three
most common ways to connect to your ISP’s WAN(Internet).
Select Dynamic IP Address if your ISP automatically
assigns you an IP address. This is the most common wayof
connecting the DVG-2001S to another modem, such asa
Cable modem.
Select Static IP Address ifyour ISP provided you with IP
address information that will not change.
Select PPPoE ifyour ISP uses the Point-to-Point over
Ethernet (PPPoE) protocol to make the connection. This is
the most common connection type for DSL users.
Click the Next button to continue.
Click the Next button.
