D-Link DWL-G650M - Super G With MIMO Manuale utente
1
DWL-G650M
If any of the above items are missing, please contact your reseller
CD-ROM (containing Drivers and Manual)
This product works with the following operating
systems: Windows XP, Windows 2000
Before You Begin
DWL-G650M 108G MIMO
Wireless Notebook Adapter
Check Your Package Contents
These are the items included with your DWL-G650M purchase:
You must have at least the following:
• A laptop computer with an available 32-bit Cardbus slot
• At least a 500MHz processor and 64MB of memory
• Cardbus Controller properly installed and working in the laptop computer
• An 802.11g Access Point (for Infrastructure Mode)
108G MIMO
Wireless Notebook Adapter
2

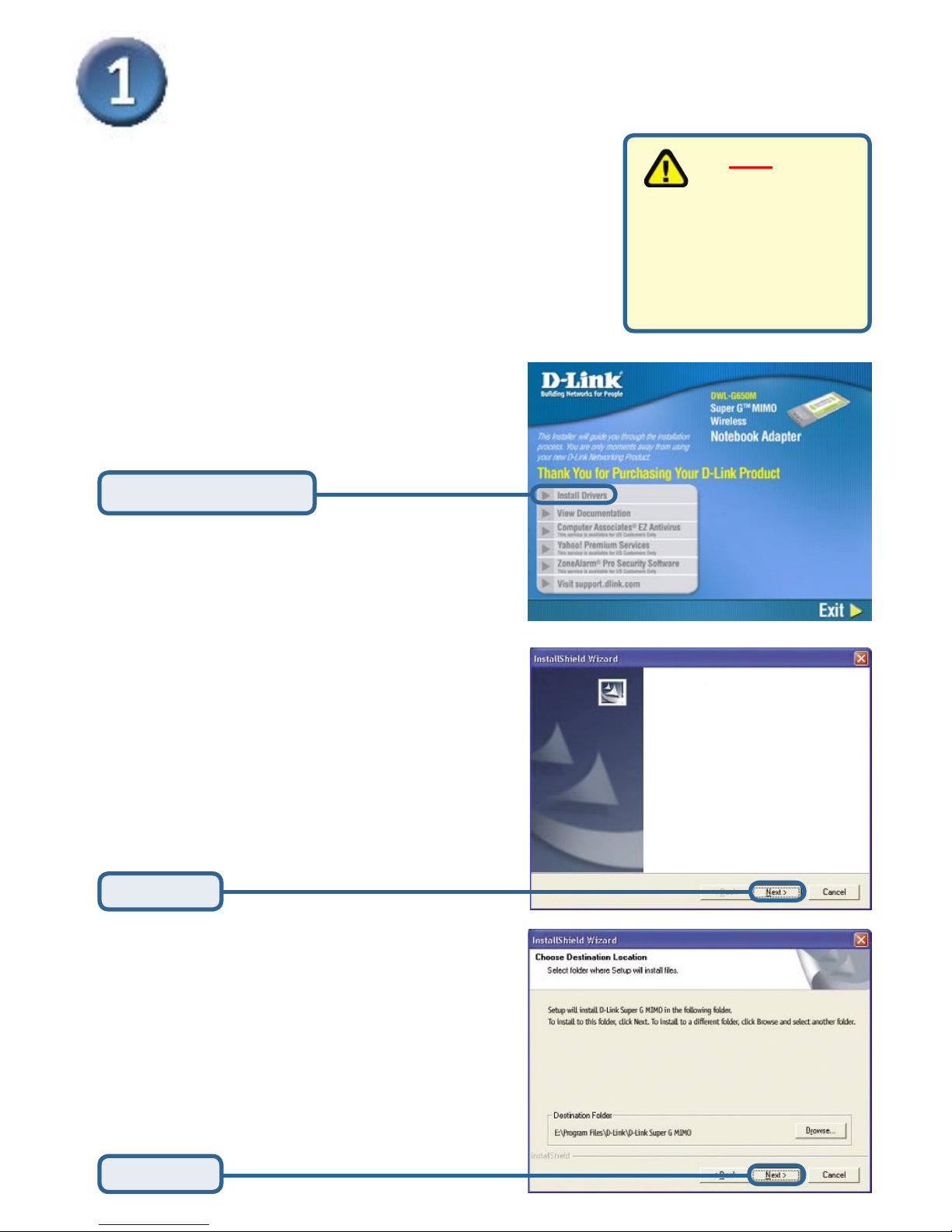

Click Next
Click Next
Click Install Drivers
If the CD Autorun function does not
automatically start on your computer,
type “D:\Drivers\setup.exe.” If it does
start, proceed to the next screen.
Turn on the computer and Insert the D-Link
DWL-G650M Driver CD in the CD-ROM
drive.
The step-by-step instructions that follow are shown
in Windows XP. The steps and screens are similar
for Windows 2000.
Installing the Drivers
108G MIMO Wireless Utility
The InstallShield Wizard will install
D-Link DWL-G650M on your computer.
To continue click Next.
®
Do NOT install
the DWL-G650M
Notebook Adapter into
your computer before
installing the driver
software from the
D-Link CD!
3
Click Next

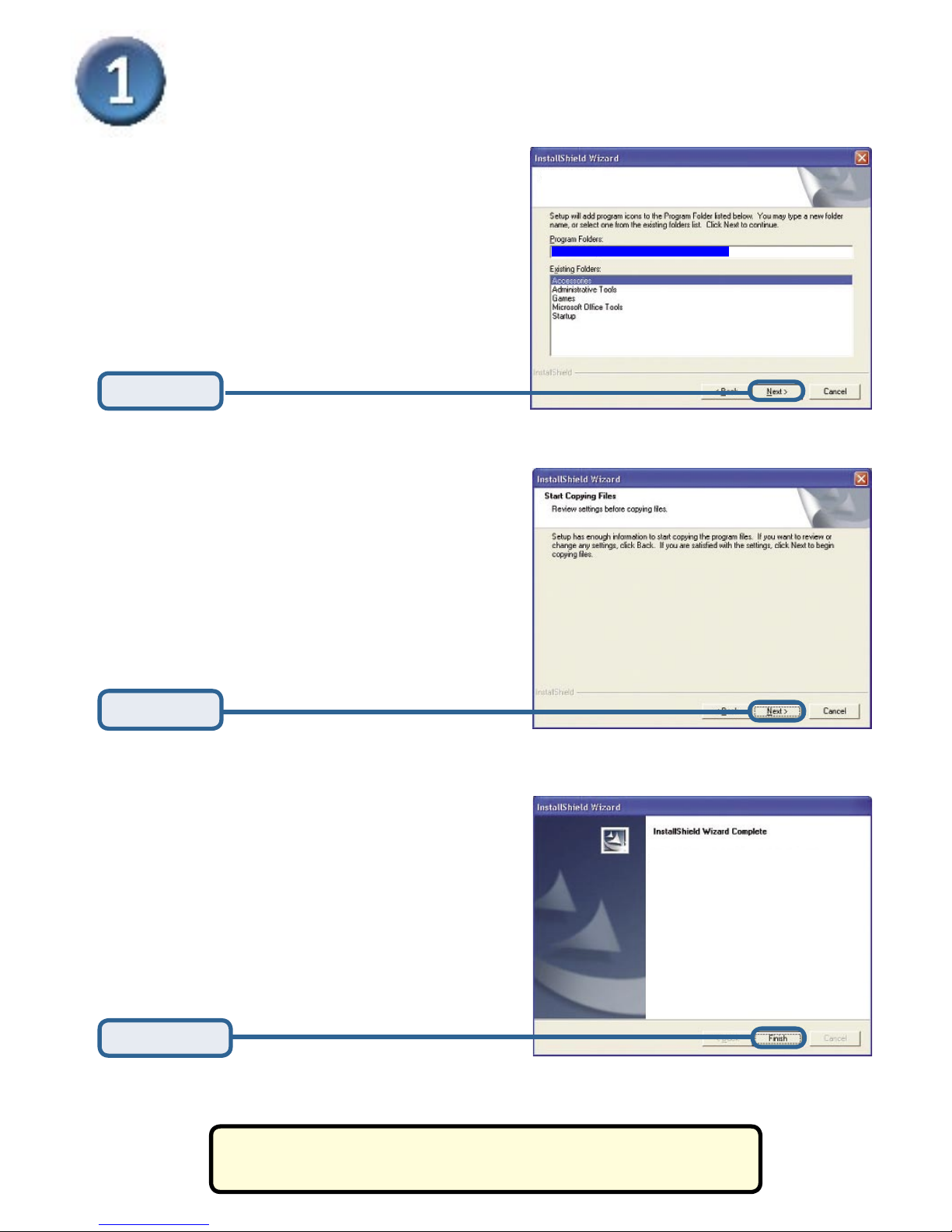

Installing the Drivers (continued)
Click Finish
Click Next
Shut down your computer
Remember to leave the DWL-G650M Driver CD in the CD-ROM drive.
Super G Mimo Utility
D-Link 108G MIMO
Setup has finished installing the DWL-G650M on your
computer.
4

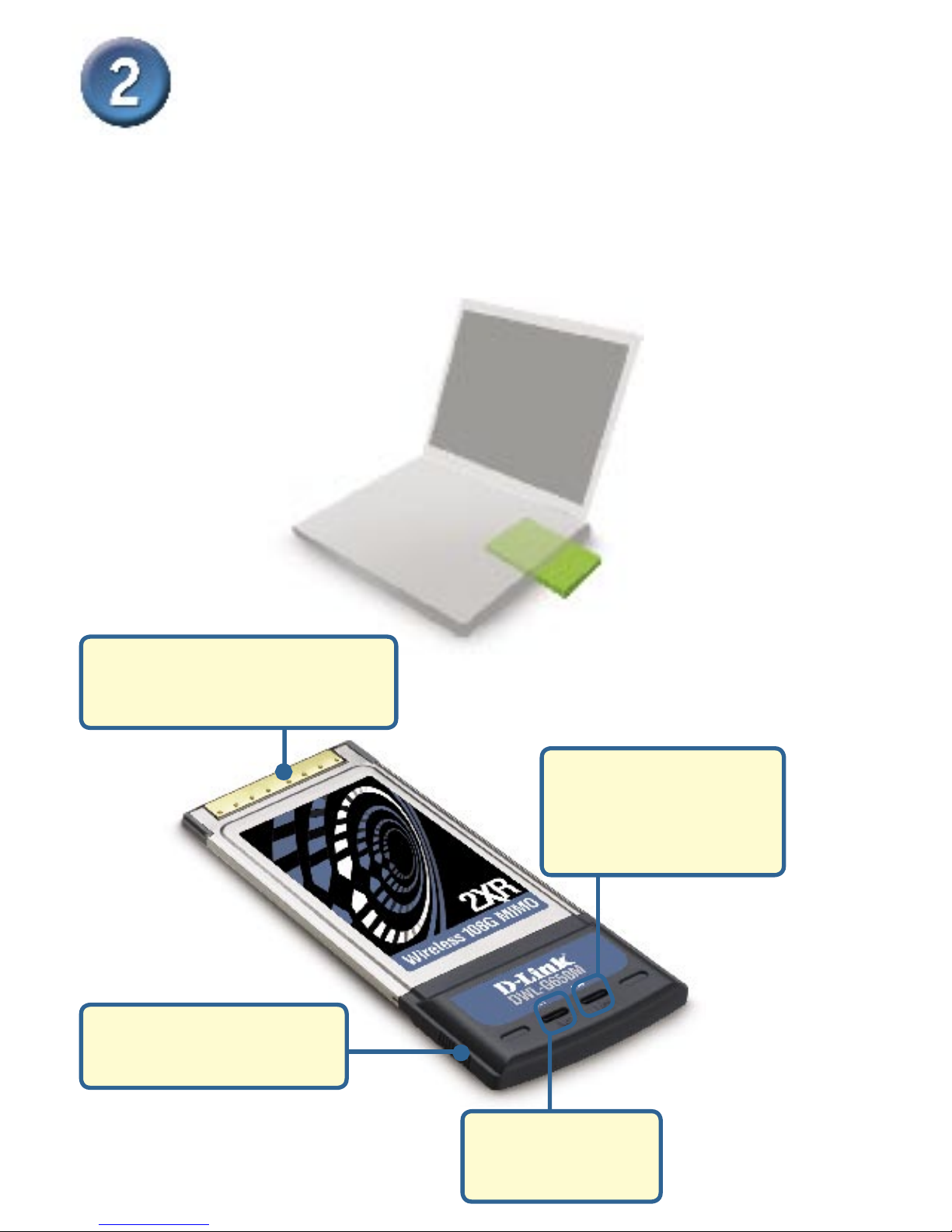

Installing the DWL-G650M Wireless
Notebook Adapter in Your Laptop
A. Make sure to turn off the laptop computer.
B. Locate the Cardbus slot on your laptop computer.
C. Gently insert the DWL-G650M into the Cardbus slot in your
laptop computer as shown below.
Antenna
Used to wirelessly connect
to 802.11g networks.
I n d ic at e s t h a t t h e
DWL-G650M is properly
installed when the
computer is on.
Link
Blinks when data is
being transmitted.
Activity LED
32-bit connector
This is the connector that fits into
the Cardbus slot of your laptop.
5

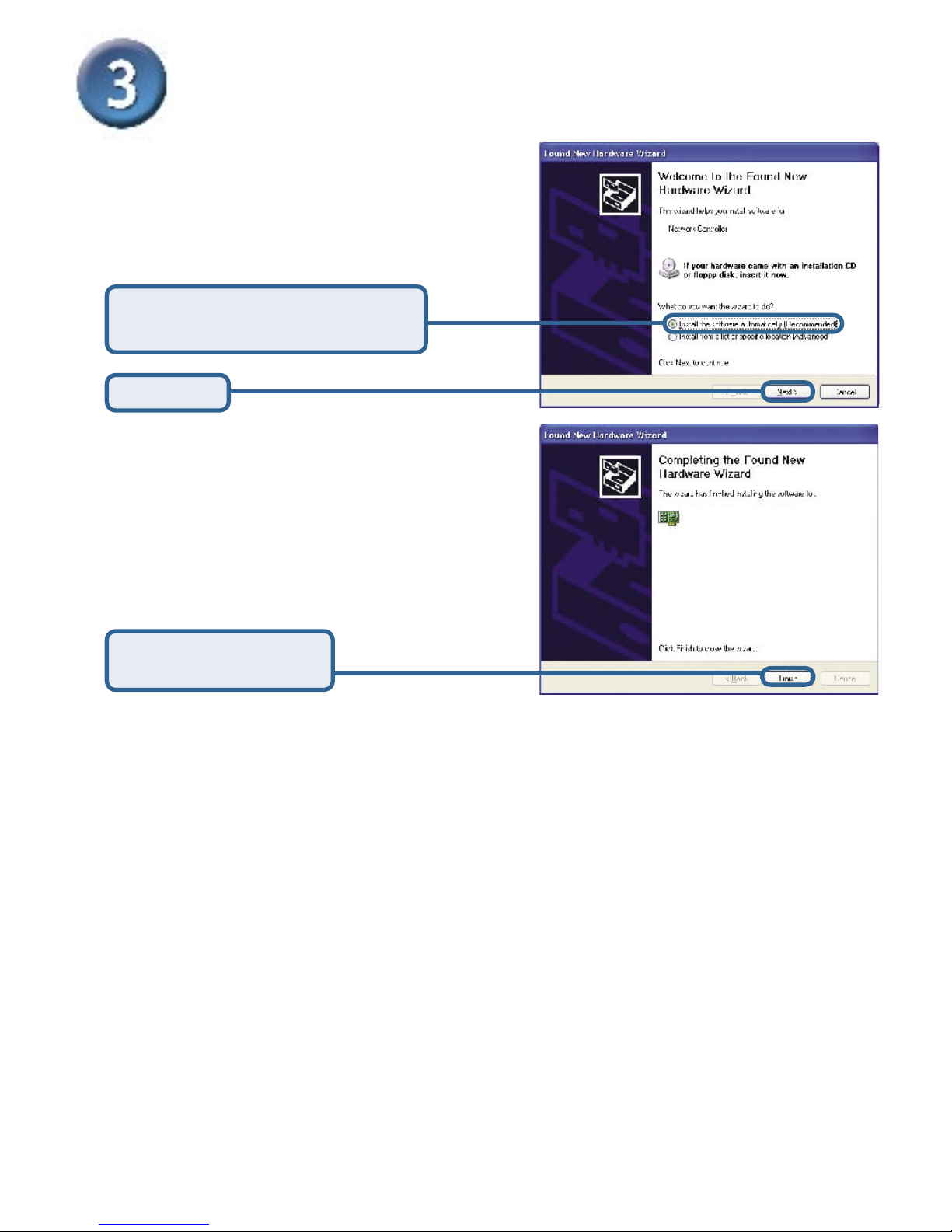

Completing the Installation
When you restart your computer
this Found New Hardware
Wizard (Windows XP) screen
may appear:
Click Next
Select Install the software
automatically (Recommended)
Click Finish to finalize
the installation.
D-Link DWL-G650M
6
Your Installation is Complete!

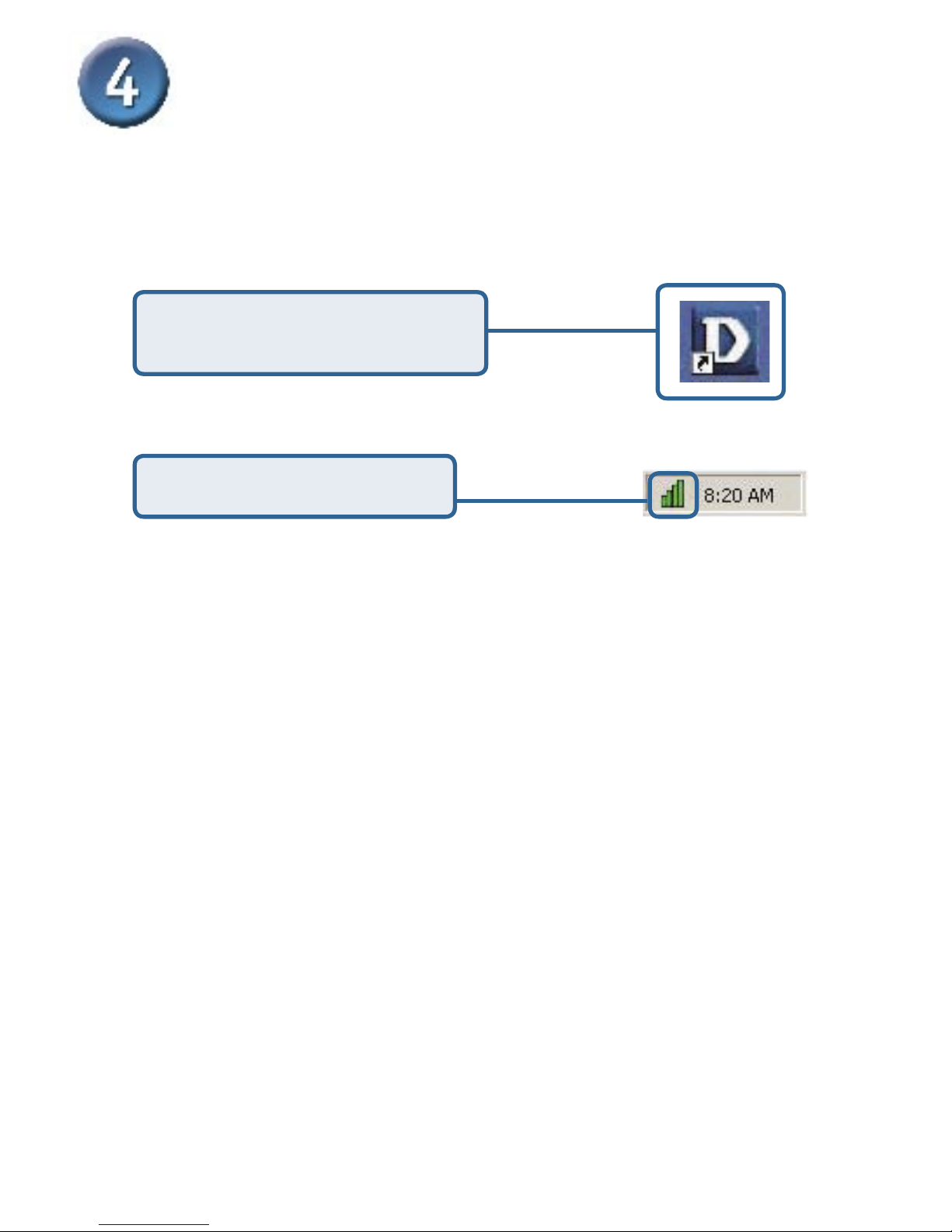

After the installation, the Configuration Utility will automatically start and the utility
icon will appear in the bottom right hand corner of the desktop screen (systray). If this
icon appears GREEN, then you have successfully installed the DWL-G650M, are
connected to a wireless network and are ready to communicate!
Double-click the utility icon to
use the configuration utility.
If the utility icon does not appear,
double-click the shortcut icon that
has appeared on your desktop.
Appendix
WPA-PSK:
WPA-Personal is directed at home users who do not have the server based equipment
required for user authentication. The method of authentication is similar to WEP because
you define a “Pre-Shared Key” on the wireless router/AP. Once the pre-shared key is
confirmed and satisfied on both the client and access point, then access is granted. the
encryption method used is referred to as the Temporal Key Integrity Protocol (TKIP), which
offers per-packet dynamic hashing. It also includes an integrity checking feature which
ensures that the packets were not tampered with during wireless transmission.
7

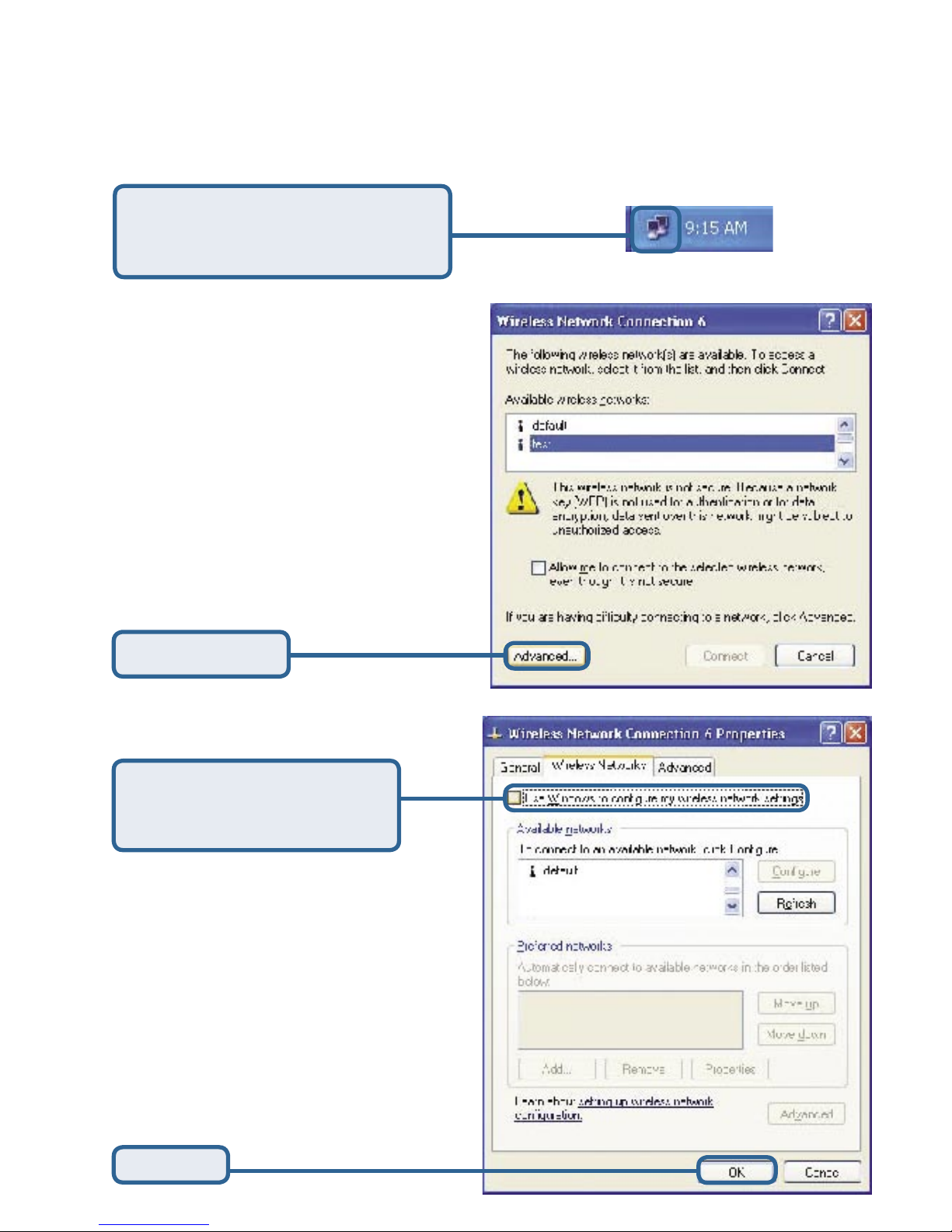

Appendix A - Using the Configuration Utility
Click the XP Networking icon
to use the Zero Configuration
Wireless Settings.
Click Advanced
Uncheck “Use Windows
to configure my wireless
network settings.”
Click OK
For Windows XP, if you wish to use the 108G MIMO utility, please complete the
following steps:
8

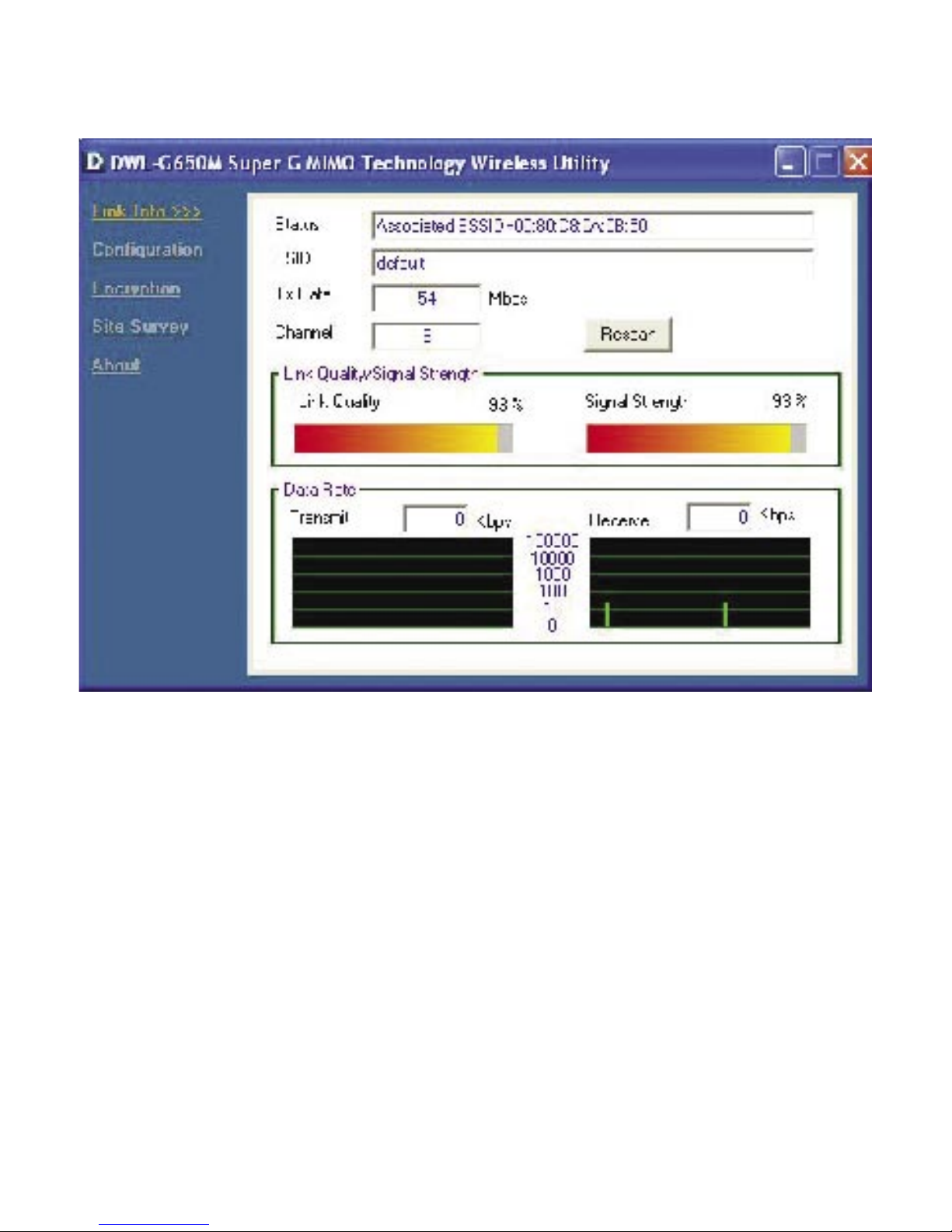

• Status: Displays the MAC Address of the Access Point that is associated with the
DWL-G650M.
• SSID: The Service Set Identifier is the name assigned to the wireless network. The factory
SSID setting is set to default.
• TxRate: The default setting is Auto; meaning, TxRate settings are automatically determined
by the DWL-G650M depending on the distance from the access point.
• Channel: Displays the channel information. By default, the channel is set to 6 and selection
is automatically determined by the DWL-G650M.
• Link Quality / Signal Strength: Displays the Link Quality for the DWL-G650M wireless
connection to the access point. The Signal Strength represents the wireless signal between
the access point and the DWL-G650M. The percentage coincides with the graphical bar.
• Data Rate: Graphically displays the statistics of data transmitted and received.
Appendix A - Using the Configuration Utility
(continued)
9
K

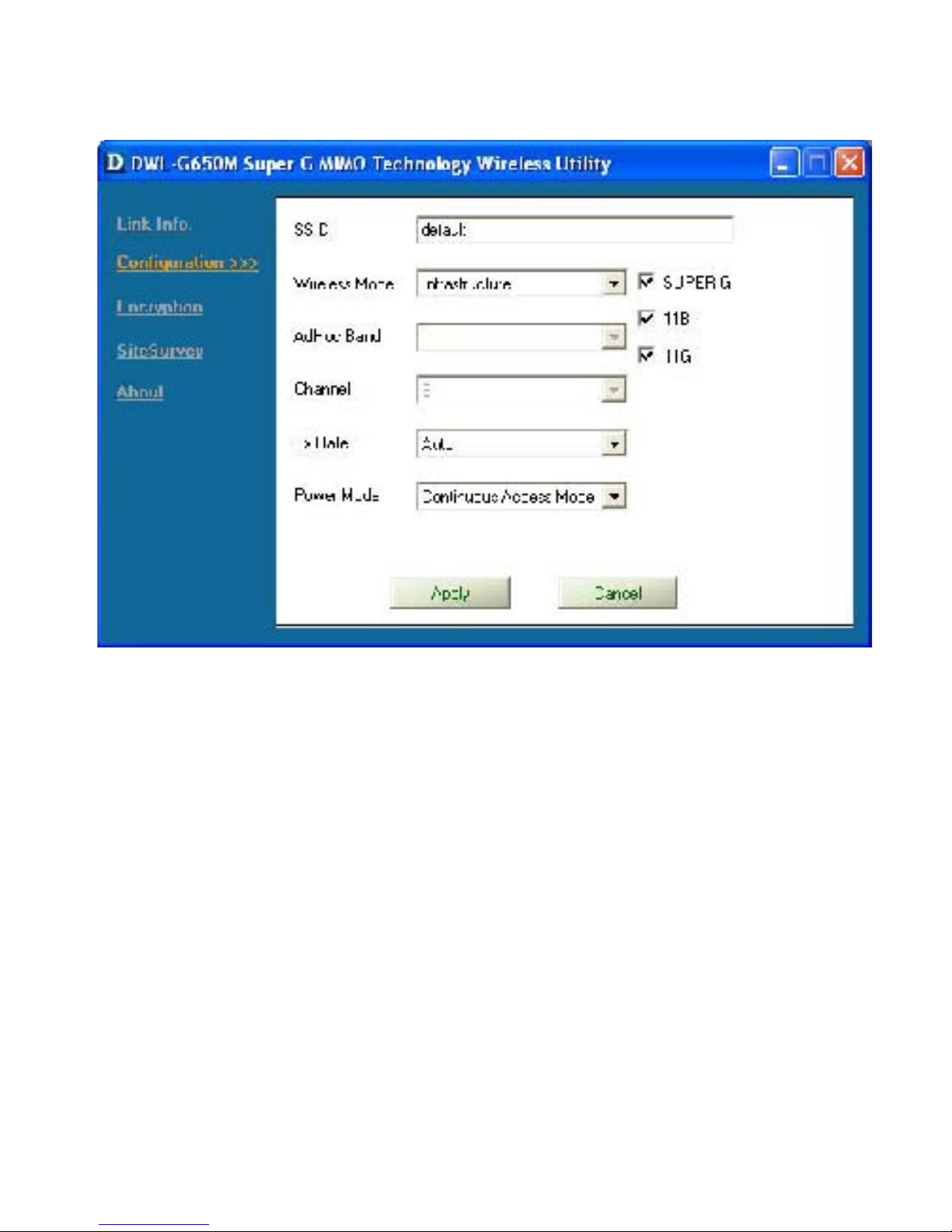

• SSID: The Service Set Identifier is the name assigned to the wireless network. The factory
SSID setting is set to default. Make changes here to match the SSID on existing Wireless
Router or Access Point.
• Wireless Mode: The factory setting is set to Infrastructure. Ad-Hoc mode is used for peer-
to-peer networking.
• AdHoc Band: Specifies the Ad-Hoc Band used whether 802.11b/g when setting up an Ad-
Hoc network.
• Channel: By default, the channel is set to 6. Channel selection is automatically adjusted by the
DWL-G650M depending on the channel setting of the access point selected for association.
To change the channel settings, the Wireless Mode must be set to Ad-hoc.
• TxRate: You can adjust the transmission rate to get the best signal possible depending on
your usage and your environment.
• Power Mode: By default, Power Mode is set to Continuous Access Mode.
Continuous Access Mode — this default setting consumes the most power.
Maximum Power Save — this setting consumes the least power.
Power Save — this setting consumes a moderate amount of power.
• Support Band: By default, the DWL-G650M will scan & connect to an 802.11b/g network.
Appendix A - Using the Configuration Utility
(continued)
10

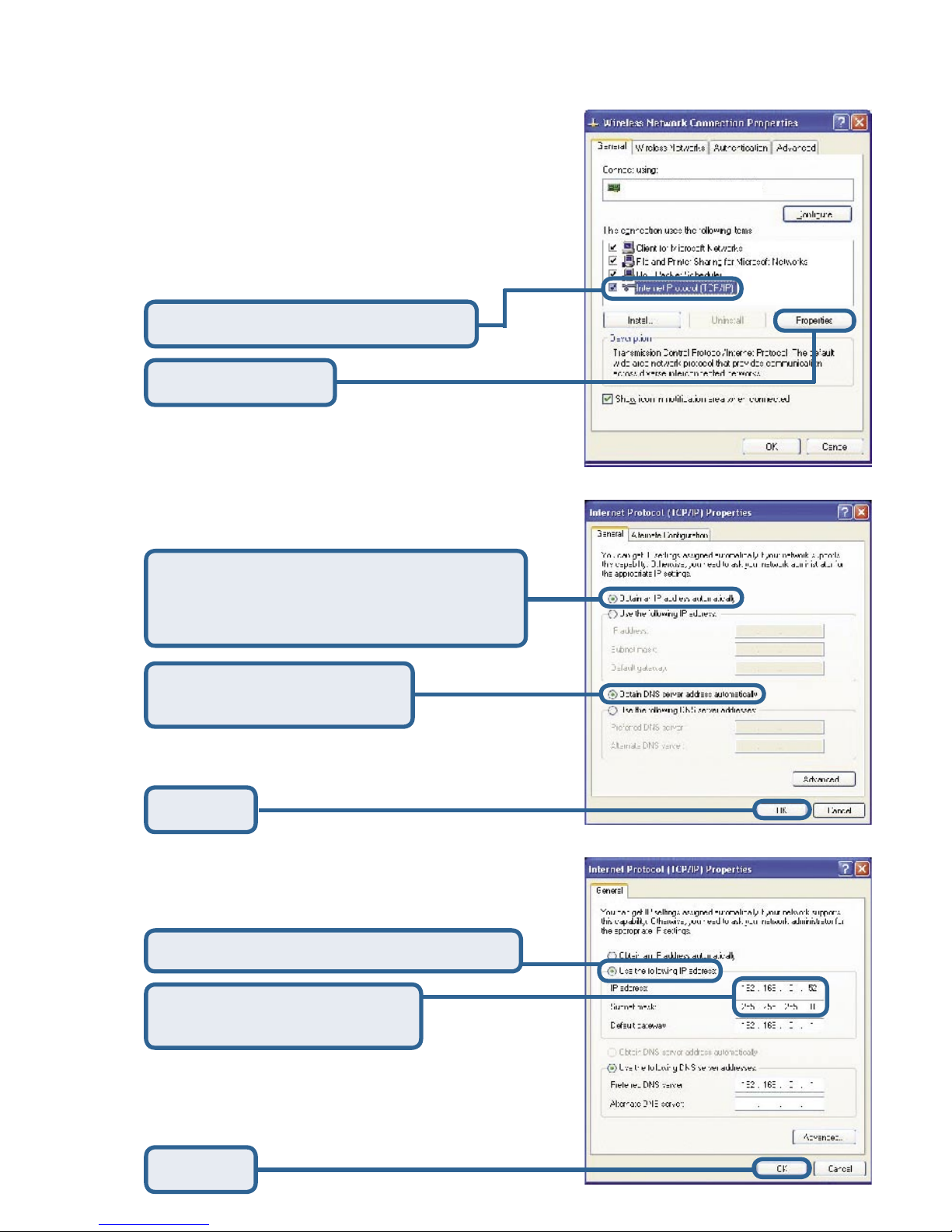

Appendix B - IP Address Configuration
To connect to a network, make sure the proper network
settings are configured for DWL-G650M.
Microsoft Windows XP:
Go to Start, right click on My Network Places,
select Properties, and Double-click on the
Network Connection associated with the
DWL-G650M.
Input a static IP address in the same range as
the Wireless Router or Access Point.
Static IP address setup
Click OK
IP address: 192.168.0.52
Subnet mask: 255.255.255.0
Click OK
Click Internet Protocol (TCP/IP)
Click Properties
Select Obtain an IP address
automatically (if the Wireless Router
or AP has DHCP server enabled)
Select Obtain DNS server
address automatically
Dynamic IP address setup
Used when a DHCP server is available on
the local network. (i.e. Router)
Used when a DHCP server is not available
on the local network.
Select Use the following IP address
D-Link 108G MIMO DWL-G650M
