D-Link DWL-G800AP Manuale utente

This product can be set up using

any current Web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3.

DWL-G800AP

Air

Plus

Xtreme GT

Wireless Range Extender

5V DC, 2.5APowerAdapter

Before You Begin

Check Your Package Contents

DWL-G800AP Wireless Range Extender

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP) Cable

If any of the above items are missing, please contact your reseller.

It is best to use a computer (with an Ethernet adapter) that is connected to a switch for

configuring the DWL-G800AP. The default IP address for the DWL-G800AP is

192.168.0.30withaSubnetMaskof255.255.255.0.Youwillneedtoassignyourcomputer

a static IP address within the same range as the DWL-G800AP’s IP address for the

purpose ofconfiguringtheDWL-G800AP. SeetheManual ontheCD-ROM ifyouneed

assistance in assigning a static IPaddress for your network adapter.

specificationssubjecttochangewithoutnotice.DWL-G800AP.06222004

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

Connecting The DWL-G800AP Wireless

Range Extender To Your Network

A. First, connect the power adapter to the receptor at the back panel of the

DWL-G800APand then plug the other end of the poweradapter to a wall

outlet or power strip. The Power LED will turn ON to indicate proper opera-

tion.

B. Using a Ethernet cable, insert one end of the cable to the LAN port on the

back panel of the DWL-G800AP and the other end of the cable to a switch/

router. Note: You also have the option of connecting the DWL-G800AP

directly to the computer that will be used for configuration. The Link LED light

will illuminate to indicate a proper Ethernet connection. (Note:The LAN Port

on the DWL-G800AP isAuto MDI/MDI-X meaning you can use a

straight-through or crossover cable to the LAN Port.)

C. Computers with 802.11g wireless adapters such as the DWL-G650 AirPlus

Xtreme G Wireless CardbusAdapter and the DWL-G520 AirPlus Xtreme G

Wireless PCIAdapter can connect to the DWL-G800AP. By default, the

DWL-G800AP is set in repeater mode and will extend the wireless signal

from a wireless gateway or access point.

A.Receptorfor

Power Adapter

C.Antenna

Used to wirelessly

connectto802.11b/g

networks. B.LAN Port

This is the connection for

Ethernet cables to your

Ethernet-enableddevice.

TM TM

Using The Setup Wizard

When you have completed the steps in

this Quick Installation Guide,your

connectednetwork should look similar

tothe illustration above.

Open your Web

browser and type

“http://192.168.0.30”

intotheURLaddress

box. Thenpressthe

Enter or Return key.

Thelogonpop-up

screenwill appear.

Type “admin” for the

usernameandleave the

passwordfieldblank.

Click OK

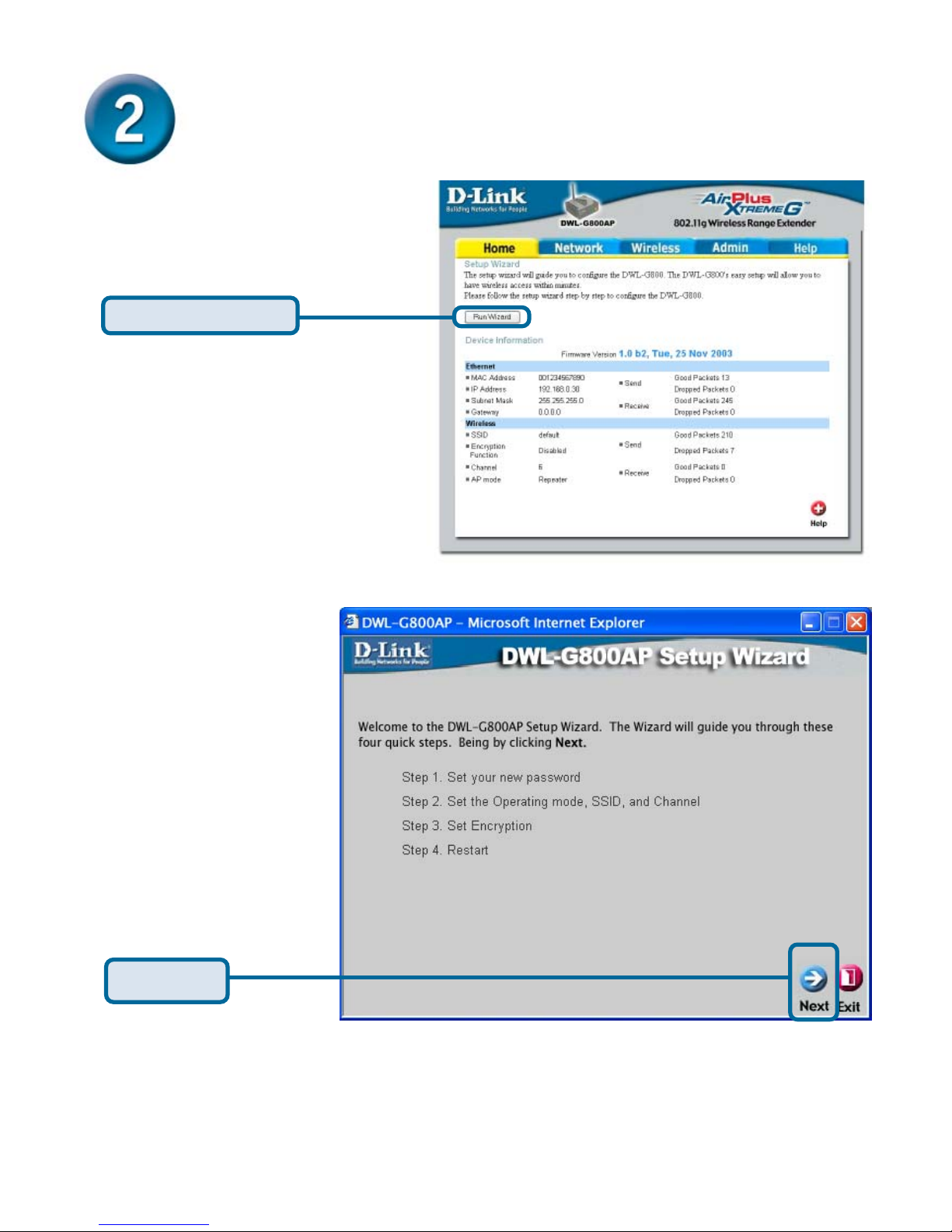

Using The Setup Wizard (continued)

Onceyouhave

logged in, the Home

screenwill appear.

Youwillseethe

followingscreens.

Click Run Wizard

Click Next

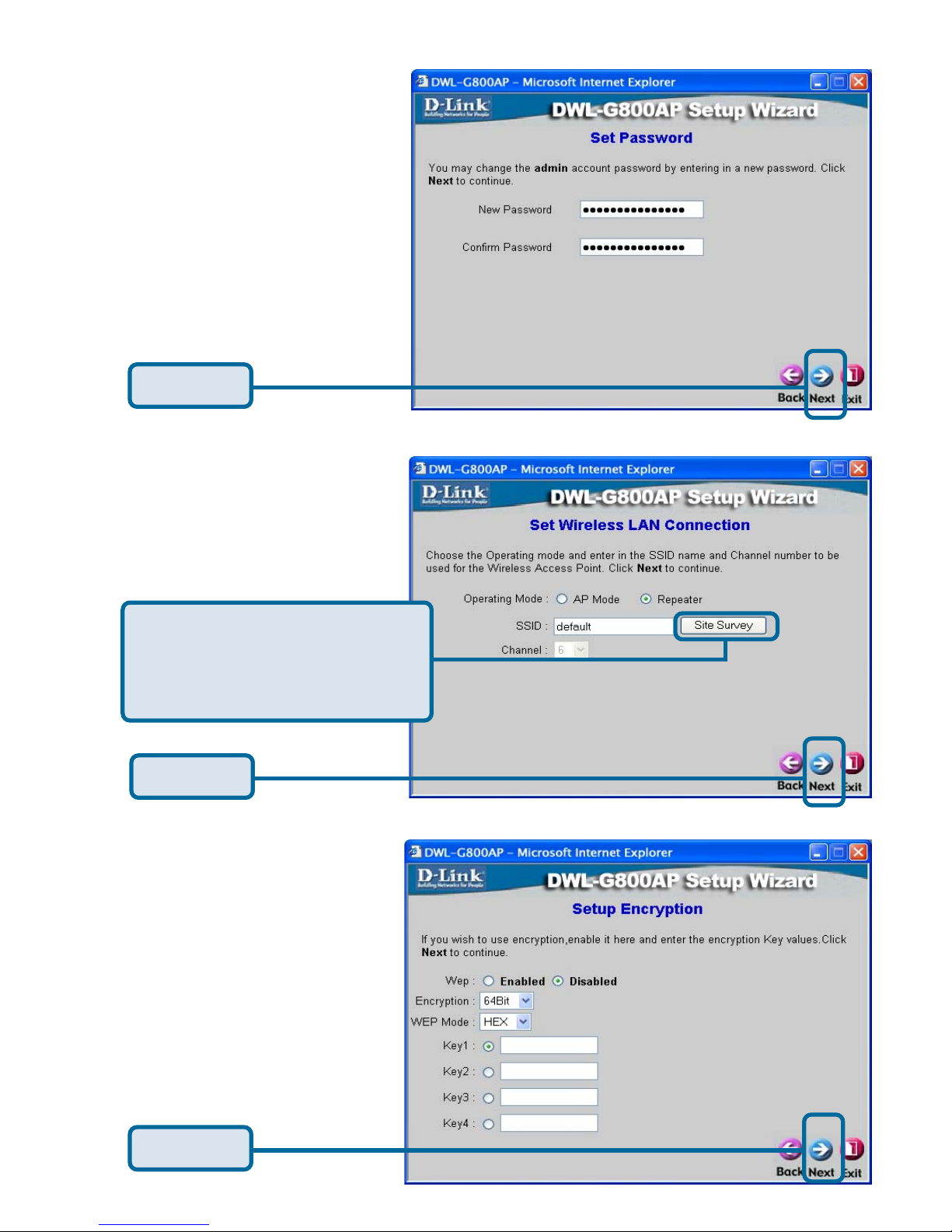

Step 1 - Set up your new

password.You have the

option to establish a

password.

Step 2 - Wireless Setup

Bydefault the DWL-G800AP

is set to Repeater mode.

Click Next

Step 3 - Encryption

TheDWL-G800APis

capableofthreelevelsof

wirelessencryption: 64-bit,

128-bit,and256-bit.By

default the encryption is

disabled. You can change

the encryption settings for

moresecurewireless

communication.

Click Next

To repeat the wireless signal,

click on Site Survey to bring

up a list of available access

points to select from.

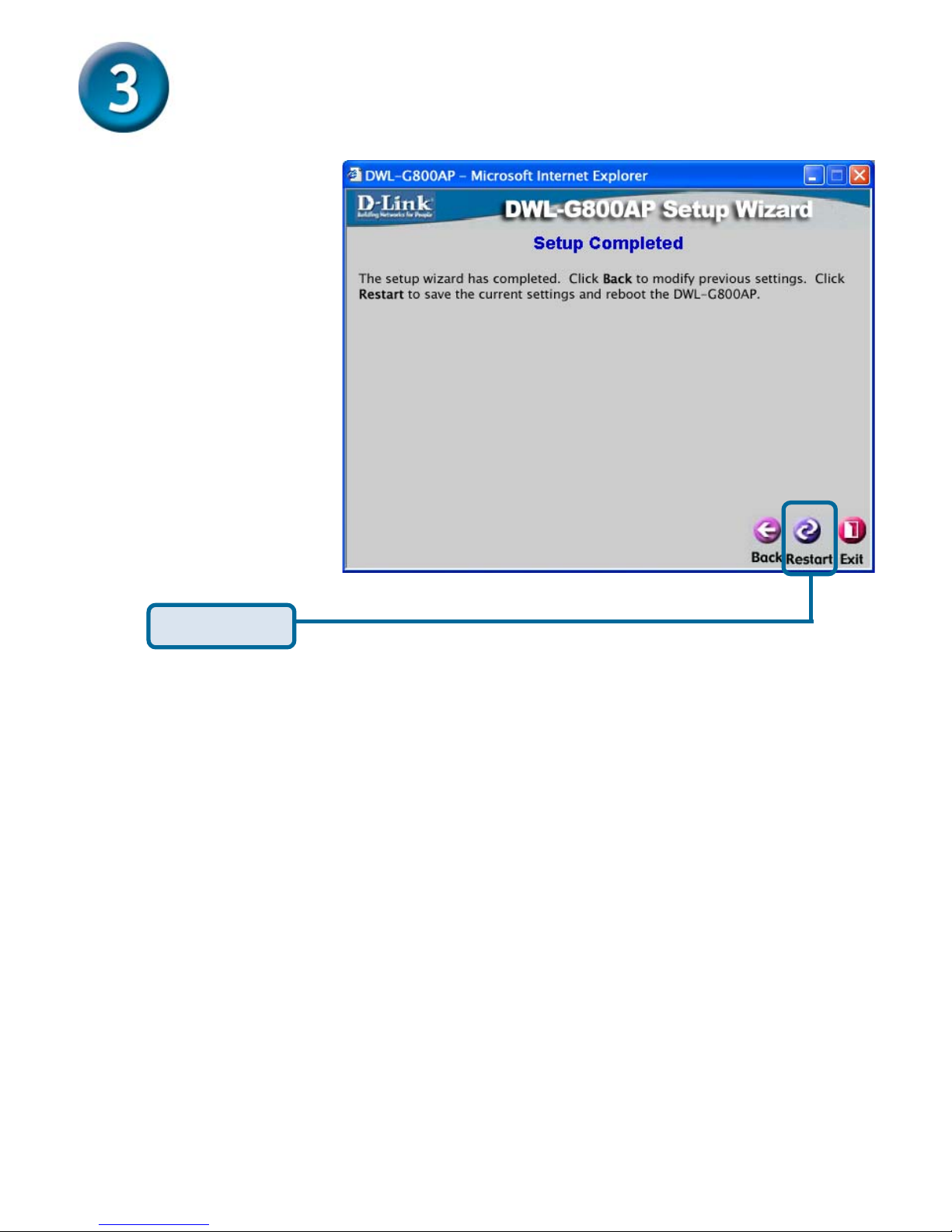

Your Setup is Complete!

ClickRestart

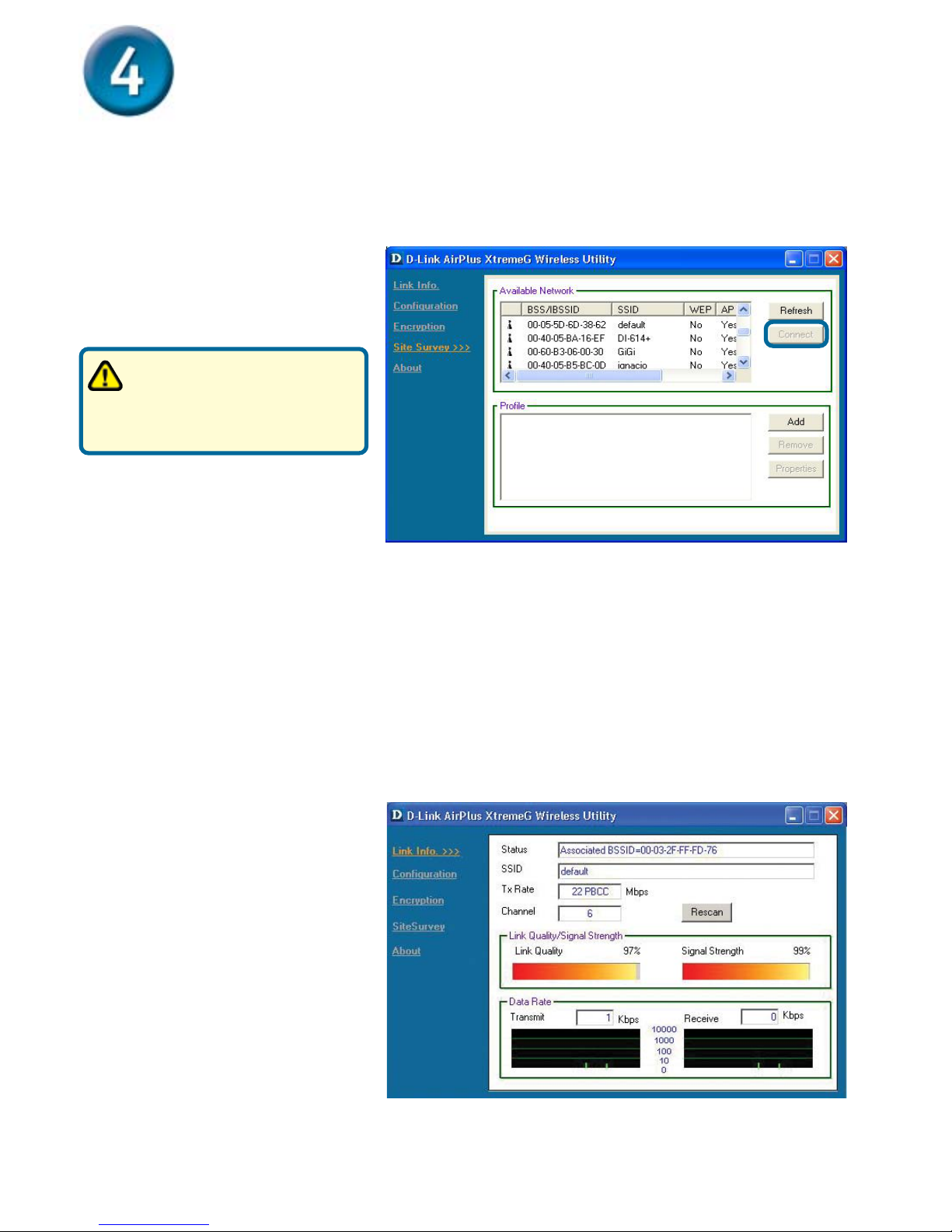

Connecting to the DWL-G800AP

Usingthe AirPlusXtreme G WirelessUtillity includedwiththeAirPlus

XtremeG Adapters,you can browseandconnect totheDWL-G800AP.

TheLink Infopageof theAirPlusXtreme G utilitywillshowtheconnection

statusbetween the DWL-G800APand AirPlus XtremeG wireless

adapter.

The MAC address of the

DWL-G800AP is listed

on the product sticker on the

bottom of the unit.

Techniechni

echniechni

echnical Supportcal Support

cal Supportcal Support

cal Support

You can find software updates and user documentation on the D-Link website.

D-Linkprovides free technical support for customers within the United Statesand

withinCanadaforthe duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link technical support through our

website,or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877)453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800)361-5265

Monday to Friday 7:30am to 12:00am EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]
