D-Link DSA-3110 Manuale utente

Quick Installation Guide

DSA-3110

Hotspot Edition

Hotspot Service Gateway

BEFORE YOU BEGIN

Please read this guide before installation. Make sure that you have all the

necessary information and equipment. Also check whether the existing

hardware/software firewalls are disabled.

CONNECTING DSA-3110 HOTSPOT EDITION TO

EXISTING NETWORK

1. Connect an thernet cable between any of thernet ports 4-7

located on the back panel of the device and the thernet port of

your PC or the hub (switch) of your network.

2. Connect the power cord to the power connector port on the back

panel of the device, then plug the power adapter into an electrical

outlet or power strip. The Power L D turns on indicating that the

device has been powered on.

Attention! Using a power supply with a different voltage rating than the

one included will cause damage and void the warranty for this product.

3. Check whether the L D of the thernet port to which you have just

connected the thernet cable is on. If the relevant L D is off,

please repeat steps 1-2 and check the thernet cable.

Note: All LAN1 ports of the DSA- 110 Hotspot Edition device are auto-

MDI/MDIX. So you can use a straight-through Ethernet cable as well as a

crossover-one.

CHECKING IP ADDRESS

Check the IP address of the computer used to configure the DSA-3110

Hotspot dition device.

Go to Start > Run.

nter “cmd” in the

Open field. Click the

OK button.

In the opened window,

type “ipconfig”. Press

the Enter key.

Current settings of your

IP address will be

displayed.

The IP address should

fall within the range

from 192.16 .1.1 to

192.16 .1.253.

If your IP address is out of the range specified above, change it in the

following way:

1. Left-click the

Network Connection

icon

2. The Local Area

Connection Status

window appears. In the

window, click the

Properties button.

3. The Local Area

Connection Properties

window appears. Select

the Internet Protocol

(TCP/IP) line and click

the Properties button.

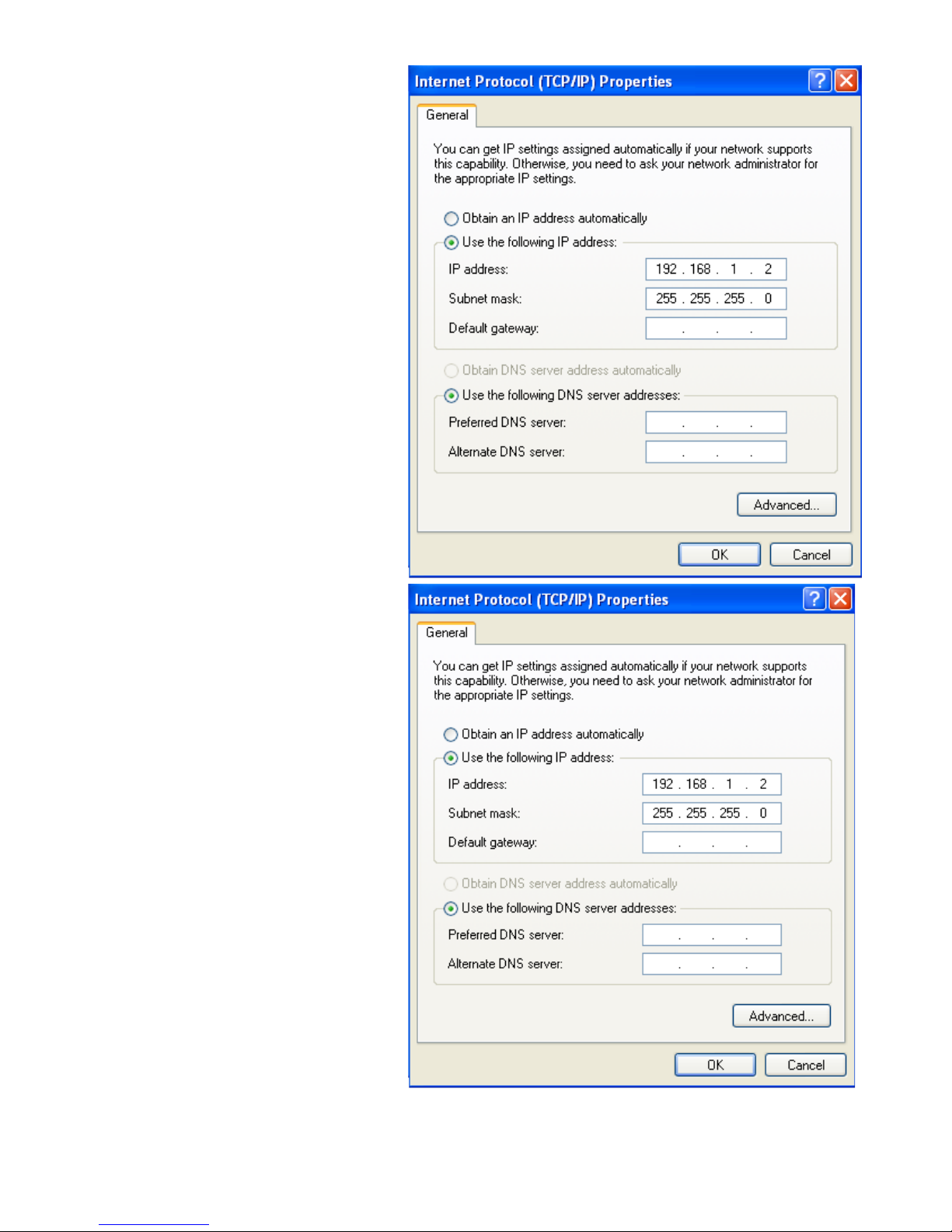

4. In the opened window,

select the Use the

following IP address

radio button and enter

the IP address of your

computer from the range

specified above (e.g.,

192.168.1.2) and the

subnet mask

(255.255.255.0).

5. Click the OK button

in the present window

and the OK button in the

Local Area Connection

Properties window.

CONNECTING TO WEB-BASED INTERFACE

1. Open a web browser

on your computer.

nter

http://192.16 .1.254 in

the address bar.

Note: First disable proxy

settings in your web

browser.

2. On the opened page,

enter “admin” in the

“admin” in the

Password field. Then

click the Enter button.

After successful registration the system statistics page opens.

Follow the menu to configure the necessary settings.

Please refer to the “User Manual” document to fine-tune the device.

TECHNICAL SUPPORT

You can find software updates and user documentation on our website.

D-Link provides its customers with free support within the product's

warranty period.

Customers can contact the technical support group by phone or by Internet/

e-mail.

FOR CUSTOMERS WITHIN RUSSIA

CONTACT D-LINK TECHNICAL SUPPORT

(495) 744-00-99

CONTACT D-LINK B INTERNET

Website: http://www.dlink.ru

E-mail: [email protected]

FOR TELEPHONE NUMBERS AND ADDRESSES OF D-LINK

OFFICES WORLDWIDE VISIT

http://www.dlink.com/corporate/worldwideoffices/
