D-Link DCS-825L Manuale utente

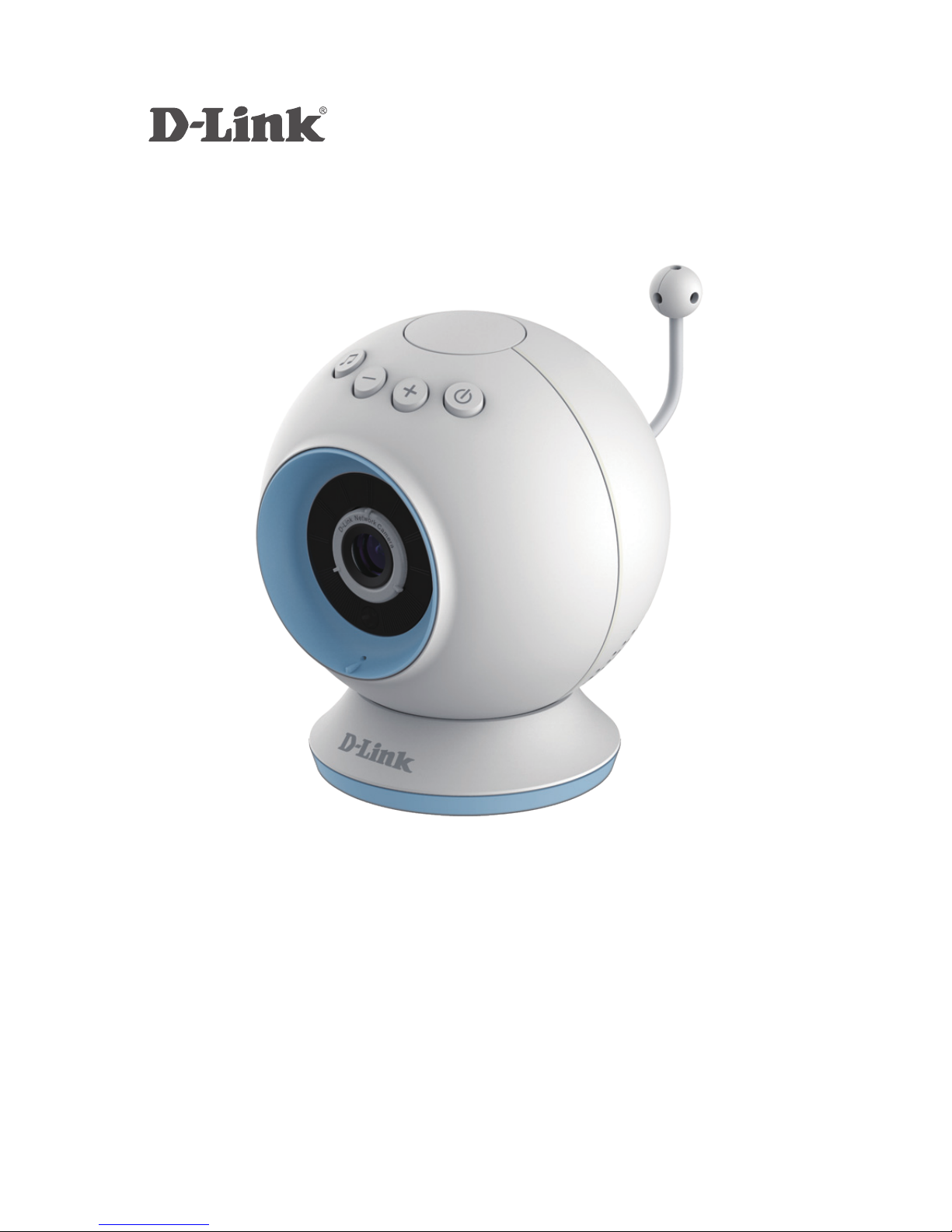

Wi-Fi Baby Camera

DCS-825L

Quick Installation Guide

DCS-825L 1

English

• Please save this guide for future reference.

• Please read these instructions before using your product.

• Do not cover the ventilation holes.

• Do not cover this product with a blanket.

• Do not allow children to play with this product.

• Do not allow this product to get wet. Only use a dry cloth to clean it.

• Do not place this product near water or other liquids, such as near a

sink, shower, or bathtub.

• Do not attempt to open or disassemble this product.

• Cleaning: Clean the camera with a dry cloth only; do not allow

the camera to get wet. The sticky pad on the desktop base may be

cleaned with water and air dried(do not use a cloth to dry it); make

sure the base is completely dry before using it with the camera again.

Strangulation Hazard: Keep this product and any attached cords at

least 3 feet out of reach of a child. Keep any attached cords out of

your baby's crib/cot.

• This product is not a replacement for responsible adult supervision.

Before you get started...

Check to make sure your box has these items:

Wi-Fi Baby Camera

(DCS-825L) Power adapter

Desktop base Wall mount kit

Pink accent rings

If any of these items are missing from your packaging, contact your reseller.

DCS-825L

English

You can use the included power adapter, or you can use a portable USB

battery(not included) that can supply 5 V / 2 A of power.

Plug in your camera, and wait until the Power

LED turns green.

Search for the free mydlink Baby Camera Monitor on the App Store or

Google Play, then download and run the app. The app will guide you step by

step through the setup process.

Download and run the free mydlink Baby

Camera Monitor app to set up your camera.

DCS-825L 3

English

Your Wi-Fi Baby Camera

Front View

Microphone

Focus Ring

Front Accent Ring

Temperature Sensor

Camera Base

Base Accent Ring

Light Sensor

Camera Lens

Night Vision

Lights (IR)

Lullaby/Volume/

Power Buttons

Temperature Indicator

Speaker

MicroSD Card Slot

MicroUSB

Power Port

Back View Bottom View

Cloud LED

Reset Button

Power LED

Mounting Point

DCS-825L

English

Mounting your camera (optional)

• Place the mounting base where you want to

position the camera and use a pencil to mark

the holes.

• Use a 6mm drill bit to drill both holes at least

30mm deep.

• Use a mallet to insert the wall anchors into the

holes.

• Place the mounting base over the holes that

are in the wall.

• Make sure to align the mounting base holes

with the holes in the wall and then use the

supplied screws to attach the mounting base

to the surface of the wall.

• Place the base cover over the mounting base

and screw the camera stem into the mounting

base.

• Loosen the collar on the camera stem and

then screw the camera stem into the bottom

of the camera. Turn the securing wheel to

ensure the connection to the camera is snug.

• Adjust the angle of the camera as desired and

then tighten the collar on the camera stem to

lock it in place.

DCS-825L 5

English

The image is out of focus.

• You can turn the white focus ring on the front of the camera to adjust

the focus.

How do I change the accent rings?

• Rotate the accent ring counterclockwise, then lift it o. Put the new

accent ring on, then rotate it clockwise until it clicks into place.

How do I select a dierent lullaby?

• You can change the lullaby used in the mydlink Baby Camera Monitor

app.

There’s a white haze on my camera video when I use night vision mode.

• The night vision lights on the Wi-Fi Baby Camera may be reecting o a

nearby surface. Try repositioning and aiming the camera.

I started the mydlink Baby Camera Monitor app, but I can’t nd my

camera.

• Make sure your camera is turned on and receiving power.

• If you have set up your camera before, make sure your smartphone or

tablet is connected to the same router as your camera.

• If you are setting up a new camera or are using the camera away from

home, make sure your smartphone or tablet is connected to the camera’s

Wi-Fi network.

• The Wi-Fi network name should be [myBabyCam-XXXX], where XXXX is a

4-digit code (the last 4 digits of your camera’s MAC address).

• The WiFiPass is printed on a label on the bottom of your camera.

• You can also nd your camera’s Wi-Fi network details on a label attached

to the back of this guide.

• If you still can’t nd your camera, reset your camera by pressing its reset

button for 10 seconds while it is powered on.

Troubleshooting

DCS-825L

English

TECHNICAL SUPPORT

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-22-27626600

Toll Free 1800-22-8998

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

Saudi Arabia (KSA):

Tel: +966 01 217 0008

Fax: +966 01 217 0009

Saturday to Wednesday 9.30AM to 6.30PM

Thursdays 9.30AM to 2.00 PM

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor 6, ofce C2

Tel.: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1 217 0008

Technical Support:

+966 1 2170009 / +966 2 6522951

General Inquiries: [email protected]

Tech Support: [email protected]

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

Your Camera's Password

Ver. 1.00(DI) 2013/09/23 6DCS825LQ.01G

Your Camera's Wi-Fi Details:

Your Camera's Information

Technical Support

For further assistance, visit us on the web:

www.dlink.com
