D-Link SECURICAM Network DCS-5300G Manuale utente
Check Your Package Contents
Thesearetheitemsincludedwithyourpurchase:
If any of the below items are missing, please contact your reseller.
BeforeYouBegin
Youmusthaveatleastthefollowing:
• Windows98/Me/2000/XP
• ACD-ROMdrive
• AnavailableEthernetconnection
DCS-5300G
This product can be set up
using Internet Explorer 6.x
or above Wireless Internet Camera
with Pan and Tilt
©2004 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of
their respective holders. Software and specifications subject to change without notice. DCS-5300G.07292004
DCS-5300G Internet Camera with Remote Control
A/V Cable
12V AC Power Adapter
CAT5 Ethernet Cable
CD-ROM with Manual and Installation Wizard
Camera Stand Using a power supply
with a different voltage
rating will damage this
productandvoidthewarranty.
2 Antennas
2
Hardware Installation
System Requirements
• InternetExplorer6.xorabove
• CPU:1.7GHzorabove
• MemorySize:128MB (256MBrecommended)
• VGAcardresolution:800x600orabove
Note: If using multiple cameras for viewing/recording, the minimum requirements
are a 2.4GHz or above CPU with 512MB memory and a 32MB video card.

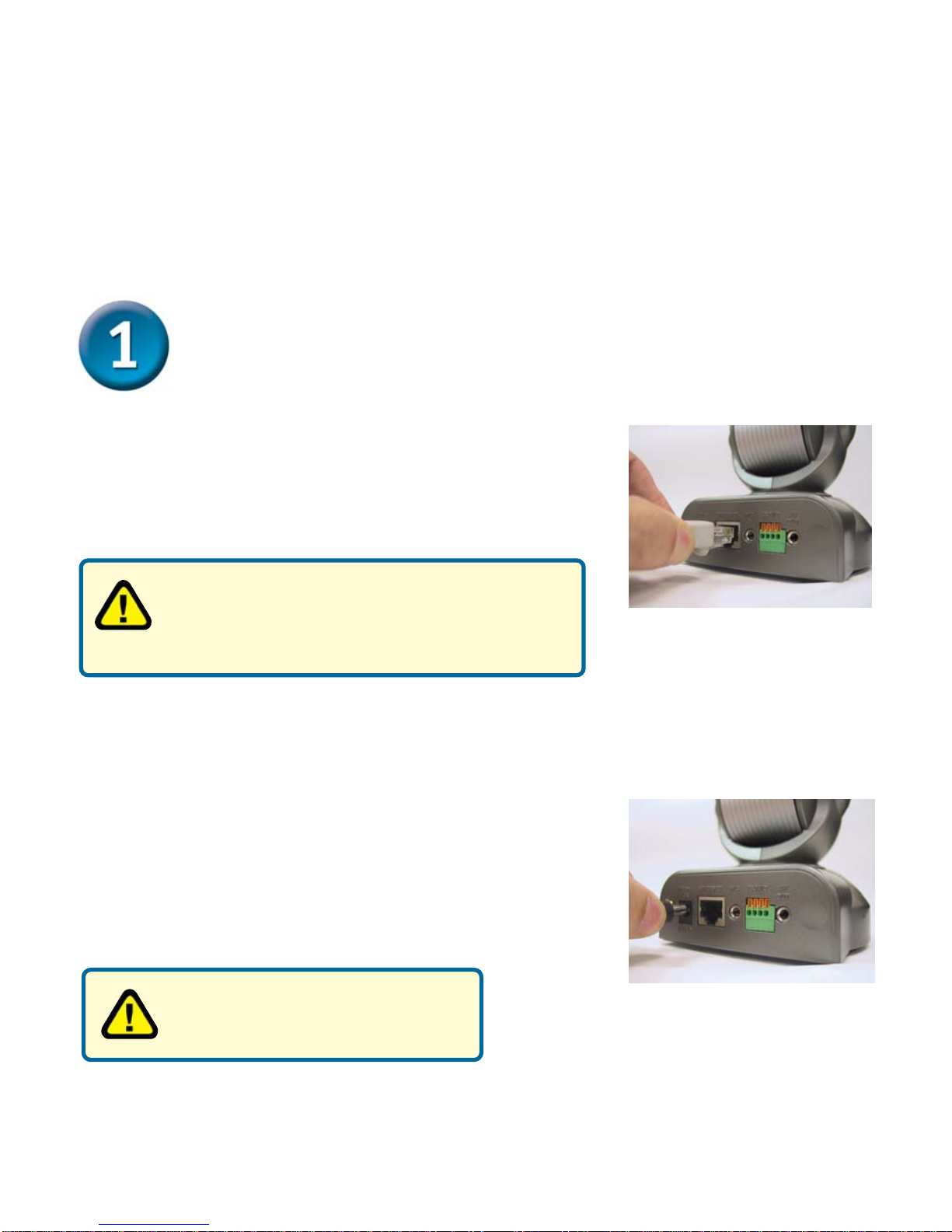

Connect the Ethernet Cable
ConnectanEthernet cabletotheEthernetconnectorlocated
on the Internet Camera’s back panel and attach it to the
network.
Attach the External Power Supply
Attach the external power supply to the DC power input
connectorlocated on theInternet Camera’s backpanel
(labeled DC 12V) and connect it to anAC power outlet.
Both the red and green LEDs will flash alternately and only the red LED will remain lit.
Thegreen LED willnot come onuntil you haveconfiguredyour camera.
If you connect this camera directly to a PC,
you will need a cross-over Ethernet cable. If
you plug the camera into a hub or router, you
willbeableto use thecableincludedwithyourcamera.
Power source is confirmed when
the LED Power Indicator on the
InternetCameraisilluminated.
3
Attach the A/V cable to the A/V out connector if
you wish to connect the DCS-5300G to your TV.
Attach the red RCA connector to the “video”
connectoron yourTV.
Attach the black RCA cable to the “audio”
connector on your TV set.
Hardware Installation (continued)
4
Installing the Installation Wizard
InserttheDCS-5300GCDinto
theCD-ROMdrive.
Click on Install Software
Click on Installation Wizard
Click Next
5
Installing the Installation Wizard
(continued)
Click Next
Click Next
Click Finish
6
Configuring Your Camera with the
Installation Wizard
DoubleclickontheInstallation
Wizard that was created on
yourdesktop.
Thesoftwarewill search forcameras.
TheInstallationWizardwillappear
andshowtheMACaddressofthe
DCS-5300G and an IP Address
(whichmay or may not becorrect
dependingonwhatyouhaveyour
DCS-5300G connectedto).If you
have a DHCP* server on your
network, there will be a valid IP
Addressdisplayedhere,indicated
by a “Yes” under the assigned
column.
*A DHCP server is a device that
supplies IP Addresses to its
clients that are on the same
network.
7
Once the camera appears,
selectthecamerabyplacing
a Checkmark in the box.
If the Installation Wizard does not
detect any devices, you will need to
find a tool small enough to fit into the
reset hole and softly press down a
switch for 2 cycles (the red and green
LEDs will blink continuously and stop
twice).Letgo when theredLED starts
to flash the second time.
Configuring Your Camera with the
Installation Wizard (continued)
Click Search to refresh the
list of cameras if needed.
8
Click the Setup button
Configuring Your Camera with the
Installation Wizard (continued)
Enter an administrative password
intheRoot password andConfirm
passwordfields.
For details on the Date/Time
Settings,pleaserefer totheUser
ManualontheCD-ROM.
Click the Next button
9
Configuring Your Camera with the
Installation Wizard (continued)
Uncheck the box labeled
ResetIPaddress at nextboot
If you need to modify the IP
settings,please refer totheuser
manualontheCD-ROM.
Click the Apply button
Click the Next button
10
Configuring Your Camera with the
Installation Wizard (continued)
Click the button labeled
Link to Selected Device(s)
Click the Done button
Afterthesettingshavebeensaved,
theDonebutton will appear.
