D-Link DCM-604 Series Manuale utente

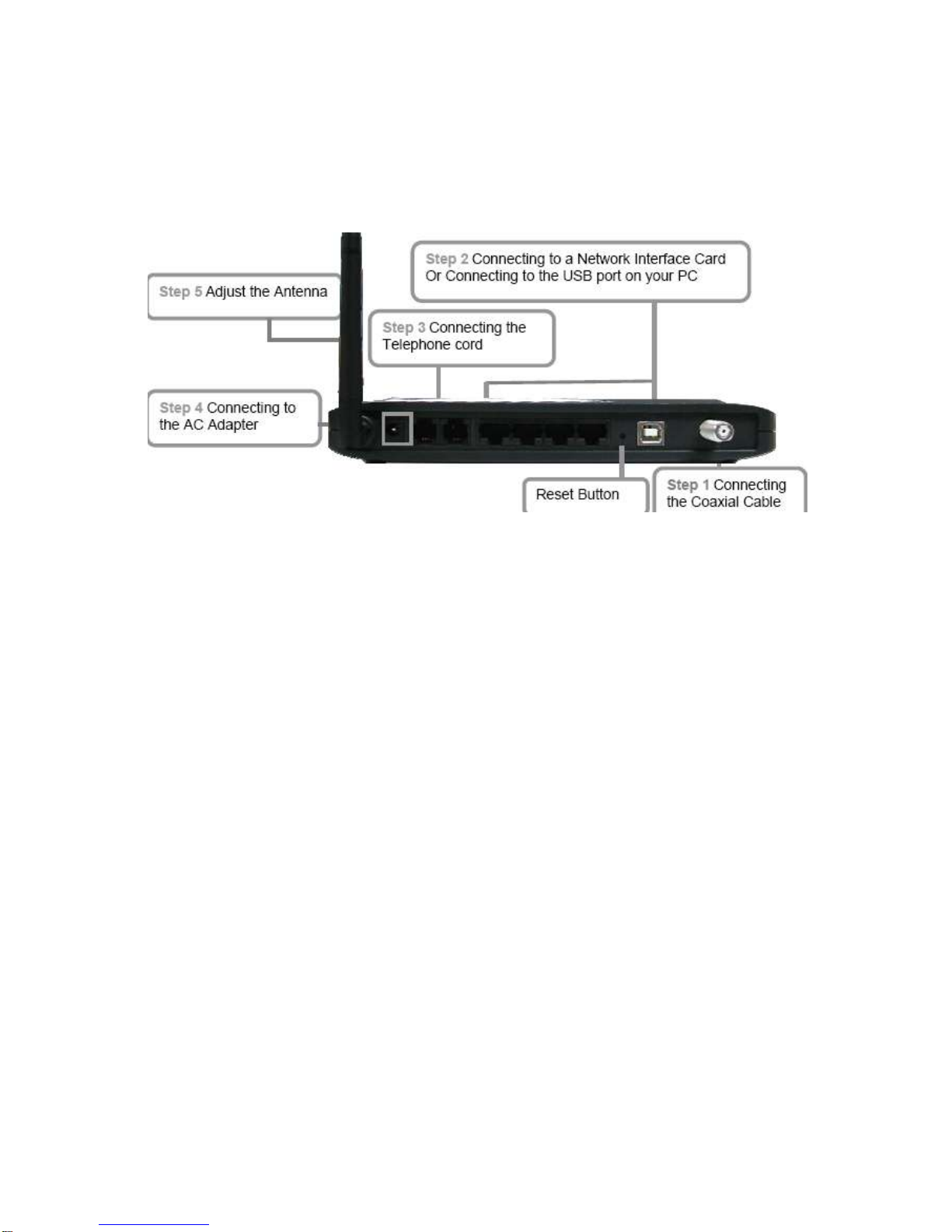

Rear Panel and Hardware Connection

This chapter describes the proper steps for connecting your cable modem. Please

be sure to follow

the steps in the sequence outlined below. Failure to do so could result in improper

operation or failure

of your cable modem.

Step 1:

Connect a cable by feeding the F-connector on the back of the cable modem.

Ensure the center

conductor of the 75 ohm coaxial cable is inserted directly into the center of the F-

connector. Secure

the coaxial cable by carefully threading the outer shell of the coaxial cable connector

onto the

F-connector in a clockwise direction until tight. Be careful not to over-tighten the

connector or you may

damage either the connector or the cable modem.

Step2: Connect the cable modem to an IEEE 802.3 10BaseT / 802.3u 100Base-TX

Network using a

RJ-45 male-terminated Ethernet cable or an USB cable to the PC. This cable

modem equips with two

Ethernet ports, you can connect two PCs to the cable modem at the same time if

necessary.

Step 3: Connect the telephone sets to TEL1 and TEL2. Use RJ-11 telephone line to

connect

TEL1/TEL2 port on the cable modem and telephone socket on telephone.

Step 4: Connect the AC Adapter to the cable modem by inserting the barrel-shaped

connector into the

mating power connector on the back of the cable modem. Exercise carefully to

ensure the connectors

are properly aligned prior to insertion and ensure the two connectors engage

completely. The cable

modem is shipped with an AC adapter. Remember to use only power adapter that

came with the cable

modem. Other power adapters might have voltages that are not correct for your

particular cable

modem. Using a power adapter with the wrong voltage can damage the cable

modem.

Step 5: Adjust the antenna if necessary.

5. Web Management

For easy-changing the default setting or quick-checking diagnostics for troubleshooting,

a Web-based GUI is built-in for your access.

5.1 Enter Modem's IP address

Use the following procedures to login to your DCM-604.

1. Open your web browser. You may get an error message. This is normal. Continue on

to the next step.

2. Type the default IP address of the DCM-604 (e.g. 192.168.0.1) and press Enter.

3. The Log In page appears. Type the user name (admin) and your password

(password) in the respective fields.

5.7 Wireless

5.7.1 Basic

The Wireless Connection Status page allows configuration of the Access Point

parameters including the SSID and channel number.

5.7.2 Security

This page allows configuration of the WEP keys and/or passphrase.

5.7.3 Access Control

This page allows configuration of the Access Control to the AP as well as on the

connected clients.

5.7.4 Advanced

This page allows configuration of data rates and WiFi thresholds.
