D-Link DCM202 - Express Ethernetwork DOCSIS 2.0 Cable... Manuale utente

DCM-202

Quick Installation Guide+

Guía de instalación Rápida+

Guia de Instalação Rápida+

DOCSIS 2.0 CABLE MODEM

Manual and Software on CD

Package Contents

D-Link DCM-202

DOCSIS 2.0 Cable Modem

System Requirements

If any of the above items are missing, please contact your reseller.

CAT5 Ethernet Cable

• Windows® Vista™, XP, or 2000 operating system (USB only).

• Pentium processor equivalent (Pentium 166MHz or higher).

• The original Windows® Operating System CD-ROM or diskettes.

• TCP/IP protocol installed.

• An active USB or Ethernet port on your computer or a router.

USB Cable

Power Adapter

DOCSIS 2.0 CABLE MODEM

DCM-202

ver1.40(RU)

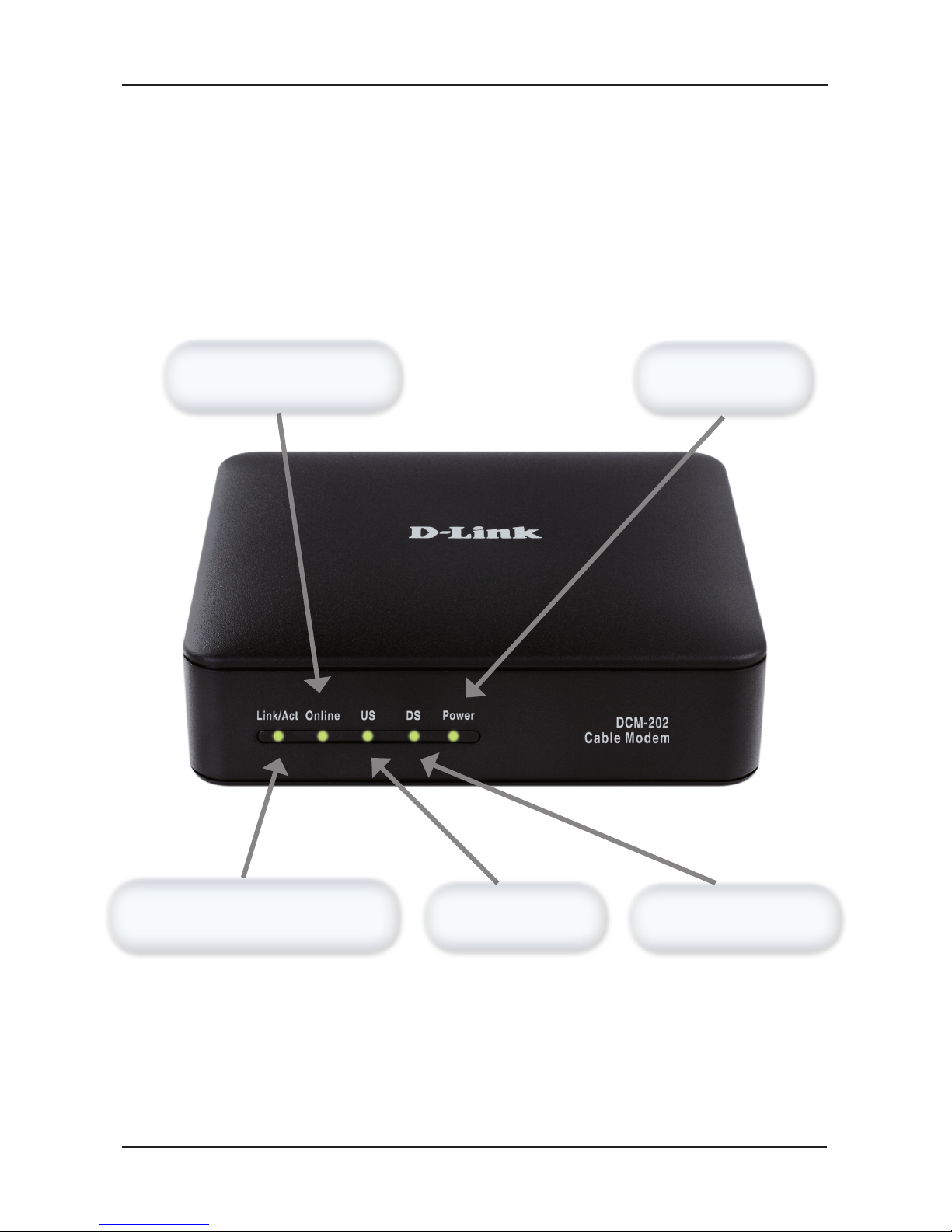

Hardware Overview

Front Panel LEDs

Power LED

Power receiving

Online LED

Carrier & Server Status

Link/Act LED

PC Connection/Data Status

DS LED

Downstream Status

US LED

Upstream Status

Hardware Overview

Back Panel Connections

Power

Connect the power adapter

included in the product package

CABLE

RF connector to attach the cable

for broadband internet access.

USB

USB ’B’-type port. Connects

through USB cable to a computers’s

USB ‘A’-type port.

LAN

RJ-45 female port for connection

of Ethernet cable.

USB Installation Process

Install the cable modem according to the following procedure:

1. Connect the coaxial cable to the cable modem’s CATV cable

connector.

2. Connect the USB cable to the modem (not the computer).

3. Plug the power adapter into the modem. Plug the other end into a

wall outlet or power strip.

4. Power on the computer. After windows boots up, insert the DCM-202

CD-ROM. If the Welcome window opens, click Close. Plug the other

end of the USB cable into an available USB slot on your computer.

This section describes how to install the cable modem using the USB port.

Using the USB port to connect to the Internet enables you to install the cable

modem more quickly and easily than connecting to the Internet using the

computer’s Ethernet port, because you do not have to remove the case from

the computer to install a network interface card (NIC). Using the USB port,

however, enables you to connect only one computer to the cable modem.

See “Installing the Cable Modem Using the Ethernet Port” if you wish to install

the cable modem using the Ethernet port or to a router.

If you have or plan on purchasing a router, please refer to page 8. You cannot

use the USB connection with a router.

Note: Do not plug the USB modem into an external USB hub. Plug directly to your

computer.

You must contact your cable provider and register the MAC address of

the modem. The MAC address is located on the label on the modem.

Software Installation

Windows®Vista™:

The Found New Hardware screen

will appear. Click on Locate and

install driver software.

Click Next to continue.

Click Close.

Windows®XP:

The Found New Hardware screen

will appear. If you receive a Can

Windows connect to Windows Update

to search for software message,

select No, not this time.

Click Next to continue.

Select Install from a list or

specific location (advanced)

and then click Next.

Windows®2000

The Found New Hardware Wizard screen appears.

Select Search for a suitable driver for my device (recommended)

and click Next.

Check the CD-ROM Drives check box and click Next to search for the

necessary driver les.

3. When the correct location of the driver le appears, click OK.

4. The Found New Hardware Wizard displays the search results.

5. Click Next to install the driver les for the cable modem.

Click Finish to continue.

Check Search removable media (oppy,

CD-ROM...) and then click Next to search

for the necessary driver files from the

D-Link CD-ROM.

Once the drivers are installed, click

Finish.

Ethernet Installation Process

Using the Ethernet port enables you to use a single connection to

the Internet or use a router to connect multiple computers to the

cable modem. You can also use multiple IP addresses from your

cable operator when using the Ethernet connection. When using the

Ethernet connection, do NOT install the modem drivers. They are

only for the USB connection.

You must contact your cable provider and register the MAC address of

the modem. The MAC address is located on the label on the modem.

Below are two common ways to connect your DCM-202 modem to

your network. The diagram on the left shows the connection with a

broadband router. The diagram on the right shows the connection

directly to a computer.

Connecting the Cable Modem

Install the cable modem according to the following procedure:

1. Power off the computer.

2. Unplug the computer from the electrical wall

outlet.

3. Make these connections:

• Connect the coaxial cable to the cable modem’s

CATV cable connector. If you plan to have the

cable connected to a television as well as the

cable modem, you must use a cable line splitter

(not included).

• Plug the cable modem’s power adapter into a

wall outlet or surge protector and into the cable

modem’s power jack.

• Plug one end of the Ethernet cable into the

cable modem’s Ethernet port and the other

end of the cable into the existing NIC.

4. Plug in the computer.

5. Power on the computer. When installation is

complete, your setup should resemble the illustration

above. The modem is operating properly if the

Power, Cable, Status and ETH light emitting diodes

(LEDs) are solid green (lit and not blinking).
