D-Link DFL-700 - Security Appliance Manuale utente

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6. Network Security

Firewall

5V DC Power Adapter

Before You Begin

If you purchased this Network Security Firewall to connect to your high-speed

Internet connection in a secure manner, you must have either an Ethernet-based

Cable or DSL modem with an established Internet account from an Internet Service

Provider (ISP).

Check Your Package Contents

DFL-700 Network Security Firewall

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP/Straight Through) Cable

Using a power

supply with a

different voltage

rating will damage

this product and void

its warranty.

If any of the above items are missing, please contact your reseller.

DFL-700

respective holders. Software and specifications subject to change without notice. DFL-700. 01052004

Console Cable (RS 232)

Connecting The DFL-700 Network Security

Firewall To Your Network

A. First, connect the power adapter to the receptor at the back panel of the DFL-

700 and then plug the other end of the power adapter to a wall outlet or power

strip. The Power LED will turn ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; some devices may not have a on/off

switch and will require you to unplug the power adapter. Now, the DFL-700

should be powered on and the Cable / DSL modem should be turned off.

2. Cable / DSL modem (Power Off) – DFL-700 (Power On)

Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL

modem. After the Ethernet cable is securely connected, power on the Cable /

DSL modem by turning on the unit or plugging in the power adapter.

3. Cable / DSL modem (Power On) – DFL-700 (Power On)

Insert the other end of the Ethernet cable to the WAN port on the back panel of

the DFL-700. The WAN LED light will illuminate to indicate proper connection. If

the WAN LED is not illuminated, please go back to step B and repeat its

instructions.

C. Insert an Ethernet cable to the LAN port on the back panel of the DFL-700 and

connect it to a port on your network hub or switch. The LED light for the LAN

port on the DFL-700 will illuminate to indicate proper connection

D. Connect the computer that you will use to configure the DFL-700 to the network

hub or switch.

WAN port This is for the

connection of an

Ethernet cable to the

Cable or DSL modem.

DMZ port This is for

the connection of an

Ethernet cable to the

DMZ network.

COM Port Used to

connect to the CLI.

Receptor for

Power Adapter.

LAN port This is for

the connection of an

Ethernet cable to the

internal network.

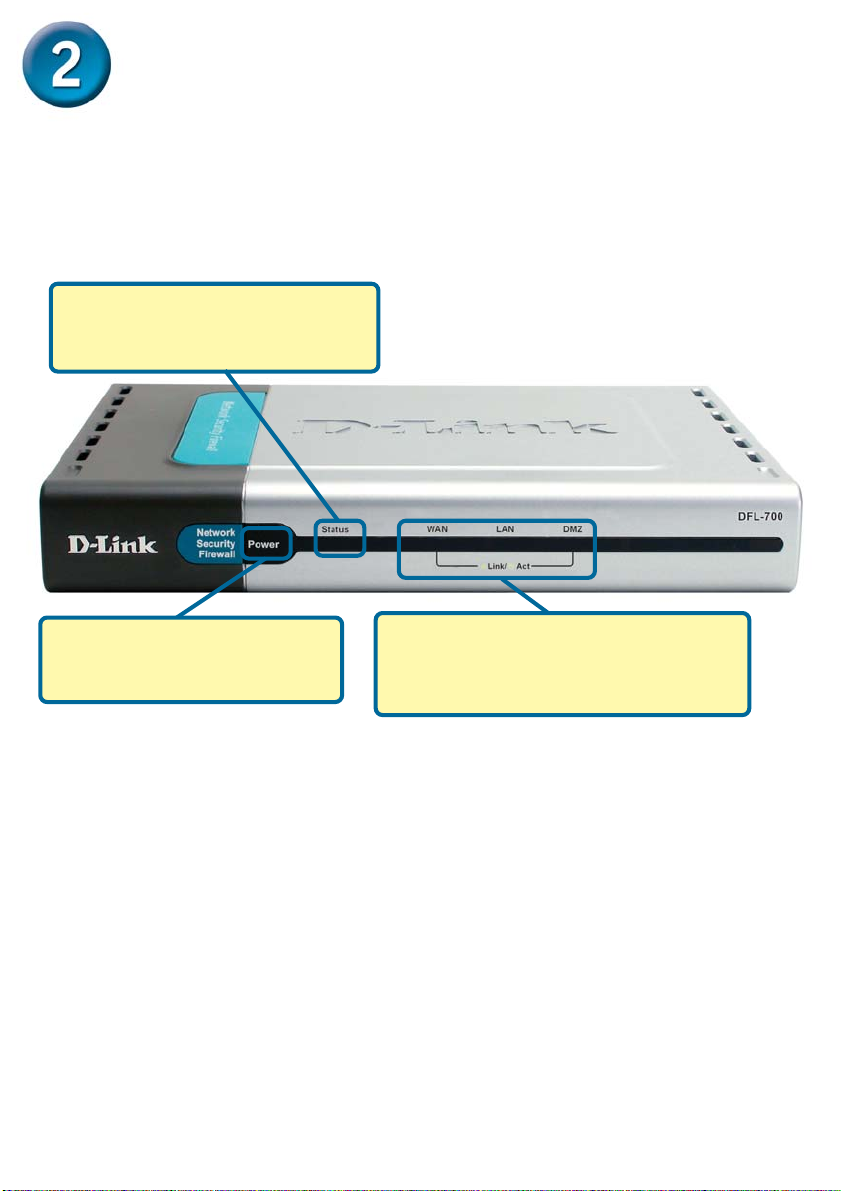

STATUS LED – will flash

consistently to indicate that the

DFL-700 is working properly.

POWER LED – a solid light

indicates a proper connection

to the power supply.

NETWORK LEDs – a solid light on the

port indicates a connection to an

Ethernet enabled computer. These

LEDs blinks during data transmission.

Restart your computer

To obtain a new IP address from the DFL-700 you will need to

restart your computer. Make sure that the network adapter in your

computer is configured properly first. Instructions on how to

configure the network adapter to obtain an IP address

automatically from the DFL-700 can be found in the appendix.

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Using The Setup Wizard

Open your Web browser and

type “http://192.168.1.1” into the

URL address box. Then press the

Enter or Return key.

The DFL-700 provides Web based configuration. You can configure

your DFL-700 through your Netscape Communicator or Internet

Explorer browser in MS Windows, Macintosh or UNIX based

platforms.

Activate your browser. Then type the IP address of the DFL-700

into the Location (for Netscape) or Address (for IE) field and press

“Enter.” For example: http://192.168.1.1.

(The IP Address shown in the example above is the default setting.

If you have changed the IP Address of the DFL-700 to conform to a

network, then input that IP Address in the web browser, instead of

the default IP Address shown.)

The Setup Wizard (continued)

Step 2 - Set timezone

Enter the password

that you want to use

for the admin account.

Click Next

Step 1 - Set admin password

Select the appropriate

timezone

Click Next

Enter the appropriate

dayligt saving time settings.

Here you can choose to either

configure your firewall over HTTP

or over Secure HTTP (HTTPS).

Welcome to the DFL-700 connec-

tion wizard!

Click Next to keep

using HTTP.

Click on Connect to the unit via

HTTPS instead to use Secure HTTP

The Setup Wizard (continued)

If you are unsure of which setting to select, please

contact your Internet Service Provider

Step 3 - Configure WAN

interface

Select the appropriate configu-

ration for the WAN interface, if

you are unsure of which

setting to select, please

contact your Internet Service

Provider.

Click Next and continue to

step 4 further down.

Click Next

Step 3 - PPPoE

The Setup Wizard (continued)

Click Next

Step 3 - Static IP

If you selected Static IP you

have to fill out the IP address

information provided to you by

your ISP. You will need to

complete all the required fields

except for Secondary DNS

Server. You should probably not

use the numbers displayed in

these fields, they are only used

as an example.

Click Next and continue to step

4 further down.

Click Next

If you selected PPPoE (Point-to-

Point Protocol over Ethernet)

you will have to fill out the user

name and password provided to

you by your ISP. The PPPoE

Service Name field should be left

blank unless your ISP informs

you otherwise.

Click Next and continue to step

4 further down.

The Setup Wizard (continued)

Click Next

Step 3 - PPTP

If you selected PPTP you will

need to specify both PPTP

tunnel parameters and Physi-

cal interface parameters.

PPTP tunnel parameters:

Enter the Username, Password

and the PPTP Server IP

address provided by your ISP.

Physical interface param-

eters:

DHCP

If your Internet Service Provider

is using DHCP you should

select the DHCP radio button.

Static IP

If your Internet Service Provider

is using Static IP you should

select the Static IP radio button

and enter IP Address, choose a

Subnet Mask and enter the

Gateway IP address.

The Setup Wizard (continued)

Click Next

Step 3 - Big Pond

If you selected Big Pond you will

have to fill out the user name and

password provided to you by

your ISP.

Click Next and continue to step

4 further down.

If you want to use the built-in

DHCP Server in the DFL-700,

choose Enable DHCP Server in

this screen. You then need to

specify a range of IP addresses

to hand out to the DHCP clients.

This range is entered in the

format “Start IP – Stop IP” i.e.

192.168.0.100 – 192.168.0.200.

If you don’t want to use the built-

in DHCP Server or configure it

later, choose Disable DHCP

Server and click Next when

done.

The Setup Wizard (continued)

Click Next

Step 4 - Set up built-in DHCP

server

Click Next

Step 5 - Configure helper

servers

NTP Servers - If enabled,

specify which NTP Servers

that should be used to

syncronize the firewall time

Syslog Servers – If enabled,

specify where the firewall

should log, you can specify

up to two Syslog receivers.
