2D-Link DNS-345 Quick Install Guide
ENGLISH
Package Contents
System Requirements
For best results, the following system requirements are recommended:
• Computer with: 1GHz processor / 512MB RAM / 200MB available space /
CD-ROM drive
• Internet Explorer® version 7.0, Mozilla® Firefox® 3.0, Google® Chrome 4.0 or
Apple® Safari® 4.0 and above
• 3.5” SATA Hard Drive(s)
• Windows® XP (with Service Pack 2), Vista® and Windows 7®
• Windows® 2003 Server
• Mac OS® X 10.5.6 or greater
Note: For the best performance, ensure you are running the latest service packs for the appropriate
Windows operating systems.
• D-Link ShareCenter® 4-Bay Network Storage Unit
• Manual and Software on the CD-ROM
• Quick Installation Guide
• Power Cord and Adapter
• CAT5 Ethernet Cable
Note: Using a power supply with a dierent voltage than the one included with the ShareCenter®
will cause damage and void the warranty for this product.
If any of the above items are missing, please contact your reseller.
Before you Begin
• Check box contents
• Check system requirements
• Ensure that you have the hardware you need for your ShareCenter® device
3
D-Link DNS-345 Quick Install Guide
ENGLISH
Checking the Hardware you Need
To use your DNS-345, you will need at least one hard drive. If you plan to use
RAID, which protects your data against one hard drive failure, you will need
at least two hard drives.
Note: We recommend that you use four high performance drives with at least 1TB each. This provides
more data capacity, better striping performance, and helps distributes loads more eectively.
This section helps you:
• Select the hard drive(s)
• Choose the amount of drive space to have available on those drives to ensure
your data is protected
• Understand the basic requirements for a router or switch
Selecting Hard Drives:
You can use hard drives from any manufacturer and with any capacity for
your DNS-345. The D-Link ShareCenter supports standard 3.5” internal
SATA drives. If you are unsure, ask your administrator or hard drive retailer/
manufacturer to verify that your hard drives meet this standard
Warning: Any pre-existing data on the drives will be erased during installation.
Determining How Much Hard Drive Space you Need:
In order to protect your data from hard drive failure, your DNS-345 requires
more space than what you will use for your data, sometimes more than
double the amount of space required.
4D-Link DNS-345 Quick Install Guide
ENGLISH
Using a Router or Switch:
If you are connecting your ShareCenter to a router or switch, your router
or switch needs to support Gigabit Ethernet (1000Mbit/s) for maximum
performance. The ShareCenter will auto-negotiate the highest connection
speed available to your router or switch.
Using an Uninterrupted Power Supply (UPS)
We highly recommend to plug your ShareCenter into an uninterrupted
power supply (UPS), which protects against sudden losses in power as well
as power surges.
Setting Up in Just a Few Easy Steps
Once you have unpacked your ShareCenter from its box and ensured
you meet all system and hardware requirements, it’s time to set up your
ShareCenter for use. This can be done in just a few easy steps:
1. Insert the hard drives.
2. Connect the power and Ethernet cables to your ShareCenter.
3. Power on the device.
4. Run the D-Link ShareCenter® Setup Wizard to congure the DNS-345.
5. Congure the hard drive(s).
5
D-Link DNS-345 Quick Install Guide
ENGLISH
Hardware Overview
Front View
Front Panel: This panel unlatches simply by sliding it up. Unhook it from the
front panel to insert or remove your hard drive(s).
OLED Screen: This panel illuminates when the DNS-345 is powered on.
Power Button: Press once to power on the DNS-345. To power o, press and
hold the button until the OLED screen displays “Shutdown System”.
Next Button: Press once to scroll between the dierent information and error
messages.
Power Button
Front Panel
Next Button
OLED Screen
6D-Link DNS-345 Quick Install Guide
ENGLISH
Power Outlet: The supplied power adapter connects here.
Reset Button: A pinhole button located beside the Ethernet socket is used
to reset the system or restore it to factory default settings.
LAN Ports: The Gigabit Ethernet ports connect the DNS-345 to a network.
Hard Drive Eject Levers: Pulling the lever ejects one of the hard drives from
its SATA connector.
Rear Fans: These are the rear fans used for ventilation.
USB Port: Devices such as a USB Printer, UPS or USB thumb/external drive
can be inserted here.
Hardware Overview
Rear View (Connections)
Hard Drive
Eject Levers
Power Outlet
Reset Button
Rear Fan
Rear Fan
USB Port
LAN Ports
Hard Drive
Eject Levers
7
D-Link DNS-345 Quick Install Guide
ENGLISH
Setup Wizard and Storage Utility
The ShareCenter Setup Wizard is the companion software to your DNS-345,
enabling you to easily set up and manage your ShareCenter. You install
the ShareCenter Setup wizard from the resource CD that came with your
product.
To run the Setup Wizard, insert the ShareCenter CD into your CD-ROM drive:
Step 1: Click the Setup Wizard
Utility icon.
Step 2: The Setup wizard will step
you through the configuration of
getting your ShareCenter ready for
immediate use. Select the Language
of your choice and click the Start
button.
8D-Link DNS-345 Quick Install Guide
ENGLISH
Step 4: Follow the instructions to
slide either one or two hard drive(s)
into the open hard drive bay(s) of
your ShareCenter.
Click Next to continue.
Step 5: With the hard drives installed
properly into each bay, close the
system by sliding the panel into
place.
Click Next to continue.
Step 3: Follow the instructions to
remove the front cover of your
ShareCenter.
Click Next to continue.
9
D-Link DNS-345 Quick Install Guide
ENGLISH
Step 6: Connect a CAT5 Ethernet
cable to your ShareCenter and
connect the other end(s) to a switch
or router. To improve bandwidth,
connect a second CAT5 Ethernet
cable from the same switch or router
to the other Ethernet port on the
ShareCenter.
Click Next to continue.
Step 7: Connect the power adapter
connector to the power connection
at the back of the ShareCenter. Then
power on the ShareCenter by
pressing the power button located
under the OLED screen
Click Next to continue.
Step 8: With the power on, press the
Next button on the device and check
the IP address of your ShareCenter.
The IP address on the device must
match what you see on the screen.
Click Next to continue.
10 D-Link DNS-345 Quick Install Guide
ENGLISH

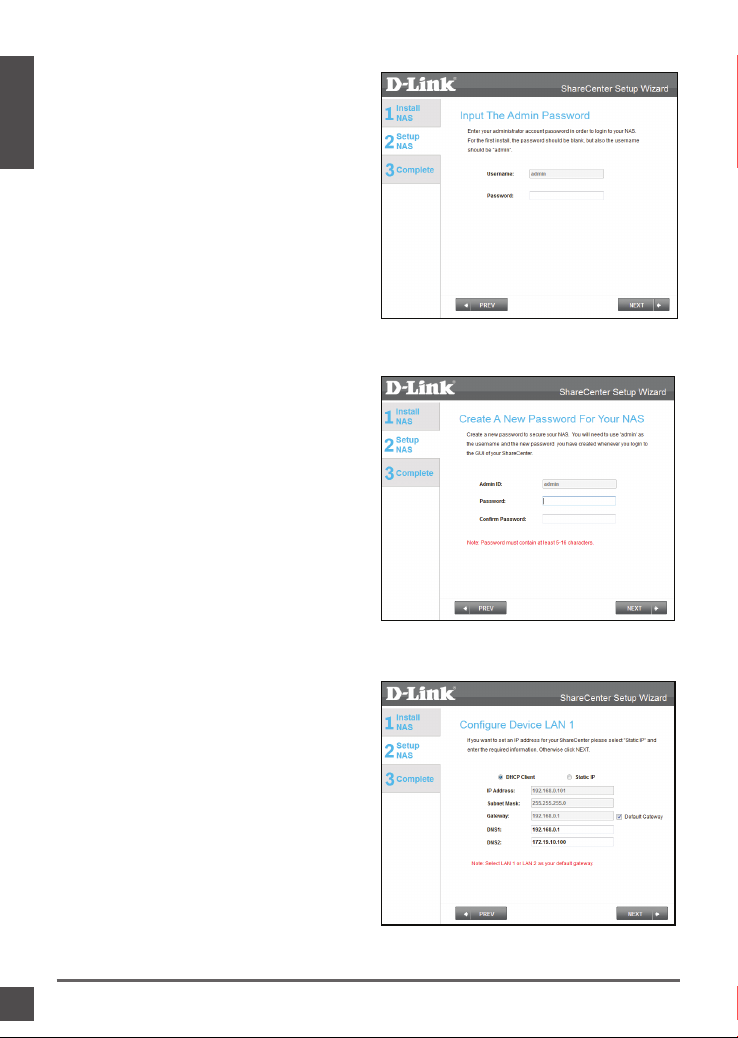

Step 9: Enter the administrator
password. If this is the rst time you
are doing the installation on this NAS
then the password will be blank.
Click Next to continue.
Step 10: Create a new password for
the ‘Admin” ID (username). We
recommend you set a password,
however you may also leave the elds
blank.
Click Next to continue.
Step 11: Click on Static IP or DHCP to
congure the IP network settings of
the ShareCenter. If you select Static
IP then input the IP parameters as
listed in this step.
Click Next to continue.
