D-Link DSL-524T Manuale utente

Before You Begin

Make sure you have all the necessary information and equipment on hand before beginning

the installation.

Check Your Package Contents

DSL-524T

ADSL2+ Router

Software and specifications subject to change without notice.

DSL-524T ADSL Router

Using a power supply

with a different voltage

rating will damage and void

the warranty for this product.

If any of the above items is missing,

please contact your reseller.

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6, Netscape

Navigator 6.2.3, Mozilla or Firefox.

CD-ROM (containing User Manual)

Ethernet (CAT5 UTP) Cable

Telephone

Power Adapter

Connecting the Router to Your Computer

A. First, connect the power adapter to the receptor at the back panel of the

DSL-524T and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn ON to indicate proper operation.

B. Insert one end of the Ethernet cable into any Ethernet port on the back panel of the

DSL-524T and the other end of the cable to an Ethernet Adapter or available Ethernet

port on your computer.

C. Insert one end of the Telephone cable into the ADSL port on the rear panel of the

Router and insert the other end into the wall socket. If you need to install a low pass

filter, follow the instructions of your ISP.

Connecting the DSL-524T to your network

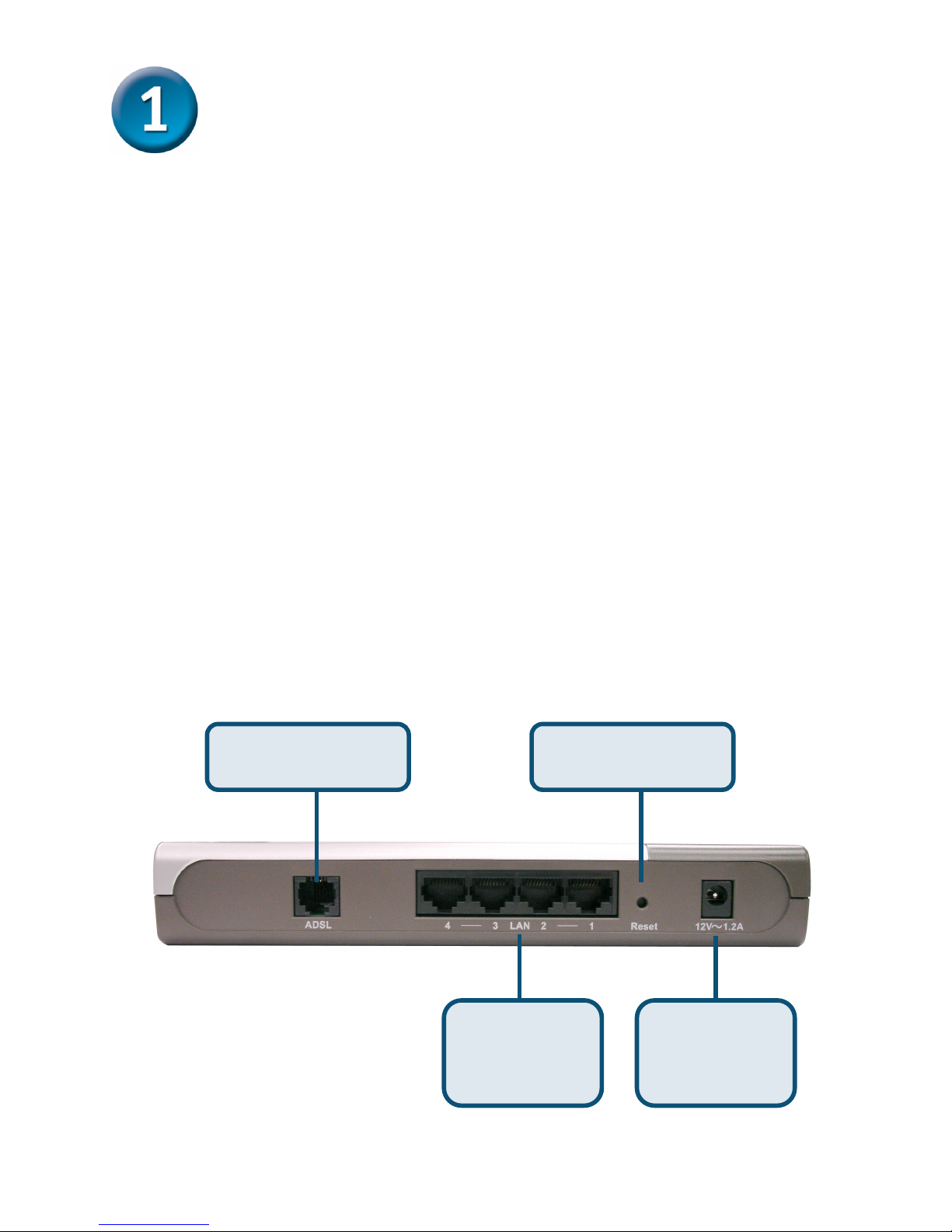

Rear Panel Connections

All cable connections to the Router are made at the rear panel. Connect the power adapter

here to power on the Router. Use the Reset button to restore the settings to the factory default

values in the next chapter for instructions on using the reset button.

Ethernet ports -

connect to

Ethernet cable

ADSL port - connect

to ADSL line

Factory reset button

Power input –

connect to power

adapter

Connecting the Router to Your Computer

Front Panel Connections

The LED indicators on the front panel include the Power, Status, ADSL and Ethernet

indicators.

Your setup should resemble the one shown below.

Power: a steady light

indicates the

DSL-524T is ready.

ADSL Link/Act: A steady

green light indicates a valid

ADSL connection. A blinking

LED will signify an active

WAN session

Status: A blinking green LED

indicates the device is in proper

working order. A system failure will

result in the LED lighting solid or

going dark.

Ethernet Link/Act: A steady green light

indicates a valid Ethernet connection

while a blinking LED indicates an active

Ethernet session.

Configuring the Router

You can select two methods to configure your new router. The first method is by using D-Link

Click’n Connect Utility, which is included on the CD designed to run on Windows XP/2000.

Just follow the instructions step by step to configure your router for Internet access for the first

time.

The second method is to use your Web browser to access the web pages used to setup the

Router, your computer must be configured to “Obtain an IP address automatically”, that is,

you must change the IP network settings of your computer so that it is a DHCP Client. If you

are using Windows XP and do not know how to change your network settings, skip ahead to

the Appendix and read the instructions provided. You may also read the User Manual for

instructions on changing IP settings for computers running Windows operating systems.

Open your Web browser and type

“http://192.168.1.1” into the URL address

box. Then press the Enter or Return key.

The Login page appears.

Type “admin” for the User

Name and “admin” in the

Password field.

Click OK

Configuring the Router (continued)

Once you have logged in, the Home directory tab is prominent with the Setup Wizard menu

displayed. Most users will be able to use the Setup Wizard to establish the ADSL connection

to your ISP. To begin using the Setup Wizard, click on the Run Wizard button in the middle of

the web page. A pop-up menu will appear. This pop-up menu is the Setup Wizard. The Setup

Wizard procedure consists of four general steps:

1. Choose your time zone

2. Set Internet Connection

3. Restart

When you setup the Internet connection, you will need to enter information provided by your

ISP. The type of information you need depends on the type of connection you are setting up.

Click on the Run Wizard button.

Configuring the Router (continued)

The first Setup Wizard menu lists a summary of the steps required to complete the setup.

Click the Next button to begin setup.

Click the Next button.

Configuring the Router (continued)

Now configure the Time Zone used for the Router’s system clock. Select the appropriate time

zone and Daylight Saving Time setting for your location.

Select the Time Zone you are located

in by using the pull-down menu.

Click the Next button.

Configuring the Router (continued)

Next you will Set the Internet Connection Type for the WAN interface. Your ISP has given

this information to you. If you do not know what type of connection to use, exit the Setup

Wizard and contact your ISP for the information. The Setup wizard menu that appears when

you click the Next button depends on what connection type you select.

Select the Connection Type

used for your ADSL service.

Click the Next button.

Configuring the Router (continued)

PPPoE/PPPoA Connections

If you selected the PPPoE/PPPoA connection type in the previous menu, you will see the

Setup Wizard menu pictured here. Type in the Username and Password used to identify and

verify your account to the ISP. Enter the VPI and VCI numbers that have been provided by

your ISP. Select the Connection Type used for encapsulation specific to your service. Click

Next when you are ready to continue to the Setup Completed menu.

If you are not sure what Connection Type,VPI and VCI to use, please check with your ISP.

Enter the VPI

and VCI

numbers that

have been

provided by

your ISP.

Click the Next button. Skip ahead to

the Setup Completed menu below.

Choose the correct Connection Type from

the pull-down menu. The user may choose

between PPPoA VC-Mux, PPPoE LLC or

PPPoA LLC, as instructed by your ISP.

Type the

Username

and

Password

for your ISP

account.

Configuring the Router (continued)

Dynamic IP Address Connections

For this connection type, the user may choose Bridged IP LLC or Bridged IP VC-Mux. Both

of these connections require the user to have additional software located on their computer to

negotiate the connection with the ISP. Both Bridged modes will automatically set the network

connections. If you selected the Dynamic IP Address connection type, select the Connection

Type used for encapsulation and if you have been instructed to change the VPI number and

VCI number, type in the new values. Click Next when you are ready to continue the Setup

Completed menu.

Select the

Encapsulation

as 1483

Bridged IP

LLC or 1483

Bridged IP

VcMux as

instructed by

your ISP.

Enter the

VPI and VCI

numbers that

have been

provided by

your ISP.

Click the Next button to skip ahead

to the Setup Completed menu.

The Cloned MAC Address field is

used to copy the MAC Address of

your Ethernet Adapter to the router.

Enter the MAC Address into the

space provided and click the Clone

Mac Address button.
