D-Link Ethernet Broadband Router DIR-100 Manuale utente

Quick Install Guide

DIR-100

Version 1.00

System Requirements

• Ethernet-based Cable or DSL Modem

• Computers with Windows®, Macintosh®, or Linux-based operating

systems with an installed Ethernet adapter

• Internet Explorer 6.x and above, or Netscape®Navigator 7.0 and

above

Package Contents

System Requirements

If any of the above items are missing, please contact your reseller.

CAT5 Ethernet Cable Power Adapter

D-Link DIR-100 CD-ROM with

Manual

Hardware Overview

Status LED

A blinking light indicates that

the DIR-100 is functioning

properly.

Local Network LEDs

Asolid light on each port indicates

a connection to an Ethernet

enabled device. These LEDs

blink during data transmission.

WAN LED

A solid light indicates a connection

on the WAN port. This LED blinks

during data transmission.

Power LED

A solid light indicates a

proper connection to the

power supply.

Hardware Overview

LAN Ports

These are the connections for Ethernet cables to

Ethernet-enabled computers.

WAN Port

This is for the connection of an Ethernet

cable to your Cable or DSL modem.

Reset Button

Pressing this button

restores the Router

to its original factory

default settings.

Power Receptor

Hardware Installation

First, connect the power adapter to the receptor at the back panel

of the DIR-100 and then plug the other end of the power adapter

to a wall outlet or power strip. The Power LED will turn ON to

indicate proper operation.

B.1. Power off your Cable or DSL modem; some devices may not

have a on/off switch and will require you to unplug the power

adapter. Now, the DIR-100 should be powered on and the Cable/

DSL modem should be turned off.

2. Cable/DSL modem (Power Off) – DIR-100 (Power On) Connect

an Ethernet cable to the Ethernet jack located on the Cable/DSL

modem. After the Ethernet cable is securely connected, power

on the Cable/DSL modem by turning on the unit or plugging in

the power adapter.

3. Cable/DSL modem (Power On) – DIR-100 (Power On) Insert

the other end of the Ethernet cable to the WAN PORT on the back

panel of the DIR-100. The WAN LED light will illuminate to indicate

proper connection. If the WAN LED is not illuminated, please go

back to step B1 and repeat the instructions.

C.Insert an Ethernet cable to LAN port 1 on the back panel of the

DIR-100 and an available Ethernet port on the network adapter

in the computer you will use to congure the DIR-100. The LED

light for LAN Port 1 will illuminate to indicate proper connection.

Note: The LAN Ports on the DIR-100 are Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover Ethernet

cable to the LAN Ports.

D.Computers equipped with Ethernet or Gigabit Ethernet adapters

will be able to connect to the DIR-100. The DFE-530TX or DGE-

530T PCI Adapters (as examples) will be able to connect with the

router without any additional conguration required.

Getting Started

Conguration

This section will show you how to congure your new D-Link DIR-100

Router using the D-Link Setup Wizard.

Conguration

Click Log In

Click Setup Wizard

Open your Web browser and type

“http://192.168.0.1” into the URL

address box. Then press the Enter

or Return key.

Type “admin” for the user-

name and leave the pass-

word eld blank.

Conguration

Click Next

You have the option to establish

a password for the User Name

“Admin”.

Choose your time zone from the

drop down list.

Click Setup Wizard

Conguration

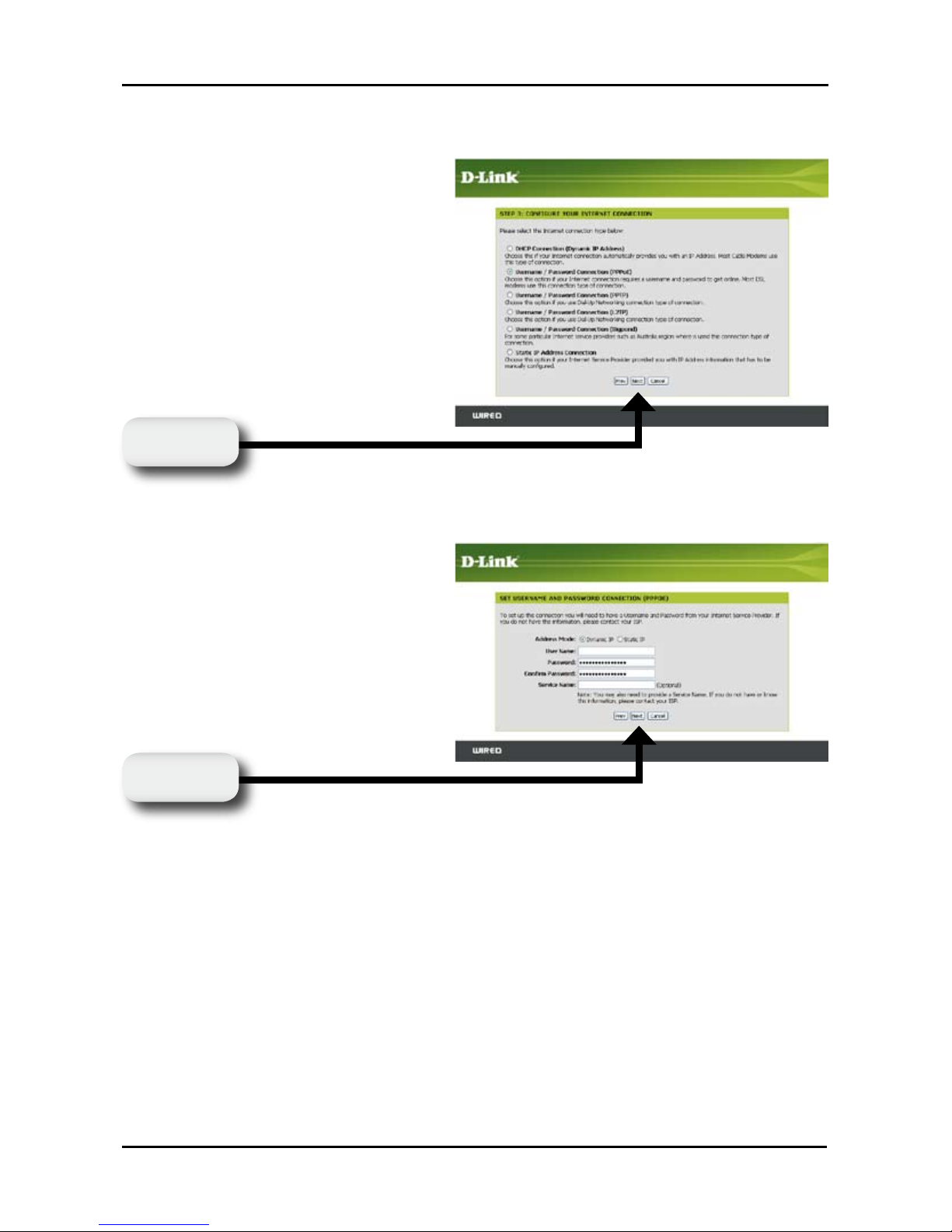

You will be prompted to select the type of Internet connection for your

router. If you are unsure of which setting to select, please contact

your Internet Service Provider.

PPPoE - page 10

PPTP - page 11

L2TP - page 12

Big Pond - page 13

Static IP Address - page 14

If you selected Dynamic IP Address, this screen will appear: (Used

mainly for Cable Internet service).

Click Next

Dynamic IP Address

Click Next

Continue to page 15

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You

can also manually type in the

MAC address.

Conguration

PPPoE

Click Next

Continue to page 15

Note: Please be sure to remove any existing PPPoE client software

installed on your computers.

If your ISP uses PPPoE

(Point-to-Point Protocol

over Ethernet), select the

corresponding radio button.

If you have a Dynamic IP

connection, enter the User

Name and Password provided

to you by your ISP.
