D-Link DFE-528TX Manuale utente

Contents of Package:

• DFE-528TX Ethernet PCI Adapter

• Printed Quick Installation Guide

• CD with Manual and Drivers

If any of the above items are missing, please contact your reseller.

Before you start, make sure to turn off your computer and

unplug the power cord.

Note: To avoid damage caused by static electricity, make sure to properly ground

yourself by first touching a metal part of your computer to discharge any static

electricity before working with the DFE-528TX 10/100 Mb Ethernet PCI Adapter.

• Remove the back cover of the computer.

• Install the DFE-528TX carefully and firmly into an available

PCI slot which is usually “white” or “cream” colored

• Secure the DFE-528TX with a screw.

• Replace the computer’s cover.

Installing the DFE-528TX

PLUG IN THE POWER CORD AND TURN ON YOUR COMPUTER.

Go to

START>SETTINGS>

CONTROL PANEL>

SYSTEM>HARDWARE>

DEVICE MANAGER.

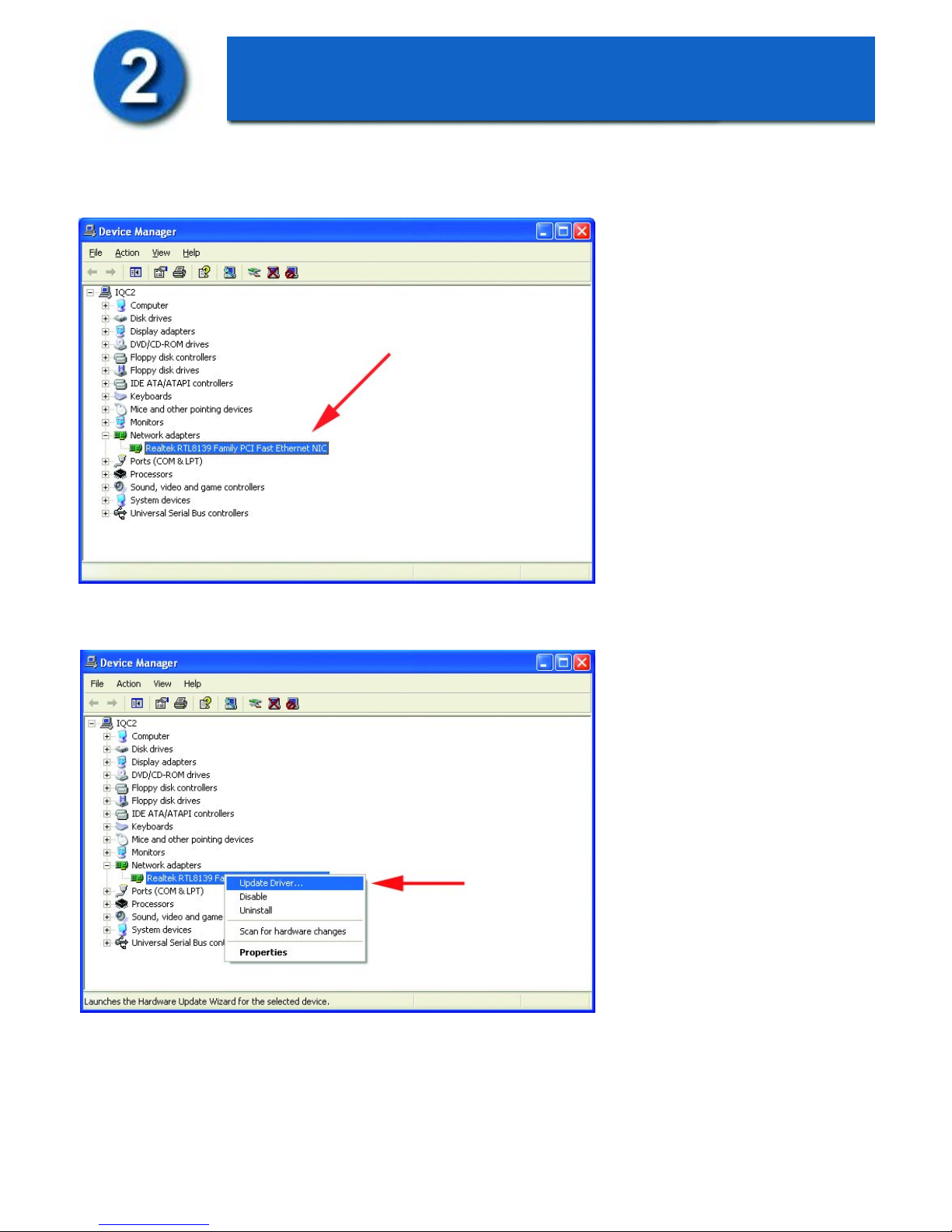

Scroll down to “Network

Adapters.”

For most installations,

Windows XP will

automatically load

“Realtek” drivers as shown

at left.

Right-click on “Realtek.”

Click “Update Driver.”

The driver installation is

complete.

If the “Realtek” driver

does not appear under

“Network adapters,” go to

START>CONTROL

PANEL. Switch to

“Classic View.”

Double-click on “Add

Hardware.” The

“Hardware Update

Wizard” will appear. Follow the “Hardware Update Wizard” to complete the

driver installation. (Please see Step 3.)

-2-

Installing the Drivers

INSERT THE DFE-528TX DRIVER CD INTO THE CD-ROM DRIVE.

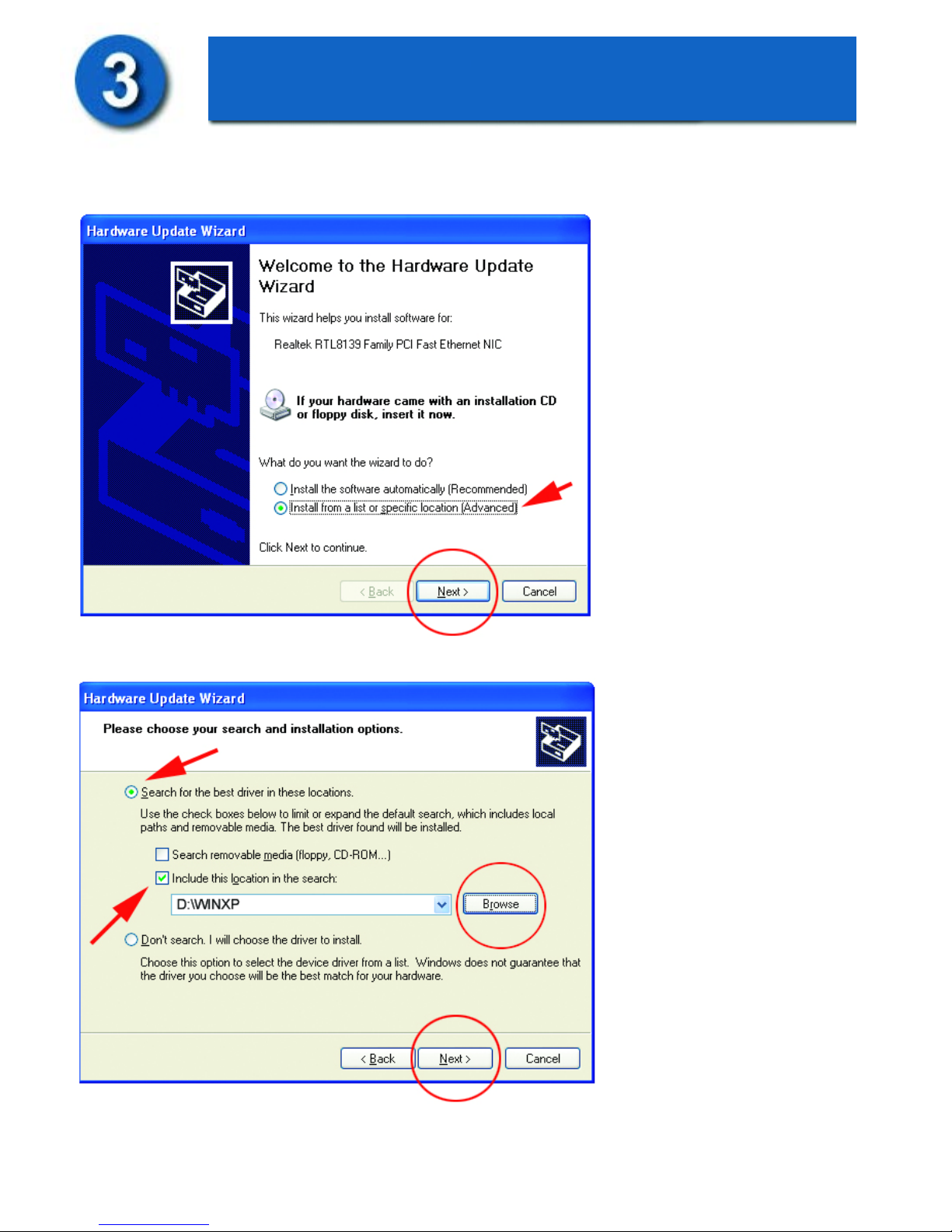

This “Welcome” screen

will appear. Select

“Install from a list or

specific location.”

Click “Next.”

Select “Search for the best

drivers in these

locations.”

“Browse” for the drivers

on the driver CD. (i.e.,

D:\WINXP, where “D”

refers to the CD-ROM

drive.)

Click “Next.”

-3-

Using the Hardware Update Wizard

Click on “D-Link

DFE-528TX PCI

Adapter” as shown.

Click “Next.”

Windows XP will load the

drivers and required system

files.

-4-

Using the Add Hardware Wizard

(continued)

The DFE-528TX driver

installation is complete.

Click “Finish.”

Go to: START>SETTINGS>

CONTROL PANEL>

SYSTEM>HARDWARE>

DEVICE MANAGER.

To check that the installation of

the DFE-528TX was successful,

scroll down and click on

“Network adapters.”

You have a successful

installation when “D-link

DFE-528TX” appears (with no

errors) as shown at left.

-5-

Using the Add Hardware Wizard

(continued)

Checking the Installation

Contents

ContentsContents

Contents of Package:

of Package:of Package:

of Package:

DFE-528TX Fast Ethernet Adapter

Quick Install Guide

CD-ROM, which includes driver software

If any of the above items are missing, please contact your reseller.

Pre

PrePre

Pre-

-installation Procedures:

installation Procedures:installation Procedures:

installation Procedures:

If you have already installed the DFE-528TX into a PCI slot, advanced users may utilize the

“Add New Hardware Wizard” to manually specify the location of the driver on the CD-ROM.

Otherwise, we strongly recommend canceling the “Add New Hardware Wizard” and

instead using the “Install Drivers” program in the CD-ROM.

Here is quick summary of the proper installation procedure:

• Run the driver installation from the DFE-528TX CD-ROM.

• Turn Off the computer and install the DFE-528TX into the

PCI slot.

• Restart the computer to complete the installation.

Installing

InstallingInstalling

Installing the DFE

the DFEthe DFE

the DFE-

-528TX Drivers

528TX Drivers528TX Drivers

528TX Drivers

• Turn ON the computer.

• Insert the driver CD, which is included with

the DFE-528TX, into the CD-ROM drive.

The following window will appear.

Clickon “Install Drivers.”

DO NOT

DO NOTDO NOT

DO NOT insert the DFE

insert the DFEinsert the DFE

insert the DFE-

-528TX into the computer’s PCI

528TX into the computer’s PCI528TX into the computer’s PCI

528TX into the computer’s PCI

slot before installing the drivers.

slot before installing the drivers.slot before installing the drivers.

slot before installing the drivers.

For Windows 2000 and Windows ME users, the following screen will appear.

ClickOK

For Windows 98/98SE users, this screen will be displayed.

Click Yes

Installing the DFE

Installing the DFEInstalling the DFE

Installing the DFE-

-528TX into the

528TX into the528TX into the

528TX into the

computer’s PCI slot

computer’s PCI slotcomputer’s PCI slot

computer’s PCI slot

Note: To avoid static electric charges, please touch an unpainted screw on the

outside of the power supply before installing or working with the DFE-528-TX.

• Turn off your computer and unplug the power cord.

• Remove the back cover of your computer. (Refer to your computer’s manual

if needed.)

• Locate an available PCI slot. PCI slots are usually white or cream colored.

Next, TURN OFF the computer and

Next, TURN OFF the computer andNext, TURN OFF the computer and

Next, TURN OFF the computer and

unplug the power cord.

unplug the power cord.unplug the power cord.

unplug the power cord.

• Remove the backplate (the small piece of metal that covers the opening for the

PCI card on the back cover that you just removed.)

• Insert the DFE-528TX carefully and firmly into the PCI slot.

• Secure the DFE-528TX with the screw from the backplate.

• Replace your computer’s cover.

Finishing the Installation

Finishing the InstallationFinishing the Installation

Finishing the Installation

• TURN ON the computer.

For Windows 98/98SE and Windows ME users, the following screen will appear.

Click Yes, to restart the computer.

For Windows 2000 users, this screen will be displayed.

Click O.K., to complete the installation.

(Note: Windows 2000 will not require a restart.)

Checking the Installation

Checking the InstallationChecking the Installation

Checking the Installation

• Go to START>RUN.

• Type “winipcfg.” (In Win2000, type “ipconfig/all.”) In some

cases it may be necessary to “Release and Renew” the IP address.

Make sure to select the DFE-528TX as the specified adapter in the

pull down menu.

• If the IP address belongs to the same IP range and subnet mask

as the local network, then open the web browser and test the

Internet connection.

Building Networks for People

Printed in Taiwan
