D-Link DP-101P+ Manuale utente

DP-101P+DP-101P+

DP-101P+

Ethernet Pocket Size

Print Server

Manual

Rev. 101104

Building Networks for People

ContentsContents

Contents

1. Package Contents ....................................................... 3

2. Introduction ................................................................ 4

3. Setting up the DP-101P+ .............................................. 7

4. Getting Started ...........................................................9

5. TCP/IP Printing for Windows 98/Me ............................ 10

6. TCP/IP Printing for Windows 2000 .............................. 19

7. TCP/IP Printing for Windows XP ................................. 24

8. Using the Web Configuration ..................................... 29

9. Mac OS and Unix/Linux Printing .............................. 30

10. Port Pinouts .............................................................. 36

11. Networking Basics .................................................... 37

12. Technical Specifications ........................................... 51

13. Contacting Technical Support ................................... 52

14. Warranty............................. ........................................ 53

Contents of Package

• D-Link DP-101P+ Ethernet Pocket Size Print Server

• 7.5v 1A Power Adapter

• CD-ROM (containing Manual and Software)

• Quick Installation Guide

If any of the above items are missing, please contact your reseller.

System Requirements:

• Computer with a Windows, Macintosh, or Linux based operating system with an installed Ethernet adapter

• Internet Explorer version 5.x, or Netscape Navigator version 4.0 or above, with JavaScript enabled

1. Package Contents

Note: Using a power supply with a different voltage rating than the one included with the DP-101P+ will cause damage and

void the warranty for this product.

2. Introduction

The D-Link DP-101P+ is a “Pocket Size” Ethernet Print Server with a Centronics port (Parallel Printer

connection) and a single RJ-45 (Ethernet) port. The DP-101P+ provides a solution for sharing a single printer

among several users in a local network. Its IEEE 802.3 Ethernet port and IEEE 1284 parallel interface allows it to

connect most Parallel printers directly to an Ethernet based LAN. The DP-101P+ provides all Ethernet network

users the necessary advanced features, wide protocol support, and ease of use to fit well into networks ranging

from small home networks to the enterprise level networks.

The DP-101P+ includes easy to use software to install to most PC or Macintosh networks. Protocol support for

TCP/IP, NetBEUI, and AppleTalk are provided to ensure seamless connection to Windows Operating Systems,

Mac OS, Unix, Novell and other major networking Operating Systems.

The DP-101P+ has a built in Web-based management feature that allows users to easily configure and manage

multiple print queues through TCP/IP. Additionally, the DP-101P+’s integrated support for Telnet provides an

alternative method to configure the unit.

The DP-101P+ print servers improve network printing services in the following ways:

•The DP-101P+ picks up the workload of managing print file traffic to its connected printers. This provides

workload relief to your file servers, and allows the file servers’ full capacity to be used for file access or

other direct services to network users. On peer-to-peer networks, workstations can print directly to the

DP-101P+ without increasing the load of another workstation or server.

•The DP-101P+’s IEEE 1284 compliant high-speed bi-directional parallel printer port can transmit to high-

speed laser printers much faster than a PC’s parallel printer port. A high-speed laser printer can be driven

at its full capacity.

•Because the DP-101P+ is very portable (pocket-sized) and inexpensive compared to a PC-based print

server, and because the DP-101P+ connects to your file servers through the network, the printer can be

stationed at the location of maximum convenience to users.

The DP-101P+ offers extraordinary flexibility, operating with all major network operating systems and protocols:

TCP/IP

UNIX lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX)

Windows NT/2000, Windows XP, Windows 98/Me

NetWare 5.x NDPS LPR remote printing

NetBEUI

Windows XP, Windows NT/2000, Windows 98/Me, Windows for Workgroups, Microsoft LAN Manager,

IBM LAN Server

AppleTalk

MacOS AppleTalk

The D-Link DP-101+ has an embedded web-server which allows it to be configured anywhere on your network

through a web-browser. Managing the print server through the web-browser makes it Operating System

independent.

Your D-Link DP-101P+ package also includes PS Admin, a Windows-based setup and administration program,

which makes configuration and management of your D-Link print servers quick and easy in a Windows

environment. The DP-101P+ also has a Telnet interface for management communications. If Windows is not

available on the station you choose for print server administration, then all configuration and management

commands may be issued to the DP-101P+, and all console messages and management report information will

be returned, via Telnet.

ExterExter

External Fnal F

nal Fnal F

nal Feaea

eaea

eaturtur

turtur

tureses

eses

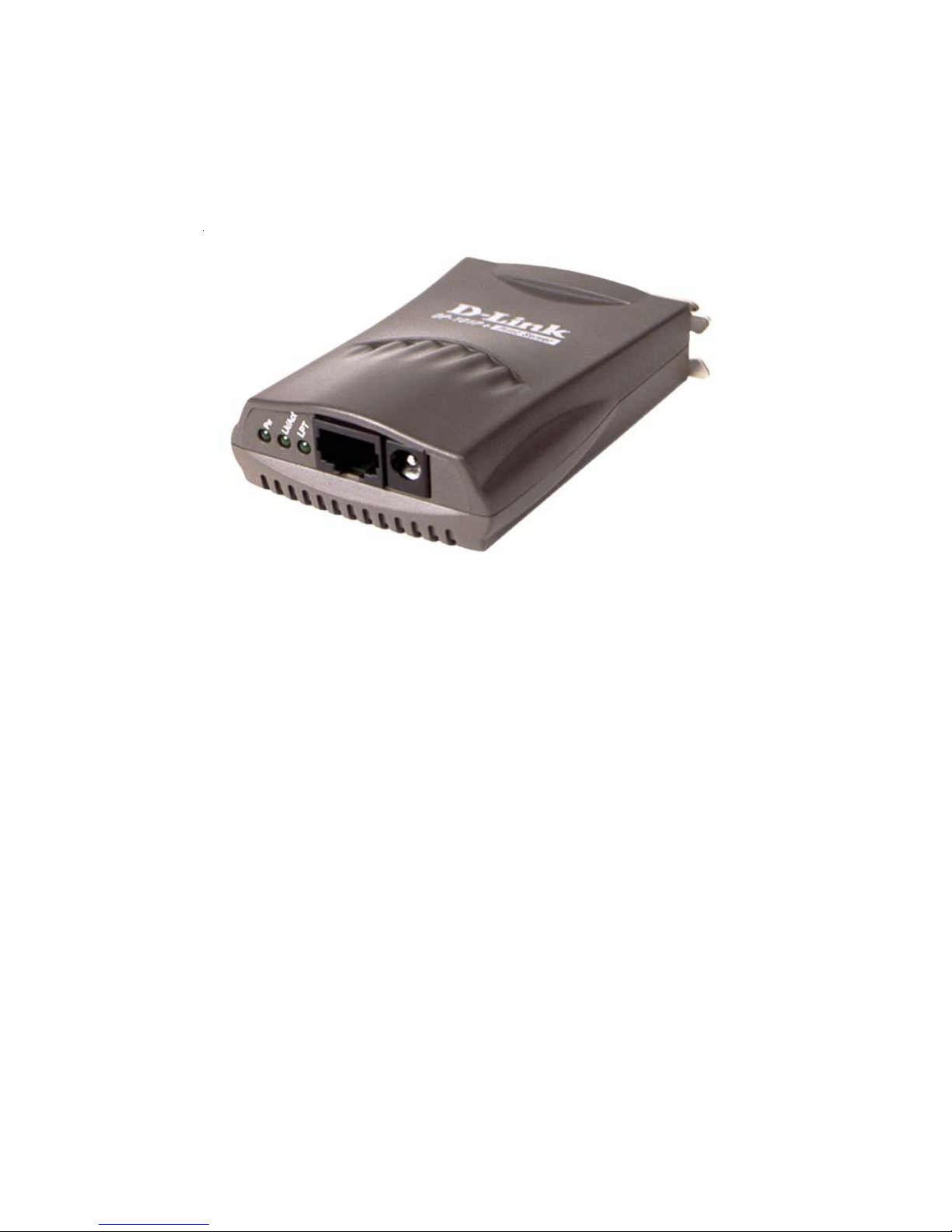

Front View

Ethernet Port

LED Indicators

DC power Input

Network Port

The network port (RJ-45 receptacle) provides for connection to the network through 10Base-T Ethernet

cabling.

DC Power Input

The DC power input socket uses a 7.5V power supply.

The power supply included in your DP-101P+ package is correct for the DP-101P+. Substitution of other

equipment may void warranty.

LED Indicators

The front of the DP-101P+ includes three LED indicators. See “Power-up and Self-Test,” for LED indications

upon starting up the DP-101P+. During operations following a normal startup, the LED indicators provide the

following status signals:

Steady or flashing green confirms power on.

Lk/Act

Steady or flashing green confirms that the DP-101P+ has a good connection to the Ethernet network.

This indicator blinks (briefly dark) when the DP-101P+ is receiving or transmitting from the network.

LPT

This indicator shows steady green while the DP-101P+ is transferring print data through its printer port.

Rear View

The DP-101P+ printer port is located at the rear.

Printer Port

The printer port, is configurable by commands in the PS Admin program, or by commands issued to the DP-

101P+ via Telnet. See the PS Admin User’s Guide for configuration procedures.

The print server also supports web configuration permitting users to configure settings through the web

browser. DP-101P+ default IP address as follows:

•Default IP address – 192.168.0.10

•Subnet Mask – 255.255.255.0

Note:

3.3.

3. Setting up the DP-101P+Setting up the DP-101P+

Setting up the DP-101P+Setting up the DP-101P+

Setting up the DP-101P+

Note:the network connection should be made before supplying power to the DP-101P+.

1. Confirm proper operation of the printer to be connected to the DP-101P+.

2. When you have confirmed proper operation of the printer, switch its power off.

3. Confirm that your network is operating normally.

4. Connect the DP-101P+ to the network (through the RJ-45 receptacle on the print server’s rear end).

WARNING: Configuration problems may result if the DP-101P+ is powered up without first establishing its network

connection. Follow this procedure to avoid complications at the configuration stage.

The PC’s IP address must be in the same network with the print server’s IP address for the two

devices to communicate.

5. While the printer is powered off, connect the DP-101P+ print server directly to the printer parallel

port.

6. Switch printer power on.

7. Plug the AC Power adapter’s output plug into the DC power input socket on the rear end of the

DP-101P+.

8. Plug the AC Power adapter into an electric service outlet. This will supply power to the DP-

101P+. (The DP-101P+ has no power switch.) The DP-101P+’s self-test routines will proceed

automatically.

Poo

oww

werer

erer

er-up and Self-T-up and Self-T

-up and Self-T-up and Self-T

-up and Self-Testest

estest

est

Whenever the DP-101P+ is powered up, two kinds of testing procedures follow automatically. The first procedure

is just a programmed series of LED flashes, to confirm proper operation of the three LED indicators. The second

procedure comprises programmed tests of each of the DP-101P+’s major components. If any fault is found during

the component test series, testing is halted and a continuous pattern of LED flashes signals the nature of the

fault.

LEDLED

LED TT

Test Seriesest Series

est Seriesest Series

est Series

Immediately upon power-up, all three of the LED indicators will show steady green for several seconds. Then the

LPT indicator will flash three times while Pw and Lk/Act remain steady. Irregularity of any of the LEDs during this

LED test series indicates that there is a problem with the LEDs themselves. Contact your dealer for correction of

any LED problems before proceeding.

ComponentComponent

Component TT

Test Seriesest Series

est Seriesest Series

est Series

The actual component tests immediately follow the LED tests. A normal (no fault) result is signaled by three

flashes of the LPT indicator and the start of normal print server operation.

If any error condition is found during the component test series, then the test will halt with the LPT LED

continuously signaling the particular error according to the following table:

LPT Flash Pattern Error Type

Steady long flashes Firmware Reload Required

Continuous on DRAM Error

One long, two short flashes Timer INT Error

One long, three short flashes Flash Protected

One long, four short flashes Flash ID Error

One long, five short flashes Flash Erase / Program Error

One long, six short flashes LAN Controller Error

One long, seven short flashes LAN Memory Error

One long, eight short flashes Parallel Controller Error

One long, nine short flashes LPT Error

Steady short flashes EEPROM Error

One long, eleven short flashes LAN I/O Base error

Component Test Series (continued)

In the event of a Firmware Reload Required error at startup, proceed according to instructions given in the PS

Admin User’s Guide (“PSAdmin Administration” section, under the heading “Upgrading the Print Server’s Internal

Firmware”).

In the event that any of the other listed error conditions is encountered on startup, contact your dealer for

correction of the fault.

OperOper

Operaa

ationaltional

tionaltional

tional TT

Testest

estest

est

The PS Admin software includes a Print Test function for confirmation of connections and functions. That

operational test can be performed after you have completed installation of the PS Admin software, and the PS

Admin procedures for configuring the DP-101P+. See instructions given in the PS Admin User’s Guide (“Getting

Started Setting up Your Print Server” section, under the heading “Testing your Print Server”).

4.4.

4. Getting StarGetting Star

Getting StarGetting Star

Getting Startedted

tedted

ted

Below is a sample network using the DP-101P+. The DP-101P+ has a built- in Web-based management

feature that allows users to easily configure and manage multiple print queues through TCP/IP.

5.5.

5. TT

TCP/IP Printing fCP/IP Printing f

CP/IP Printing fCP/IP Printing f

CP/IP Printing foror

oror

or WW

Windoindo

indoindo

indows 98/Mews 98/Me

ws 98/Mews 98/Me

ws 98/Me

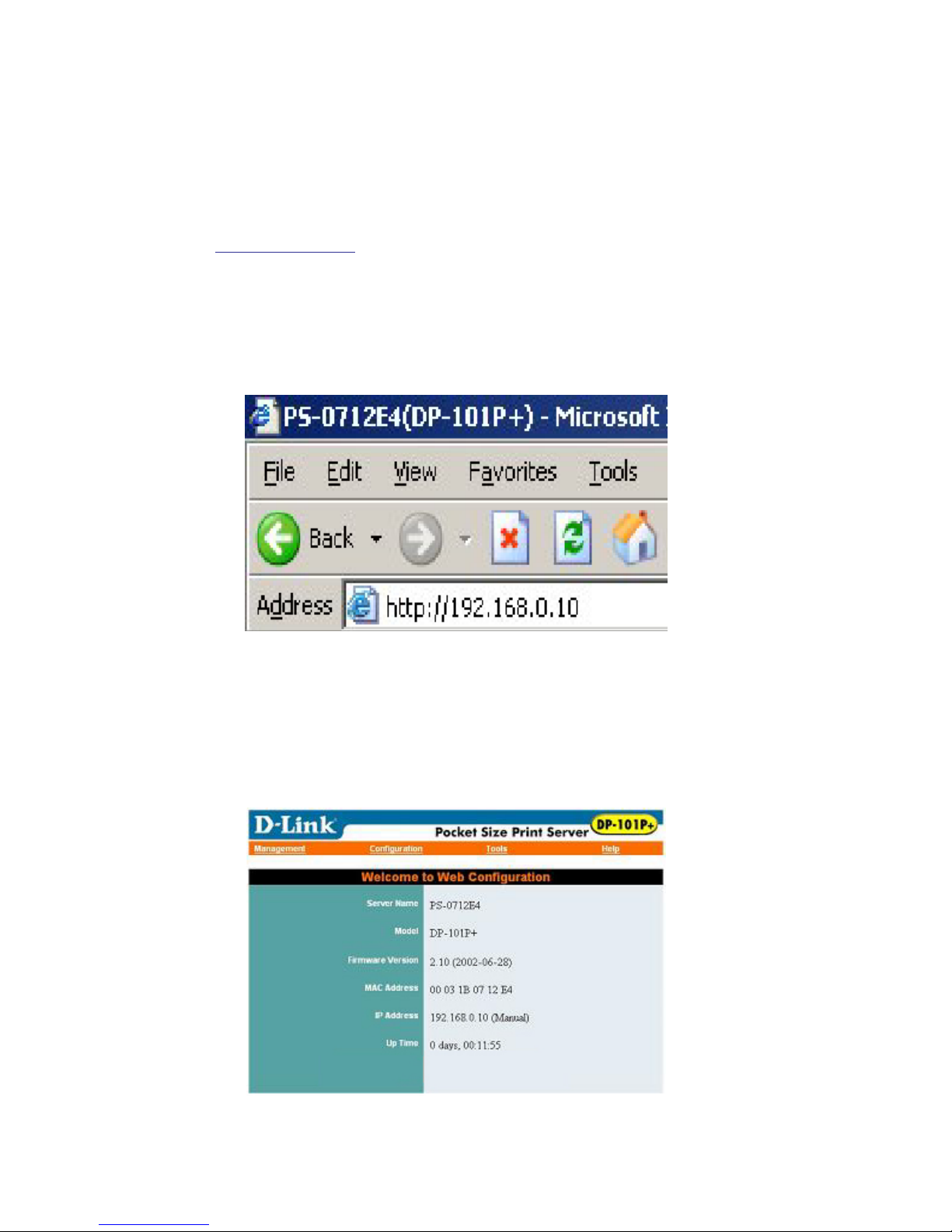

Open the web browser, and type in the IP Address of the DP-101P+.

For example, type http://192.168.0.10 into the Location or Address field.

Press the Enter or (Return) Key

Note:

The PC’s IP address must be in the same network with the print server’s IP address for the two devices to

communicate.

At the Welcome screen, select Configuration.
