D-Link DP-101P - Pocket Ethernet Print Server Manuale utente
DP-101P+
Pocket Size Print Server
Web Configuration User’s Manual
Rev.01 (June, 2001)
Made In Taiwan
RECYCLABLE
2
TABLE OF CONTENTS
WEB CONFIGURATION............................................................3
CONFIGURING THE PRINT SERVER....................................4
MANAGEMENT...........................................................................5
SYSTEM STATUS...........................................................................5
PRINTER STATUS..........................................................................6
CONFIGURATION ......................................................................7
SERVER DEVICE............................................................................7
TCP/IP PROTOCOL.......................................................................8
NETBEUI PROTOCOL...................................................................9
APPLETALK PROTOCOL..............................................................10
TOOLS .........................................................................................11
PRINT TEST.................................................................................11
RESET .........................................................................................12
FACTORY RESET .........................................................................13
HELP............................................................................................14
ABOUT........................................................................................14
3
Web Configuration
This manual describes the use of the Web Configuration for
controlling and configuring print servers.
4
Configuring the Print Server
Open web browser and type http://192.168.0.1 in the address box.
The number is the default IP address of your print server. Press
Enter.
Note:-
The PC’s IP address must correspond with the print server’s IP
address in the same segment for the two devices to communicate.
The print server’s welcome screen will appear. There will be four
options on the systems tool bar to choose from to set your print
server and they are as follows:
♦Management
♦Configuration
♦Tools
♦Help
5
Management
Click on “Management” in the systems tool bar and in the
Management Table it provides information on the print server’s
Systems Status and Printer Status.
System Status
Click on “System Status” in the Management Table. The page will
appear as below providing general information regarding the print
server. For most updated information click on the “Refresh”
button.
6

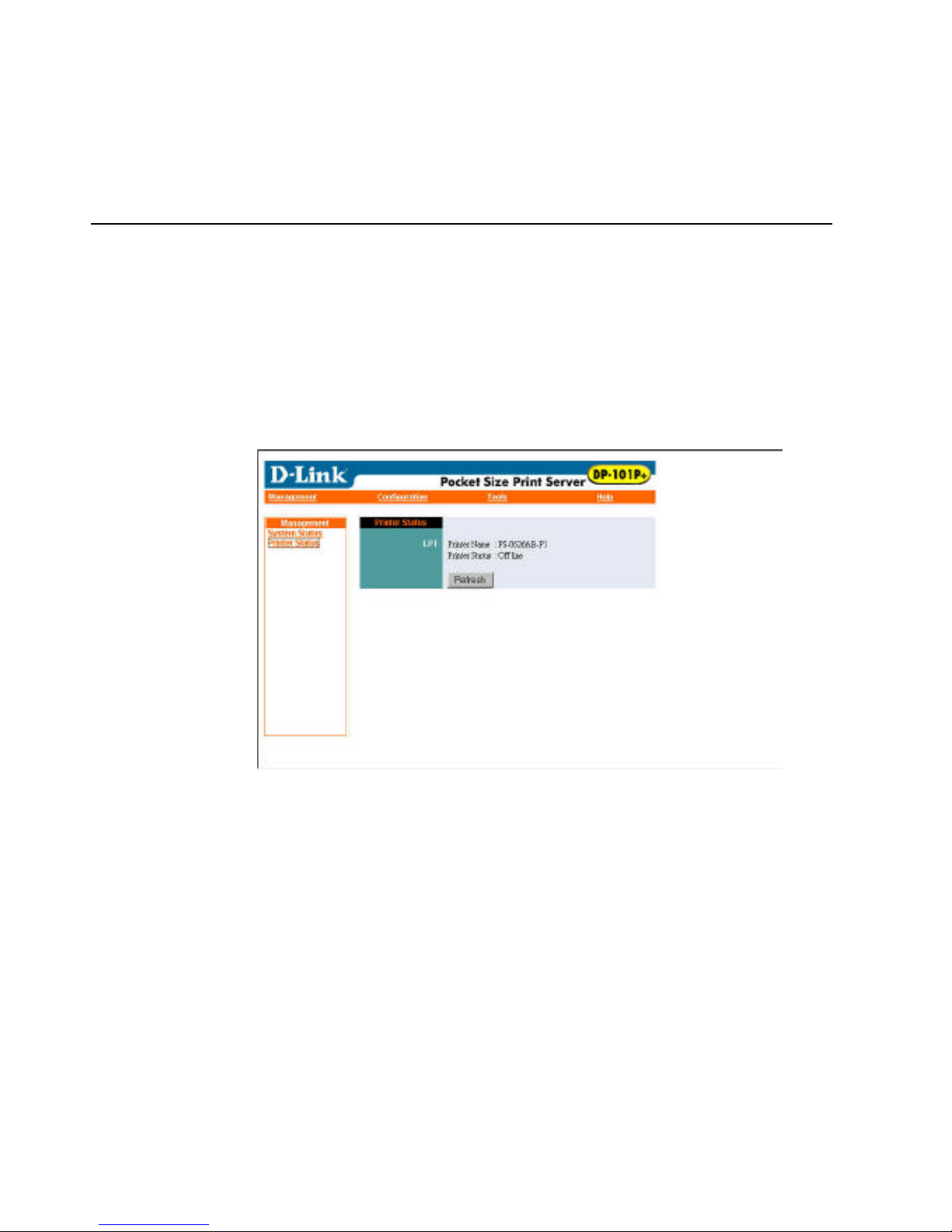

Printer Status
Click on “Printer Status” in the Management Table. The page will
appear as below providing general information regarding the
printer status. For most updated information click on the
“Refresh” button. Once the print server is connected to a printer
the Printer Status will show Online.
7
Configuration
Click on “Configuration” in the systems tool bar and in the
Configuration Table it provides settings to configure the print
server for the Server Device, TCP/IP Protocol, NetBEUI Protocol
and AppleTalk Protocol.
Server Device
Click on “Server Device” in the Configuration Table. The page
will appear as below providing the settings required to configure
the print server. Click the “Save” button to ensure the settings are
updated and saved.
8

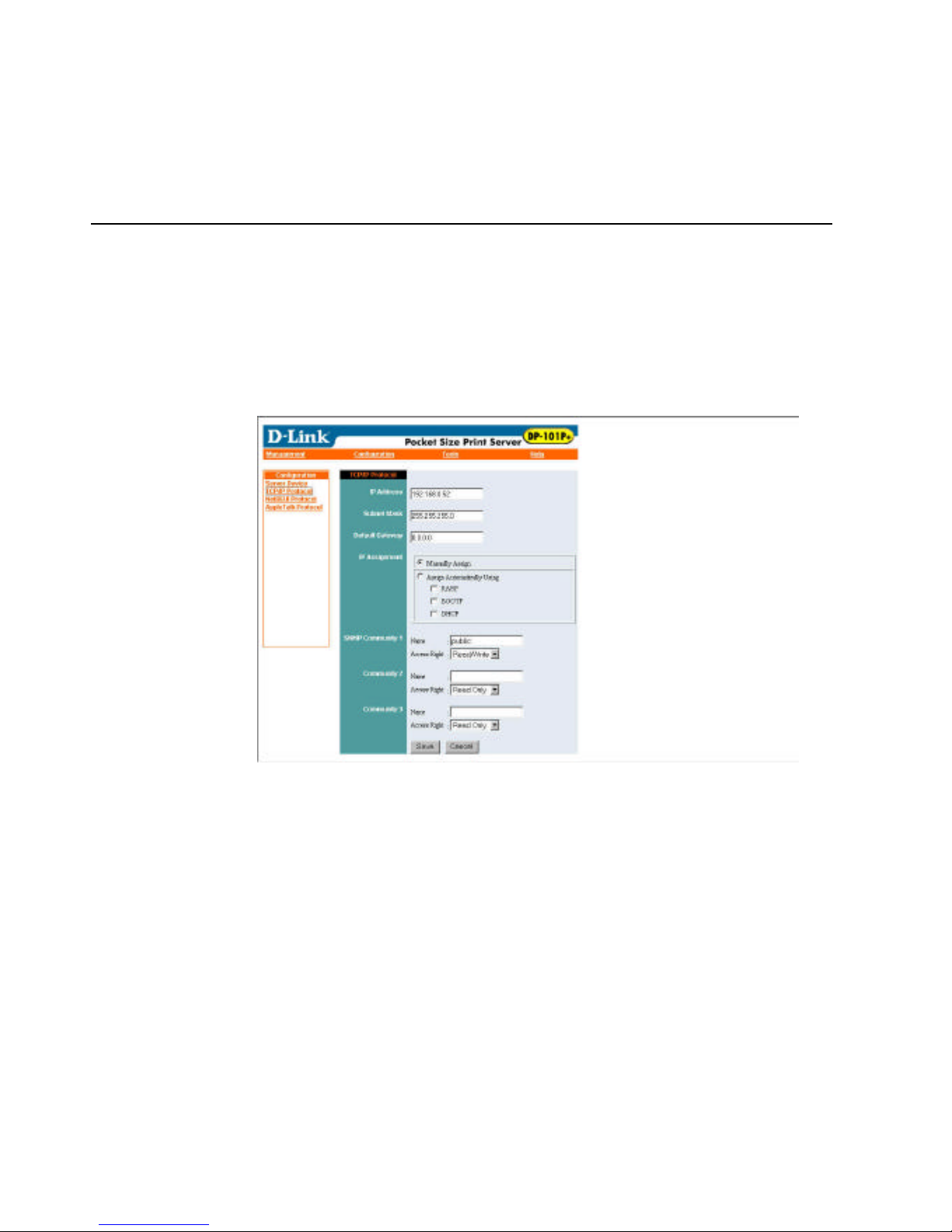

TCP/IP Protocol
Click on “TCP/IP Protocol” in the Configuration Table. The page
will appear as below providing the settings required to configure
the print server. Click the “Save” button to ensure the settings are
saved and updated.
9

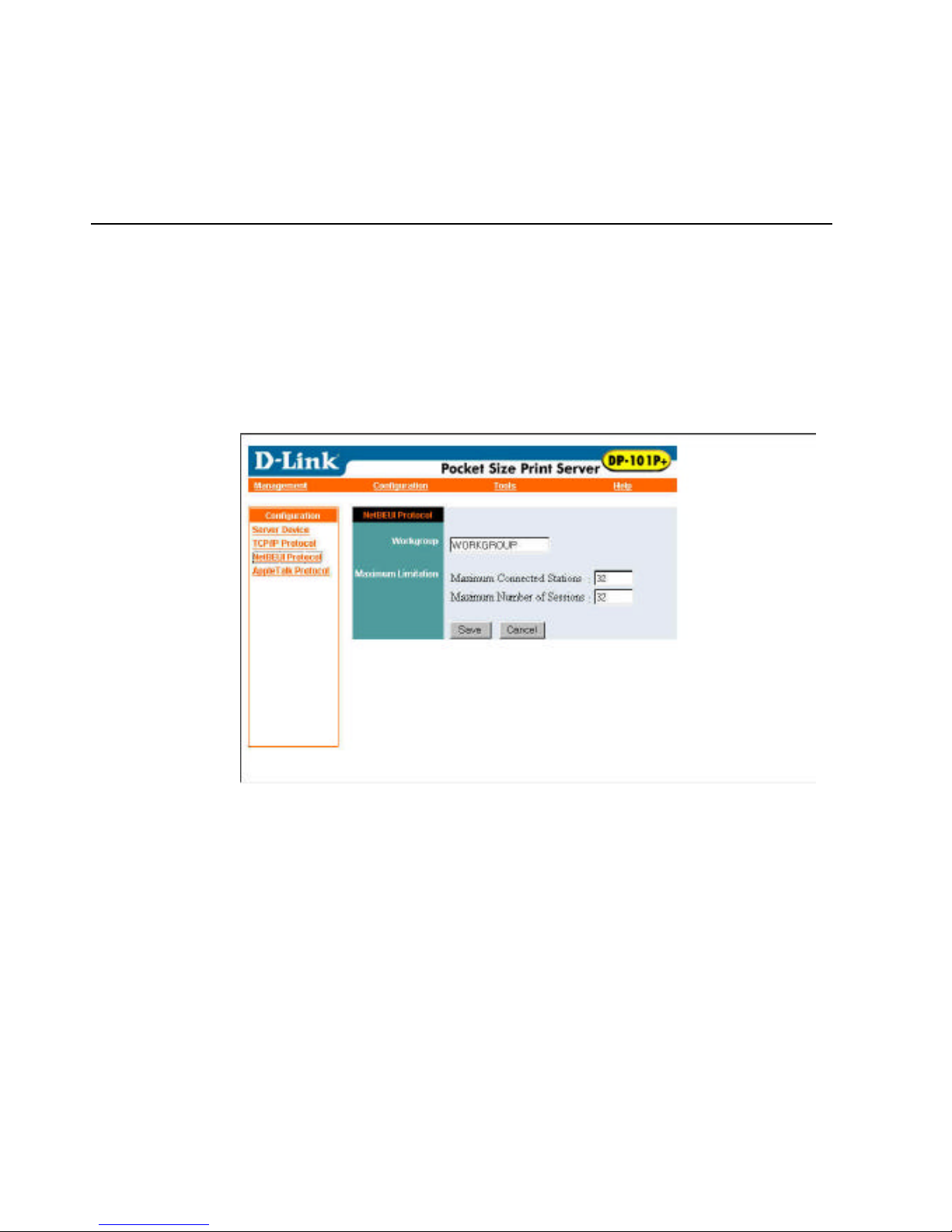

NetBEUI Protocol
Click on “NetBEUI Protocol” in the Configuration Table. The
page will appear as below providing the settings required to
configure the print server. Click the “Save” button to ensure the
settings are saved and updated.
10
AppleTalk Protocol
Click on “AppleTalk Protocol” in the Configuration Table. The
page will appear as below providing the settings required to
configure the print server. Click the “Save” button to ensure the
settings are saved and updated.
