This document will guide you through the basic installation

process for your new D-Link Network Camera.

DCS-2210/DCS-2230

Quick Install Guide

Full HD PoE/Wireless N Cube Network Camera

D-Link DCS-2210/DCS-2230 Quick Install Guide

DCS-2210/DCS-2230 Quick Install Guide

This installation guide provides basic instructions for installing the DCS-2210/DCS-2230

Network Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD include in this package or from the

D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. Hardware Installation

4. Conguration with Wizard

1. Package Contents

DCS-2210 or DCS-2230 Full HD PoE Network Camera

Camera Stand

Manual and Software on CD-ROM

CAT5 Ethernet Cable

Power Adapter

Quick Install Guide

If any of the above items are missing, please contact your reseller.

D-Link DCS-2210/DCS-2230 Quick Install Guide 3

2. Hardware Overview

Rear Panel

Front Panel

Status LED

Indicates the camera's

current status

PIR

Passive Infrared

sensor for motion

detect

ICR Sensor

The IR-Cut Removable sensor

monitors lighting conditions and

switches between color and infrared

accordingly

Infrared LED

Used to illuminate the camera's eld

of view at night

Microphone

Records audio from the

surrounding area

WPS LED

(DCS-2230 only)

WPS status indicator

LED

Speaker

Audio output

Camera Lens

Records video of the surrounding

area

Adjustment Ring

Tighten or loosen the

adjustment ring to adjust

the camera's position

Base Holes

Can be used with cable ties to

attach camera to a surface

Reset

Press and hold this button

for 10 seconds to reset the

camera

Ethernet

The RJ45 connector for

Ethernet (DCS-2210 supports

PoE which can also be used to

power the camera)

WPS button (DCS-2230 only)

Press this button, then press

the WPS button on your router

to set up a wireless connection

automatically

Power Connector

Connects to the included

DC 5V power adapter

I/O Connector

I/O connectors for

external devices

D-Link DCS-2210/DCS-2230 Quick Install Guide

Left Panel

Micro SD Card slot

Local storage for storing

recorded image and video

D-Link DCS-2210/DCS-2230 Quick Install Guide 5

3. Hardware Installation

Basic Connection

Connect the camera to your switch or router via Ethernet cable.

Connect the supplied power cable from the camera to a power outlet.

Connection Using a PoE Switch (DCS-2210 only)

If using a PoE switch or router, connect the network camera via Ethernet cable.

PoE will transmit both power and data over a single cable.

Note: Once power has been established, the LED will turn red. When the device has obtained

an IP address and is accessible, the LED will turn green.

D-Link DCS-2210/DCS-2230 Quick Install Guide

4. Conguration with Wizard

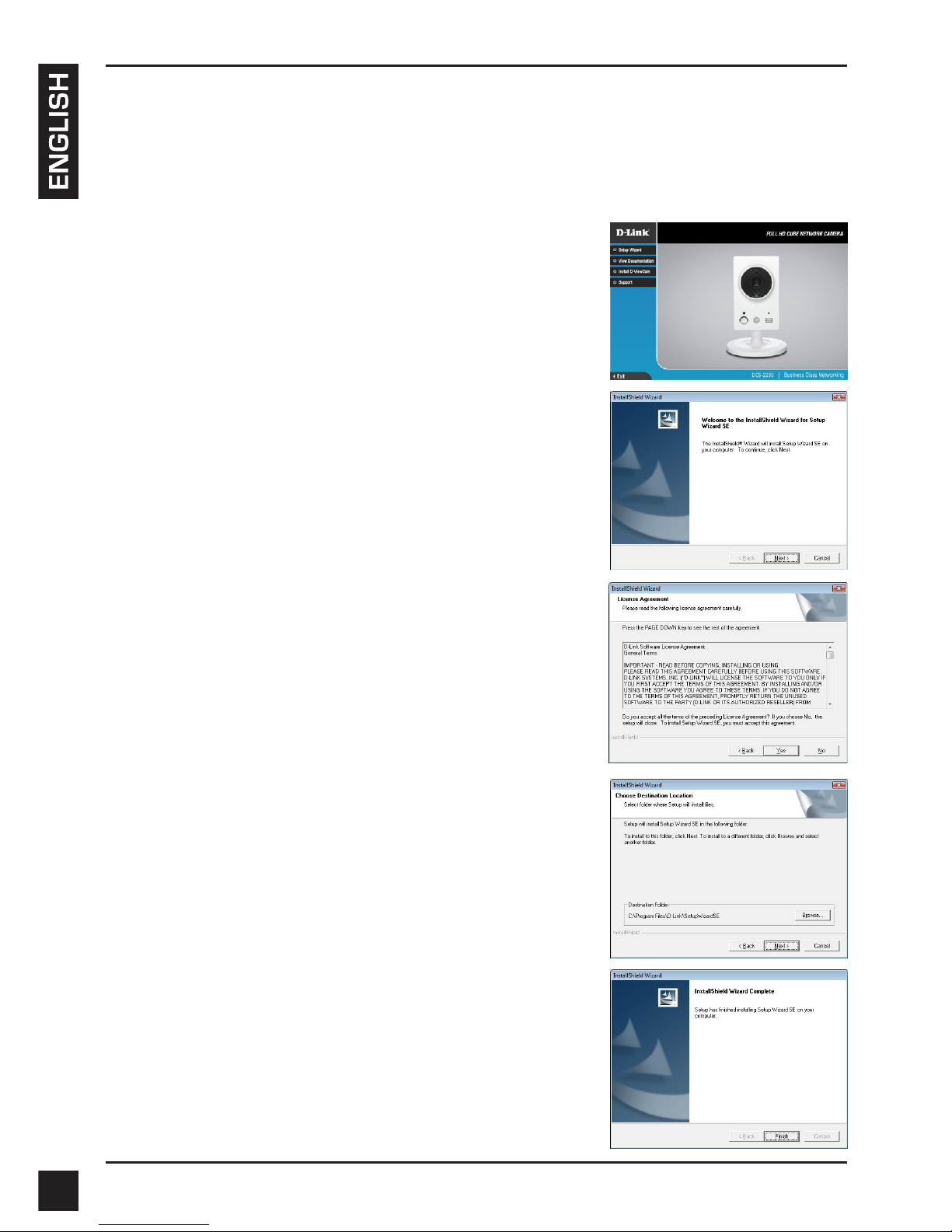

Click Setup Wizard to begin the installation.

Insert the DCS-2210/DCS-2230 CD into your computer's CD-ROM drive to begin the installation.

If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of

your CD-ROM drive.

After clicking Setup Wizard, the following window will

open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to nish.

D-Link DCS-2210/DCS-2230 Quick Install Guide 7

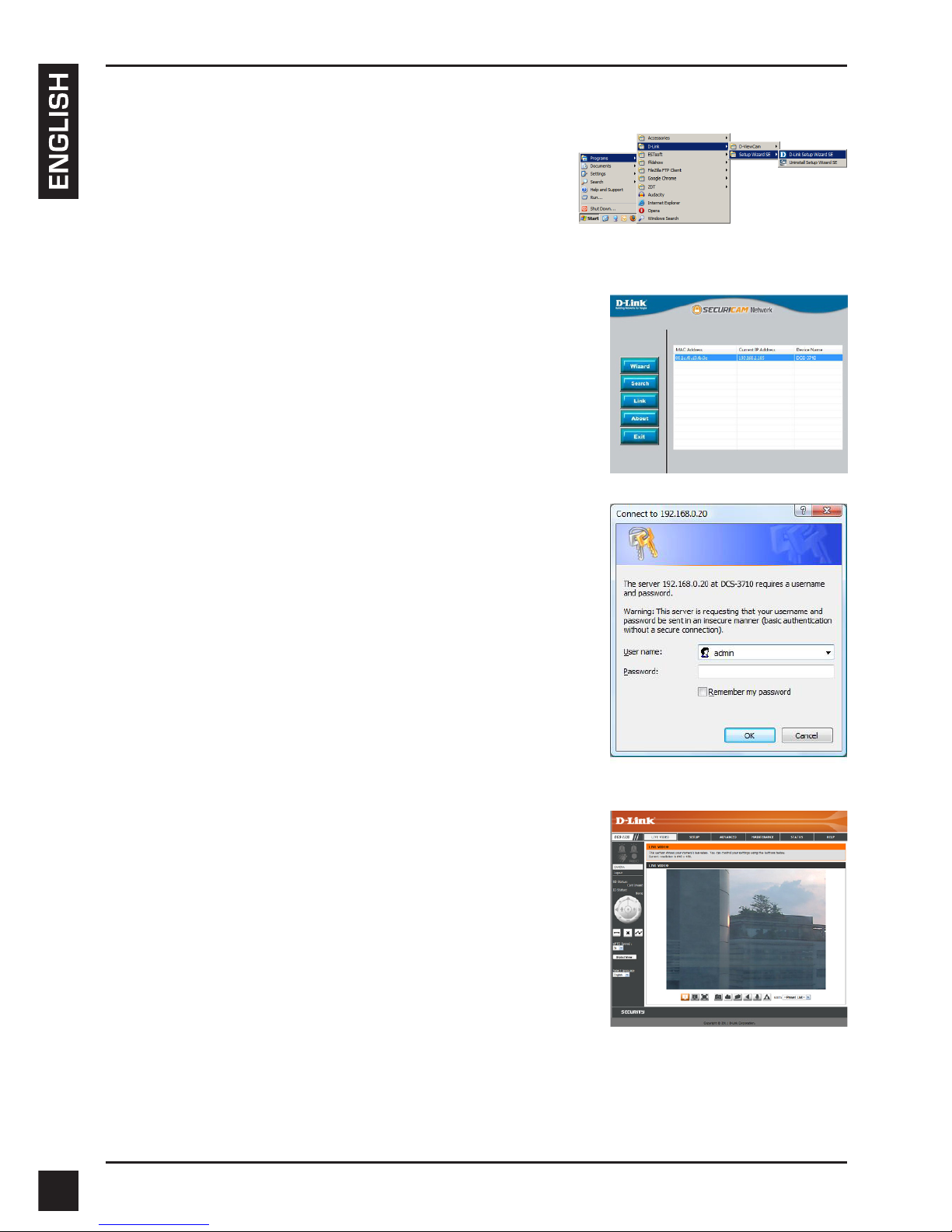

Click on the D-Link Setup Wizard SE icon that was created

in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is

started.

Click Next, to proceed to the next page.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next, to proceed to the next page.

The Setup Wizard will appear and display the MAC address

and IP address of your camera(s). If you have a DHCP server

on your network, a valid IP Address will be displayed. If your

network does not use a DHCP server, the network camera's

default static IP 192.168.0.20 will be displayed.

Click the Wizard button to continue.

D-Link DCS-2210/DCS-2230 Quick Install Guide

Click on the D-Link Setup Wizard SE icon that was created

in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your camera’s live video. You can select

your video prole and view or operate the camera. For

additional information about web conguration, please

refer to the user manual included on the CD-ROM or the

D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click the button labeled "Link" to

access the web conguration.

The Setup Wizard will automatically open your web browser

to the IP address of the camera.

D-Link DCS-2210/DCS-2230 Quick Install Guide 9

Notes

D-Link DCS-2210/DCS-2230 Quick Install Guide

Notes
