2D-Link DCS-3411/3430 Quick Install Guide

System Requirements

• InWindows® XP or Windows Vista®

• At least 256MB of memory (512MB recommended)

• An available Ethernet connection

• Wireless 802.11n network (for DCS-3430 only)

• Internet Explorer 6.x or higher Internet Web Browser

• VGA card resolution: 800x600 or above

• CPU: 1.7GHz or above processor (2.8GHz plus processor with 512MB

memory and a 32MB video card is required for multiple camera viewing and

recording using the D-ViewCam software)

Package Contents

System Requirements

If any of the above items are missing, please contact your reseller.

CAT5 Ethernet Cable

DCS-3411/3430

Fixed Day & Night Network Camera

CD-ROM with Manual and

Setup Wizard

Camera Mounting Bracket

12V Power Adapter

2 Antennas

(DCS-3430 only)

3 D-Link DCS-3411/3430 Quick Install Guide

Hardware Overview

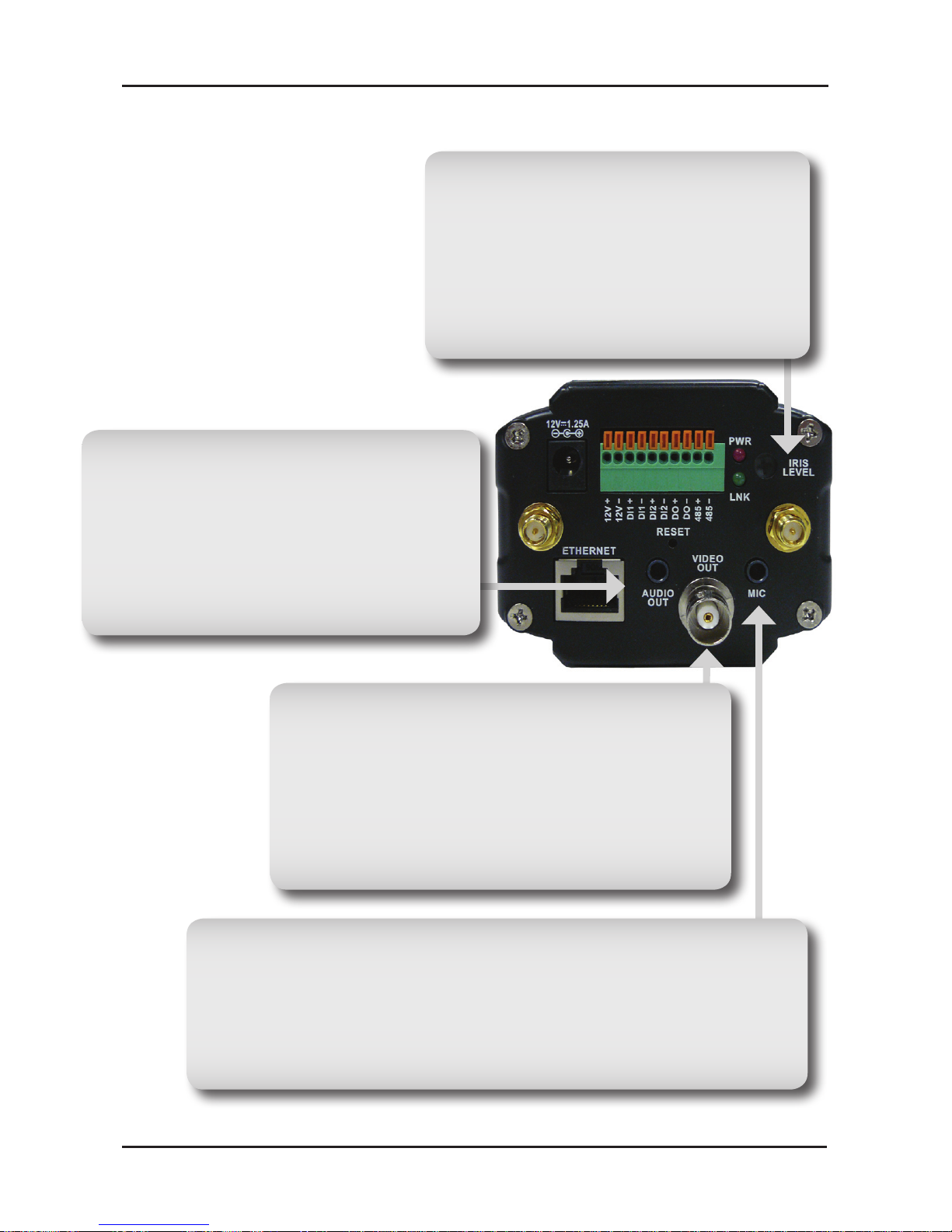

Connections

Ethernet Cable Connector (PoE)

The Network Camera’s back panel features an RJ-45 connector

for connections to 10Base-T Ethernet cabling or 100Base-TX Fast

Ethernet cabling. This network port supports the NWay protocol,

allowing the Network Camera to automatically detect or negotiate

the transmission speed of the network. The Ethernet port can also be

used to power the camera using a PoE switch (DCS-3411 only).

Power LED

The power LED is on the back

of the camera. As soon as the

power adapter is connected to the

camera, the LED will turn red.

DC Power Connector

The DC power input connector is

located on the DCS-3411/3430

Network Camera’s back panel and

is labeled 12V DC with a single

socket to supply power to the

Network Camera.

Antenna Connectors

(DCS-3430)

Connects to the wireless

antennas.

4D-Link DCS-3411/3430 Quick Install Guide

Hardware Overview

Audio Out Connector

The DCS-3411/3430 provides an Audio

Out connector to be used for 2-way

audio. Speakers (not included) may be

connected to the camera to provide audio

for 2-way communication.

Microphone Connector

The DCS-3411/3430 Day & Night Network Camera has an

internal microphone built-in. However, you have the option of

using an external microphone by plugging it into the microphone

connector.

BNC

The BNC connector is used for professional

video connections. It benefits users who

integrate digital IP camera into traditional

system (CCTV) for both analog and digital video

streaming purpose.

Iris Level

Used only when the DC-Iris lens

is connected to the camera. When

adjusting the Iris level, you can

determine the brightness of the video

images.

5D-Link DCS-3411/3430 Quick Install Guide

Hardware Overview

I/O Connector

The DCS-3411/3430 provides a terminal block with three pairs of

connectors situated on the back panel. Two pairs are for input and

the other is for output. The I/O connectors provide the physical

interface to send and receive digital signals to and from a variety

of external devices.

Link LED

Once a connection has been

established via Ethernet port, the

LINK LED will turn solid green. If

trafc is passing to the camera, the

LINK LED will blink. If no ethernet

connection is detected, the LINK

LED will not light up.

Reset Button

Reset will be initiated when the reset button

is pressed once and held until the Power

LED ashes through its cycle twice.

6D-Link DCS-3411/3430 Quick Install Guide

Hardware Overview

DC-Iris Connector

The Camera supports additional DC-Iris lens,

and provides the power and control signal

required for adjusting the lens through this

DC-Iris connector (4-pin). You can attach any

standard DC-Iris lens (optional) for a specic

purpose, such as outdoor applications.

7D-Link DCS-3411/3430 Quick Install Guide

Hardware Installation

Connect the Ethernet Cable

Connect an Ethernet cable to the network cable connector located on the

Network Camera’s back panel and attach it to the network.

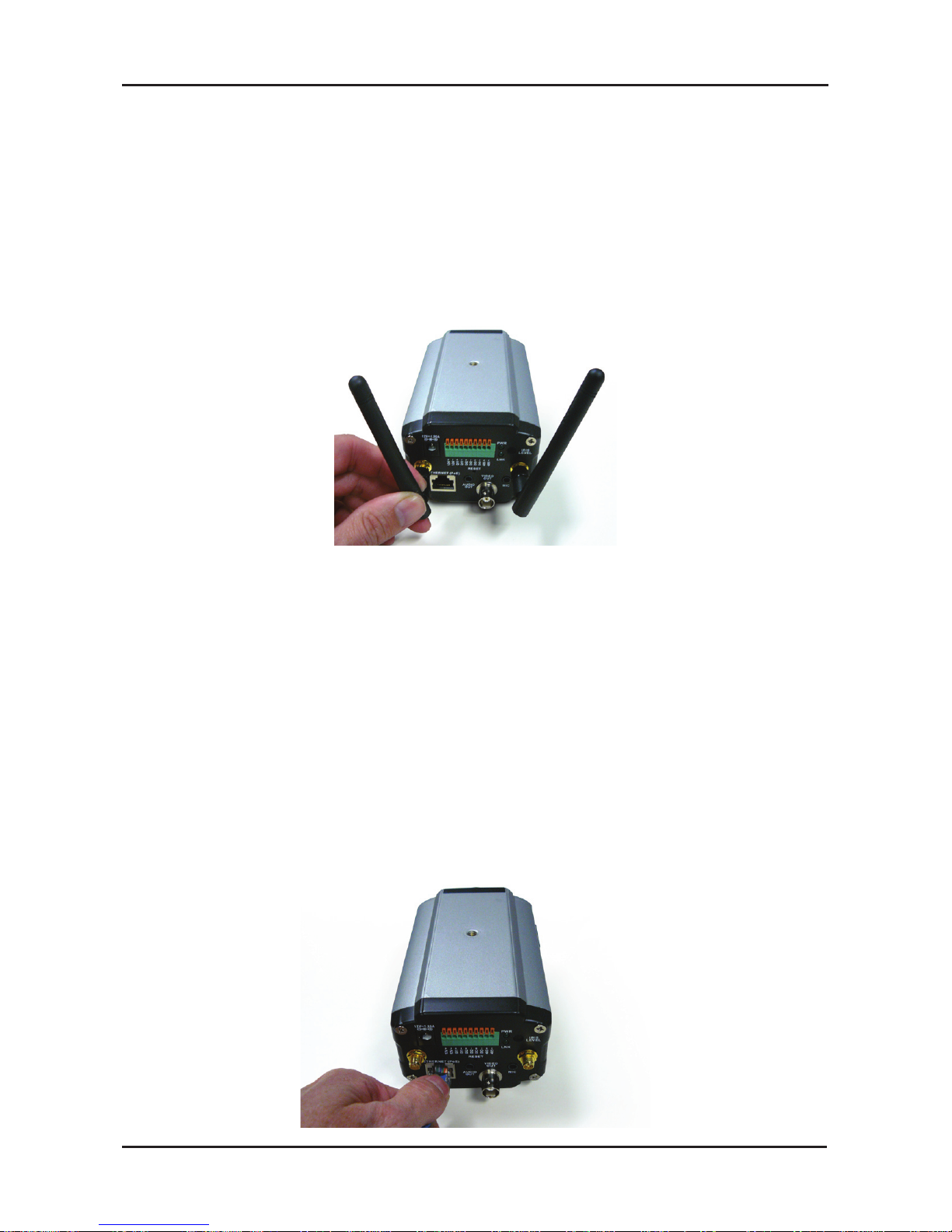

Attach the Antennas (DCS-3430 only)

Locate the antennas included with your DCS-3430, and attach them to the

antenna connectors located on the back of the DCS-3430.

*Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n specications. Actual data throughput

will vary. Network conditions and environmental factors, including volume of network trafc, building materials and construction,

and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.

8D-Link DCS-3411/3430 Quick Install Guide

Hardware Installation

Attach the External Power Supply

If you are not using Power-over-Ethernet, attach the external power supply to

the DC power input connector located on the Network Camera’s back panel

(labeled DC 12V) and connect it to an AC power outlet.

Note: When you have a proper connection, the LED will turn red.The

light may cycle on and off and your computer may show an intermittent

loss of connectivity, this is normal until you have conﬁgured your

Network Camera.

Connect Using Power-Over-Ethernet (DCS-3411 only)

Once you connect an Ethernet cable to your PoE switch or adapter, the Power

LED on the DCS-3411 will turn green to indicate a proper connection and

power to the unit.

9 D-Link DCS-3411/3430 Quick Install Guide

Software Installation

Click Next

Insert the DCS-3411/3430 CD into the CD-ROM drive. If the CD Autorun

function does not automatically start on your computer, click Start > Run. In

the Run command box type “D:\DCS-3411_3430.exe”, where D: represents

the drive letter of your CD-ROM. If it does start, proceed to the next screen.

Software Installation

Click Setup Wizard

Click Next to continue.

Click Yes

Click Yes to accept the License

Agreement.

10D-Link DCS-3411/3430 Quick Install Guide

Software Installation

Click Next

Click Finish

Click Finish to complete the

installation.

To start the installation, click

Next.

Note: The installation may take

several minutes to complete.
