D-Link DCS?6010L Manuale utente
DCS-6010L
Quick Install Guide
Wireless N 360oNetwork Camera
Cloud Camera 6100
If any of the above items are missing, please contact your reseller.
Minimum Requirements
DCS-6010L Wireless N 360oNetwork Camera
Power Adapter
Ethernet Cable
Quick Install Guide
Package Contents
Computer with:
Web Browser
• PC with 1.3GHz or above and at least 128MB RAM
• Windows® 8, 7, Vista® or XP (32-bit or 64-bit)
• Mac OS® X 10.6 or higher
• Internet Explorer® 7, Firefox, Safari 4, or Chrome
• Installed and enabled Java and ActiveX® controls
• A router (D-Link Cloud Router is recommended)
• A broadband Internet connection
• An e-mail account (required to create a mydlink account)
Network Device and Service
Mounting Kit
2
ENGLISH
What is mydlink™?
With a mydlink-enabled camera, you
can stay connected to everything
you love from anywhere, anytime.
The mydlink service can be accessed
by a web browser and also provides
an optional downloadable mydlink
app that allows users to have a
better experience on their mobile
devices. With the mydlink app, you
can quickly and easily view your
camera feed from anywhere using a
Wi-Fi, 3G or 4G connection.
Cloud Router
mydlink cloud service
DCS-6010L
iPod
Smartphone
Tablet
Laptop
Laptop
Desktop
mydlink app
Modem
1
mydlink Lite App (Free)
Search for “mydlink lite” to download and install the app on your smartphone
or tablet when connected to the Internet. You can also nd the app by
scanning the QR code below with a QR code scan app.
mydlink+ App (Paid - Tablet Only)
Search for the word “mydlink+”to download and install the app on your
tablet when connected to the Internet. You can also nd the app by scanning
the QR code below with a QR code scan app.
System Requirements: iOS version 4.3 or above. Android version 2.1 or above.
System Requirements: iOS version 4.3 or above. Android version 2.1 or above.
3
ENGLISH
Installation
Rotate the top cover counter-clockwise
and lift it up.
Using the provided Ethernet cable connect
one end to your camera and the other-end
to your router or switch.
Connect the external power supply to
the power receptor and to plug into a
wall outlet.
Ensure the cables are seated in the
cable channel.
Set the cover in place and rotate to align the
cable channel guide over the cable channel.
It is recommended to complete the Setup
Wizard before putting the cover back
on. Skip to page 5 if you have a D-Link
Cloud router or page 6 if you don’t. Once
completed, you can refer to this step to put
the cover back on.
1
2
Note: If you want to use a wireless connection,
you still need to connect the Ethernet cable
during setup unless you use WPS.
3
4
5
4
ENGLISH
If you have a D-Link Cloud Router with an Internet connection, you can take
advantage of Zero Conguration. This feature automatically congures your
camera’s settings for you and adds it to your mydlink account automatically.
If you do not have a D-Link Cloud router, refer to the next page to install and
congure your camera.
If you wish to connect your camera to your router wirelessly, you can simply disconnect
the Ethernet cable and move the camera to its intended location after you have added
the camera to your account (step 3).
Zero Conguration Setup
1
2
From any computer, open a web browser, go
to http://www.mydlink.com and log into
your account.
Click on the device name when the notice
appears to add the camera to your account.
3
Connect the other end of the Ethernet cable to your
D-Link CloudRouterandconnectthecamera’s power
adapter to a power outlet.
Connect the Ethernet cable and power adapter to the
camera. Refer to the previous page on how to connect
an Ethernet cable.
Note: You can use WPS instead of using an Ethernet
cable. Simply press the WPS button on the camera and
then within two minutes press the WPS button on your
Cloud Router. Skip to step 3.
DCS-6010L
5
ENGLISH
Please download the Setup Wizard from http://www.mydlink.com/support.
Setup Wizard
If you do not have a D-Link Cloud Router, you can use any Windows or Mac
computer to go through the Setup Wizard, which will guide you through the
installation process from connecting your hardware to conguring your camera.
After about 20-30 seconds, the Setup Wizard will open, which will guide you
step-by-step through the installation process from connecting your hardware
to conguring your camera and registering it with your mydlink account.
Windows Users - Extract (“unzip”) the les to a folder on your computer and
then double-click the autorun.exe le.
Mac Users - Download the Mac OS Setup Wizard. Open the SetupWizard le
and launch the application.
6
ENGLISH
Start mydlink
Open a web browser on any computer connected to the Internet.
Enter http://www.mydlink.com in the address bar and press Enter.
Sign in with your mydlink account registered in the Setup Wizard.
1
2
3
Browser Requirements:
Java
Active X
• Windows does not have Java installed by default. Please download it from http://www.java.com.
• In Mac OS X 10.7.x, Java applets are disabled by default. Click the Finder > Applications > Utilities >
Java Preferences and check the Enable applet plug-in and Web Start applications option.
• The ActiveX® controls in IE will install automatically if needed. We suggest that you make sure that
you have enabled the related options in Tools > Internet Options > Security > Custom Level.
7
ENGLISH
Mount the Camera
Please refer to the steps below to assist you with mounting the camera.
We suggest that you congure the camera before mounting.
1. Unclip the wall bracket from the DCS-6010L
by sliding the base down.
1
2. Position the mounting bracket in the desired
location and mark the surface behind it with
a pencil using the bracket as a stencil.
2
3. Depending on the material of the wall or
ceiling, use the proper tools to drill two
holes where you marked with pencil. If the
wall is made out of concrete, drill the holes
approximately 25mm deep rst. Then insert
the plastic anchors to support the screws and
fasten to the bracket.
3
1
2
4
4. Place the camera over the screw that is on
the bracket. Make sure to t the screw-heads
over the big holes and slide it downward to
lock rmly. Lightly pull the base forward to
make sure that it is locked.
Note: If mounting on a wall, ensure that the
camera is oriented with the cables positioned
to the bottom of the device.
8
ENGLISH
Camera Use Without the mydlink Service
You might have some limitations without using the mydlink service:
• Not be able to manage multiple devices with a single account.
• Need a static IP address or DDNS account to access the camera remotely.
• Need several steps to manually setup remote access to the camera behind
a router.
• Not be able to view the image and modify the settings at the same time
on mobile devices.
If you do not want to use the mydlink service
now, run the Setup Wizard and choose the
option “I don’t want to enable mydlink cloud
service”. You can run the Setup Wizard again
when you want to enable the mydlink service
in the future. Check below if your camera is
behind a router or rewall.
Log in to the router’s setup page and add rules in the Virtual Server or Port
Forwarding sections by entering the camera’s IP address and service ports.
Then you can use the router’s Internet (WAN) IP address and camera’s HTTP
port to access the camera remotely.
Conguring the Camera Behind a Router
To log in to the camera’s setup page, go to
SETUP > Network Setup, select “Static IP
Address” and assign an IP address to the
camera. The IP address must be in the same
subnet mask of the router’s LAN IP.
The camera’s default IP address is 192.168.0.20.
Enter the HTTP (80 by default) service port on
this page. Leave the other settings to their
default values and click Save Settings to nish.
9
ENGLISH
D-ViewCam enables centralized management of multiple network cameras,
supporting up to 32 network cameras and up to 64 users. With a dedicated
computer it oers digital monitoring and recording with a wide array of features,
including scheduled, motion and manual recording options for individual needs.
Download D-ViewCam at http://mydlink.com/support. Select your camera and
select“D-ViewCam”under Wizard.
D-Link provides software (D-ViewCam) and hardware (NVRs) solutions for advanced
users to choose from to manage their cameras and record videos. Depending on
the users needs, one or the other solution can be used to supplement their camera
system.
NetworkVideo Recorders (NVRs) are standalone storage devices with a powerful
embedded system that can record video from up to 9 network cameras located
on local or remote sites into a dedicated HDD storage without turning on a PC.
Video and camera management can be done as needed using any computer
attached to the network.

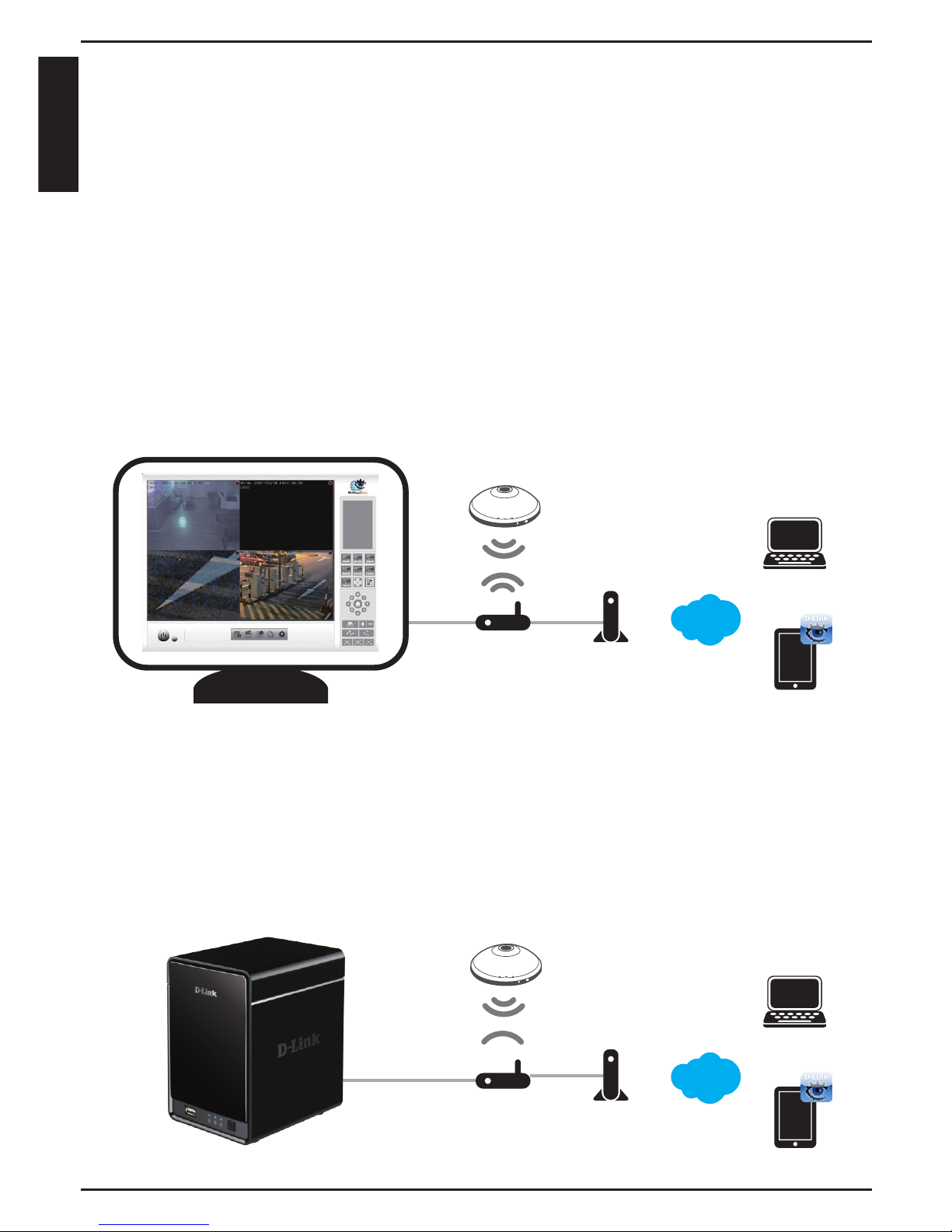

D-ViewCam™ and Network Video Recorders
DNR-322L
DCS-6010L
Router Modem
Internet
Mobile Device
Laptop
DCS-6010L
Router Modem
Internet
Mobile Device
Laptop
10
ENGLISH
