D-Link 55443 Manuale utente

0110562R4 Page 1 of 8

Assembly Instructions

Before you begin, please make sure all parts and proper quanti-

ties are included. Any parts damaged during shipment must be

reported within 15 days of receipt. To report information regarding

damages or if you have any questions, please call 1-800-235-1262.

To purchase parts or accessories, please contact us at

www.spectrumfurniture.com

1-800-235-1262

Thank you for purchasing Spectrum products!

Tools Required

Assembly Instructions

#55444 - InTouch 40 shelf w/ 7

Synchronizing USB Hubs

#55443 - InTouch 40 shelf only-no hubs

Phillips Screwdriver

(1) 052741

7-outlet power strip

(7) 0110407

7-port USB hub

(8) 0110254-5

3” x 2” self-adhesive

Velcro®pads

(15) 0102376

11” zip tie

(1) 0110565

shelf

(1) 0110564

cord wrap bracket

(6) 0100167

8-32 x 1/2” PH thread

cutting screw

(4) 052901

8-32 x 3/8” PHMS

#55444 - InTouch 40 shelf w/ synchronizing USB hubs

(1) 052741

7-outlet power strip

(8) 0110254-5

3” x 2” self-adhesive

Velcro®pads

(15) 0102376

11” zip tie

(1) 0110565

shelf

(1) 0110564

cord wrap bracket

(6) 0100167

8-32 x 1/2” PH thread

cutting screw

(4) 052901

8-32 x 3/8” PHMS

#55443 - InTouch 40 shelf only (no hubs included)

0110562R4 Page 2 of 8

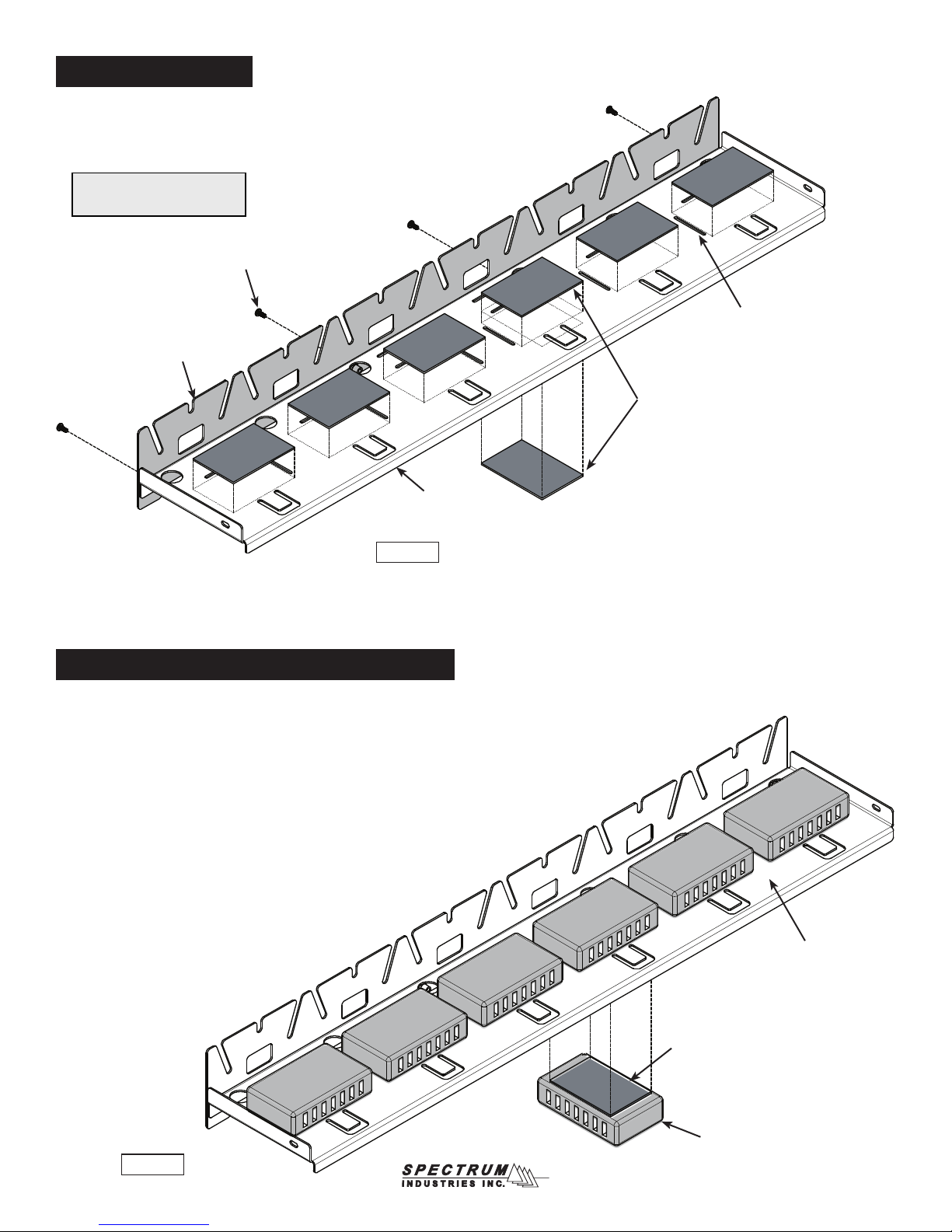

1. Assemble Shelf

A. Align and attach the shelf to the cord wrap bracket with (4) 8-32 x 3/8” PHM

screws as shown in Figure 1.

B. Using the narrow slots as guides, apply (6) 3” x 2” adhesive Velcro®

pads (hook side) to the top of the shelf as shown.

cord wrap

bracket

8-32 x 3/8” PHMS

(4) req’d

Figure 1

shelf

adhesive Velcro®pads

(6 on top of shelf, one

under shelf)

narrow slot

Note: If you have the shelf

only (no hubs) skip to step 4.

2. Install USB Hubs (hubs only included with #55444)

A. Apply a 3” x 2” Velcro®pad (loop side) to the bottom of each USB hub.

B. Attach the 6 hubs to the top of the shelf. Figure 2.

C. Attach the feeder (Hub #7) to the bottom of the shelf 90°to the other hubs as shown.

Note: The single feeder hub under the shelf distributes the data stream to the other

6 hubs.

D. Power cords and USB cables can be secured to the shelf with the included zip ties, and

cord wrap bracket.

E. See the hub installation guide included with the hubs for further operational, connection,

and setup info.

adhesive Velcro®pad

shelf

Figure 2

Hub #3

Hub #2

Hub #1

Hub #6

Hub #5

Hub #4

“Feeder“ USB Hub #7

mounted at 90°angle

under shelf

0110562R4 Page 3 of 8

Figure 3A

3. USB Hub Wiring (#55444 only)

A. Connect the USB cables to the hubs. See USB wiring diagram for reference.

Figure 3A.

cord management slotsexcess cord bundled

behind hub with zip tie

Figure 3B

cord wrap

Typical Wiring Recommendation

“Feeder“ USB Hub #7

mounted at 90°angle

under shelf

to laptop, tablet, or wireless

router on worksurface

Note: Diagram shows USB connections only.

Each hub also has a power adapter cord.

USB Hub Wiring Diagram

Hub #1 Hub #2 Hub #3 Hub #4 Hub #5 Hub #6

B. Bundle and secure excess cords behind each hub

with zip ties. Figure 3B. Cord management slots

can be used to secure cords to shelf.

C. Power cords and USB cables can be secured to the

shelf using the cord management slots.

0110562R4 Page 4 of 8

Figure 3C

cord wrap

bracket

route cords

through holes

Shelf Top View

Rear View of Shelf cord opening

for USB or

power plug

Figure 3E

Shelf Bottom View

feeder hub

Figure 3F

cord opening for

USB or power plug

bundled USB

cords

Figure 3D

0110562R4 Page 5 of 8

4. Attach Shelf to Cart

A. Open the Instructor-side doors on the cart (outlet-side) install (4) 8-32 x 1/2” PH thread cutting screws in the divider

panel but do not tighten completely. Figure 4.

B. Set the shelf assembly onto the 4 screws as shown. Tipping the shelf slightly will help get it into the cart.

C. Secure the shelf to the side panels using the remaining (2) 8-32 x 1/2” PH thread cutting screws.

D. Tighten all screws securely.

divider panel

8-32 x 1/2” thread cutting

screw (4 req’d to attach

shelf to divider panel)

shelf assembly

8-32 x 1/2” thread cutting

screw (1 per side) Figure 4

D. Place the 7-outlet power strip at the bottom of the cart. This power strip can be mounted to the the back of the tablet storage panel or

placed in the bottom of the cart. Switch off both power strips.

E. Plug the (7) USB hub power adapters into both power strips. The adapters need to be staggered and plugged in as shown. Figure 3G.

Note: 2 hub power adapters can be plugged in next to each other at the end of the power strip opposite the switch.

The remaining hub adapters will be staggered. Figure 3G.

Figure 3G

staggered power

adapters

2 power

adapters

together

plug plug from

cart power strip power strip

Note: The 7-outlet power strip shown

is attached to the back of the tablet

storage panel. It can also be located

on the bottom of the cart.

0110562R4 Page 6 of 8

5. Route Cords

A. On the instructor-side of the cart (outlet-side) route the USB cord from the feeder hub under

the shelf up the inside wall of the cart to the worksurface. Figure 5A. The cord can be

secured using the plastic cord clip inside the cart.

B. Route the power cords from all USB hubs down the inside wall of the cart. Figure 5C. The

cords can be secured using the plastic cord clips.

C. Mount the existing 7-outlet auxiliary and included 7-outlet power strips to the bottom of

the cart with Velcro®pads and switch off.

D. Plug the USB hub power adapters into both power strips. The adapters will need to

be staggered using every other outlet. Figure 5D, 5E.

Figure 5

USB cord from

feeder hub

7-outlet power strip (included with cart) attached

to base panel w/ Velcro®(shown with USB Hub

power adapters plugged in)

USB hubs

plastic cord clip

Figure 5A

Figure 5B

Figure 5C

Figure 5D

“Feeder”

USB Hub

outlets for tablet

chargers

7-outlet power strip (included in 55443, 55444)

attached to base panel with Velcro®(shown

with USB Hub power adapters plugged in) Figure 5E

outlets for tablet

chargers

to wall

outlet

to wall

outlets

0110562R4 Page 7 of 8

6. USB hub start-up

Note: The hubs can be reset if a power failure occurs or if any of the hubs do

not power up with the LED light on.

This reset procedure is for the synchronizing USB hubs included only. For all

other USB hubs, refer to your specic hub instructions for further information.

USB Hub Reset Procedure (#55444 only)

A. To reset the hubs, switch off the power strip and disconnect each hub’s USB and power plug.

B. Let sit for 30 seconds.

C. Reconnect the hub USB and power plugs and switch the power strips on.

(If the hubs still do not power up, check the power supplies to make sure they are operational)

A. Make sure all wires are connected as shown in Figure 3A. Each hub MUST be

plugged into the auxiliary power strip at the bottom of the cart.

B. Make sure the tablet USB cables are plugged in at the tablets and the hubs.

C. Make sure power strip is on, and plugged into either the cord reel or a live wall

circuit.

D. The LED on top of each hub will light up when the hub is receiving power. If the

LED does not light, check all connections.

E. If the LED still does not light, follow the reset procedure below.

0110562R4 Page 8 of 8

Warranty

925 First Avenue, PO Box 400, Chippewa Falls, WI 54729 Ph:800-235-1262, 715-723-6750 Fax: 800-335-0473, 715-738-2309

E-mail: [email protected] web: www.spectrumfurniture.com

Specications

Note: The iPad®has a single cord for charging and syncing. This cord

must be moved from the power plug to the sync hub for syncing. Many

tablet devices use this same type of conguration. Some have a sepa-

rate power cord and separate USB cord to accomplish both syncing and

charging functions. Please consult the owners manual of your specic

device for further information.

Rear View

Front View

USB Hub Specs

Standards

• USB specication version 2.0 1 (data rates of up to 480 Mbps)

• USB specication version 1.1 (data rates of up to 12 Mbps)

• OHCI

• UHIC

• VEHCI

Interfaces

• 1 upstream USB 2.0 Type B (female) port

• 7 downstream USB 2.0 Type A (female) ports (including 2 Fast

Charging ports)

Connectivity Rules

• Up to ve cascaded hubs

• Maximum cable length between each hub: 5m

• Up to 127 devices

Diagnostic LED

• Standard Mode (blue)

• Fast-Charge Mode (green)

Supplied Charging Current

• Standard Mode:

All seven USB ports - 0.5 A per port 2

• Fast-Charge Mode:

5 standard USB ports- 0.5 A per port 2

2 USB fast charging ports - 1.2 A per port 2

Power Input

• + 5 V / 3 A DC

Dimensions (L x W x H)

• + 3.94 x 2.2 x 0.9 inches (100 x 57 x 23 mm)

Weight

• 0.19 lbs (85 g)

Operating Temperature

• 32 to 104°F (0 to 40°C)

Storage Temperature

• -4 to 158°F (-20 to 70°C

Operating Humidity

• 5% to 95% (non-condensing)

Storage Humidity

• 0% to 95% (non-condensing)

Certications

• FCC

• CE

• C-Tick

• VCCI

• IC

• RoHS

Minimum System Requirements

• Computer with Windows®7, Windows Vista®, Windows®XP

SP2, Windows®2000 SP4, Mac OS®X 10.4 or higher

• Computer with USB 1.1 port
