D-Link DKVM-8E Manuale utente

DKVM-8E

Port Keyboard, Video,

and Mouse Switch

User’s Guide

Rev. 1.0

CONTENTS

Introduction................................................................................1

Product Feature.......................................................................1

Package Content.....................................................................2

Hardware Installation.............................................................4

Front Panel Layout................................................................4

Real Panel Layout.................................................................5

Installation..............................................................................5

Usage....................................................................................11

Daisy Chain Diagram..........................................................15

Hot Plug ................................................................................16

On Screen Display Operation............................................18

Trouble Shooting..................................................................23

General Problems...............................................................23

Monitor/Video Problems.....................................................24

Keyboard Problems............................................................24

PS/2 Mouse Problems........................................................25

Problems with computers using serial mouse output....27

Problems with power supply..............................................27

Specification ..........................................................................29

Introduction

The DKVM-8E gives you the

ultimate in control of 8 PCs

from one keyboard, mouse and monitor. To expand

control ability, the Daisy-Chain allows eight DKVM-

stack up for control 64 PCs from one keyboard, mouse and

monitor. OSD (On-

Screen Display) menu provides human

friendly inter

face for naming each PCs and selecting one of

them.

Product Feature

nAllows users

to control eight computers from one

keyboard, mouse and monitor

No software required, each channel contains a

microprocessor emulation to intelligently manage the

boot-up process for all your attached PCs boot-

transparently and simultaneously.

nDaisy-

Chain ports allows control over as many as 64

computers through 8 banks of DKVM-8E units

nHot plug—

Add PCs or remove connected PCs for

maintenance without powering down the KVM

Switch

or PCs

nNo DIP-

switch setting needed and auto detect daisy

chain bank.

nOn-

Screen Display menu gives the user a visual

interface to name and select computers

nSupports

eight characters password protection and

search PC Server name.

nSwitches PCs by On-S

creen Display, push button or

keyboard “Hot Key” commands

nAutoScan mode for even more convenience

nAudible feedback when switching

nRecalls CAPS LOCK, NUM LOCK and SCROLL

LOCK keys’ status for each computer automatically

nSupports VGA, SVGA and MultiSync monitors

nSupports up to 1920 x 1440 resolution, 200MHz

Bandwidth.

nIntegrated mouse conversion technology allows

connection of AT type computers that have serial

mouse ports while using a PS/2 mouse only at

console

nKeyboard and mouse emulation for error-free boot ups

nMicrosoft®IntellMouse®,Microsoft Intellimouse

Explorer support and emulation

nSupports both AT and PS/2 type keyboards (AT

requires AT -PS/2 adapter)

nUser inexpensive and commonly found standard

cables

Package Content

Before you begin to install your DKVM-8E, please make

sure that you received the following materials as listed

below:

Item Qty Remark

DKVM-8E 1 pcs. Keyboard, mouse & monitor switch

Power Adapter 1 pcs. DC12V,1A

3 in 1 KVM cable kit 3 sets

1 set : 3 feet 3-in-one Cable Kit to

daisy chain

2 sets : 6 feet 3-in-one Cable Kit to

Mouse Adapter cable 4 pcs DB-9 to 6-pin Mini-DIN

User’s Manual 1 pcs. This manual

Rack mount bracket 2 pcs.

Screw 8pcs.

Rubber foot 4 pcs.

Hardware Installation

This section will explain how to connect the console and

the computers to the DKVM-4 switch unit. First the layout

of front and rear panel will be shown.

Front Panel Layout

Current Active Bank DisplayCurrent Active Port Display

Bank Select Port Select Power Switch

Real Panel Layout

Installation

Please follow the steps below closely and in the order as

shown, otherwise, keyboard and/or mouse errors may

occur.

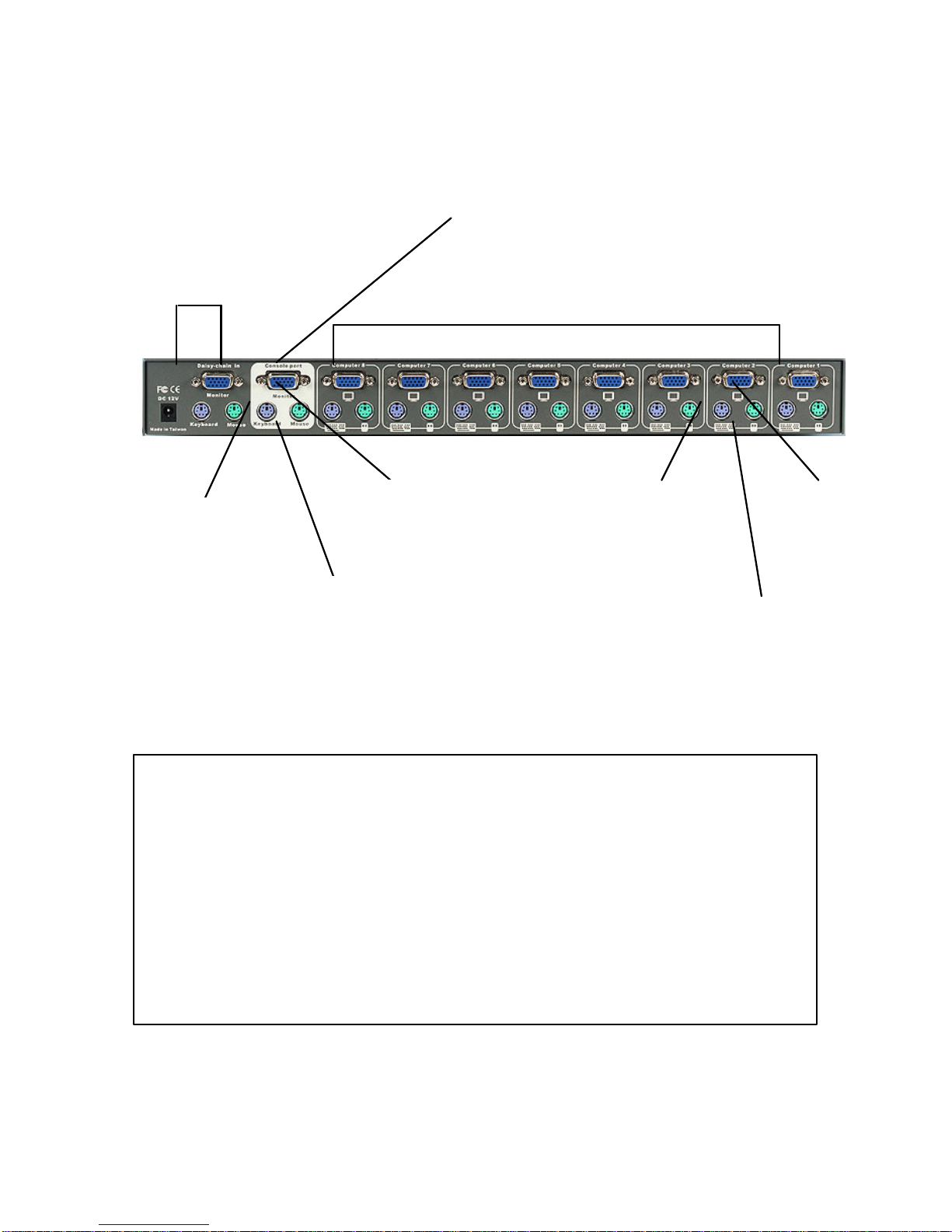

Daisy Chain Port PC Port Connectors

Console Port Connectors

PS/2 Keyboard

output

PS/2 mouse

output

PS/2 keyboard

connector

PS/2 mouse

connector

VGA monitor

connector

WARNING!

Before attempting to connect anything to the

DKVM-8E or the computers, make sure everything

is powered off . Otherwise, plugging and

unplugging cables may cause irreversible damage

to your computers and the DKVM-8E.

VGA signal

output

Step 1

Find a convenient place to put your DKVM-8E. Its 19” rack

mount form factor makes it ideal mountable on 19” rack.

When mounting to a rack, attach the included brackets to

the sides of the DKVM-8E. Take note of the length of your

cables so that your computers, DKVM-8E, keyboard,

mouse and monitor are distanced

properly.

Step 2

Connect the monitor to the DKVM-8E. Using the attached

cable, or the one included with your monitor, connect it to

the HD DB-15 female port on the back of the KVM-08

labeled with the monitor symbol at the CONSOLE

connector.

Step 3

Connect the keyboard to the DKVM-

8E. If you have an AT

type keyboard, you will need an AT to PS/2 adapter.

Step 4

Connect the mouse to the DKVM-8E.

Step 5

Now the PC connections will be made with the monitor

(VGA) connections first. Connect a VGA cable (15-pin

HDDB Male / Male) with the Male side to both of the PC

and the rear panel ofthe DKVM-8E unit to the connector

labeled VGA. Repeat this for all PCs.

Step 6

Connect the first computer’s mouse cable to the DKVM-8E.

If using a PS/2 cable, connect one end to the PS/2 mouse

port on the computer, and the other end to the PC1 PS/2

mouse port on the back of DKVM-8E. If using a serial

mouse cable, connect one end to a DB-9 serial port on the

computer, and the other end to the PC1 DB-9 serial mouse

port on the back of the DKVM-8E.

Back

Back of PC
