D-Link DUB-H7 - Hub - USB Manuale utente

This product can be used with the

following operating systems:

Windows XP, Me, 2000, 98SE,

Mac OS 10.1 and above

Check Your Package Contents

These are the items included with your purchase:

If any of the below items are missing, please contact your reseller.

Before You Begin

You must have at least the following:

•Pentium 233-MHz or faster with 32MB RAM

•Available USB 1.1 Port For USB 1.1 Operation

•Available USB 2.0 Port For USB 2.0 Operation

•Windows XP, 2000, Me, 98SE, Mac OS 10.1 and above

• DUB-H7 7-Port Hi-Speed USB 2.0 Hub

• USB 2.0 Cable

• Power Adapter

(5V 3A)

Using a power supply with a different voltage rating will

damage and void the warranty for this product.

7-Port High Speed7-Port High Speed

7-Port High Speed

USB 2.0 HubUSB 2.0 Hub

USB 2.0 Hub

DUB-H7DUB-H7

DUB-H7

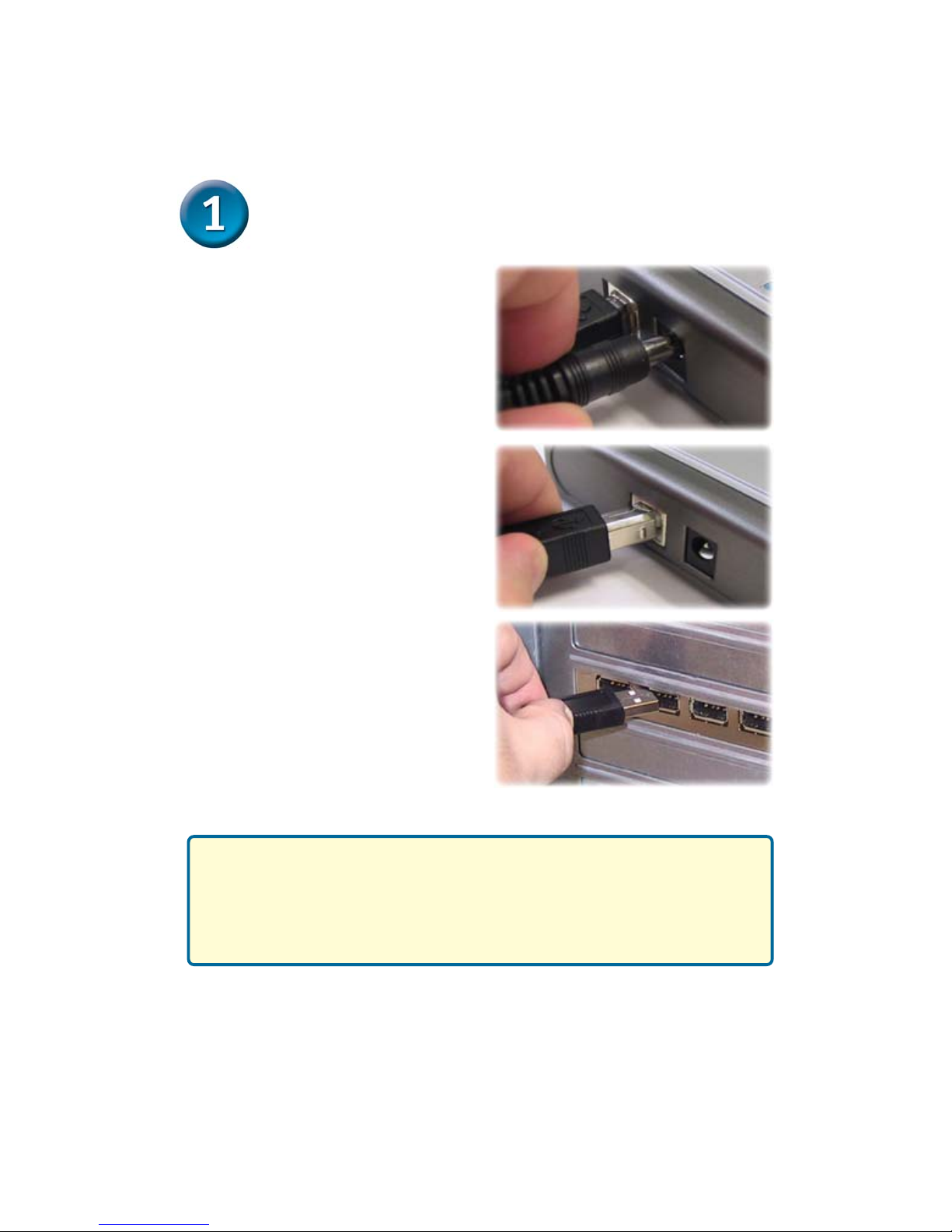

Installing the DUB-H7

Plug the USB type B connector (the

smaller end of the cable) into the back

of the DUB-H7.

Plug the AC adapter into the receptor

located on the back panel of the DUB-

H7, then plug the other end into a power

strip or wall outlet.

Plug the USB type A connector (the

flatter, narrow end of the cable) into an

available USB 2.0 port on your

computer (or USB 1.1 if you don’t have

USB 2.0).

Type B

Type A

Your computer will automatically detect and install the DUB-H7.

Your installation is now complete! You may now connect USB

2.0 or USB 1.1 devices to an available USB port on the front of

the DUB-H7.

Type A

LEDIndicatorDescription

The DUB-H7 features eight LED indicators.

•The Power LED indicator is green and lights up when the DUB-H7 is powered on by

using the external power adapter. The DUB-H7 does not run on power supplied from the

computer (bus powered).

•The downstream LED indicators are green and light up when the DUB-H7 is plugged into

the host computer. Each port has one status LED. The LEDs light up to indicate that

port is working.

•When connecting USB cables between USB devices and the DUB-H7, make sure that

the cables are connected securely.

•Remember that when connecting USB 1.1 devices to a USB 2.0 hub or host adapter, the

USB 1.1 device will operate only at USB 1.1 speed.

•The DUB-H7 does not have an on/off switch. It is always on, once the external power

adapter has been plugged into a wall socket or power source.

•Connecting USB 1.1 devices to the DUB-H7 may cause all USB devices connected to

the hub to work at USB 1.1 speed. To ensure 480Mbps throughput for your USB 2.0

devices, do not connect USB 1.1 and USB 2.0 devices to the hub at the same time.

•While using a USB device that includes anAC power adapter, use the included power

adapter to ensure proper power and current supply to that device.

•Please remember to unplug the DUB-H7 properly to ensure that no data loss or corrup-

tion takes place with your operating system.

Tips

Note : If a port becomes overloaded, a “current exceeded” event will take place. The LED

of the port will turn off and the message “USB HUB Current Limit Exceeded” appears on

the monitor. Reset the DUB-H7 by disconnecting it for 5 seconds and then powering it

back on by connecting the AC power adapter.

Power LED

Indicator

Ports 1-7

LED

Indicators

Technical Support

You can find the most recent software and user

documentation on the D-Link website.

D-Link provides free technical support for customers

within the United States for the duration of the warranty

period on this product.

U.S. customers can contact D-Link technical support

through our web site or by phone.

D-Link Technical Support over the Telephone:

(877) 45D-LINK

(877) 453-5465

24 hours a day, seven days a week

D-Link Technical Support over the Internet:

http://support.dlink.com

email: [email protected]
