D-Link AirPremier DAP-2565 Manuale utente

DAP-2565

Dual Band PoE Access Point

Quick Install Guide

Business Class Networking

System Requirements

Package Contents

• D-Link DAP-2565 AirPremier N Access Point powered by CloudCommand™

• Power Adapter

• Power Cord

• CAT5 Ethernet Cable

• Power over Ethernet Base Unit

• Mounting Plate

If any of following items are missing, please contact your reseller:

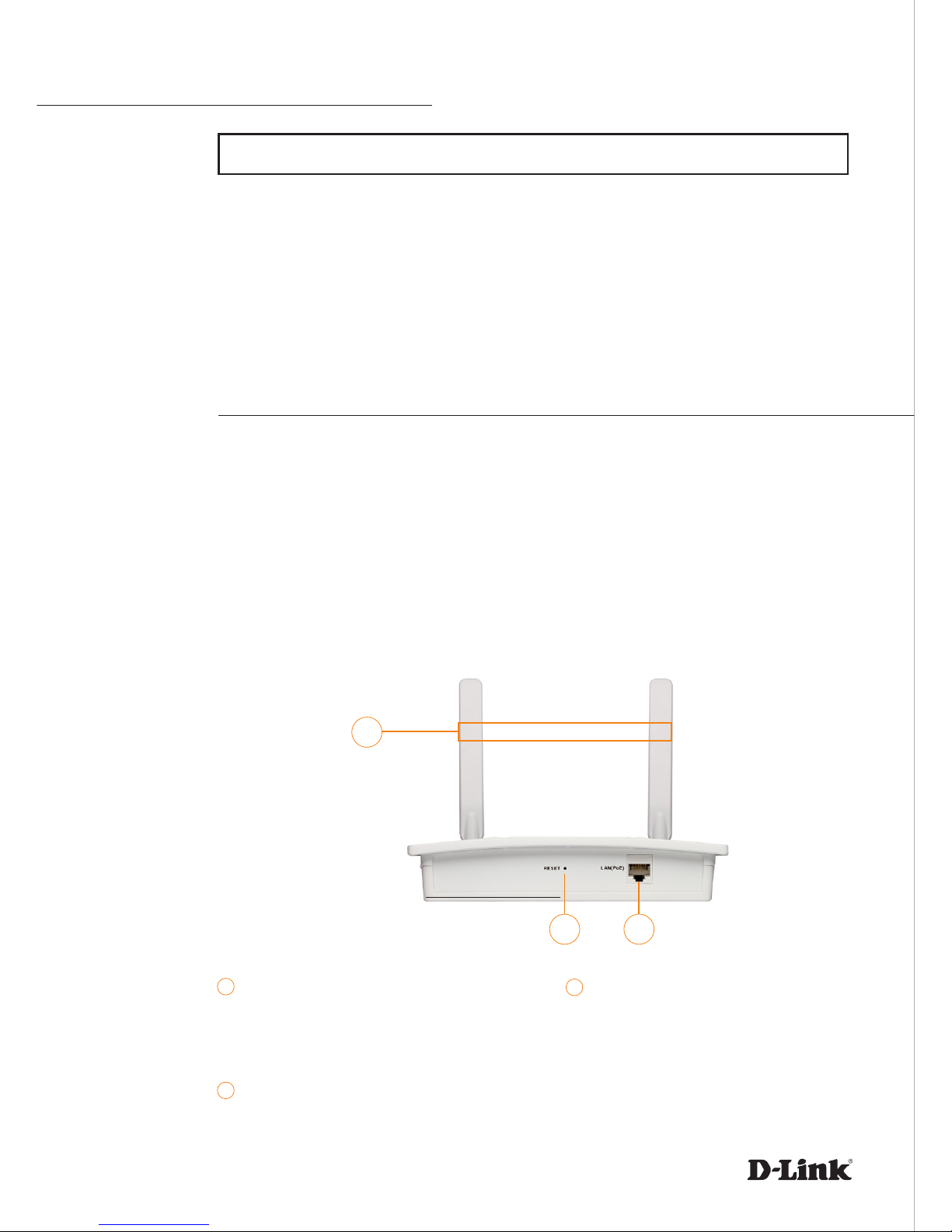

Antennas

Used to broadcast wireless network

and receive connections from clients

LAN Port

Connects DAP-2565 to the network

via Ethernet cable

Reset Button

Resets the Access Point to factory

defaults

Important: Before connecting, you must register your Access Point online.

• Internet connectivity

• Computer with a Windows®, Macintosh®, or Linux-based operating system

• Browser with Firefox 3.6, Chrome 5.0, Safari 4.0, Internet Explorer 8.0, or later versions

• Note: your Access Point includes a one-year subscription to the CloudCommand™

online service. After one year, the service requires an annual subscription.

To properly congure your Access Point, you need:

DAP-2565 3

Registering Your Access Point Online

New Customer: If you don’t have an existing CloudCommand™ account, create

one by following the instructions in our simple step-by-step wizard. The wizard

will guide you through the initial setup of your entire wireless network.

Step 1: Before you can use the Access Point, you must register it online.

Locate the Unit Identication Code ( UIC ) on the yellow label placed on the

underside of your Access Point.

Step 3 : Choose the appropriate registration scenario.

Step 2: Go to http://dlink.cloudcommand.com on a compatible browser

( Firefox 3.6, Chrome 5.0, Safari 4.0, Internet Explorer 8.0, or later versions ).

Existing Customer: If you already have a CloudCommand™ account, please log in. In the

left menu bar on your dashboard, click “New Access Point” and follow the instructions.

Welcome to D-Link’s line of cloud-managed wireless Access

Points. Leverage the product’s online interface to congure,

deploy, secure and manage your entire wireless network.

IC: 4216A-AP2565A1

Model: DAP-2565A1

FCC ID: KA2AP2565A1

Mad e In Chin a CM

CCAXXXXXXXXXXX

MA C ID :X XX XX X0 00 0 02

DAP-2565

Product Label

UIC: dl1-15342-2ba3

Unit Name:

CloudCommand™ Dashboard

UIC: dl1-15342-2ba3

Unit Name:

If your network automatically assigns IP addresses ( DHCP service ), connect

the Access Point directly to the network by plugging an Ethernet cable into

the LAN port on its rear panel. Insert the cable’s other end into your existing

switch or router with Internet connectivity.

No additional configuration is required. Within a few minutes the Access

Point will self configure and become ready to use. You have the option

of later reconfiguring your Access Point to a static IP address using the

CloudCommand™ interface .

The DAP-2565 is PoE ( Power over Ethernet ) compliant. You can power it either

by using a PoE switch or the included power adapter. Once powered, the

green power LED will turn ON to indicate proper operation.

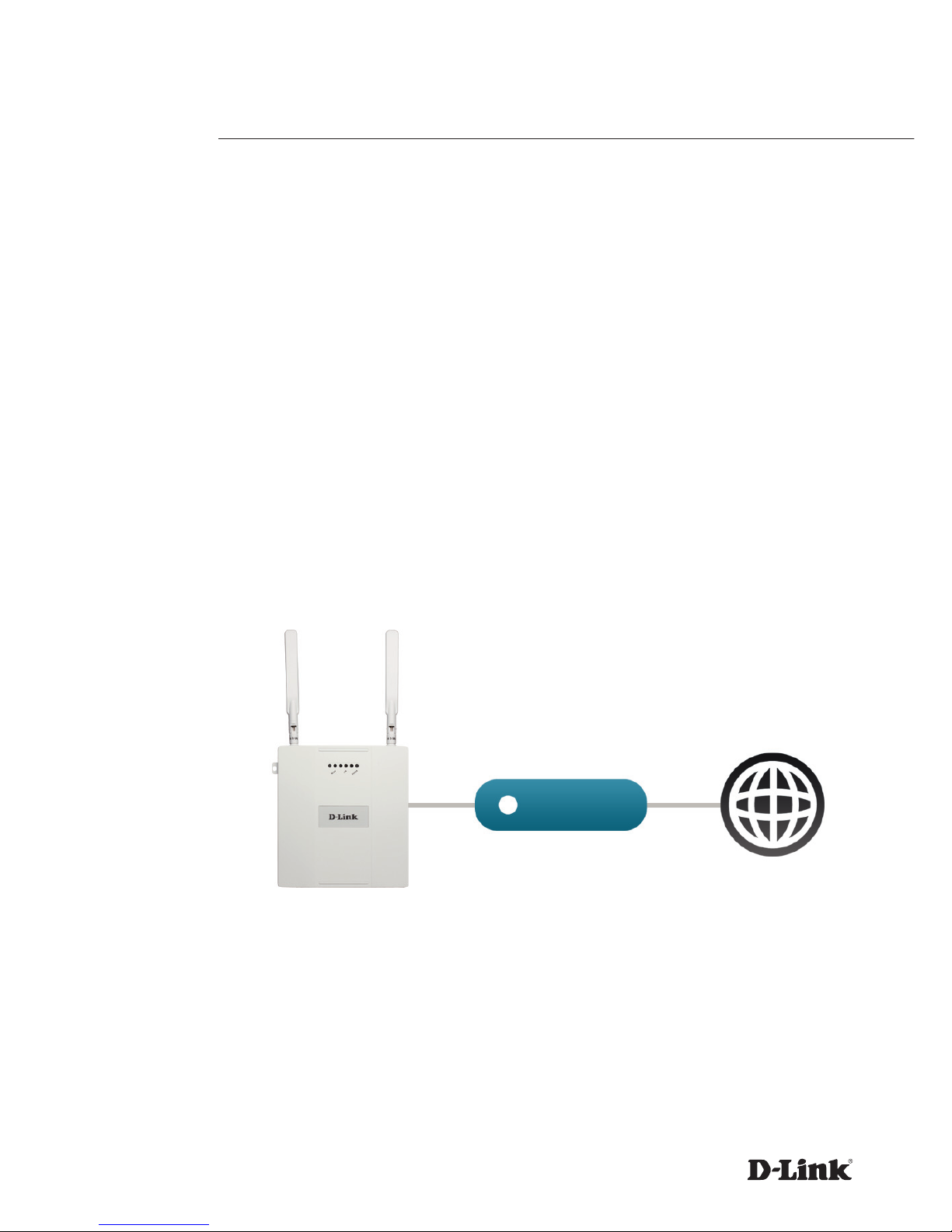

Deploying Your Access Point with Dynamic IP Addressing

Option 1:

DAP-2565

Switch or Router

Internet

If your network does not automatically assign IP addresses ( No DHCP

service ), follow these steps to properly configure your Access Point:

Deploying Your Access Point without Dynamic IP Addressing

Option 2:

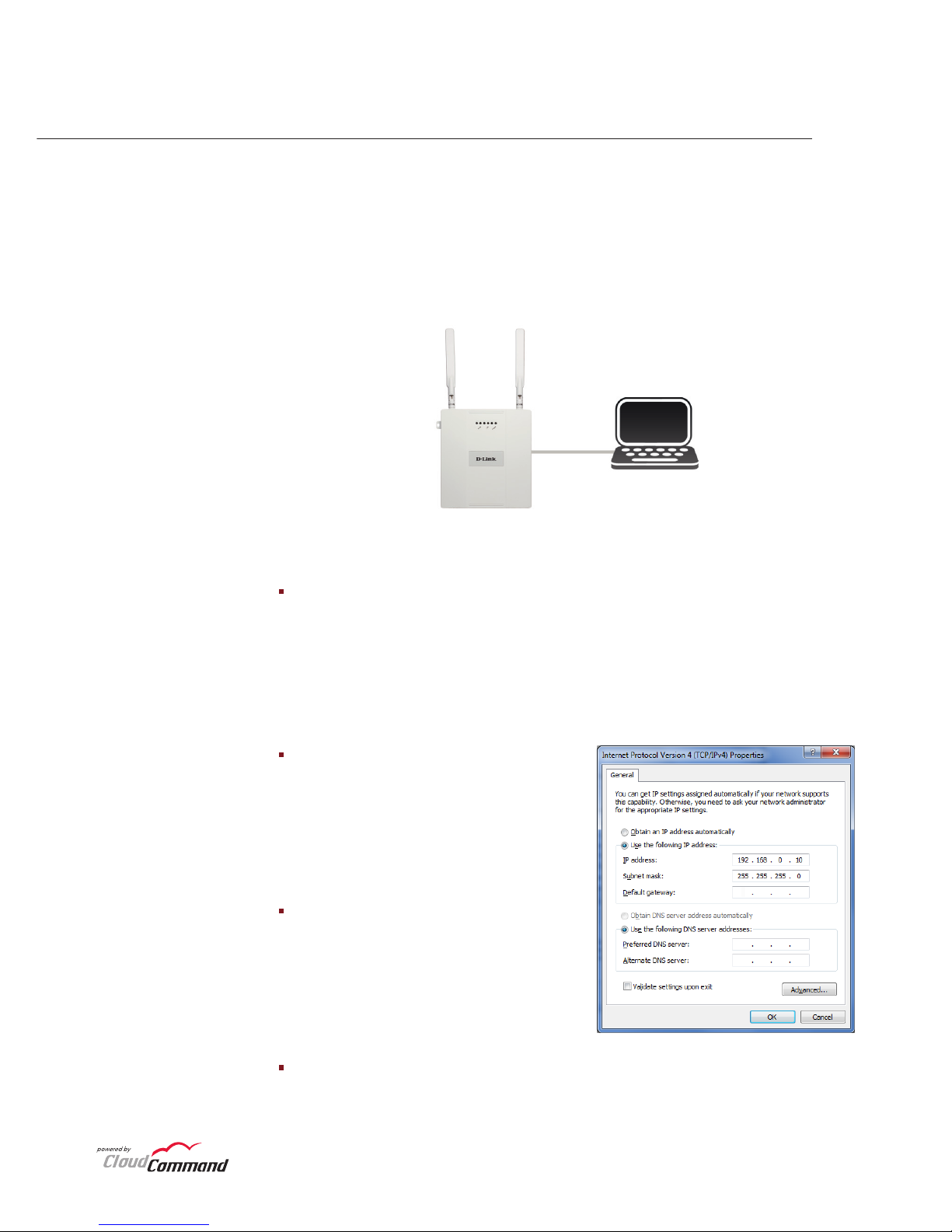

Step 1: Connect the Access Point directly to your computer using an

Ethernet cable.

Step 2: Configure the Ethernet connection of your computer as follows:

DAP-2565

PC or Mac

Configure APs

Right-click on the Local Area

Connection which represents your

network adapter and select Properties.

Highlight Internet Protocol (TCP/IP)

and click Properties.

Click Use the following IP address

and enter an IP address that is on

the same subnet as your network

or the LAN IP address on your new

DAP-2565.

Click OK twice to save your settings.

Windows® 7 - Click on Start > Control Panel > Network and Internet >

Network and Sharing Center > Change Adapter Setting.

Windows Vista® - Click on Start > Control Panel > Network and Internet >

Network and Sharing Center > Manage Network Connections.

Windows® XP - Click on Start > Control Panel > Network Connections.

Windows® 2000 - Right-click My Network Places > Properties.

Type “admin” in the User Name eld.

Leave the Password eld blank.

Click the Login button.

Step 4: Once you enter the IP address or device name, the login screen will

appear.

Step 3: Launch a web browser and type either the IP address of the access

point (default - 192.168.0.50) or the default device name of the access point

(http://dlinkapxxxx where xxxx are the last 4 numbers of the MAC address).

The MAC Address is on the lower-left corner of the device label (highlighted

below).

IC: 4216A-AP2565A1

Model: DAP-2565A1

FCC ID: KA2AP2565A1

Ma de In China CM

CCAXXXXXXXXXXX

MAC ID:XXXXXX000 0 0 2

DAP-2565

Step 6: No additional configuration is required. Within a few minutes the

Access Point will self configure and become ready to use. You have the option

of later reconfiguring your Access Point to a new static IP address using the

CloudCommand™ interface.

The DAP-2565 is PoE ( Power over Ethernet ) compliant. You can power it

either by using a PoE switch or the included power adapter. Once powered,

the green power LED will turn ON to indicate proper operation.

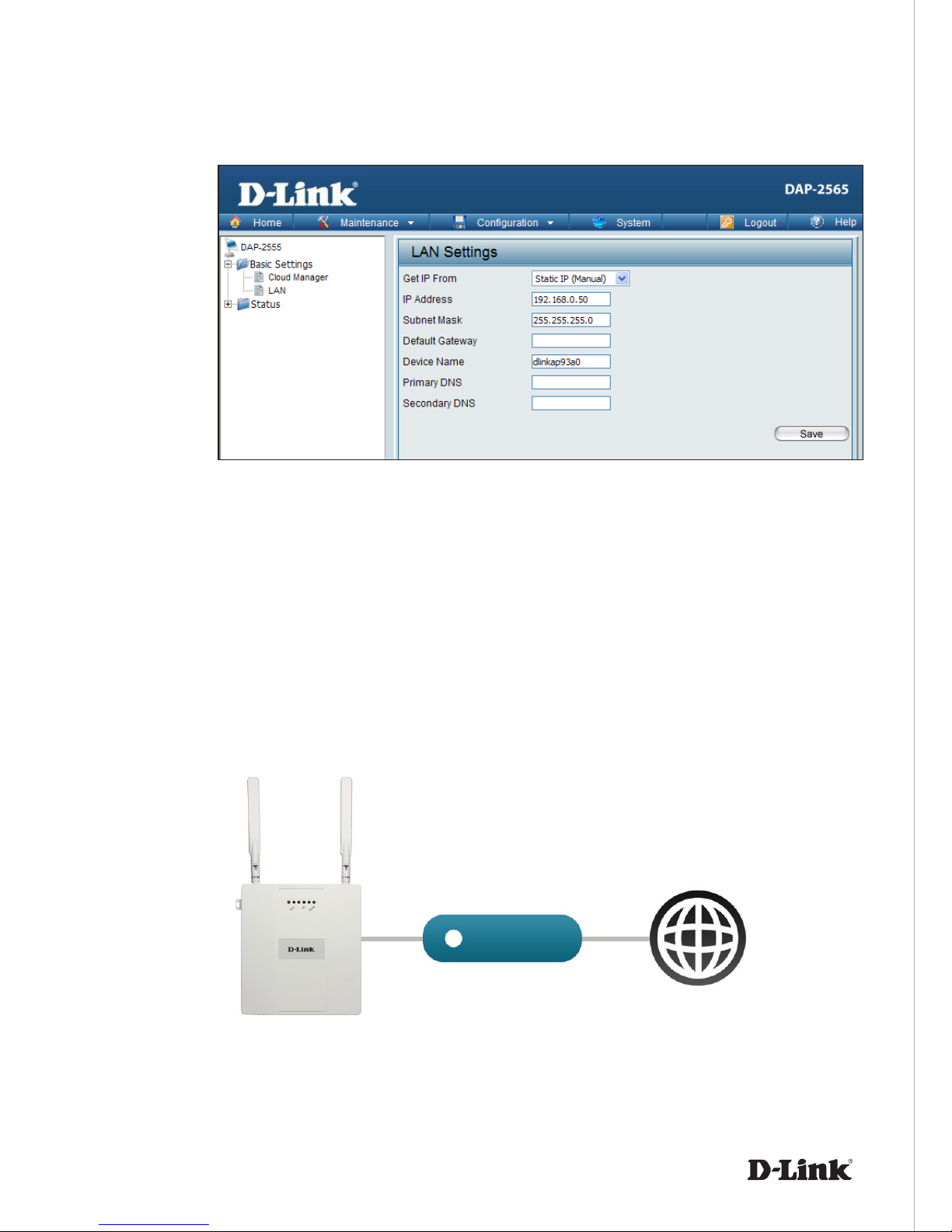

Step 5: Once logged in, you will be able to change the Access Point’s IP

address and DNS information to match your existing network configuration.

Step 7: Restore setting change in Step 2.

DAP-2565

Power over Ethernet

Switch or Router Internet

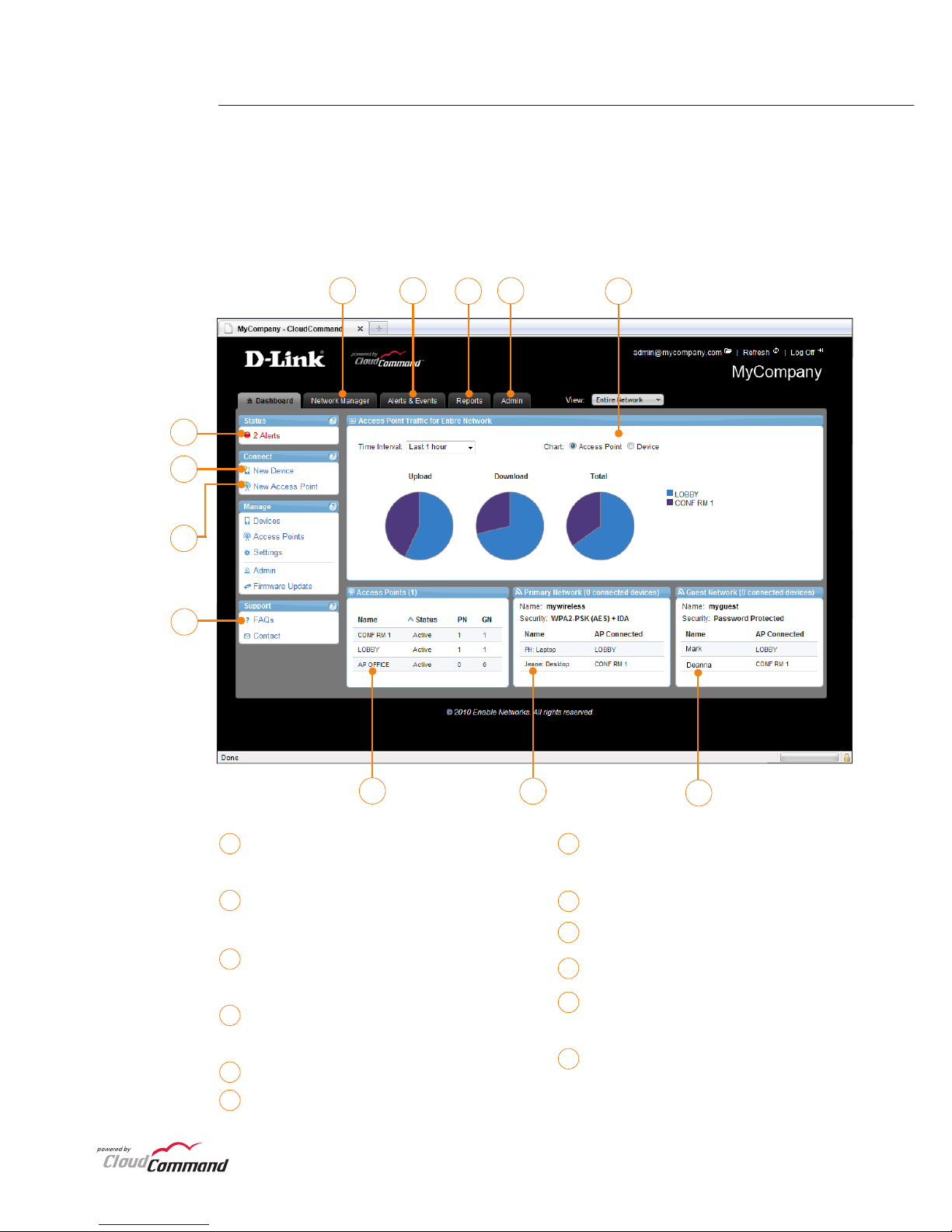

To view your CloudCommand™ dashboard, please log in at

http://dlink.cloudcommand.com. The dashboard is your starting point to

monitor network activity, troubleshoot problems, authorize and disconnect

individual devices, or make conguration changes to your Access Point(s).

CloudCommand™ Dashboard

1 7

Manage Access Points and connected

devices

View alerts and events, and set up

alert notications

Display detailed activity reports for

users and Access Points

Change congurations, Wi-Fi network

names, security, and passwords

View activity graphs

View devices connected to your

guest network

View devices connected to your

primary wireless network

View Access Points in your network

Read FAQs

Authorize a new device to connect

to your wireless network

Monitor alerts in real time

235
