D-Link AirPremier DWL-7700AP Manuale utente

Two Dipole Antenna

Check Your Package Contents

DWL-7700AP WirelessAG OutdoorAP/

Bridge

CD-ROM (Containing Manual and Warranty)

It’s best to use a computer (with an Ethernet adapter) connected to a switch to configure

the DWL-7700AP. The default IP address for the DWL-7700AP is 192.168.0.50 with a

subnet mask of 255.255.255.0 on the wired Ethernet side. You will need to assign your

computera static IPaddress within thesame range asthe DWL-7700AP’s IPaddress for

thepurposeof configuring theDWL-7700AP.If you need assistance assigning a static

IP address to your network adapter, please refer to the manual on the CD-ROM.

Surge Arrestor

specificationssubjecttochangewithoutnotice.DWL-7700AP.12012004

Before You Begin

DWL-7700AP

D-LinkAirPremier®

Wireless AG

OutdoorAP/Bridge

This product can be set up

using any current web

browser, i.e. Internet

Explorer or Netscape

Navigator.

30M Ethernet cable

Power Adapter

Grounding wire

Power cord

RF jumper cable

8 Screws and rubber ring

Check Your Package Contents (continued)

PoE base unit

If any of the above items are missing, please contact your reseller.

Mounting OptionA

Check Your Package Contents (continued)

Mounting Kit

Mounting Option B

Mounting Kit

Wall Mount Screws

ThisproductshouldONLY beinstalledbyan

experiencedinstallerwhoisfamilliarwithlocal

building and safety codes and where ever

applicable, is licensed by the appropriate

authorities. Failureto dosomay voidtheD-Link product

warranty and may expose the end user or the service

provider to legal and financial liabilities. D-Link and its

resellersordistributorsarenot liableforinjury,damage or

violationofregulations associated with theinstallationof

outdoorunitsorantennas.

A safety grounding system is necessary to protect your

outdoorinstallationfromlightningstrikesandthebuild-upof

staticelectricity. Sodirectgrounding ofthe antennamast,

OutdoorAP, and SurgeArrester is very important.Andso

mountingtheOutdoorAPontheantennamast,youhaveto

connecttheOutdoorAPtothesamegroundingsystemwith

theACwalloutlet.Thegroundingsystemmustcomplywith

theNationalElectricalCodeandsafetystandardsthatapply

inyourcountry. Alwayscheckwithaqualifiedelectricianif

youare indoubt asto whetheryour outdoorinstallation is

properlygrounded.

Important Information

Step 1: Connect the supplied

Ethernetcablewiththewaterproof

enclosure to the Ethernet port on

the DWL-7700AP and attach the

groundingwire.

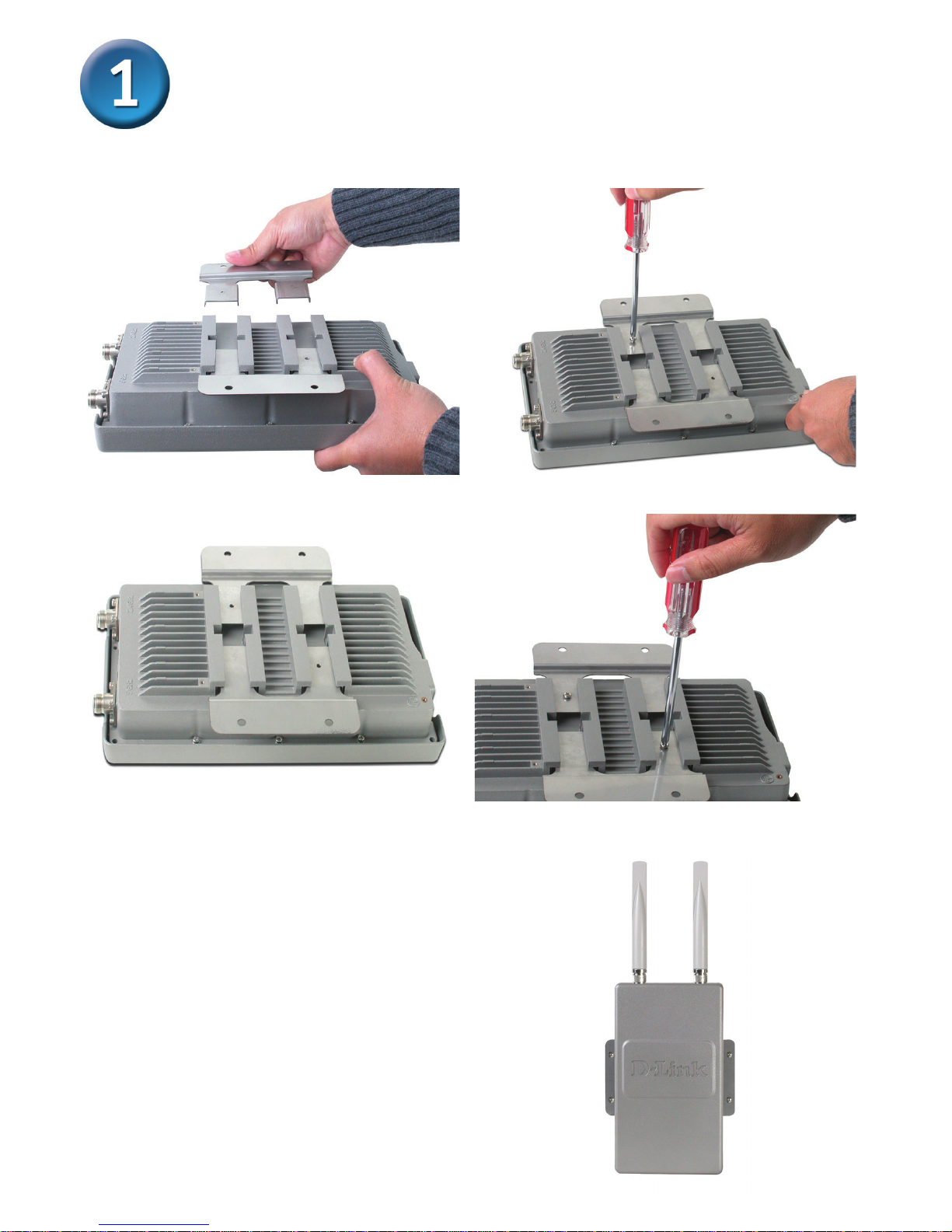

Physical Installation for

your DWL-7700AP
