DWL-8200AP Install GuideSystem Requirements

System Requirements:

Minimum System Requirements:

• CD-ROM Drive

• Computers with Windows, Macintosh, or Linux-based operating systems

• Installed Ethernet Adapter Internet Explorer version 6.0 or Netscape

Navigator version 7.0 and above.

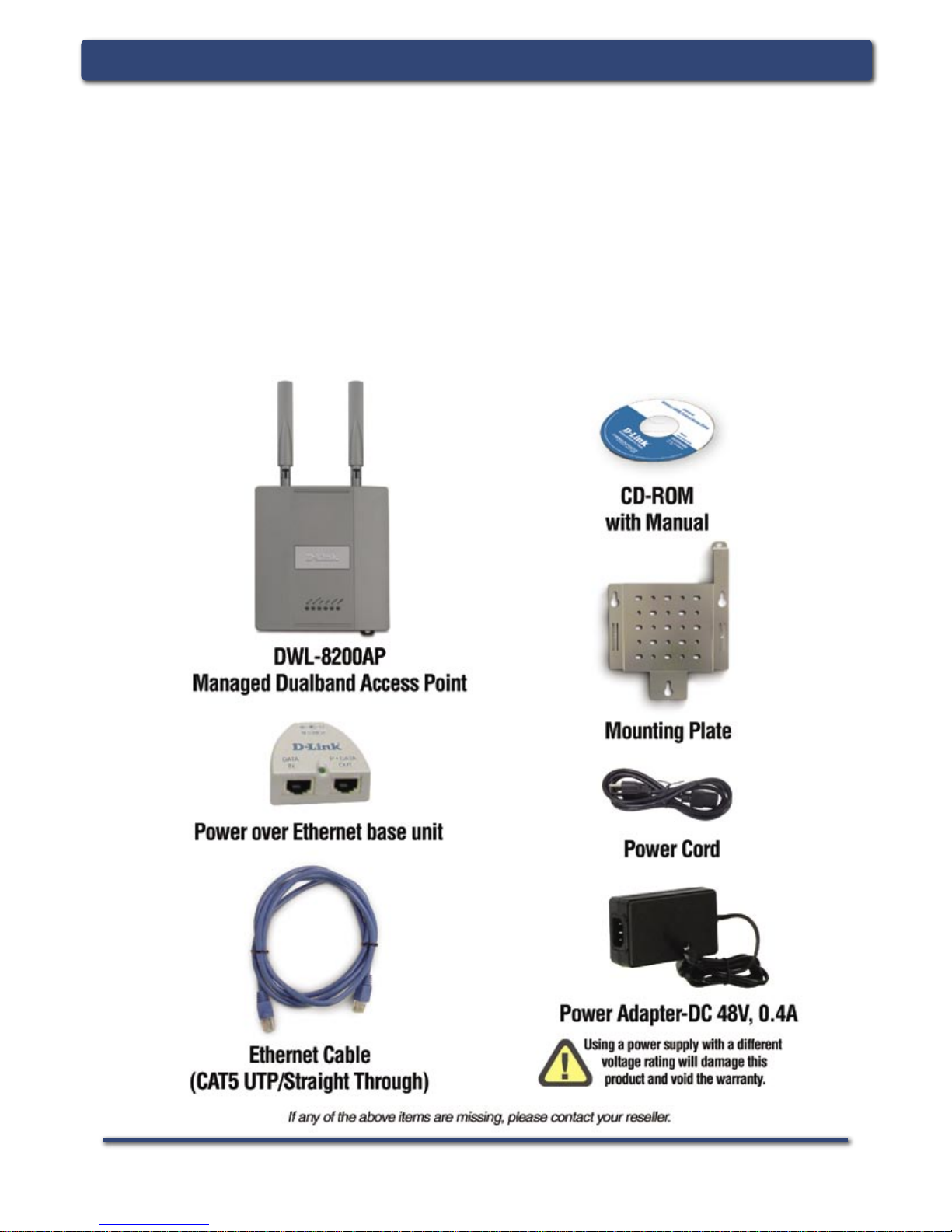

Package Contents

D-Link Systems, Inc. 3

DWL-8200AP Install Guide Installing the Hardware

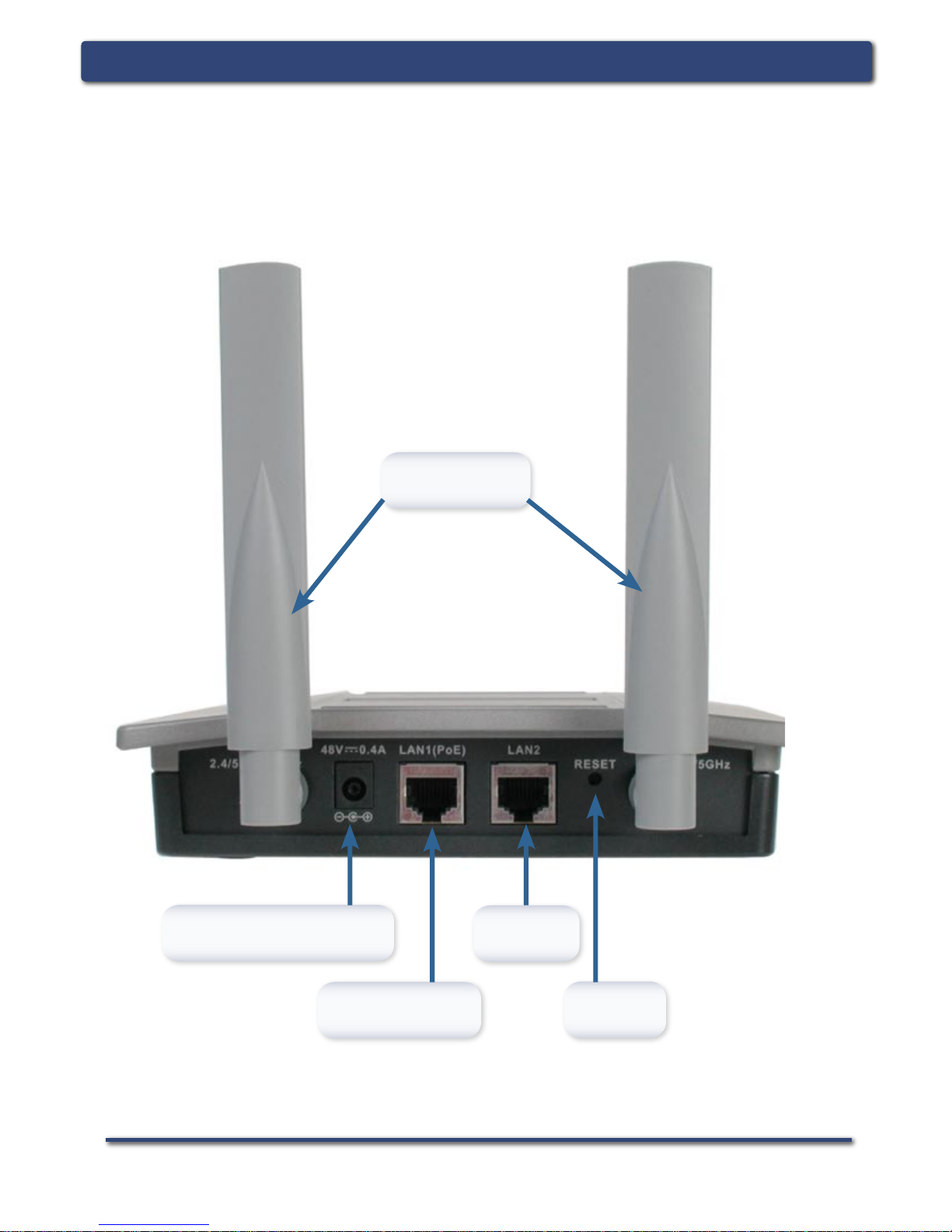

Installing the Hardware

Power Cord socket

LAN 1 (PoE)

Antennas

LAN 2

Reset

4 D-Link Systems, Inc.

DWL-8200AP Install GuideInstalling the Hardware

Step 1

Connect one end of an Ethernet cable (included with your package) to the

LAN 1 (PoE) port on the DWL-8200AP, and the other end of the Ethernet cable

to the port labeled P+DATA OUT on the PoE base unit.

Step 2

Connect another Ethernet cable from the DATA IN port on the PoE base

unit to your router/switch or to a PC.

Step 3

Attach the power adapter to the connector labeled POWER IN on the PoE

base unit. Attach the power cord to the power adapter and into an electrical

outlet.

D-Link Systems, Inc. 5

DWL-8200AP Install Guide The Setup Wizard

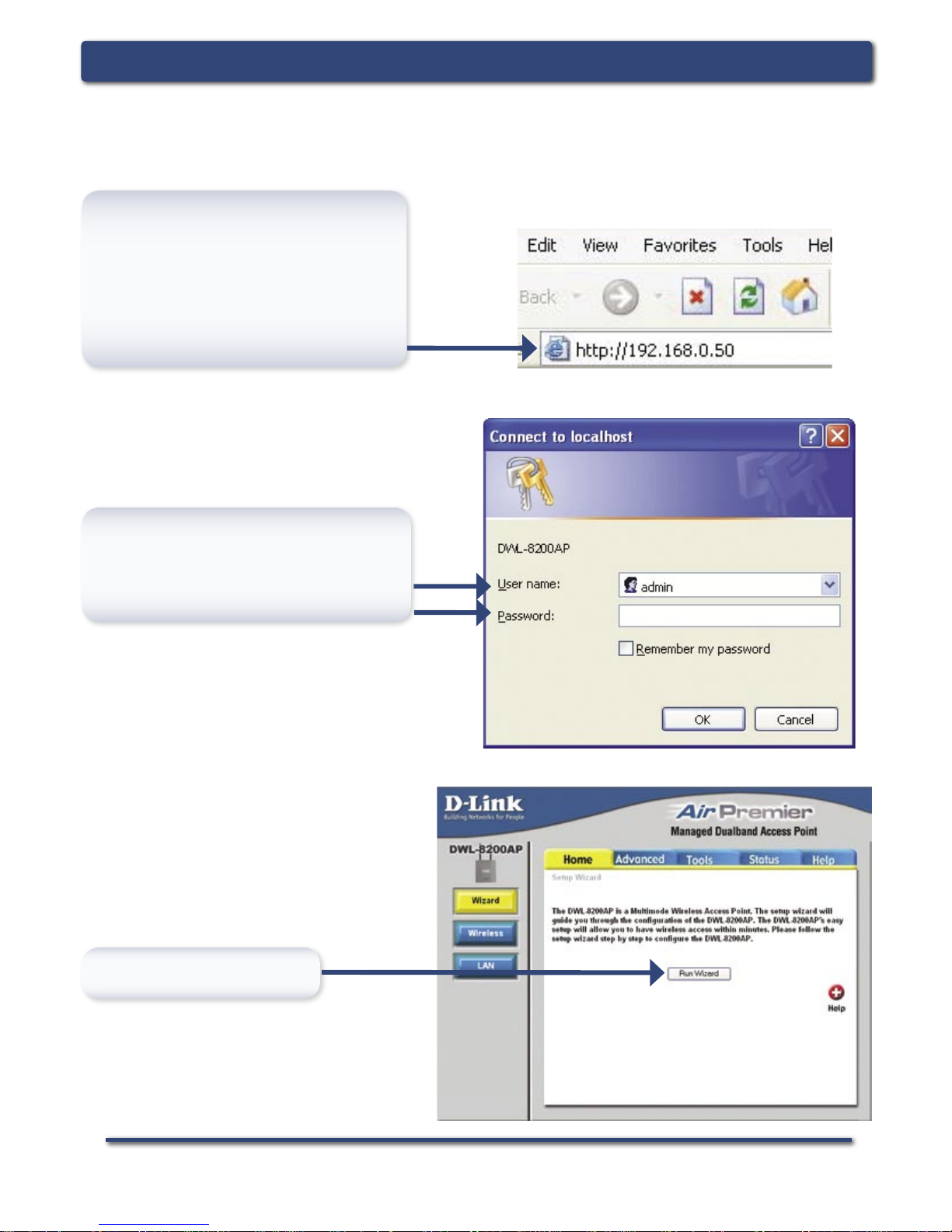

Open your Web browser and

type http://192.168.0.50 into

the URL address box. Then

press the Enter or Return

key.

Click Run Wizard

The logon pop-up screen will appear.

Type admin for the username

and leave the password ﬁeld

blank.

Once you have logged in, the

Home screen will appear.

Using the Setup Wizard

6 D-Link Systems, Inc.

DWL-8200AP Install GuideThe Setup Wizard

Security level options for an 802.11a network are as follows:

 No Security - continue to page 7

 WEP - continue to page 8

 WPA-Personal - continue to page 10

Click Next

Setup your new password

You have the option to establish a

password.

Click Next

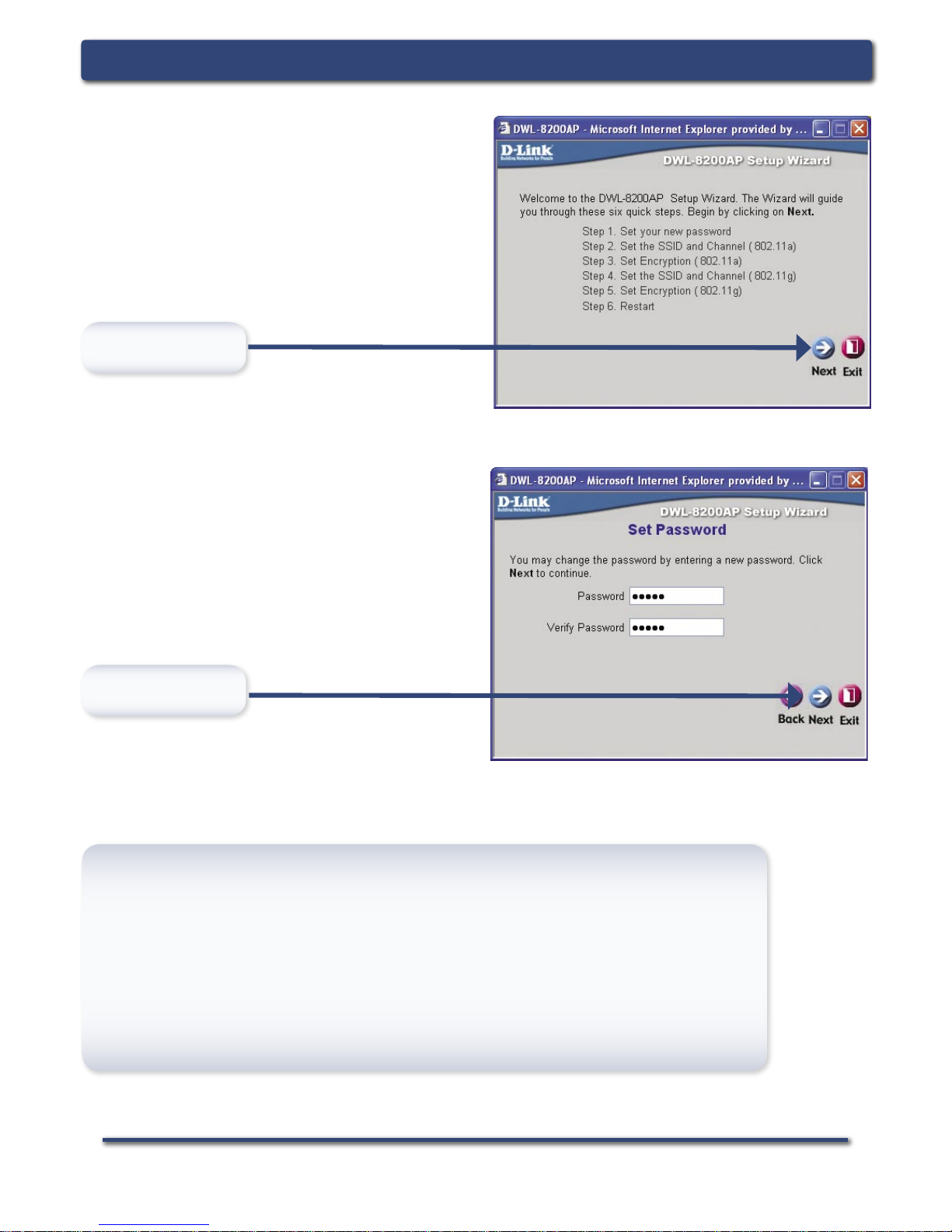

Welcome Screen

Follow the steps in order to

conﬁgure the DWL-8200AP.

D-Link Systems, Inc. 7

DWL-8200AP Install Guide The Setup Wizard

Click Next

For 802.11a networks please do the

following:

Set Wireless LAN 802.11a Connection

By default the DWL-8200AP SSID is

set to default with a Channel setting

of 52.

Click Next

For 802.11g networks please do the

following:

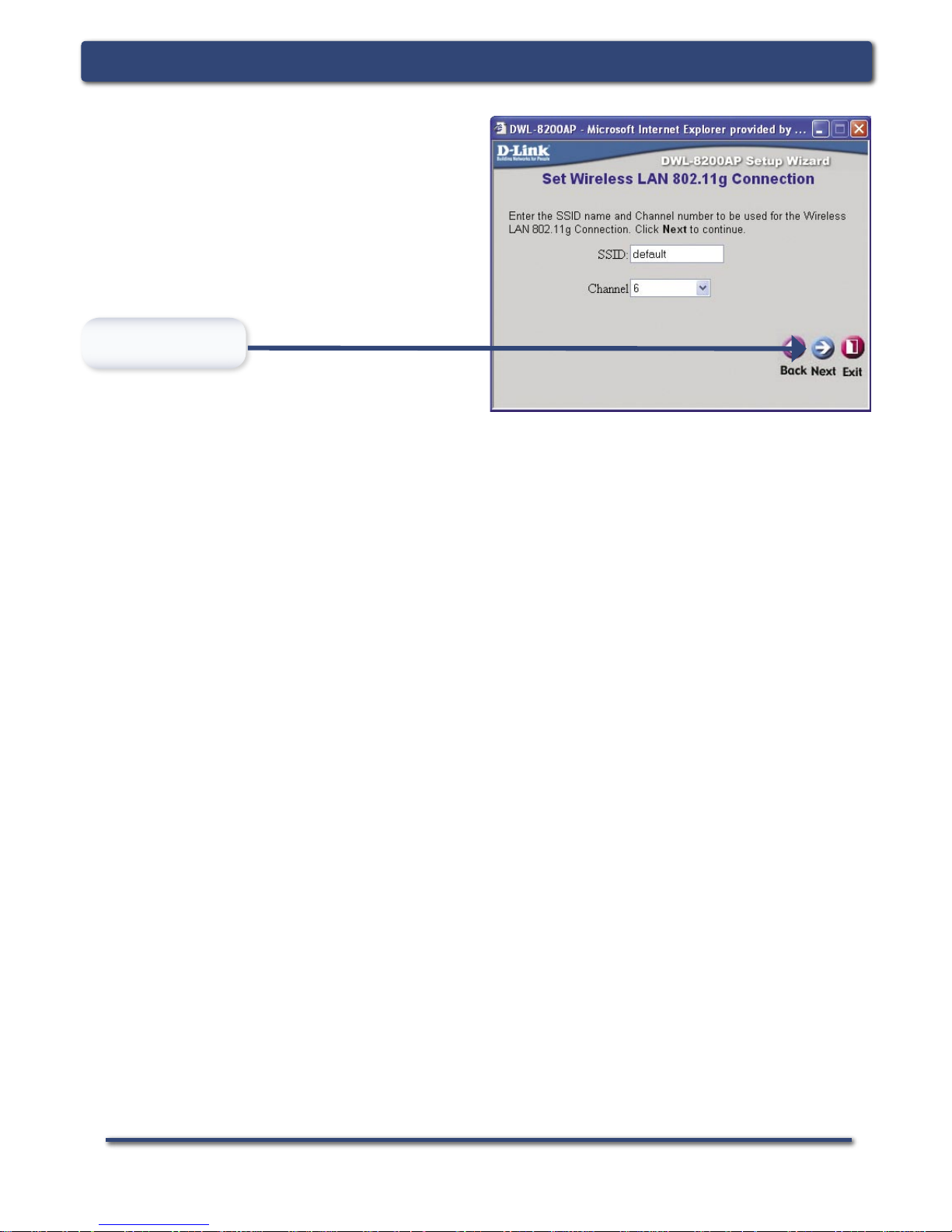

Set Wireless LAN 802.11g Connection

By default the DWL-8200AP SSID is

set to default with a Channel setting

of 6.

For 802.11g Network continue to page 12.

No Security

Select No Security for an 802.11a

Network.

8 D-Link Systems, Inc.

DWL-8200AP Install GuideThe Setup Wizard

Click Next

WEP Encryption for 802.11a

The DWL-8200AP is capable of three

levels of encryption: 64-bit, 128-bit,

and 152-bit (using only Hexadecimal).

By default, encryption is disabled.

You can change the encryption

settings for more secure wireless

communication.

Click Next

WEP

Select WEP for an 802.11a Network.

For 802.11a networks please do the

following:

Set Wireless LAN 802.11a Connection

By default the DWL-8200AP SSID is

set to default with a Channel setting

of 52.

D-Link Systems, Inc. 9

DWL-8200AP Install Guide The Setup Wizard

Click Next

For 802.11g networks please do the

following:

Set Wireless LAN 802.11g Connection

By default the DWL-8200AP SSID is

set to default with a Channel setting

of 6.

For 802.11g Network continue to page 12.

10 D-Link Systems, Inc.

DWL-8200AP Install GuideThe Setup Wizard

Click Next

For 802.11a networks please do the

following:

Set Wireless LAN 802.11a Connection

By default the DWL-8200AP SSID is

set to default with a Channel setting

of 52.

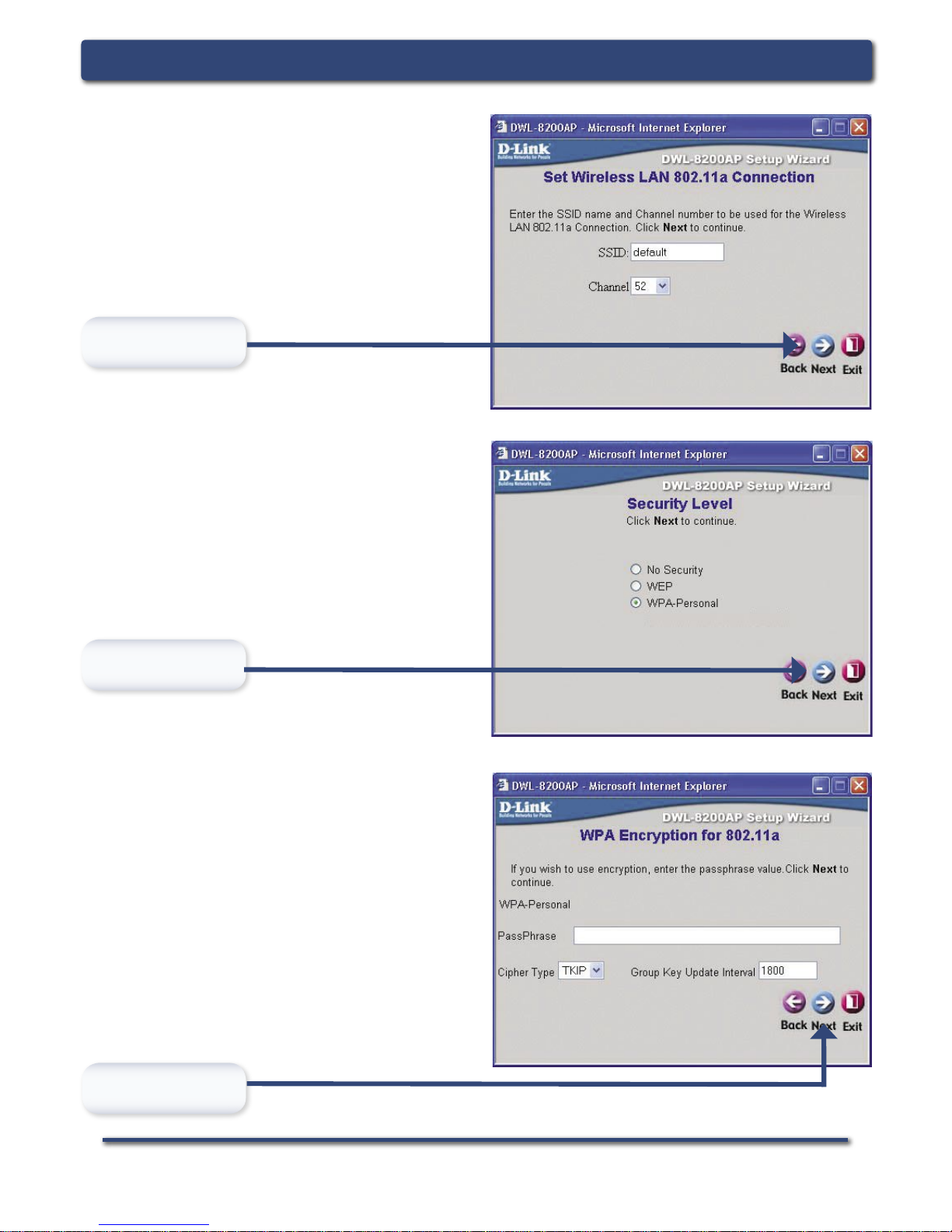

WPA-Personal

Select WPA-Personal for an 802.11a

Network.

For 802.11a networks please do the

following:

WPA Encryption for 802.11a

Provide an alphanumeric PassPhrase

that is between 8 to 63 characters. By

default, the Group Key Update Interval

is set to 1800 seconds (30 minutes).

After 1800 seconds have passed, the

key will change again.

Click Next
