D-Link DAP-1150 Manuale utente
Quick Installation Guide

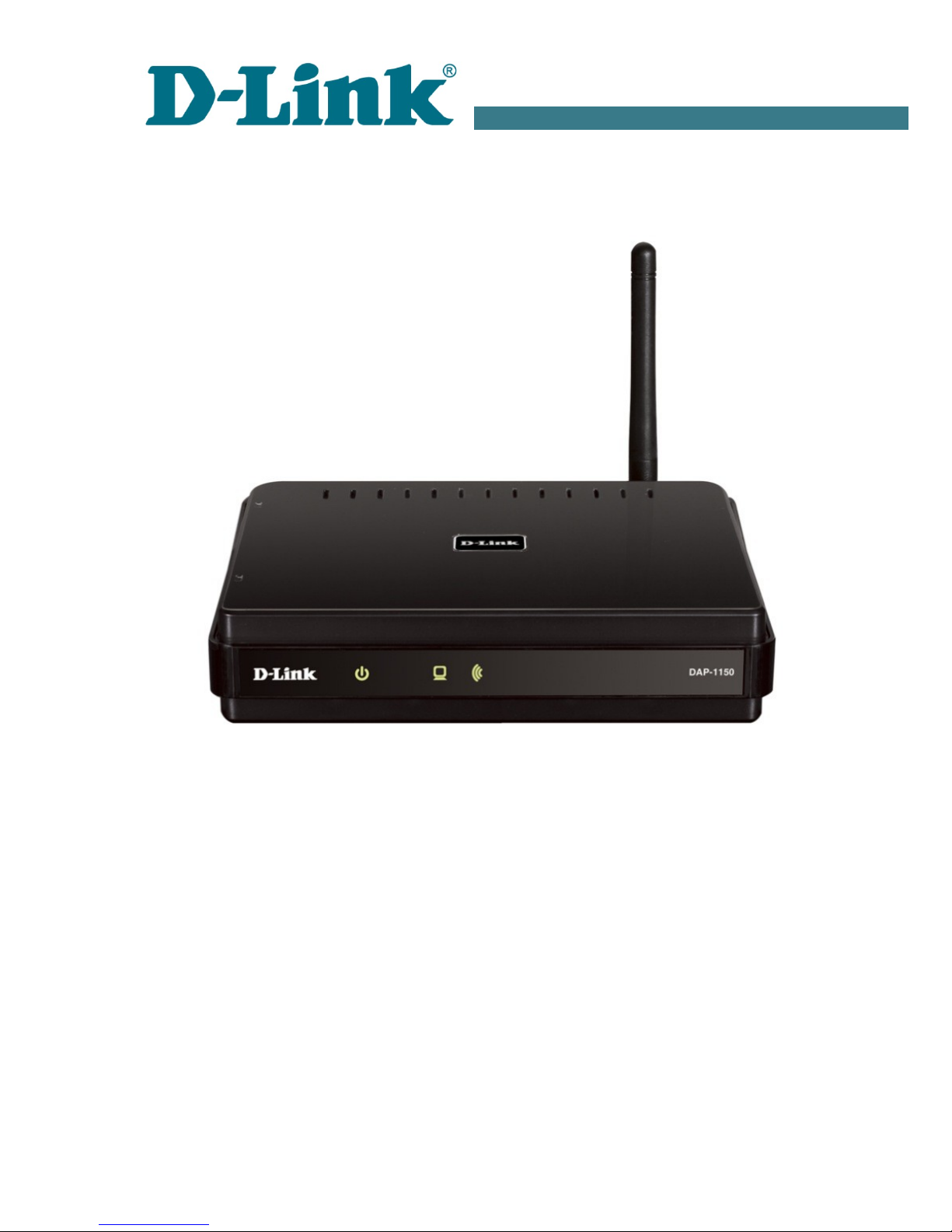

DAP-1150
Wireless Access Point Supporting Router Mode
DAP-1150 Quick Installation Guide
BEFORE YOU BEGIN
Delivery Package
•Access point DAP-1150
•Power adapter DC 5V/1.2А
•Straight-through Ethernet ca le (CAT 5E)
•CD-ROM with “User Manual” and “Quick Installation Guide”
•“Quick Installation Guide” ( rochure).
If any of the items are missing, please contact your reseller.
!Using a power supply with a different voltage rating than the one
included will cause damage and void the warranty for this product.
Default Settings
IP add ess of access point 192.168.0.50
Use name (login) admin
Passwo d admin
Name of wi eless netwo k (SSID) DAP-1150
System Requirements and Equipment
•A computer with any operating system that supports a we rowser.
•A we rowser to access the we - ased interface of the access point:
Windows Internet Explorer, Mozilla Firefox, or Opera.
•A NIC (Ethernet or Wi-Fi adapter) to connect to the access point.
•An 802.11 , g or n Wi-Fi adapter to create a wireless network.
2
DAP-1150 Quick Installation Guide
CONNECTING TO PC
PC with Ethernet Adapter
1. Make sure that your PC is powered off.
2. Connect an Ethernet ca le etween the LAN port located on the ack
panel of the access point and the Ethernet port of your PC.
3. Connect the power cord to the power connector port on the ack panel of
the access point, then plug the power adapter into an electrical outlet or
power strip.
4. Turn on your PC and wait until your operating system is completely
loaded.
Now you should configure your PC to o tain an IP address automatically (as
DHCP client).
3
DAP-1150 Quick Installation Guide
Obtaining P Address Automatically
in OS Windows XP
1. Click the Sta t utton and proceed to the Cont ol Panel > Netwo k
and Inte net Connections > Netwo k Connections window.
2. In the Netwo k Connections window, right-click the relevant Local
A ea Connection icon and select the P ope ties line in the menu
displayed.
3. In the Local A ea Connection P ope ties window, on the Gene al
ta , select the Inte net P otocol (TCP/IP) line. Click the P ope ties
utton.
4
DAP-1150 Quick Installation Guide
4. Select the Obtain an IP add ess automatically and Obtain DNS
se ve add ess automatically radio uttons. Click the OK utton.
5. Click the ОК utton in the connection properties window.
Now your computer is configured to o tain an IP address automatically.
5
DAP-1150 Quick Installation Guide
Obtaining P Address Automatically
in OS Windows 7
1. Click the Sta t utton and proceed to the Cont ol Panel window.
2. Select the Netwo k and Sha ing Cente section. (If the Control Panel
has the category view (the Catego y value is selected from the View by
drop-down list in the top right corner of the window), choose the View
netwo k status and tasks line under the Netwo k and Inte net
section.)
3. In the menu located on the left part of the window, select the Change
adapte settings line.
4. In the opened window, right-click the relevant Local A ea Connection
icon and select the P ope ties line in the menu displayed.
5. In the Local A ea Connection P ope ties window, on the
Netwo king ta , select the Inte net P otocol Ve sion 4 (TCP/IPv4)
line. Click the P ope ties utton.
6
DAP-1150 Quick Installation Guide
6. Select the Obtain an IP add ess automatically and Obtain DNS
se ve add ess automatically radio uttons. Click the OK utton.
7. Click the OK utton in the connection properties window.
Now your computer is configured to o tain an IP address automatically.
7
DAP-1150 Quick Installation Guide
PC with Wi-Fi Adapter
1. Connect the power cord to the power connector port on the ack panel of
the access point, then plug the power adapter into an electrical outlet or
power strip.
2. Turn on your PC and wait until your operating system is completely
loaded.
3. Turn on your Wi-Fi adapter. As a rule, modern note ooks with uilt-in
wireless NICs are equipped with a utton or switch that turns on/off the
wireless adapter (refer to your PC documents). If your PC is equipped
with a plugga le wireless NIC, install the software provided with your
Wi-Fi adapter.
Now you should configure your Wi-Fi adapter.
8
DAP-1150 Quick Installation Guide
Configuring Wi-Fi Adapter in OS Windows XP
1. Click the Sta t utton and proceed to the Cont ol Panel > Netwo k
and Inte net Connections > Netwo k Connections window.
2. Select the icon of the wireless network connection and make sure that
your Wi-Fi adapter is on.
3. Search for availa le wireless networks.
4. In the opened Wi eless Netwo k Connection window, select the
wireless network DAP-1150 and click the Connect utton.
After that the Wi eless Netwo k Connection Status window appears.
!
If you perform initial configuration of the access point via Wi-Fi
connection, note that immediately after changing the wireless default
settings of the access point you will need to reconfigure the wireless
connection using the newly specified settings.
9
DAP-1150 Quick Installation Guide
Configuring Wi-Fi Adapter in OS Windows 7
1. Click the Sta t utton and proceed to the Cont ol Panel window.
2. Select the Netwo k and Sha ing Cente section. (If the Control Panel
has the category view (the Catego y value is selected from the View by
drop-down list in the top right corner of the window), choose the View
netwo k status and tasks line under the Netwo k and Inte net
section.)
3. In the menu located on the left part of the window, select the Change
adapte settings line.
4. In the opened window, select the icon of the wireless network connection
and make sure that your Wi-Fi adapter is on.
5. To open the list of availa le wireless networks, select the icon of the
wireless network connection and click the Connect To utton or left-
click the network icon in the notification area located on the right side of
the task ar.
10
