D-Link DAP-1155 Manuale utente
Quick Installation Guide
DAP-1155
Wireless N 150 Access Point & Router
DAP-1155 Quick Installation Guide
BEFORE YOU BEGIN
Delivery Package
•Access point DAP-1155
•Power adapter DC 12V
•Ethernet cable (CAT 5E)
•“Quick Installation Guide” (broch re).
If any of the items are missing, please contact yo r reseller.
The “User Manual” and “Quick Installation Guide” doc ments in R ssian
and English are available on D-Link website (see
ftp.dlink.r /p b/Wireless/DAP-1155/Description/Rev.B/).
!Using a power supply with a different voltage rating than the one
included will cause damage and void the warranty for this product.
Default Settings
IP address o access point 192.168.0.50
Username (login) admin
Password admin
Name o wireless network (SSID) DAP-1155
2
DAP-1155 Quick Installation Guide
System Requirements and Equipment
•A comp ter with any operating system that s pports a web browser.
•A web browser to access the web-based interface of the access point:
Windows Internet Explorer, Mozilla Firefox, or Opera.
•A NIC (Ethernet or Wi-Fi adapter) to connect to the access point.
•An 802.11b, g or n Wi-Fi adapter to create a wireless network.
3
DAP-1155 Quick Installation Guide
CONNECTING TO PC
PC with Ethernet Adapter
1. Make s re that yo r PC is powered off.
2. Connect an Ethernet cable between the LAN port located on the back
panel of the access point and the Ethernet port of yo r PC.
3. Connect the power cord to the power connector port on the back panel of
the access point, then pl g the power adapter into an electrical o tlet or
power strip.
4. T rn on yo r PC and wait ntil yo r operating system is completely
loaded.
Now yo need to config re an IP address for the Ethernet adapter of yo r PC.
4
DAP-1155 Quick Installation Guide
Configuring IP Address in S Windows XP
1. Click the Start b tton and proceed to the Control Panel > Network
and Internet Connections > Network Connections window.
2. In the Network Connections window, right-click the relevant Local
Area Connection icon and select the Properties line in the men
displayed.
3. In the Local Area Connection Properties window, on the General
tab, select the Internet Protocol (TCP/IP) line. Click the Properties
b tton.
5
DAP-1155 Quick Installation Guide
4. Select the Use the ollowing IP address radio b tton and enter the
val e 198.168.0.51 in the IP address field. The Subnet mask
field will be filled in a tomatically. Click the OK b tton.
5. Click the ОК b tton in the connection properties window.
Now yo can connect to the web-based interface of DAP-1155 for config ring
all needed parameters. To gain access to an external network (to the Internet),
yo also need to specify the defa lt gateway and the addresses of DNS servers.
6
DAP-1155 Quick Installation Guide
Configuring IP Address in S Windows 7
1. Click the Start b tton and proceed to the Control Panel window.
2. Select the Network and Sharing Center section. (If the Control Panel
has the category view (the Category val e is selected from the View by
drop-down list in the top right corner of the window), choose the View
network status and tasks line nder the Network and Internet
section.)
3. In the men located on the left part of the window, select the Change
adapter settings line.

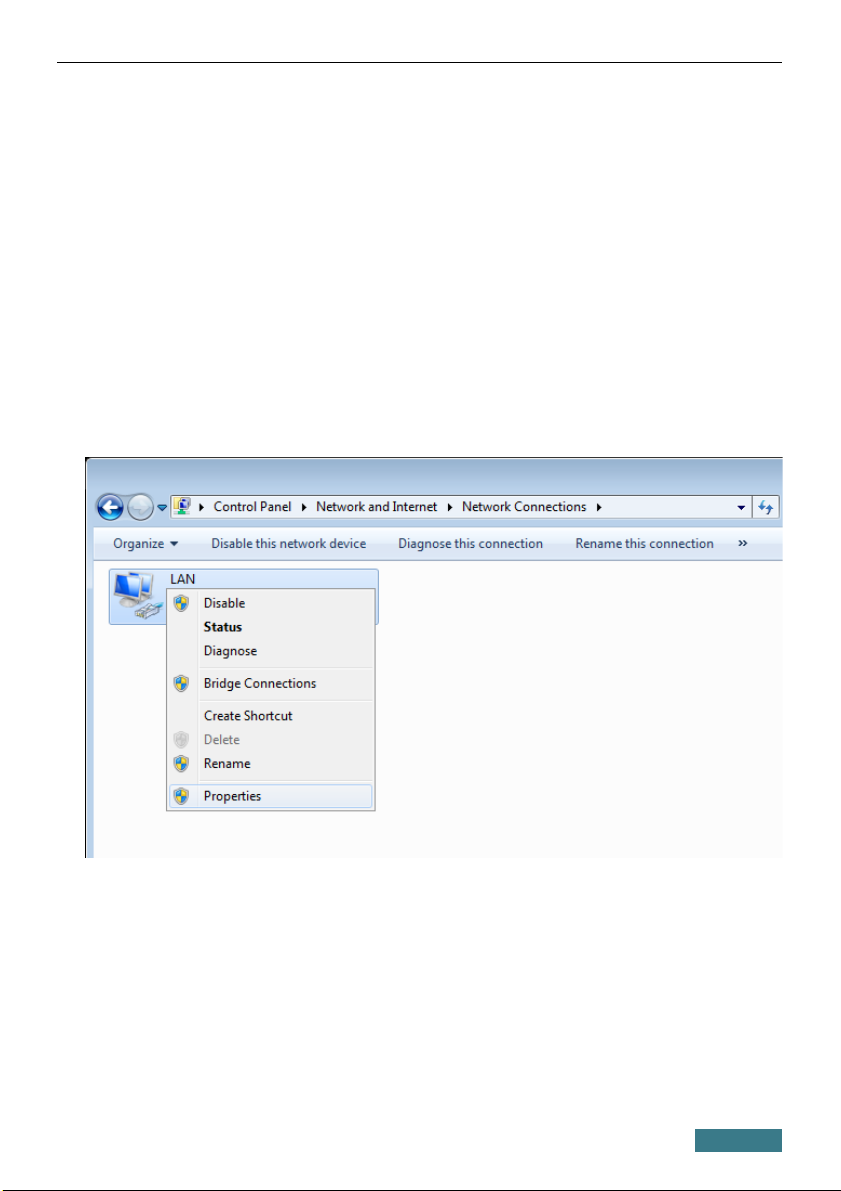

4. In the opened window, right-click the relevant Local Area Connection
icon and select the Properties line in the men displayed.
5. In the Local Area Connection Properties window, on the
Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)
line. Click the Properties b tton.
7
DAP-1155 Quick Installation Guide
6. Select the Use the ollowing IP address radio b tton and enter the
val e 198.168.0.51 in the IP address field. The Subnet mask
field will be filled in a tomatically. Click the OK b tton.
7. Click the OK b tton in the connection properties window.
Now yo can connect to the web-based interface of DAP-1155 for config ring
all needed parameters. To gain access to an external network (to the Internet),
yo also need to specify the defa lt gateway and the addresses of DNS servers.
8
DAP-1155 Quick Installation Guide
PC with Wi-Fi Adapter
1. Connect the power cord to the power connector port on the back panel of
the access point, then pl g the power adapter into an electrical o tlet or
power strip.
2. T rn on yo r PC and wait ntil yo r operating system is completely
loaded.
3. T rn on yo r Wi-Fi adapter. As a r le, modern notebooks with b ilt-in
wireless NICs are eq ipped with a b tton or switch that t rns on/off the
wireless adapter (refer to yo r PC doc ments). If yo r PC is eq ipped
with a pl ggable wireless NIC, install the software provided with yo r
Wi-Fi adapter.
Now yo sho ld config re yo r Wi-Fi adapter.
9
DAP-1155 Quick Installation Guide
Configuring Wi-Fi Adapter in S Windows XP
1. Click the Start b tton and proceed to the Control Panel > Network
and Internet Connections > Network Connections window.
2. In the Network Connections window, right-click the relevant
Wireless Network Connection icon. Make s re that yo r Wi-Fi
adapter is on, then select the Properties line in the men displayed.
3. In the Wireless Network Connection Properties window, on the
General tab, select the Internet Protocol (TCP/IP) line. Click the
Properties b tton.

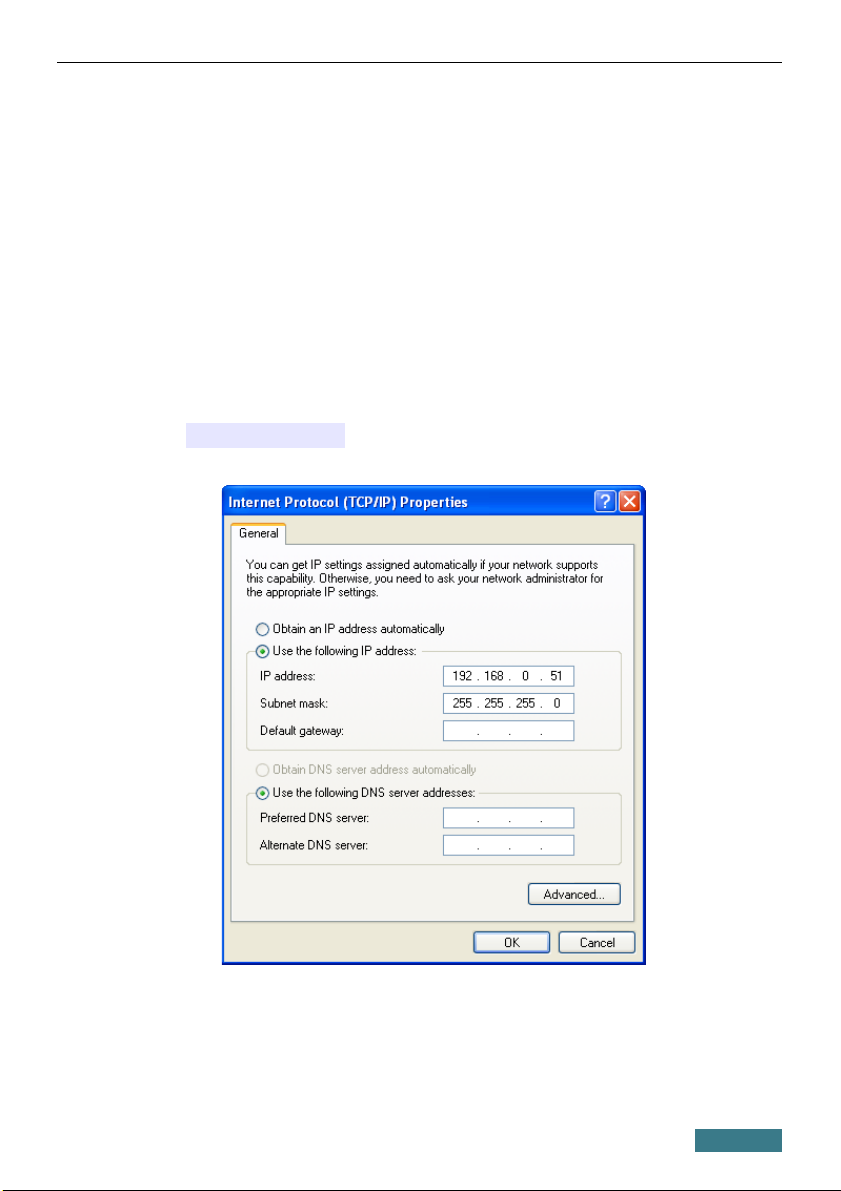

4. Select the Use the ollowing IP address radio b tton and enter the
val e 198.168.0.51 in the IP address field. The Subnet mask
field will be filled in a tomatically. Click the OK b tton.
5. Click the ОК b tton in the connection properties window.
10
