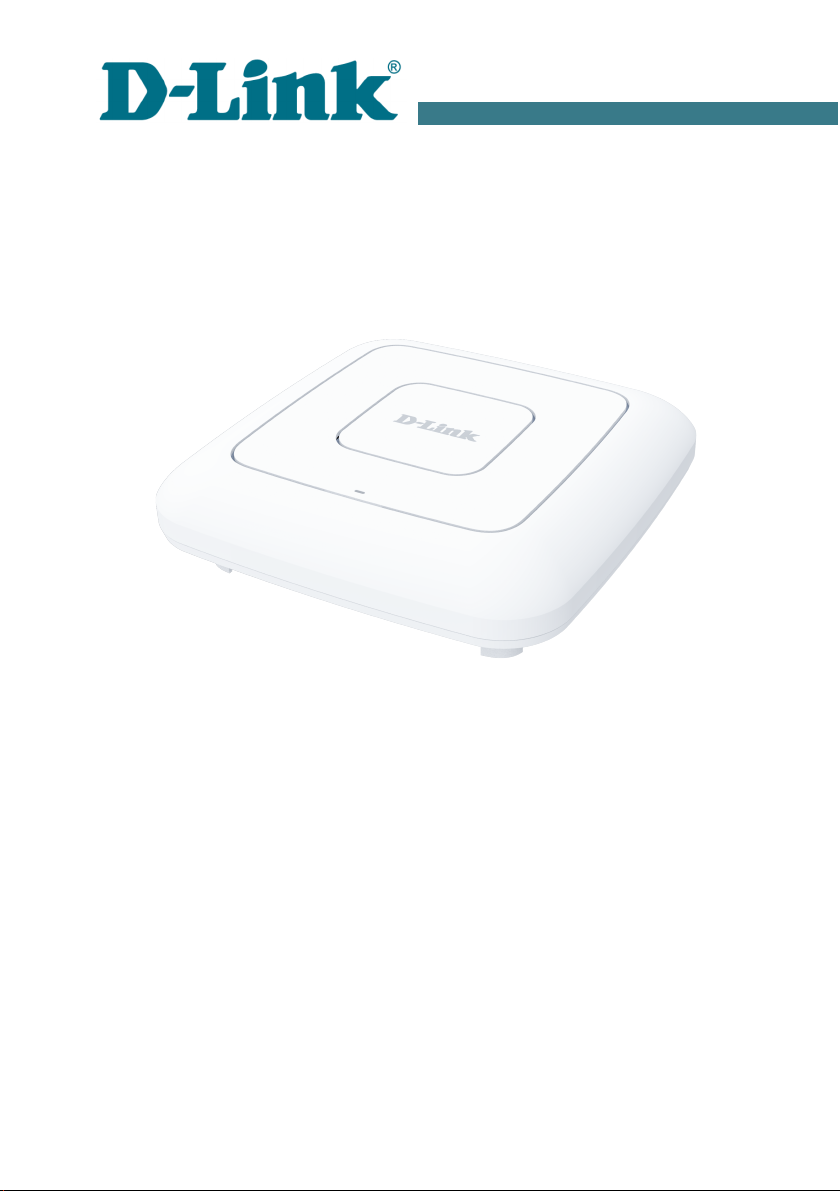

Quick Installation Guide

DAP-600P

Wireless AC2600 Wave 2 MU-MIMO Dual Band PoE

Access Point / Router

DAP-600P Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Access point DAP-600P

•Wall mounting bracket with mounting kit

•“Quick Installation Guide” (brochure).

f any of the items are missing, please contact your reseller.

The “User Manual” and “Quick Installation Guide” documents are available

on D-Link website (see www.dlink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

DAP-600P Quick Installation Guide

Default Settings

IP add ess of device 192.168.0.50

Use name (login) admin

Passwo d admin

Name of wi eless netwo k

(SSID)

2.4GHz DAP-600P

5GHz DAP-600P-5G

Netwo k key (PSK passwo d)

see WPS P N on the barcode

label on the bottom panel of

the device

DAP-600P Quick Installation Guide

System Requirements and Equipment

•A computer with any operating system that supports a web browser.

•A web browser to access the web-based interface of the access point:

◦Apple Safari 8 and later

◦Google Chrome 48 and later

◦Microsoft nternet Explorer 10 and later

◦Microsoft Edge 20.10240 and later

◦Mozilla Firefox 44 and later

◦Opera 35 and later.

•A N C (Ethernet or Wi-Fi adapter) to connect to the access point.

•An 802.11a, b, g, n, or ac Wi-Fi adapter to create a wireless network.

DAP-600P Quick Installation Guide

CONNECTING TO PC

PC with Ethernet Adapter

1. Сonnect an Ethernet cable between the LAN port of the access point and

the Ethernet port of your PC.

2. For a switch supporting PoE: connect an Ethernet cable between the

PoE-enabled switch and the WAN port of the access point.

3. For a switch not supporting PoE or router: connect an Ethernet cable

between the switch or router and any Ethernet port of the access point.

4. Connect the power adapter (not included in the delivery package) to the

power connector port on the back panel of the access point, then plug the

power adapter into an electrical outlet or power strip.

Now you need to configure an P address for the Ethernet adapter of your PC.

DAP-600P Quick Installation Guide

Configuring IP Address in S Windows 7

1. Click the Sta t button and proceed to the Cont ol Panel window.

2. Select the Netwo k and Sha ing Cente section. ( f the Control Panel

has the category view (the Catego y value is selected from the View by

drop-down list in the top right corner of the window), choose the View

netwo k status and tasks line under the Netwo k and Inte net

section.)

3. n the menu located on the left part of the window, select the Change

adapte settings line.

4. n the opened window, right-click the relevant Local A ea Connection

icon and select the P ope ties line in the menu displayed.

5. n the Local A ea Connection P ope ties window, on the

Netwo king tab, select the Inte net P otocol Ve sion 4 (TCP/IPv4)

line. Click the P ope ties button.

DAP-600P Quick Installation Guide

6. Select the Use the following IP add ess radio button and enter the

value 192.168.0.51 in the IP add ess field. The Subnet mask

field will be filled in automatically. Click the OK button.

7. Click the OK button in the connection properties window.

Now you can connect to the web-based interface of DAP-600P for configuring all

needed parameters. To gain access to an external network (to the nternet), you

also need to specify the default gateway and the addresses of DNS servers.

DAP-600P Quick Installation Guide

Configuring IP Address in S Windows 10

1. Click the Sta t button and proceed to the Settings window.

2. Select the Netwo k & Inte net section.

3. n the Change you netwo k settings section, select the Change

adapte options line.

4. n the opened window, right-click the relevant Local A ea Connection

icon and select the P ope ties line in the menu displayed.

5. n the Local A ea Connection P ope ties window, on the

Netwo king tab, select the Inte net P otocol Ve sion 4 (TCP/IPv4)

line. Click the P ope ties button.

DAP-600P Quick Installation Guide

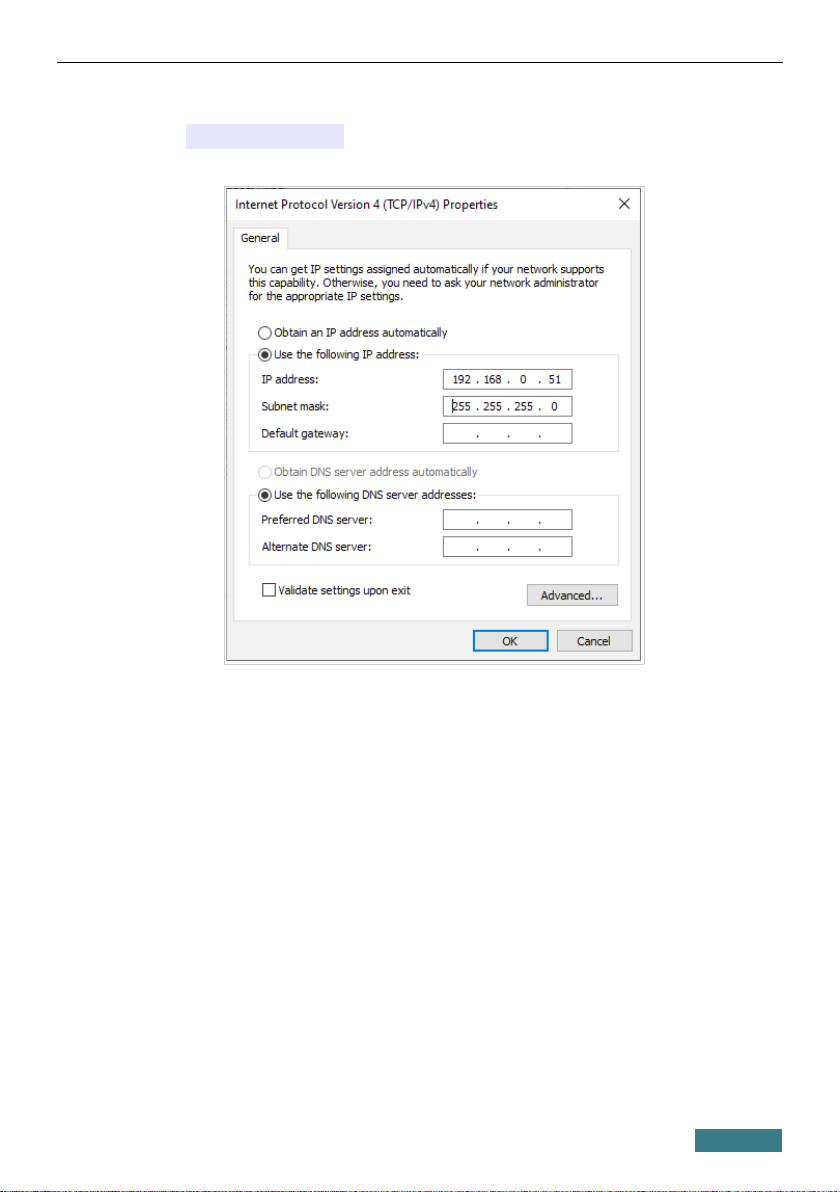

6. Select the Use the following IP add ess radio button and enter the

value 192.168.0.51 in the IP add ess field. The Subnet mask

field will be filled in automatically. Click the OK button.

7. Click the Close button in the connection properties window.

Now you can connect to the web-based interface of DAP-600P for configuring

all needed parameters. To gain access to an external network (to the nternet),

you also need to specify the default gateway and the addresses of DNS servers.

DAP-600P Quick Installation Guide

PC with Wi-Fi Adapter

1. For a switch supporting PoE: connect an Ethernet cable between the

PoE-enabled switch and the WAN port of the access point.

2. For a switch not supporting PoE or router: connect an Ethernet cable

between the switch or router and any Ethernet port of the access point.

3. Connect the power adapter (not included in the delivery package) to the

power connector port on the back panel of the access point, then plug the

power adapter into an electrical outlet or power strip.

4. Make sure that the Wi-Fi adapter of your PC is on. As a rule, modern

notebooks with built-in wireless N Cs are equipped with a button or

switch that turns on/off the wireless adapter (refer to your PC

documents). f your PC is equipped with a pluggable wireless N C, install

the software provided with your Wi-Fi adapter.

Now you should configure your Wi-Fi adapter.
