Before You Begin

Check Your Package Contents

DWL-7100AP Wireless Access Point

CD-ROM (containing Manual and Warranty)

Ethernet Cable

If any of the above items are missing, please contact your reseller.

The default IP address for the DWL-7100AP is 192.168.0.50 with a subnet mask of

255.255.255.0. For the purpose of configuring the DWL-7100AP you will need to assign

your computer a static IP address within the same range as the DWL-7100AP’s IP

address. See the Manual on the CD-ROM if you need assistance in assigning a

static IP address for your network adapter.

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

DWL-7100AP

D-Link

Air

PremierTM AG

Tri-mode Dualband Wireless

Access Point

Connecting The DWL-7100AP To Your

Network

A. First, connect the power adapter to the receptor at the back panel of

the DWL-7100AP and then plug the other end of the power adapter

to a wall outlet or power strip. The Power LED will turn ON to indicate

proper operation.

B. Insert an Ethernet cable into the LAN port on the back panel

of the DWL-7100AP and an available Ethernet port on the network

adapter in the computer you will use to configure the DWL-7100AP. The

Link LED for the LAN Port will illuminate to indicate a proper connection.

C. Computers with 802.11a/b/g wireless adapters can connect to the

DWL-7100AP. The DWL-AG650 AirXpertTM Wireless Cardbus Adapter

and the DWL-AG520 AirXpertTM Wireless PCI Adapter will connect, out of

the box, with the DWL-7100AP, using their default settings.

A. Receptor for

Power Adapter.

Reset Button

Pressing this button restores

the access point to its original

factory default settings.

B. LAN Port is for

connecting to a switch

on the local network

with an Ethernet cable

C. Antennas

Used to wirelessly

connect to 802.11a/b/g

adapters.

Using The Setup Wizard

When you have completed

the steps in this Quick

Installation Guide, your

connected network should

look similar to this:

Open your Web

browser and type

“http://192.168.0.50”

into the URL address

box. Then press the

Enter or Return key.

The logon pop-up

screen will appear.

Type “admin” for the

username and leave the

password field blank.

Click OK

Using The Setup Wizard (continued)

Once you have

logged in, the Home

screen will appear.

You will see the

following screens.

Click Run Wizard

Click Next

Step 1 - Set up your

new password. You

have the option to

establish a password.

Click Next

Step 2 - Wireless LAN

802.11a Setup

The default wireless

settings are:

SSID = default

Channel = 52

You can change these

settings to match an

existing wireless network.

Step 3 - WEP Encryption

for 802.11a

TheDWL-7100AP is capable

of 64-, 128-, and 152-bit

encryption. Select the key

size you wish to use and

enter the key in the field

provided. By default, WEP is

Disabled.

Your Setup is Complete!

Click Next

Click Restart

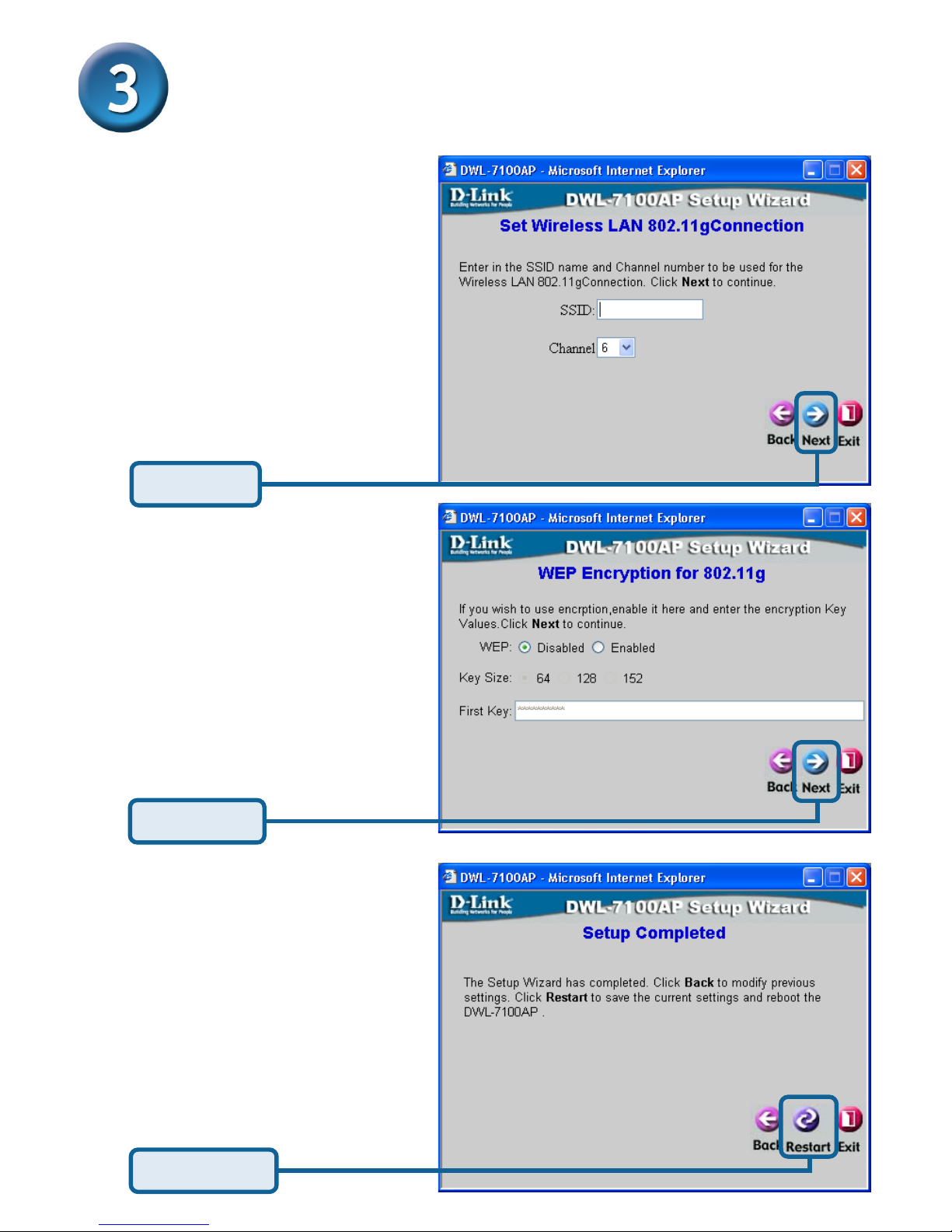

Step 2 - Wireless LAN

802.11g Setup

The default wireless

settings are:

SSID = default

Channel = 6

You can change these

settings to match an

existing wireless network.

Step 3 - WEP Encryption

for 802.11g

The DWL-7100AP is

capable of 64-, 128-, and

152-bit encryption. Select

the key size you wish to

use and enter the key in

the field provided. By

default, WEP is Disabled.

default

You will be returned to the Home tab.

Click to Exit

For additional settings or information, refer to the Advanced, Tools,

or Status tabs on the web-management interface; or to the manual

located on the CD-ROM.

•For managing several DWL-7100APs, please utilize the

D-Link AirPremierTM AG Access Point Manager. For the latest

version of the firmware or AP manager please go to

http://support.dlink.com

Technical Support

You can find software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States and

within Canada for the duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link technical support through our

website, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877) 453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800) 361-5265

Monday to Friday 8:30am to 9:00pm EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]
