D-Link AirPro DI-764 Manuale utente

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6.0, Netscape

Navigator 6.2.3.

DI-764

2.4/5GHz Multimode

Wireless Router

5V DC, 3A Power Adapter

If any of the above items are missing, please contact your reseller.

specifications subject to change without notice. DI-764.09052002

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with other

computers, you must have either an Ethernet-based Cable or DSL modem with an

established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your modem for configuring

the DI-764 Multimode Wireless Router. The DI-764 acts as a DHCP Server by

default and will assign all the necessary IP address information on your network.

See Appendix at the end of this Quick Installation Guide or the Manual on the

CD-ROM for setting each network adapter to automatically obtain an IP

address.

Check Your Package Contents

DI-764 Multimode Wireless Router

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP/Straight Through) Cable

Using a power

supply with a

different voltage rating

will damage and void

the warranty for this

product.

Connecting The DI-764 Multimode

Wireless Router To Your Network

A. First, connect the power adapter to the receptor at the back panel of

the DI-764 and then plug the other end of the power adapter to a wall

outlet or power strip. The Power LED will turn ON to indicate proper

operation.

B. Insert one end of an Ethernet cable to the WAN port on the back panel

of the DI-764 and the other end to the Ethernet port located on your

Cable or DSL modem. The WAN LED light will illuminate to indicate

proper connection.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the DI-764

and an available Ethernet port on the network adapter in the computer

you will use to configure the DI-764. The LED light for LAN Port 1 will

illuminate to indicate proper connection. (Note: Some computers already

have network adapters pre-installed.)

D. Computers equipped with 802.11a wireless adapters will be able to

connect to the DI-764. The DWL-A650 AirPro Wireless Cardbus Adapter

and the DWL-A520 AirPro Wireless PCI Adapter will be able to connect

out of the box with the router using their default wireless settings.

Computers equipped with 802.11b wireless adapters will be able to

connect to the DI-764. The DWL-650+ AirPlus Wireless Cardbus Adapter

and the DWL-520+ AirPlus Wireless PCI Adapter will be able to connect

out of the box with the router using their default wireless settings.

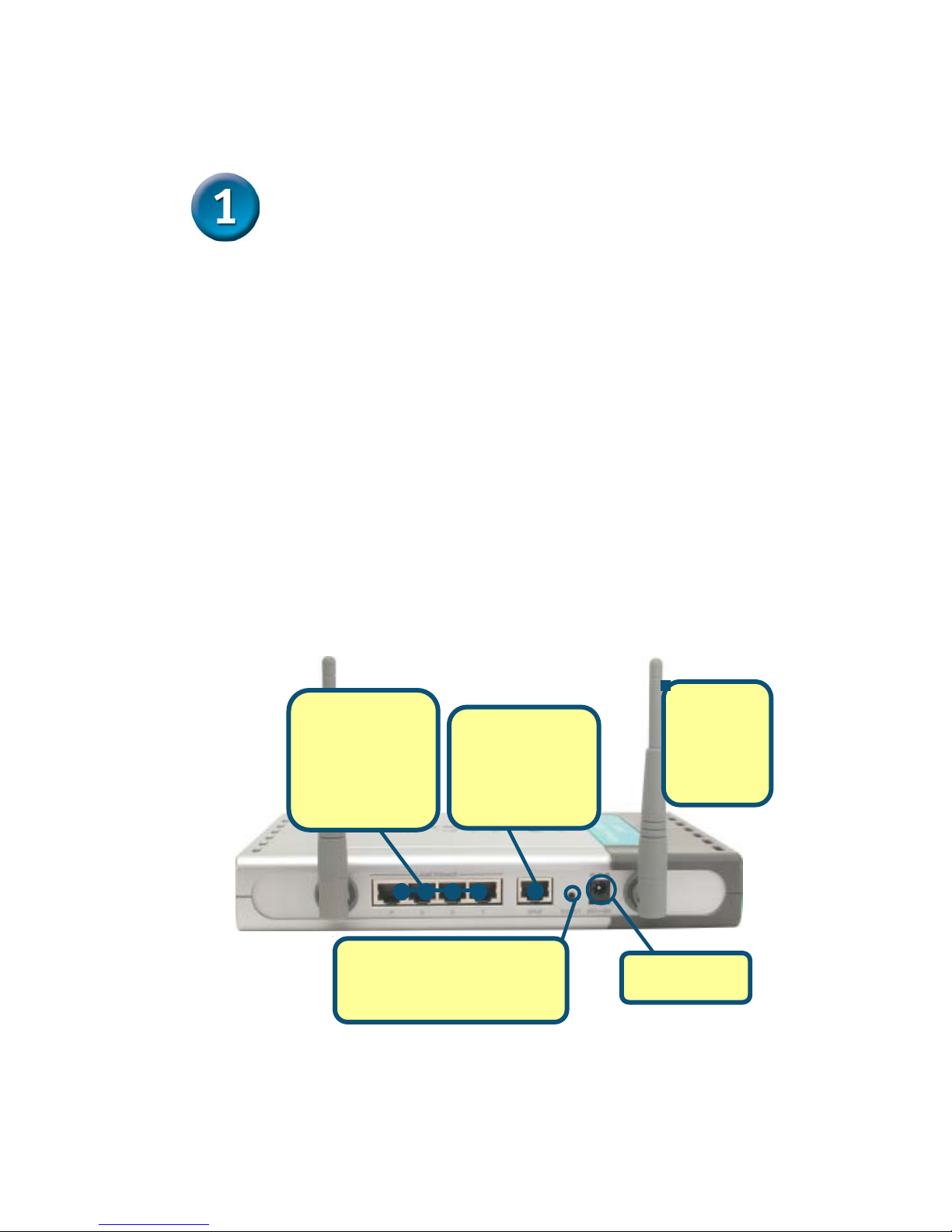

C.LAN Ports

These are the

connections for

Ethernet cables to

your Ethernet-

enabled

computers.

.Receptor for

Power Ada

ter

D.Antennas

Used to

wirelessly

connect to

802.11a & b

adapters.

Reset Button

Pressing this button restores

the router to its original factory

default settings.

B.WAN Port

This is the

connection for the

Ethernet cable to

the Cable or DSL

Modem.

Restart Your Computer

Connecting Additional Computers To

The DI-764

Using additional Ethernet (CAT5 UTP) cables, connect your

Ethernet-equipped computers to the remaining Ethernet LAN ports

on the back panel of the DI-764

M1 LED – a solid

light indicates

that the DI-764 is

ready.

POWER LED – a

solid light indicates a

proper connection to

the power supply

WAN LED – a

solid light indicates

connection on the

WAN port. This

LED blinks during

data transmission.

M2 LED – A solid light indicates

that the unit is defective.

LOCAL NETWORK

LEDs – a solid light

on the port indicates a

connection to an

Ethernet enabled

computer on ports 1-4.

This LED blinks during

data transmission.

11a/11b Wireless

LEDs – a solid light

indicates that the

wireless segment is

ready. These LEDs

blink during wireless

data transmission.

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Using The Setup Wizard

Open your Web

browser and type

“http://192.168.0.1” into

the URL address box.

Then press the Enter or

Return key.

Click OK

Type “admin” for the

username and leave the

password field blank.

The logon pop-up screen will appear.

The Setup Wizard (continued)

Click Run Wizard

Once you have

logged in, the

Home screen

will appear.

You will see the following

screens

Click Next

Step 1 - Set up your new

password.You have the

option to establish a

password.

Click Next

The Setup Wizard (continued)

Step 2 - Choose your

time zone. You will be

prompted to select the

your time zone for your

router

Click Next

Step 3 – Select your Internet Connection. You will be

prompted to select the type of Internet connection for your router.

Select one of

these settings

Click Next

If you are unsure of which setting to

select, please contact your Internet

Service Provider.

The Setup Wizard (continued)

Click the “Clone MAC

Address” button to

automatically copy the MAC

address of the network adapter

in your computer. You can also

manually type in the MAC

address.

What is a MAC address? Each

network adapter has a discrete

Media Access Control (MAC)

address. Note that some computers

and peripherals may already include

built-in network adapters.

Click Next

If you selected Dynamic IP

Address, this screen will

appear:

Enter the IP address

information originally

provided to you by your ISP.

You will need to complete all

the required fields.

Click Next

If your ISP requires a Static

IP Address, and this option

is selected, then this

screen will appear:

The Setup Wizard (continued)

Enter in the username

and password provided

to you by your ISP.

Click Next

Please be sure

to remove any

existing PPPoE client

software installed on

your computers.

If your ISP uses PPPoE

(Point-to-Point Protocol

over Ethernet), and this

option is selected, then

this screen will appear:

Click Next

Step 4 – Wireless

Setup.

The default wireless

settings for your 802.11a

wireless network are:

SSID = default

Channel = 52

Turbo Mode = Off

Click Next

You can change these

settings to match an

existing wireless network.

The Setup Wizard (continued)

If you wish to use encryption

for your 802.11a network,

the DI-764 is capable of

three levels of wireless

encryption - 64-bit, 128-bit,

and 152-bit. By default the

encryption is disabled.

You can change the encryp-

tion settings for more secure

wireless communication.

Click Next

The default wireless settings

for your 802.11b wireless

network are:

SSID = default

Channel = 6

You can change these

settings to match an existing

wireless network.

Click Next

The Setup Wizard (continued)

If you wish to use

encryption for your

802.11b network, the DI-

764 is capable of three

levels of wireless

encryption - 64-bit, 128-

bit, and 256-bit. By

default the encryption

is disabled. You can

change the encryption

settings for more secure

wireless communication.

Click Next

Your Setup is Complete!

Click Restart
