Chapter 1 Introduction

Congratulations on your purchase of DI-713 Wireless Broadband Router. The DI-713 is

specifically designed for Small Office and Home Office needs. It provides a complete

solution for Internet surfing, and it is easy to configure and operate for even non-technical

users. Instructions for installing and configuring the DI-713 can be found in this manual.

Before you install and use the DI-713, please read this manual carefully to fully

understand the functions of the DI-713.

1.1 Functions and Features

High speed Wireless LAN connection

11Mbps data rate by incorporating Direct Sequence Spread Spectrum (DSSS).

Roaming

Provides seamless roaming within the IEEE 802.11b WLAN infrastructure.

IEEE 802.11b*compatible

Allowing inter-operation among multiple vendors.

Auto fallback

11M, 5M, 2M, 1M data rate with auto fallback.

Broadband modem and IP sharing

Connects multiple computers to a broadband (Cable or DSL) modem or an

Ethernet router to share the Internet connection.

Auto-sensing Ethernet Switch

Equipped with a 3-port 10/100 auto-sensing Ethernet switch.

VPN supported

Supports multiple PPTP sessions and allows setup of a VPN server and VPN

clients.

Firewall

All unwanted packets from outside intruders are blocked to protect your

Intranet.

DHCP server supported

All of the networked computers can retrieve TCP/IP settings automatically from

the DI-713.

Web- based configuring

Configurable through any networked computer’s web browser using Netscape

or Internet Explorer.

Access Control supported

Allows you to assign different access rights for different users.

Virtual Server supported

Enables you to expose WWW, FTP and other services on your LAN to be

accessible to Internet users outside of you LAN.

User-Definable Application Sensing Tunnel

User can define the attributes to support the special applications requiring

REV: 101404 2

multiple connections, like Internet gaming, video conferencing, Internet

telephony and so on, then the DI-713 can sense the application type and open a

multi-port tunnel for it.

DMZ Host supported

Lets a networked computer to be fully exposed to the Internet; this function is

used when the special application sensing tunnel feature is insufficient to allow

an application to function correctly.

1.2 Packing List

One DI-713 wireless broadband router unit

One power adapter

Two CAT-5 UTP Straight-through Fast Ethernet cable

One CD with HTML Quick Installation Guide and PDF User’s Manual

One Quick Installation Guide

REV: 101404 3

Chapter 2 Hardware Installation

2.1 Panel Layout

2.1.1. Front Panel

The front panel features three 10/100 Mbps Ethernet ports, one Wide Area network

(WAN) port and diagnostic LED indicators. The WAN port connects your DSL or cable

modem to the router. The LAN ports are used to connect to your computers or other

network devices. LEDs monitor the status of each port.

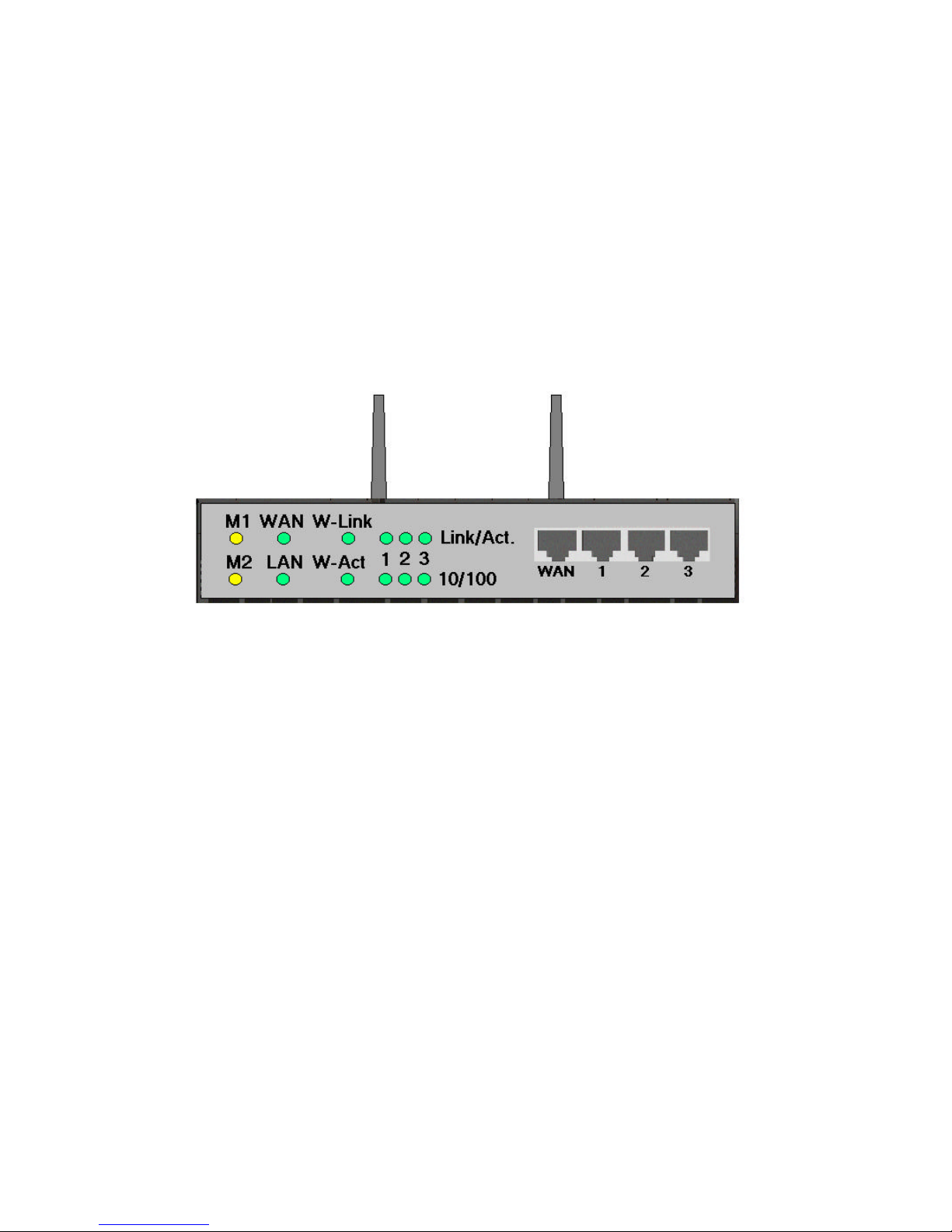

Figure 2-1 Front Panel

Port:

WAN: the port where you will connect your Cable or DSL modem or Ethernet router.

Port 1-3: the ports where you will connect networked computers and other devices.

REV: 101404 4

LED:

LED Function Color Status Description

M1 System status 1 Orange Blinking The DI-713 is functioning

properly

On The DI-713 is working for some

service

M2 System status 2 Orange

Blinking The DI-713 is being configured

or upgraded. Don’ t turn it off !

On The WAN port is linked

WAN WAN port

activity Green Blinking The WAN port is sending or

receiving data

On The LAN port is linked

LAN LAN port

activity Green Blinking The LAN port is sending or

receiving data

W-Link Backbone

activity Green Blinking Sending or receiving data from

wireless to wired backbone

W-Act Wireless activity Green Blinking Sending or receiving data via

wireless

On An active station is connected to

the corresponding LAN port.

Link/Act.

1~3 Link status Green

Blinking The corresponding LAN port is

sending or receiving data

10/100

1~3 Data Rate Green On Data is transmitting in 100Mbps

on the corresponding LAN port.

REV: 101404 5

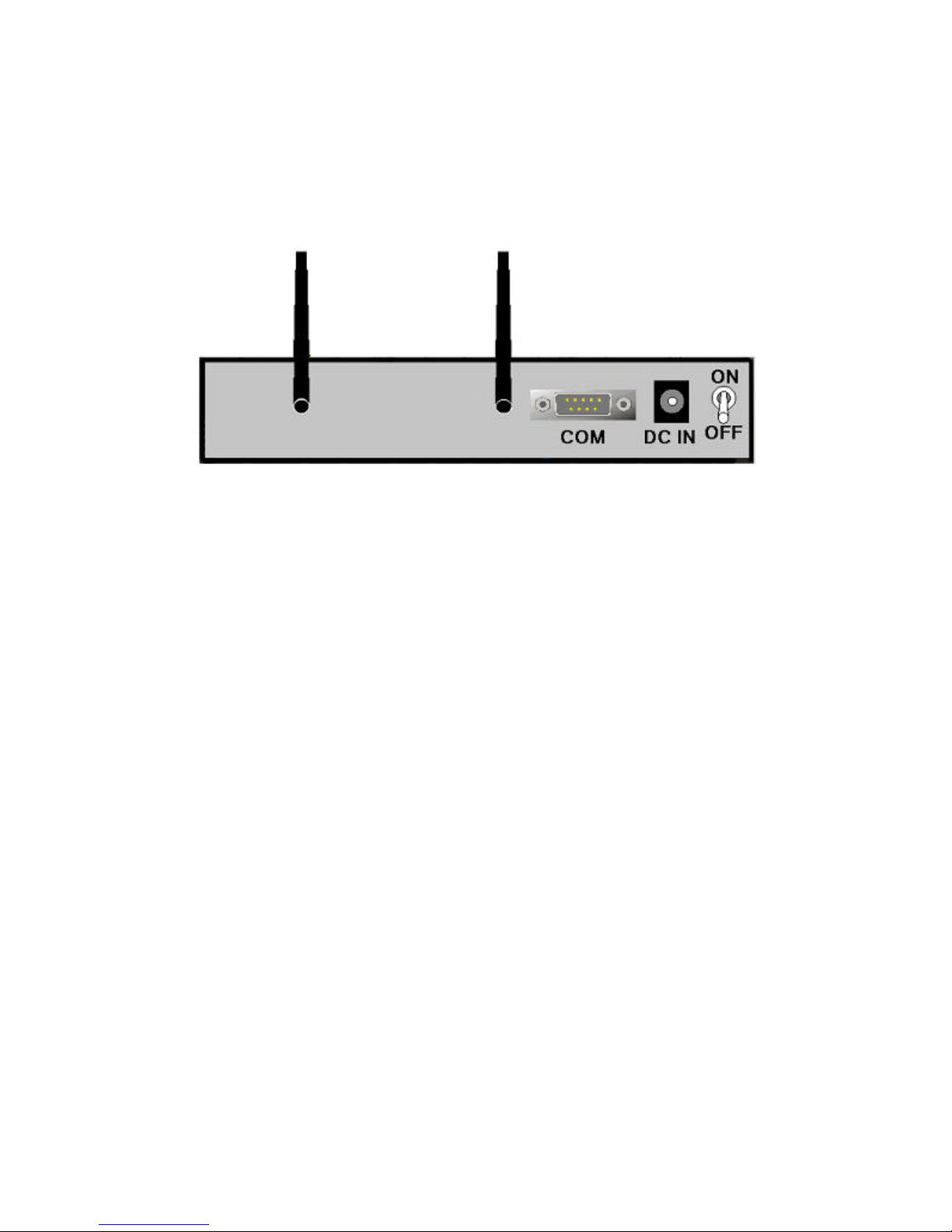

2.1.2. Rear Panel

Figure 2-2 Rear Panel

Ports:

Port Description

ON/OFF Power switch

DC IN Power inlet (DC 5V)

COM Serial port (connect analog modem or console cable)

2.2 Procedure for Hardware Installation

1. Decide where to place your Wireless Broadband Router:

You can place your Wireless Broadband Router on a desk or other secure surface, or

you can mount it on a wall. For optimal performance, place your Wireless Broadband

Router in the center of your office (or your home) in a location that is away from any

potential source of interference, such as a metal wall or microwave oven. This

location must be close to power and a network connection.

REV: 101404 6

2. Setup LAN connection:

a. Wired LAN connection: connect an Ethernet cable from your computer’s Ethernet

port to one of the LAN ports of the DI-713.

b. Wireless LAN connection: make sure the antennas are in a vertical position (if not,

rotate over 90 degrees).

3. Setup WAN connection: prepare an Ethernet cable for connecting the DI-713 to your

cable/xDSL modem or Ethernet backbone. Figure 2-3 illustrates the WAN

connection.

Figure 2-3 Setup of LAN and WAN connections for the DI-713.

REV: 101404 7

4. Power on:

Connect the power cord to a power outlet and turn the power switch to the on

position; the DI-713 will automatically enter the self-test phase. When it is in the self-

test phase, the indicators M1 and M2 will be lit for about 10 seconds, and then M1

and M2 will flash 3 times to indicate that the self-test operation has finished. Finally,

the M1 will continuously flash once per second to indicate that the DI-713 is in

normal operation.

REV: 101404 8

Chapter 3 Network Settings

To use the DI-713 correctly, you must properly configure the network settings of your

computers.

3.1 Make Correct Network Settings to the Computer

The default IP address of the DI-713 is 192.168.0.1, and the default subnet mask is

255.255.255.0. These addresses can be changed to meet your need, but the default values

are used in this manual. If the TCP/IP environment of your computer has not yet been

configured, you can refer to Appendix B to configure it. For example,

1. configure IP as 192.168.0.5, subnet mask as 255.255.255.0 and gateway as

192.168.0.1, or,

2. configure your computers to load TCP/IP setting automatically, that is, via DHCP

server built into the DI-713.

After installing the TCP/IP communication protocol, you can use the ping command to

check if your computer has successfully connected to the DI-713. The following example

shows the ping procedure for Windows 95 platforms. First, execute the ping command

from a DOS window

ping 192.168.0.1

If the following messages appear:

Pinging 192.168.0.1 with 32 bytes of data:

Reply from 192.168.0.1: bytes=32 time=2ms TTL=64

a communication link between your computer and the DI-713 has been successfully

established. Otherwise, if you get the following messages,

Pinging 192.168.0.1 with 32 bytes of data:

Request timed out.

there must be something wrong with the installation. Follow the steps again to make sure

the network settings are correct. You should check the following items in sequence.

1. Is the Ethernet cable correctly connected between the DI-713 and your computer?

Tip: The LAN LED of the DI-713 and the link LED of network card on your

computer must be lit.

2. Is the TCP/IP environment of your computers properly configured?

Tip: If the IP address of the DI-713 is 192.168.0.1, the IP address of your computer

must be 192.168.0.X and default gateway must be 192.168.0.1.
