D-Link DSL-2650U Manuale utente

Quick Installation Guide

DSL-2650U

3G/ADSL/Ethernet Router with Wi-Fi

and Built-in Swit h

DSL-2650U Quick Installation Guide

BEFORE YOU BEGI

Delivery Package

•Router DSL-2650U

•Power adapter DC 12V/1A

•RJ-11 telephone ca le

•Ethernet ca le (CAT 5E)

•Splitter

•“Quick Installation Guide” ( rochure).

If any of the items are missing, please contact your reseller.

The “User Manual” and “Quick Installation Guide” documents in Russian

and English are availa le on D-Link we site (see ftp.dlink.ru/pu /ADSL/DSL-

2650U/Description/).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

Default Settings

IP address of router 192.168.1.1

Username (login) admin

Password admin

ame of wireless network (SSID) DSL-2650U

DSL-2650U Quick Installation Guide

System Requirements and Equipment

•A computer with any operating system that supports a we rowser.

•A we rowser to access the we - ased interface of the router: Windows

Internet Explorer, Mozilla Firefox, or Opera.

•A NIC (Ethernet or Wi-Fi adapter) to connect to the router.

•A 802.11 , g, or n Wi-Fi adapter to create a wireless network.

•A 3G USB modem to connect to the Internet via 3G GSM or CDMA

network1.

Your USB modem should e equipped with an active identification

card (SIM or R-UIM) of your operator.

For CDMA USB modems, it is required to disa le the PIN code check

on the identification card prior to connecting the USB modem to the

router.

1 Contact your operator to get information on the service coverage and fees.

DSL-2650U Quick Installation Guide

Supported USB Modems

GSM modems:

•Huawei E150

•Huawei E1550

•Huawei E160G

•Huawei E169G

•Huawei E220

•ZTE MF112

•ZTE MF626

•ZTE MF627.

CDMA modems2:

•Airplus MCD-650

•Airplus MCD-800

•AnyDATA ADU-300A

•AnyDATA ADU-310A.

!The manufacturer does not guarantee proper operation of the router

with every modification of the firmware of USB modems.

2 Performance of CDMA USB modems is not tested for the current firmware version.

DSL-2650U Quick Installation Guide

CO ECTI G TO PC

PC wit Et ernet Adapter

1. Make sure that your PC is powered off.

2. Connect an Ethernet ca le etween any of four Ethernet ports located on

the ack panel of the router and the Ethernet port of your PC.

3. To connect via 3G network: connect your USB modem to the USB port3

located on the ack panel of the router.

!If you need to connect or change a USB modem to another one when

the router is powered on, power off the router, connect the modem to

the USB port, and power on the router.

4. To connect the router to a DSL line: connect a phone ca le etween the

DSL port of the router and the ADS OUT port of the splitter. Connect

your phone to the PHONE port of the splitter. Then connect another

phone ca le etween a phone jack and the ADS IN port of the splitter.

5. To connect the router to an Ethernet line: connect the Ethernet ca le

etween any of four Ethernet ports located on the ack panel of the router

and the Ethernet line.

6. Connect the power cord to the power connector port on the ack panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

7. Turn on the router y pressing the ON/OFF utton on its ack panel.

8. Turn on your PC and wait until your operating system is completely

loaded.

Now you should configure your PC to o tain an IP address automatically (as

DHCP client).

3 It is recommended to use a USB extension ca le to connect a USB modem to the

router.

DSL-2650U Quick Installation Guide

Obtaining IP Address Automatically

in OS Windows XP

1. Click the Start utton and proceed to the Control Panel > etwork

and Internet Connections > etwork Connections window.

2. In the etwork Connections window, right-click the relevant Local

Area Connection icon and select the Properties line in the menu

displayed.

3. In the Local Area Connection Properties window, on the General

ta , select the Internet Protocol (TCP/IP) line. Click the Properties

utton.

DSL-2650U Quick Installation Guide

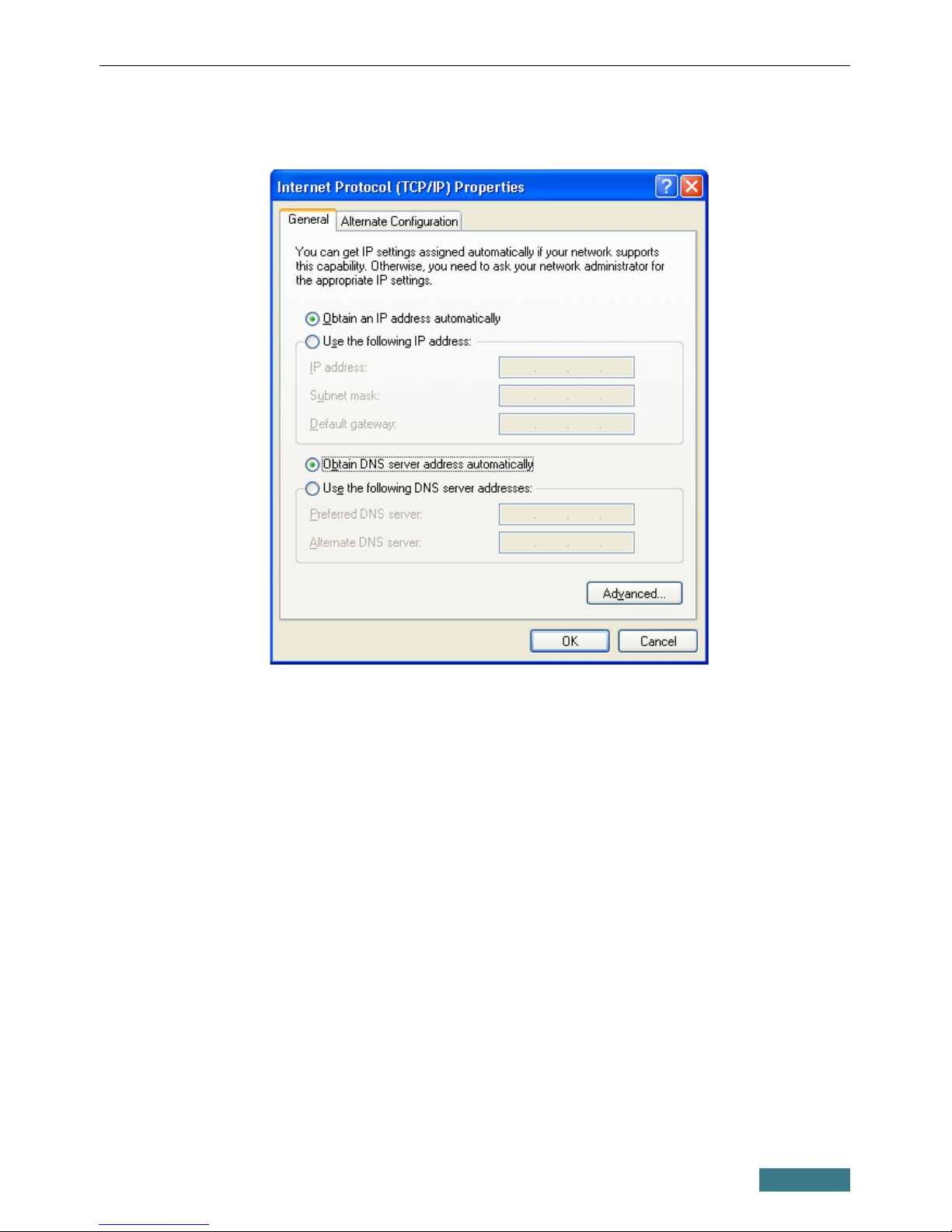

4. Select the Obtain an IP address automatically and Obtain D S

server address automatically radio uttons. Click the OK utton.

5. Click the ОК utton in the connection properties window.

Now your computer is configured to o tain an IP address automatically.

DSL-2650U Quick Installation Guide

Obtaining IP Address Automatically

in OS Windows 7

1. Click the Start utton and proceed to the Control Panel window.

2. Select the etwork and Sharing Center section. (If the Control Panel

has the category view (the Category value is selected from the View by

drop-down list in the top right corner of the window), choose the View

network status and tasks line under the etwork and Internet

section.)

3. In the menu located on the left part of the window, select the Change

adapter settings line.

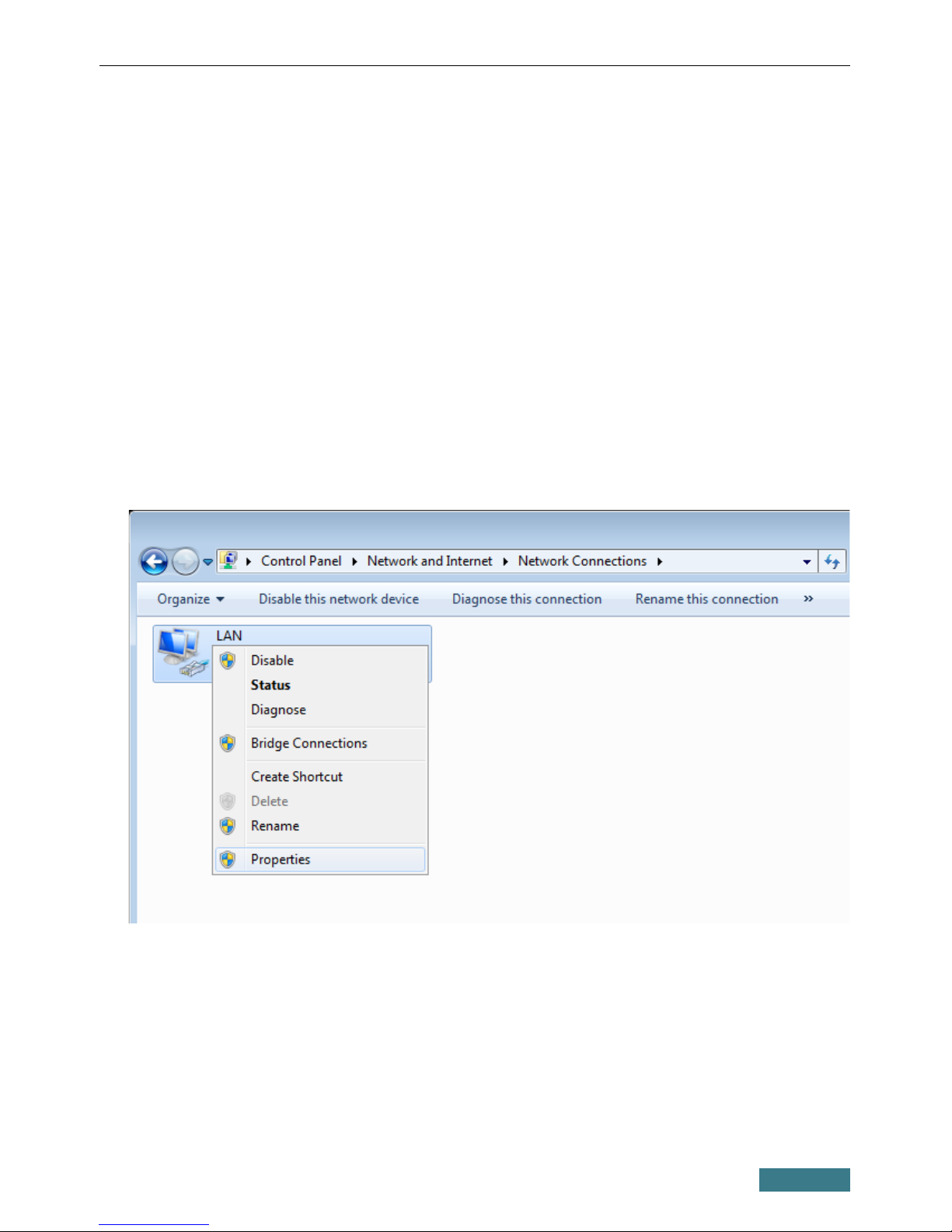

4. In the opened window, right-click the relevant Local Area Connection

icon and select the Properties line in the menu displayed.

5. In the Local Area Connection Properties window, on the

etworking ta , select the Internet Protocol Version 4 (TCP/IPv4)

line. Click the Properties utton.

DSL-2650U Quick Installation Guide

6. Select the Obtain an IP address automatically and Obtain D S

server address automatically radio uttons. Click the OK utton.

7. Click the OK utton in the connection properties window.

Now your computer is configured to o tain an IP address automatically.

DSL-2650U Quick Installation Guide

PC wit Wi-Fi Adapter

1. To connect via 3G network: connect your USB modem to the USB port4

located on the ack panel of the router.

!If you need to connect or change a USB modem to another one when

the router is powered on, power off the router, connect the modem to

the USB port, and power on the router.

2. To connect the router to a DSL line: connect a phone ca le etween the

DSL port of the router and the ADS OUT port of the splitter. Connect

your phone to the PHONE port of the splitter. Then connect another

phone ca le etween a phone jack and the ADS IN port of the splitter.

3. To connect the router to an Ethernet line: connect the Ethernet ca le

etween any of four Ethernet ports located on the ack panel of the router

and the Ethernet line.

4. Connect the power cord to the power connector port on the ack panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

5. Turn on the router y pressing the ON/OFF utton on its ack panel.

6. Turn on Wi-Fi y pressing the relevant utton on the ack panel of the

router.

7. Turn on your PC and wait until your operating system is completely

loaded.

8. Turn on your Wi-Fi adapter. As a rule, modern note ooks with uilt-in

wireless NICs are equipped with a utton or switch that turns on/off the

wireless adapter (refer to your PC documents). If your PC is equipped

with a plugga le wireless NIC, install the software provided with your

Wi-Fi adapter.

Now you should configure your Wi-Fi adapter.

4 It is recommended to use a USB extension ca le to connect a USB modem to the

router.
