D-MAX DCK-500B Manuale utente

DCK-500B

USER MANUAL

CONTROL KEYBOARD

1. Caution before installation ……………………………. 3

2. Features & Distinctions ………………………………... 5

1). Components ……………………………………………………………………………. 5

2). Summary & Features …………………………………………………………………. 6

3). Keyboard Functional Keys …………………………………………………………... 7

4). Junction Box …………………………………………………………………………… 9

3. How to Use in Detail ……………………………………. 10

1). Basic Connection ……………………………………………………………………… 10

2). How to set at Beginning ……………………………………………………………… 11

3). Control Mode Setup …………………………………………………………………… 19

1. PTZ Control Mode Setup and Functions ………………………………………….. 21

2. Setup for MATRIX Control Mode …………………………………………………… 27

3. Setup for Direct Mode ……………………………………………………………….. 29

4. Setup for DVR Control Mode ……………………………………………………….. 30

4). Other Detailed Functions …………………………………………………………….. 33

5). OSD Setup Mode ………………………………………………………………………. 33

6). Other Setup Mode ……………………………………………………………………... 34

4. More Cautions and Check Points ……………………. 37

5. Dimensions ……………………………………………… 39

6. SYSTEM Configuration ………………………………… 40

7. General Specifications ………………………………… 43

8. Quick Reference ………………………………………… 45

CONTENTS

1. Caution before installation

Thank you very much for having D-max keyboard. You are strongly required to study this

manual before installation. Facing problem or something you don’t understand while

using, please consult with your systems installers or service personnel.

Caution before Installation

Install the unit after you read following advice.

Avoid installing in places as below,

□Places with too much high or low temperatures

zExtreme temperatures will damage the unit.

zAlways use it within the recommended temperature range of 0℃to 40℃

□Where there are excessive dust, smoke, moisture or humidity.

zUsing this appliance under such conditions may result in fire, electrical

shock or other serious damage

□Where the unit can be blended with all kinds of oil or gas

zIt may cause the problem if you expose in those conditions.

□Places with vibration or impact

zExcessive shock may damage the appliance

□Do not place the appliance in direct sunlight

zIt may discolor the unit or cause a problem.

□Places with high frequency waves, power cables

zUsing the appliance under conditions such as electromagnetic waves

cause a problem.

Caution in use

Install the unit after you read following advice.

Avoid following acts,

□Do not try to disassemble the appliance or put any foreign element.

zIt may cause a problem.

□Turn the power off before installation.

zBefore you install the unit, please check the power voltage and turn the

switch on.

□Never have the unit impacted or operated.

zIf you expose the unit to the strong impact or if the button or terminal are

forced to operate, it will be damaged.

(Be careful in using the joystick in particular, if you put too much power on it

while moving left, right or zoom, it may be damaged)

This product has been designed and manufactured in accordance with the harmonized

European standards, following the provisions of the below stated directives.

Electromagnetic Compatibility Directive 89/336/EEC(EN61000-3-2:1995, EN61000-3-

3:1995, EN50081-1:1992, EN50082-1:1997)

This devise complies with part 15 of the fcc rules operation is subject to the following two

conditions: (1) This device may not cause harmful interference and (2) This device must

accept any interference received including interference that may cause undesired

operation

2. Features & Distinctions

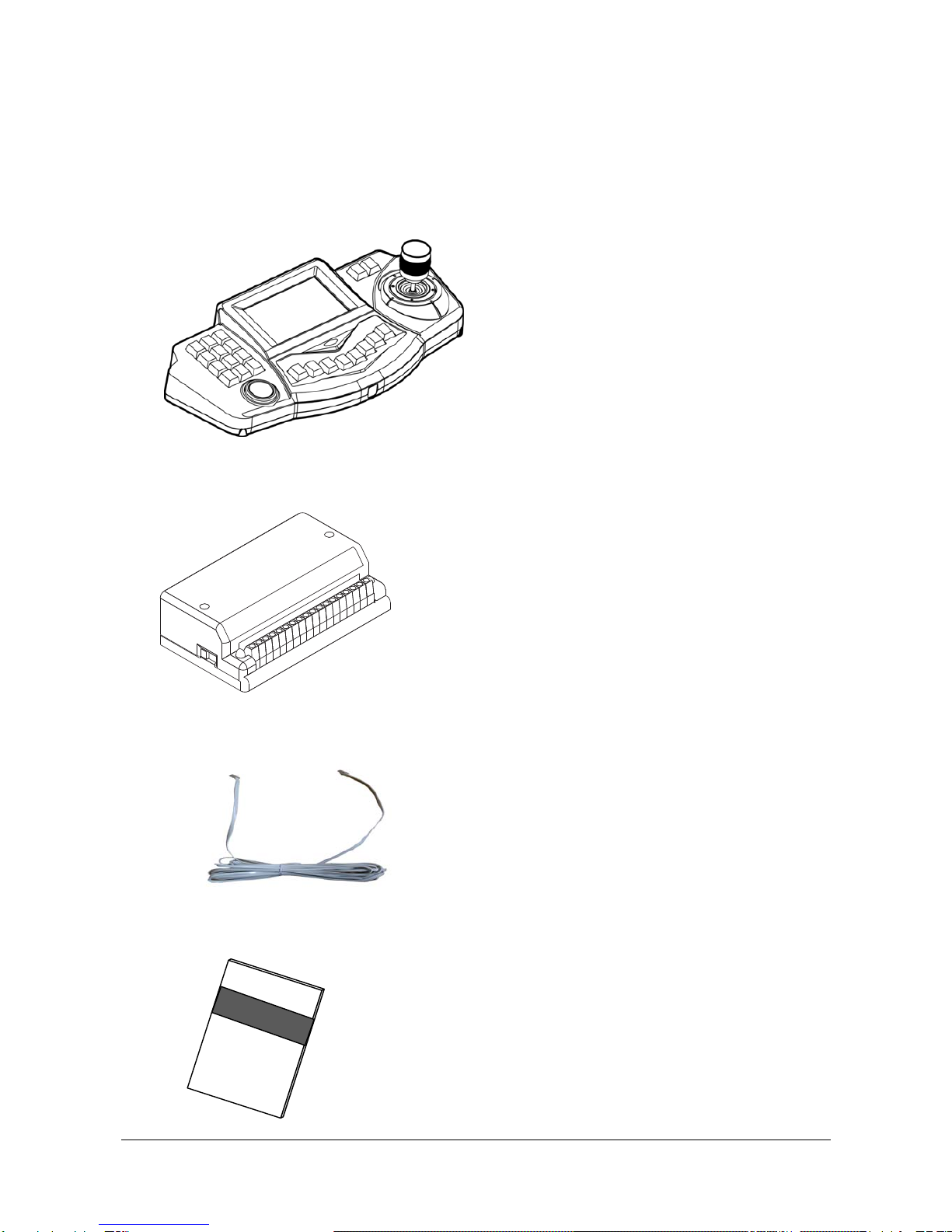

1). Components

① Body of the Keyboard

② Data Box (Junction Box)

③ Connector Cable (Modular jack)

④ User Manual

2). Summary & Features

1. Summary

This unit is a multiple CCTV control keyboard enables to control Speed Dome Camera, CCTV

Receiver, Matrix System, DVR and so on. You can set up a variety of functions of the speed

dome camera and make efficient use of the dome camera for better surveillance by gearing all

kinds of sensors.

This appliance can be used as a Matrix main(sub) keyboard, CCTV Transmitter main(sub)

keyboard at user’s option.

This manual is explaining only about controlling CCTV Transmitter, please refer to the matrix

manual for the detailed use of D-MAX Matrix system.

2. Features

• Locking monitor and camera control.

• Convenient control by 5.0 Inch Touch Screen

• Controls up to 512 cameras.

• Controls maximum 32 monitors (when connecting with matrix, DMX-25632)

• Controls maximum 99 DVR

• Pan/ Tilt/ Zoom controlled by 3-axis joystick.

• Max. 250 Preset widens the surveillance area.

• PAN/ TILT Swing (Auto Pan)

• 12 Group-Tour

• Set and Run the Tour

• Set and Run PTZ Trace.

• Set up on OSD menu of the camera.

• Set and Run Spiral.

• Gearing with alarm receiver unit

• Control H.264 DVR by Jog-shuttle & LCD Touch Screen

• Users with password only can set up the function.

• Set-up PTZ Camera, Monitor User’s Authority

• Display a live view for one channel on LCD screen

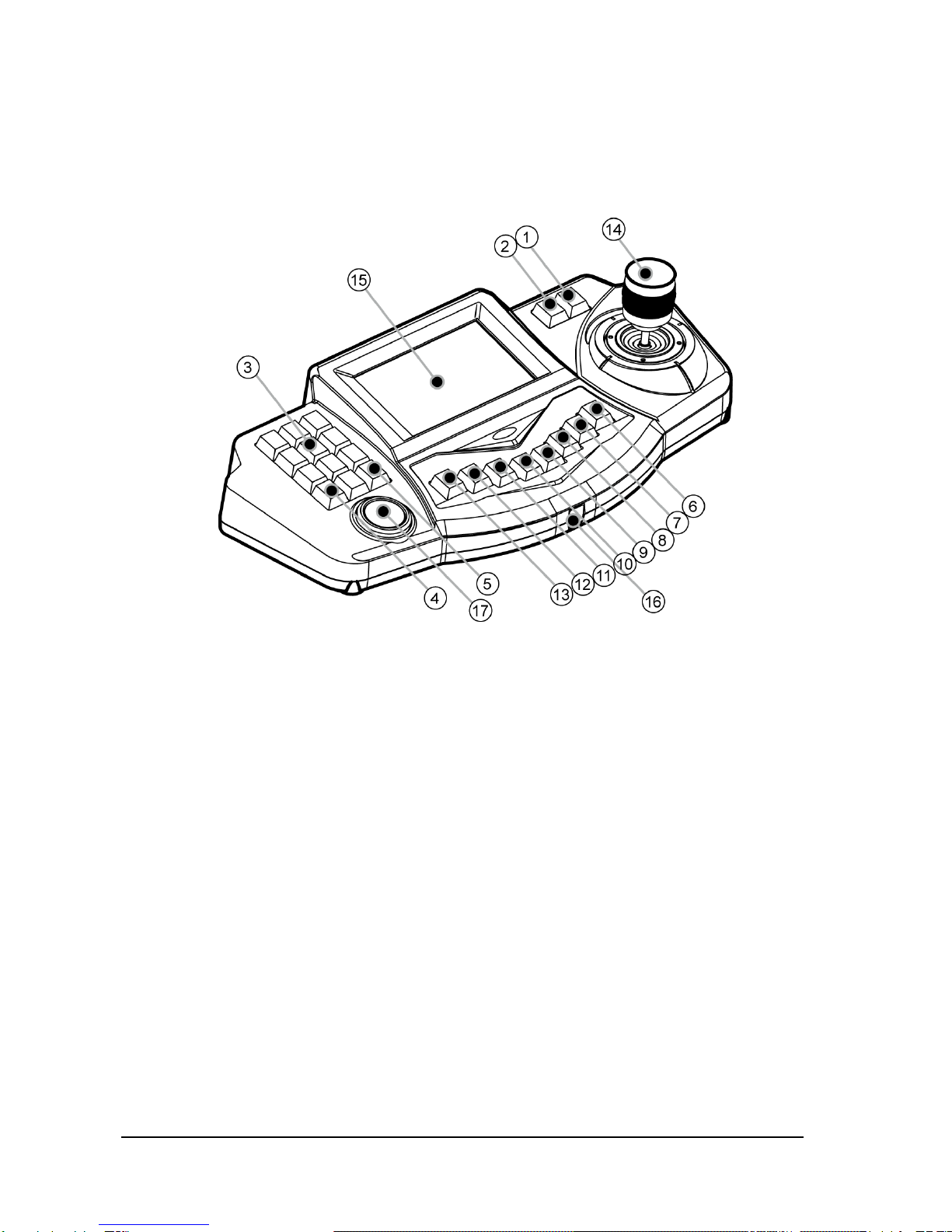

3). Keyboard Functional Keys

1. Upper Section

1) F/N : “Zoom In” function when use Zoom camera and “ESC (Escape)” function

2) F/F : “Zoom Out” function when use Zoom camera and “Confirm” function when set menu

3) Numeric keypad : used to input numerical value or other functions

4) CLR (CLEAR) : Used to cancel input command or number.

5) ENT (ENTER) : press this key to input command or save, run designated commands

6) SET : Use this key for camera Setup or Keyboard User’s Setup Mode.

7) P-SET : Used to set “PRESET”. Please study explanation of each section for more

detailed function.

8) MENU : This button is use to setup the function with number button. (Refer to function

guidance)

9) ALARM : activate or release the alarm when gearing dome camera with ARU (alarm

receiver unit)

10) WEB-MONITOR: If an Internet Option Board was installed into Matrix System, DVI signal

would be outgoing. In the future, it would be added the Control function of this.

11) DVR : Press this key to enter “DVR Control Mode” or select DVR by using numeric key

together.

12) MON : Selects monitor

13) CAM : Selects camera

14) Joystick: This joystick is used to control the pan/tilt/ zoom and move the cursor in the

OSD menu.

15) Color LCD (Screen): It has many different buttons for each function and supports real-

time Video.

16) Sensor: allows to remotely control keyboard with remote controller (soon be released)

17) Jog-shuttle: controls DVR

2. Rear Section

1) RJ-45 Connector: Connection Port with Junction Box & Matrix System

2) VIDEO Input Connector: Input Port for Video signal

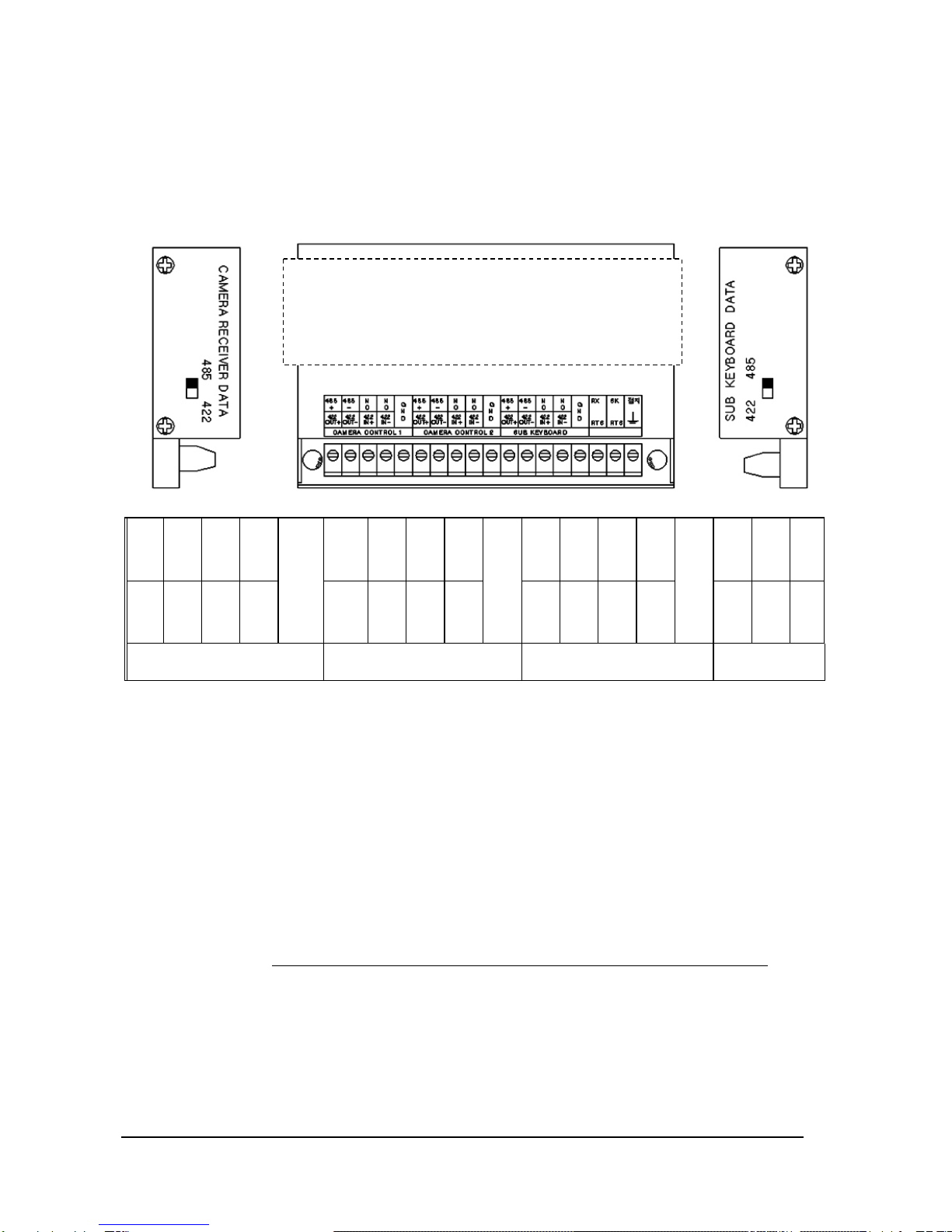

4). Data Box (Junction box)

Set the communication mode to either RS-485 or RS-422 at your option.

INPUT/OUTPUT TERMINAL OF DATA JUNCTION BOX

Camera controls 1: This is the terminal that you can connect with up to 128 speed dome

cameras or receivers.

(Choose either 485 or 422 communication mode and connect in parallel)

Camera controls 2: this is the terminal that you can connect with up to 128 speed dome

cameras or receivers.

(Choose either 485 or 422 communication mode and connect in parallel)

(All together, 256 cameras can be controlled as above connection)

Sub keyboard: This is the terminal that you can connect sub-keyboard with when hoping to

use sub-keyboard and it does duplex transmission.

(Parallel connection is available when using RS485, but if you use RS422 only

1:1 connection is available.)

485+ 485- NC NC

GND

485+ 485- N C N C

GND

485+ 485- N C N C

GND

RTS

접지

422

OUT

422

OUT-

422

IN+

422

IN-

422

OUT+

422

OUT-

422

IN+

422

IN-

422

OUT

422

OUT-

422

IN+

422

IN-

CAMERA CONTROL 1 CAMERA CONTROL 2 SUB KEYBOARD

When communicating in RS-485, the switch(485/422)

at both sides should be moved to RS-485.

(It is set to RS-485 when we take from warehouse)

3. How to Use in Detail

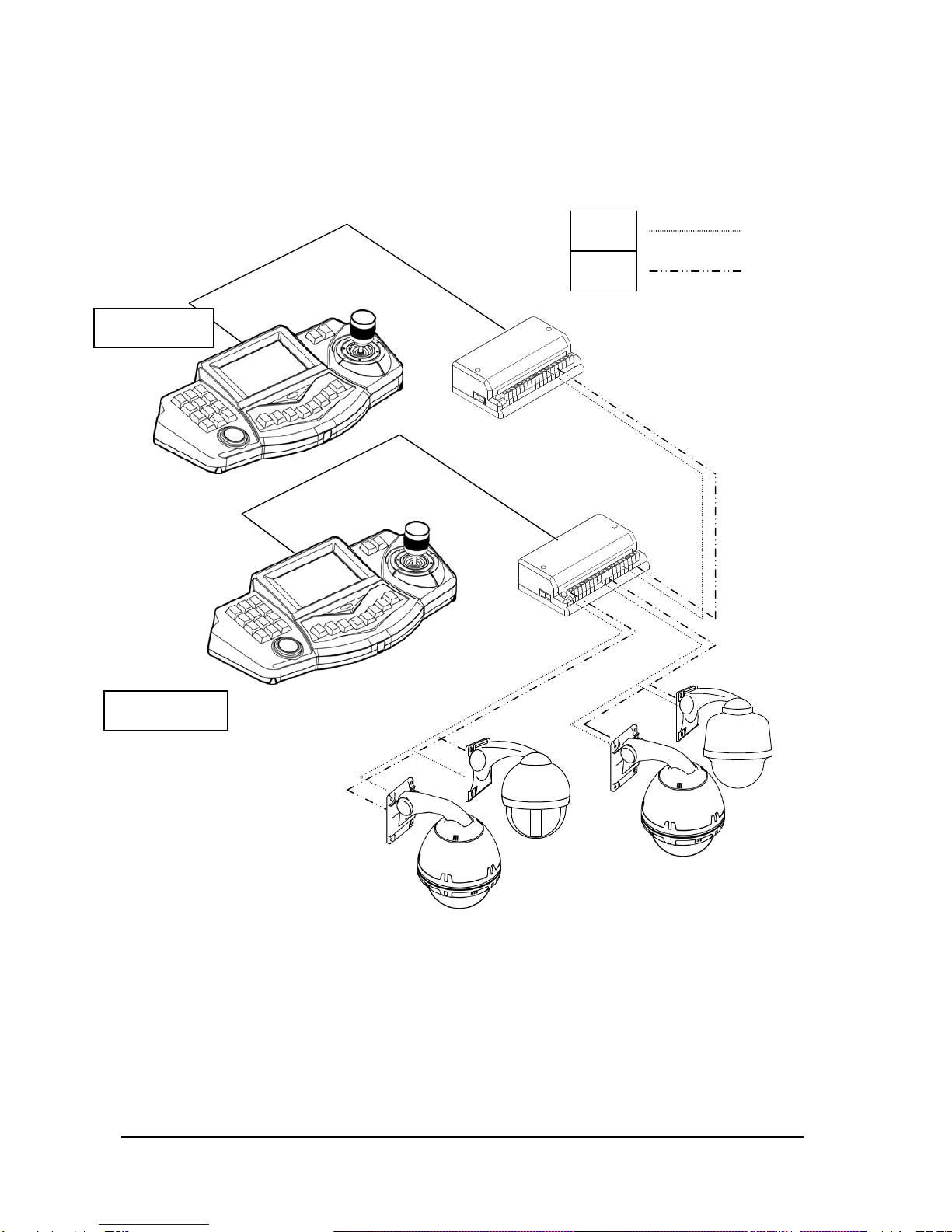

1). Basic Connection

2 lines (485+, 485-) can be used for data line.

(Ground could be of help when earth is stable, but normally 485+, 485- can be used for data

connection)

485-:

485+:

Sub Keyboard

Main Keyboard
