Da-Lite Designer Manual Manuale utente

INSTRUCTION BOOK FOR

Designer Manual

For Wall Mounting

Hardware Provided

(2) “V” Bars ( one is factory mounted to the back of the case; one will be mounted to the wall)

(6) Toggle Bolts, 4"

(6) Lead Shields, #1014 x 11/2"

(6) Phillips Flat Head Wood Screws, #10 x 2"

Tools Required

Electric Drill

Masonry Bit 5/16" (if mounting in solid masonry or concrete)

Screw Driver, #2 Flat Tip (if using toggle bolts)

or #2 Phillips (if mounting in solid masonry or concrete)

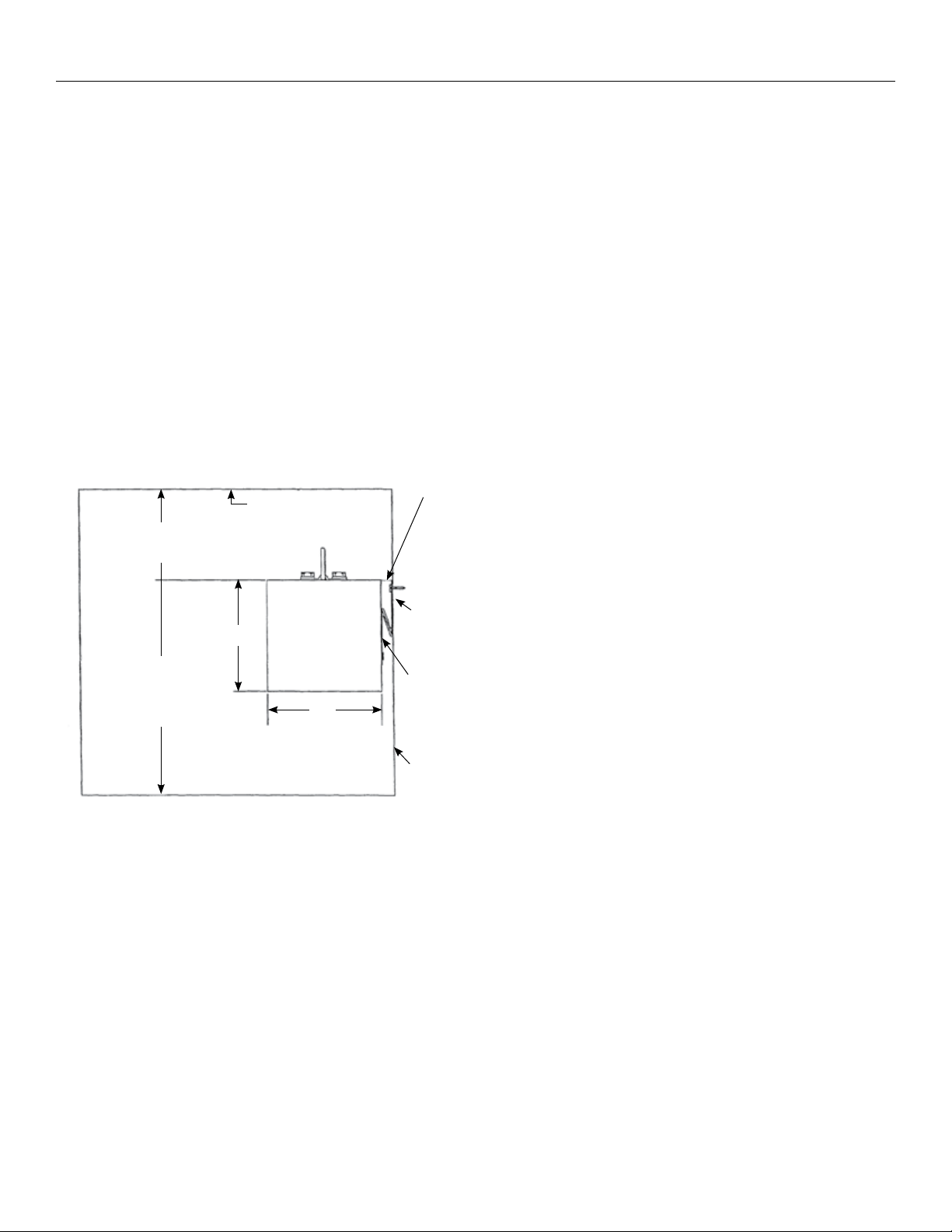

Mount Top Of

"V" Bar Flush

With Top Of Case

"V" Bar Mounted

To The Wall

"V" Bar Mounted To

The Back Of The Case

At The Factory

Wall

Floor Line

Ceiling

Allow A Minimum Of 1 ¼"

From The Ceiling

Determine

Measurement

To The Top Of

The Case

4 ¼"

Installation Instructions Maintenance

Determine the height of the top of the case from the loor.

This will be the height of the wall mounted “V” bar.

Hold the loose “V” bar to the wall at the height determined above

(MAKE SURE IT IS LEVEL), and mark the location for the screw

holes. To mount the “V” bar on solid concrete or masonry wall,

drill 5/16" holes and insert the lead shields. Fasten the “V” bar to

the wall using the #10 x 2" wood screws. If you are mounting to a

hollow wall, drill 1/2" holes and insert the toggle bolts. Then fasten

the “V” bar to the wall with the toggle bolts. Now set the case in

place on the wall with the “V” bar of the case nestled into the

“V” bar on the wall.

For Ceiling Suspension

Position and properly anchor screw hooks into ceiling, beam

or other solid surface. Then proceed to use the two “D” rings

that are factory mounted to the top of the case to hang the

case securely.

To Lower And Raise Picture Surface

To lower the picture surface, pull the screen down all the way.

Then hesitate and allow the screen to retract very slowly until it

locks in place. To raise the picture surface pull down on the pull

bail, then raise quickly, as a window shade. Keep control of the

picture surface. Do not allow it to roll uncontrolled into the case

or damage to the screen is sure to result.

Projection Screen Maintenance

Protect your screen by keeping it rolled in its case when not

in use. Always examine both front and back of surface before

rerolling into case to make certain screen is free of dust, dirt

or other foreign matter. Use a very soft duster brush to gently

remove foreign particles.

Case Maintenance

The case of the screen has a Resistovar inish. This inish is

resistant against: water, alcohol, marring, scratching, and nail

polish remover. To help maintain the best appearance of the

case it is recommended that the case be polished with any

reputable liquid or paste wax polish. An oil type polish is not

recommended because it allows for the collection of dust and

inger prints. When necessary, this inish may be wiped with

a damp soft cloth using a mild soap solution, rinsed with

clear water and dried with a soft cloth.

LIMITED ONE YEAR WARRANTY ON DA-LITE PRESENTATION PRODUCTS

Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in

materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly

operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the

factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered

with or repaired by a person other than authorized Da-Lite personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.

Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,

transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.

To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,

or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives

you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION

OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,

Warsaw, IN 465810137, (574) 2678101, (800) 6223737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS

WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DA-LITE WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

76488

A Milestone AV Technologies Brand

3100 North Detroit Street

Warsaw, Indiana 46582

P: 574.267.8101 or 800.622.3737

F: 574.267.7804 or 877.325.4832

E: info@da-lite.com

www.da-lite.com

DL–0268 01.14
