Instruction Book for

TENSIONED LARGE COSMOPOLITAN®

ELECTROL®

9'x12', 180" Diagonal and Larger Sizes

The Da-Lite Difference.

IMPORTANT SAFETY INSTRUCTIONS

When using your video equipment, basic safety precautions should

always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled, or

contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating at

least equal to that of the appliance should be used. Cords rated

for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric shock

when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by the

manufacturer may cause a risk of fire, electric shock, or injury to

persons.

SAVE THESE INSTRUCTIONS

Carefully unpack screen and remove outer wrapping from case.

The slat retainer screws must be removed before installation. The slotted 1/4" hex screws fasten through the back of the

case (at the bottom) into the slat bar. Orient the case with the slat down and then remove the screws. The case must

remain in that orientation throughout the installation process to avoid fabric damage.

The Tensioned Cosmopolitan® Electrol® comes with brackets to allow for wall mount or ceiling mount installations.

Procedures for each method are as follows:

INSTALLATION

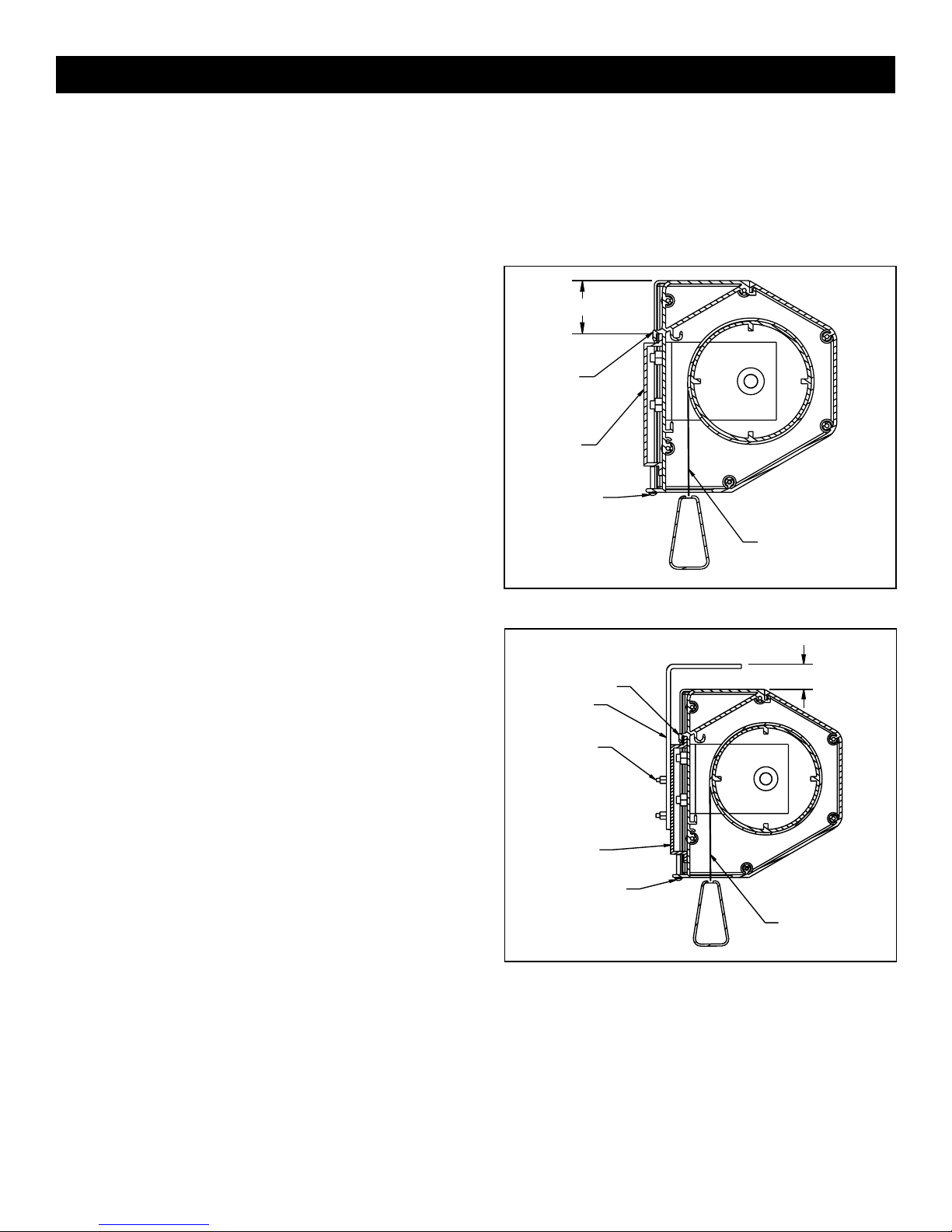

CASE HOOK

VIEWING SURFACE

(AUDIENCE SIDE)

FIGURE 2

FIGURE 1

VIEWING SURFACE

(AUDIENCE SIDE)

CASE HOOK

WALL

MOUNT

BRACKET

STOP SCREW

CEILING

MOUNT

BRACKET

5/16x3/4"

BOLT, NUT

AND LOCK

WASHER

WALL MOUNT

BRACKET

STOP SCREW

1-1/8"

Wall Mount

1. The wall mount bracket should be fastened to wall

studs or some reinforcement within the wall. Concrete

or brick walls require special fasteners and anchors.

2. The wall bracket has holes spaced at 16" and 24" to

align with most wall studs.

3. The bracket must be level and plumb.

4. Keep in mind you will need at least 2-3/4" between the

ceiling and the top of the wall mount bracket to be

able to position the case on the bracket.

5. Mount the screen case on the wall bracket as shown

in figure 1. Be sure the case is fully seated on the

bracket. Tighten the stop screws against the wall

bracket.

Ceiling Mount

1. Be sure the ceiling has adequate reinforcement to

attach the screen brackets.

2. Attach the ceiling brackets to the wall mount bracket

using the supplied 5/16" x 3/4" bolts, washers and

nuts.

3. Position the ceiling bracket asssembly on the ceiling

and attach with 5/16" bolts (not supplied). The bolts

should be long enough to pass through the drywall or

ceiling tile and penetrate at least 1-1/2" into the

reinforcement in the ceiling.

4. Mount the screen on the wall bracket as shown in

figure 2. Be sure the case is fully seated on the

bracket. Tighten the stop screws against the wall

bracket.

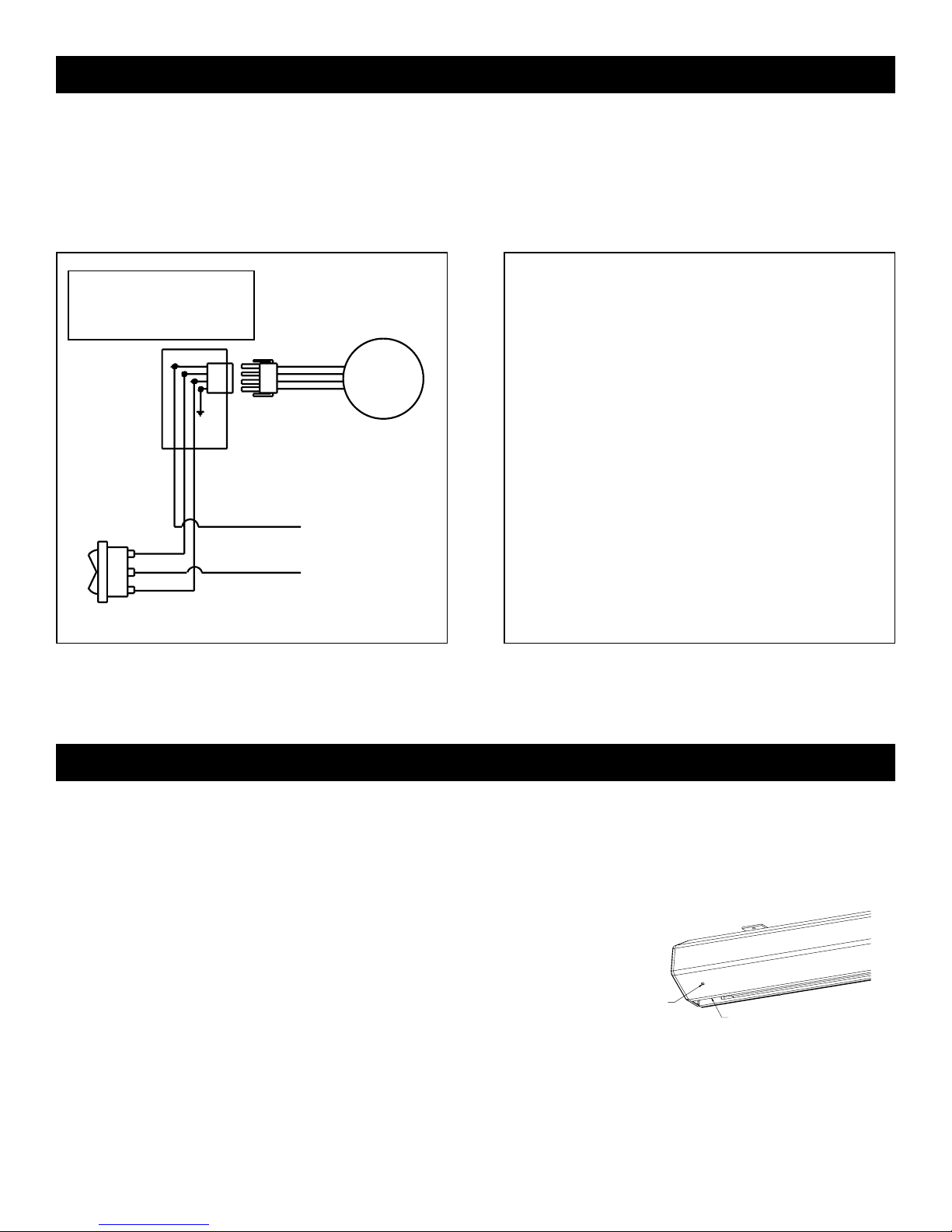

TENSIONED COSMOPOLITAN® ELECTROL® INSTALLATION FOR SCREENS WITHOUT A BUILT-IN LOW VOLTAGE

CONTROL

Internal wiring has been completed at the factory. Installer must route power to the wall switch and to the junction box

located on the left end of the screen case.

See wiring diagram below for wire connections.

NOTE: This screen can only be controlled by a single 120VAC or 240VAC wall switch. To use multiple switches, an optional low

voltage control must be used.

OFF

DOWN

THIS SWITCH CAN NOT

BE USED WITH LVC.

120V WIRING DIAGRAM

FOR STANDARD

WALL SWITCH

SPDT SWITCH WITH

CENTER OFF AC (COMMON)

AC HOT 120VAC 60HZ 1 AMP

BLACK/YELLOW

BLACK

RED

WHITE

BLACK (DOWN)

RED (UP)

JUNCTION BOX

LOCATED IN LEFT

ENDCAP

WHITE

BLACK

RED

GREEN

MOTOR

NOTE: A SINGLE SWITCH CANNOT BE USED TO OPERATE MORE THAN

ONE SCREEN. CONTACT THE FACTORY FOR FURTHER

INFORMATION.

Screen travel is stopped automatically in the down and up positions by the limit switches that are preset at the factory.

No further adjustment is necessary.

If you need to make minor stop position adjustments see the appropriate step below.

SETTING THE DOWN LIMIT POSITION

NOTE: One turn of the limit screw equals approximately 2" of screen travel.

TO REDUCE SCREEN DROP:

Turn the down limit switch screw clockwise to decrease the

amount of screen drop. Run the screen down to test the stop

position. If the screen drops too far, raise the screen about one foot

and adjust the limit switch again. Repeat until the desired position

is set.

TO INCREASE SCREEN DROP:

Turn the down limit switch screw counterclockwise to increase the amount of screen drop. Run the screen down to

test the stop position. If the screen does not drop enough, raise the screen about one foot and adjust the limit

switch again. Repeat until the desired position is set. Do not adjust for more drop than what was ordered. At least

1-1/2 wraps of fabric must remain on the roller.

SCREEN ADjUSTMENT FOR SCREENS WITHOUT A BUILT-IN LOW VOLTAGE CONTROL

UP LIMIT SWITCH ACCESS

THROUGH CASE OPENING

FIGURE 3

DOWN LIMIT

SWITCH

ACCESS HOLE

240 VOLT WIRING DIAGRAM FOR

STANDARD WALL SWITCH:

Da-Lite offers two styles of 240 volt

wall switches for standard operation.

Please see wiring diagram in wall

switch boxes included with screen.

SETTING THE UP LIMIT POSITION

CAUTION: Do not allow the slat bar to wrap over the top of the roller when the screen is rolling into the case. The screen could

be damaged.

SCREEN TRAVELS INTO CASE TOO FAR:

Turn the up limit switch screw clockwise to decrease the amount of travel. Run the screen up to test the stop

position. If the screen does not stop properly, lower the screen about one foot and turn the limit switch again.

Repeat until the desired position is set.

SCREEN DOES NOT TRAVEL FAR ENOUGH INTO CASE:

Turn the up limit switch screw counterclockwise to increase the amount of up travel. Run the screen up to test the

stop position. If more travel is desired, lower the screen about one foot and adjust the limit switch again. Repeat

until the desired position is set.

SCREEN ADjUSTMENT FOR SCREENS WITHOUT A BUILT-IN LOW VOLTAGE CONTROL

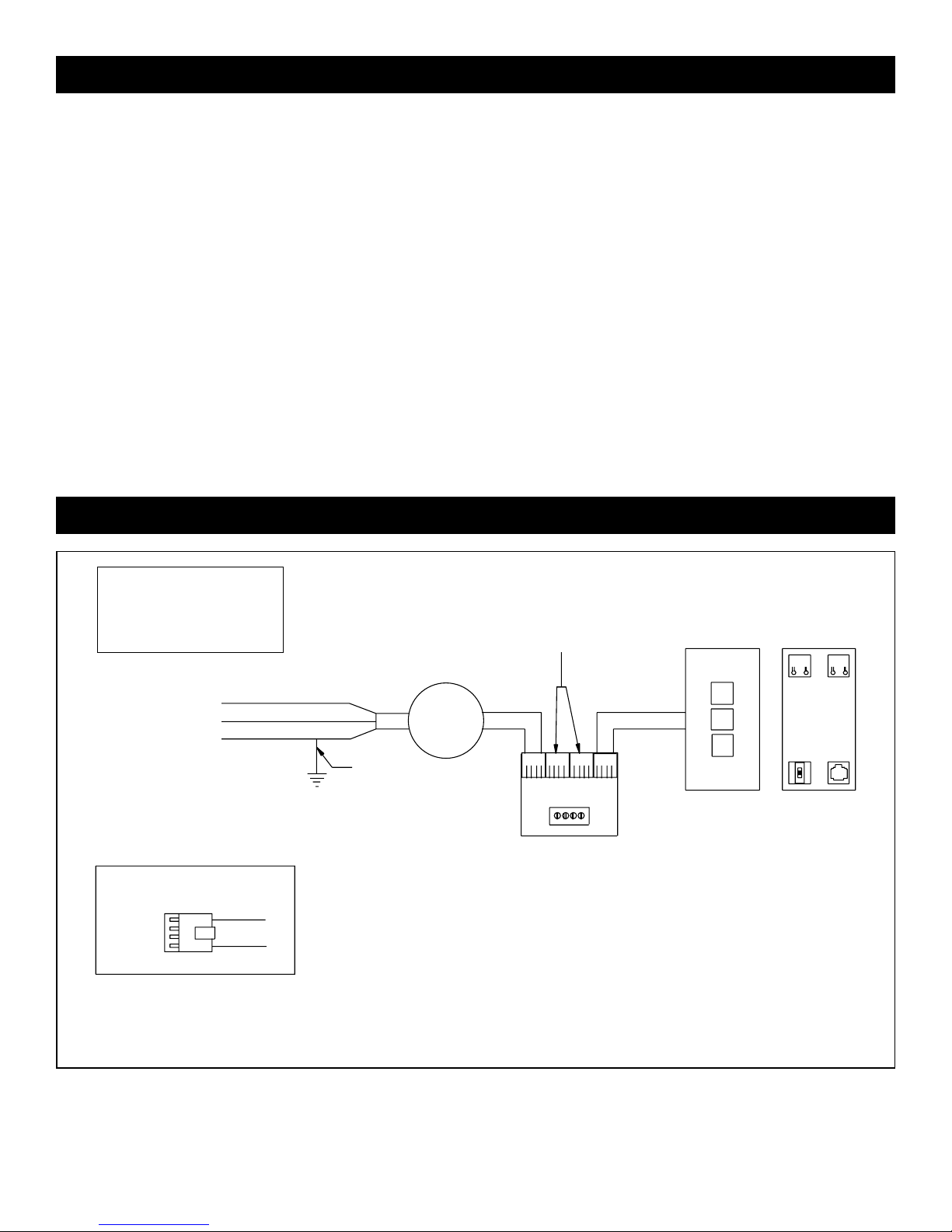

TENSIONED COSMOPOLITAN® ELECTROL® INSTALLATION FOR SCREENS WITH A BUILT-IN LOW VOLTAGE

CONTROL

LOW-VOLTAGE WALL SWITCH

OPTIONAL IR AND RF

REMOTE CONTROL

MOTOR

WHITE (COMMON)

BLACK (HOT)

GREEN

GROUND TO CASE

120VAC 60HZ

120V WIRING DIAGRAM

WITH OPTIONAL BUILT-IN

LOW VOLTAGE CONTROL

SPLITTER

RJ9

STOP

DOWN

GROUND–MUST BE

CONNECTED TO

BUILDING GROUND

RJ9

GREEN

FRONT BACK

UP DN GND +5V

3-POSITION

SWITCH RJ9

ILT RJ9 PIN-OUTS

(TAB IS FACING UP)

IR or UP BLACK

GND COMMON RED

+5V GREEN

DN or DATA WHITE

+5V

COM

DRY CONTACTS

FIGURE 4

IMPORTANT NOTE: The wall switch is REQUIRED to make any limit

switch adjustments, EVEN if a third party control

system is used. Therefore, it is advised to wire the

switch or provide a 4-conductor connection that is

accessible.

TENSIONED COSMOPOLITAN® ELECTROL® INSTALLATION FOR SCREENS WITH A BUILT-IN LOW VOLTAGE

CONTROL

SCREEN ADjUSTMENT FOR SCREENS WITH A BUILT-IN LOW VOLTAGE CONTROL

1. Remove the cover plate from the 3-button wall switch and remove the switch from the junction box.

2. Locate small 3-position switch on back of wall switch. See Figure 4 for 120V screens or Figure 5 for 220/240V

screens.

3. To adjust the down limit switch, slide the 3-position switch to the down position. Press and hold the down button

to run the screen down to the desired stop position. Release the button to stop the screen. DO NOT PUSH THE

STOP BUTTON.

4. When the screen is in the desired down position, slide the 3-position switch to the off (center) position. The down

limit switch is now set.

5. To adjust the up limit switch, slide the 3-position switch to the up position. Press and hold the up button to run the

screen up to the desired stop position. Release the button to stop the screen. DO NOT PUSH THE STOP BUTTON.

6. When the screen is in the desired up position, slide the 3-position switch to the off (center) position. The up limit

switch is now set.

7. To test limit switch setting, make sure the 3-position switch is in the off (center) position. Press and release the up

or down button on the wall switch to operate the screen.

8. Replace switch and cover plate on the wall.

NOTE: If stop button is pressed, the wall switch will reverse direction. To correct this, press the stop button again. This

will reset the switch. You will have to re-set both the up and the down settings.

IMPORTANT NOTE: The wall switch is REQUIRED to make any limit switch adjustments, EVEN if a third party control

system is used. Therefore, it is advised to wire the switch or provide a 4-conductor connection that is

accessible.

LOW-VOLTAGE WALL SWITCH

OPTIONAL IR AND RF

REMOTE CONTROL

MOTOR

BLUE (COMMON)

BROWN (HOT)

GREEN

GROUND TO CASE

240VAC 50HZ

240V WIRING DIAGRAM

WITH OPTIONAL BUILT-IN

LOW VOLTAGE CONTROL

RJ9

STOP

DOWN

GROUND–MUST BE

CONNECTED TO

BUILDING GROUND

RJ9

GREEN

FRONT BACK

UP DN GND +5V

3-POSITION

SWITCH RJ9

ILT RJ9 PIN-OUTS

(TAB IS FACING UP)

IR or UP BLACK

GND COMMON RED

+5V GREEN

DN or DATA WHITE

DRY CONTACTS

SPLITTER

+5V

COM

FIGURE 5

IMPORTANT NOTE: The wall switch is REQUIRED to make any limit

switch adjustments, EVEN if a third party control

system is used. Therefore, it is advised to wire the

switch or provide a 4-conductor connection that is

accessible.

TROUBLESHOOTING

SYMPTOM

1. Screen will not operate.

Motor does not hum.

2. Incorrect stopping position in

downward direction.

3. Incorrect stopping position in

upward direction.

4. Noise.

NOTE: Screen will operate with a

low pitched hum.

5. Coasting.

CAUSE

(a) Blown fuse.

(b) Tripped circuit breaker.

or junction.

Power at junction box

(d) Thermal overload tripped.

(e) Broken wire in the “down” or “up”

position.

(f) Defective motor, limit switch or

capacitor.

(g) Capacitor burned out.

(a) Lost roller wrap.

(b) “Down” limit switch out of

adjustment

(a) Lost roller wrap.

(b) “Up” limit switch out of

adjustment

(a) Gear Noise.

(a) Defective brake.

SOLUTION

(a) Replace fuse.

(b) Reset circuit breaker.

wire connections. Correct any

improper connections.

“Down” Position

Check for power across black

and white leads.

“Up” Position

Check for power across red

and white leads.

(d) Let motor cool down for 15

minutes. Try again.

(e) Check for continuity. Cut off old

splice and reconnect.

(f) Replace motor assembly.

NOTE: Motor is a sealed assembly.

(g) Replace motor assembly.

(a) See instructions below.

(b) See installation instructions.

(a) See instructions below.

(b) Adjust “up” limit switch. See

installation instructions

(a) Replace motor assembly.

LIMITED ONE YEAR WARRANTY

ON DA-LITE PRESENTATION PRODUCTS

Da-Lite Screen Company, Inc. warrants its products to the original purchaser only, to be free from

defects in materials and workmanship for a period of one (1) year from the date of purchase by

the original purchaser provided they are properly operated according to Da-Lite’s instructions and

are not damaged due to improper handling or treatment after shipment from the factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental

damage, or which has been tampered with or repaired by a person other than authorized Da-Lite

personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option)

the defective part of the merchandise. Returns for service should be made to your Da-Lite dealer.

If it is necessary for the dealer to return the screen or part to Da-Lite, transportation expenses

to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in

shipment. To protect yourself against damage or loss in transit, insure the product and prepay all

transportation expenses.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANT ABILITY. Any implied

warranties of ﬁtness for use, or merchantability, that may be mandated by statute or rule of law

are limited to the one (1) year warranty period. This warranty gives you speciﬁc legal rights, and

you may also have other rights, which vary from state-to-state. NO LIABILITY IS ASSUMED

FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION OF

EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY

NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may

contact our Sales Partners at PO Box 137, Warsaw, IN 46581-0137, (574) 267-8101, (800) 622-3737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE

BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH

DA-LITE’S WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

Printed in U.S.A. 98770 Rev. 7/09

Altri manuali per TENSIONED LARGE COSMOPOLITAN ELECTROL

Indice

Altri manuali Da-Lite Schermo di proiezione

Da-Lite

Da-Lite Multi vision imager Manuale utente

Da-Lite

Da-Lite TENSIONED EXECUTIVE ELECTROL Manuale utente

Da-Lite

Da-Lite AdvantageManual With CSR Manuale utente

Da-Lite

Da-Lite ELECTROL Manuale utente

Da-Lite

Da-Lite Presenter P-50 Manuale utente

Da-Lite

Da-Lite Tensioned large advantage deluxe electrol Manuale utente

Da-Lite

Da-Lite Parallax Thin Manuale utente

Da-Lite

Da-Lite PRO IMAGER Manuale utente

Da-Lite

Da-Lite Viewshare tensioned Advantage Electrol Manuale utente

Da-Lite

Da-Lite DescenderPro Manuale utente

Da-Lite

Da-Lite ADVANTAGE ELECTROL Manuale utente

Da-Lite

Da-Lite Slimline Electrol Manuale utente

Da-Lite

Da-Lite Da-Glas Manuale utente

Da-Lite

Da-Lite Model B Manuale utente

Da-Lite

Da-Lite Whiteboard Mount Manuale utente

Da-Lite

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite Tensioned Conference Electrol Manuale utente

Da-Lite

Da-Lite Contour Electrol Manuale utente

Da-Lite

Da-Lite FullVision Manuale utente

Da-Lite

Da-Lite DESIGNER DA-TAB ELECTROL Manuale utente

Da-Lite

Da-Lite DUAL MASKING ELECTROL Manuale utente

Da-Lite

Da-Lite Advantage Manual With CSR Manuale utente

Da-Lite

Da-Lite TENSIONED PROFESSIONAL ELECTROL Manuale utente

Da-Lite

Da-Lite Cosmopolitan Electrol Manuale utente

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Elite Screens

Elite Screens Elite Tripod Series Manuale utente

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

Elite Screens

Elite Screens M85XWS1-SRM Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

Elite Screens

Elite Screens Starling 2 Series Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente

Draper

Draper Envoy Manuale
